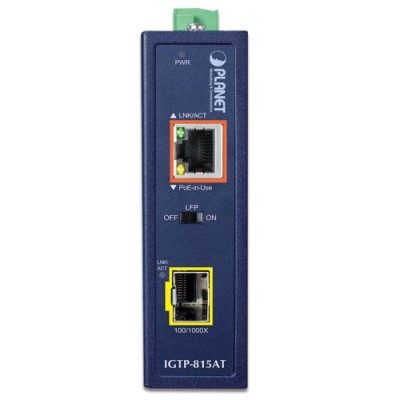

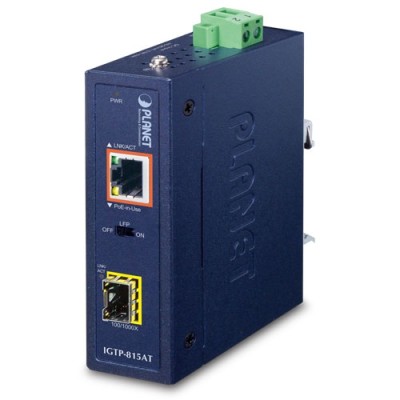

PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter

PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
PLANET IGTP-815AT Industrial Compact 100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ Media Converter
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IGTP-815AT
  • Βαρος: 0.42kg
  • Διαστασεις: 7.00 x 3.00 x 10.40
174,67€
Χωρίς ΦΠΑ: 140,87€

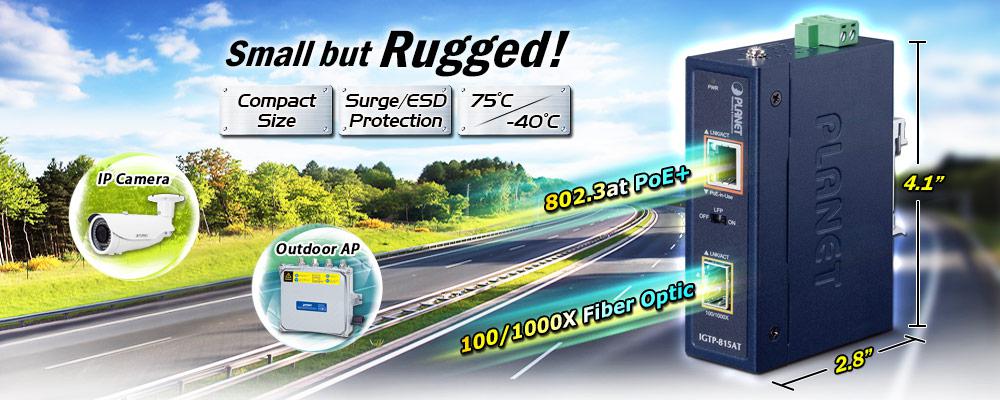

Ruggedly Built for Harsh Environments

PLANET IGTP-815AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-815AT provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.











As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGTP-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.



IEEE 802.3at PoE Plus

Complying with the IEEE 802.3at Power over Ethernet Plus (PoE+) standard, the IGTP-815AT forwards Gigabit speed Ethernet data transmission and provides a maximum of 36-watt power output over an additional 100m UTP cable to a 802.3af/at PoE PD (powered device) installed in a remote area where sufficient and reliable power input is required. Users can easily upgrade their current networks without the need of software configuration.











Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters. To flexibly extend the PoE deployment range, the IGTP-815AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.











Interactive Network Detection

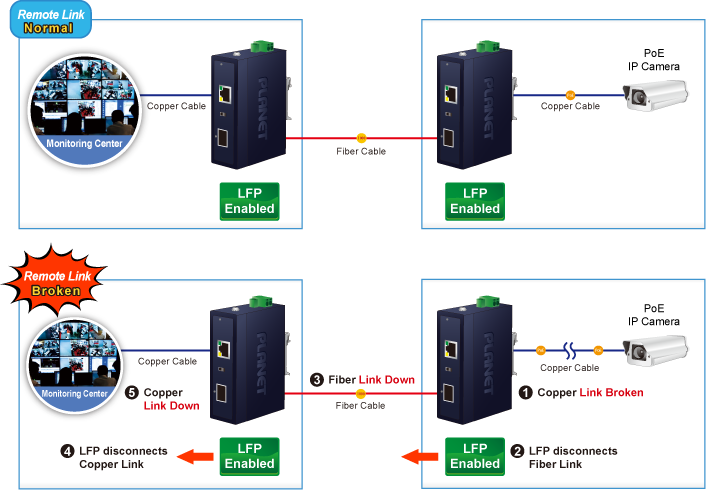

The IGTP-815AT can support LFP (Link Fault Passthrough) function via its built-in DIP switch. The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR):

  •  LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission.
  •  LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission

Both of which can immediately alarm the administrators the issue from the link media and provide efficient solution to monitor the remote network.











Environmentally Hardened Design

The IGTP-815AT is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the IGTP-815AT is ideal for service providers, campuses and public areas to deploy outdoor PoE wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.



Robust Protection

The IGTP-815AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Flexible and Easy Installation with Limited Space

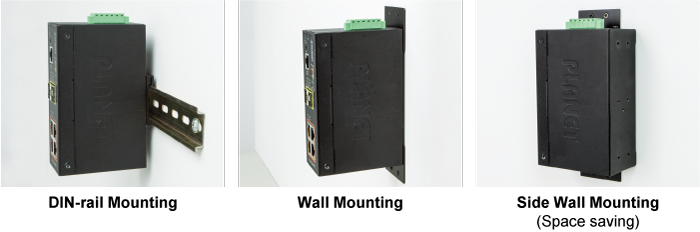

The compact sized IGTP-815AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.











Flexible and User-friendly PoE Deployment with Gigabit Fiber Extension

For the places difficult to find the power outlet, the IGTP-815AT provides the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n/ac) wireless LAN access points and other network devices that need higher power to function normally.

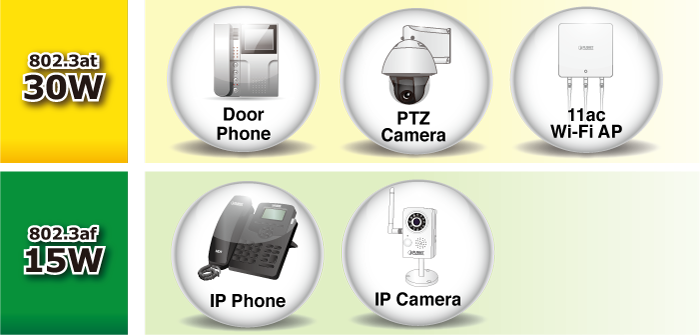

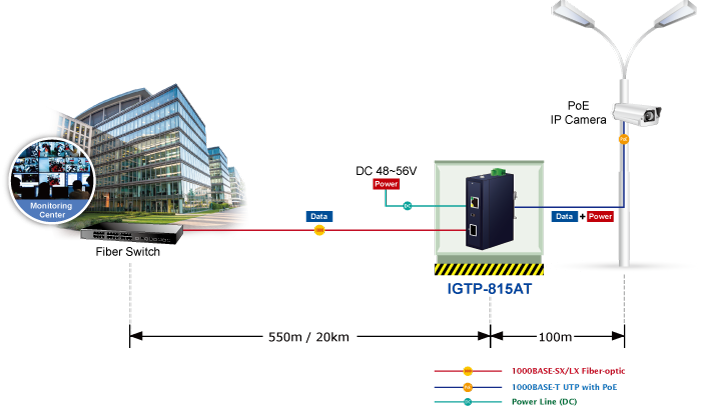

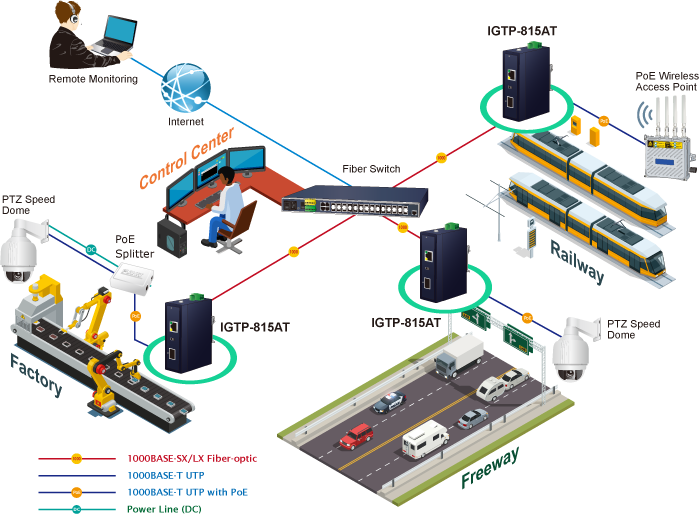

For instance, users can flexibly install security IP camera, wireless access point and other IEEE 802.3af/at compliant network equipment in the public areas such as stations, freeways, airports and campuses for surveillance and wireless roaming needs.









Physical Port

  •  1-port 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ injector function
  •  One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode

Power over Ethernet

  •  Complies with IEEE 802.3at PoE Plus end-span PSE
  •  1 IEEE 802.3at/af device powered
  •  Supports PoE Power up to 36 watts for PoE port
  •  Provides DC 48~56V power over RJ45 Ethernet cable to PD with Ethernet port
  •  Auto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
  •  Remote power feeding up to 100m
  •  IEEE 802.3at/af PoE splitter devices compatible

Layer 2 Features

  •  Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
  •  Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

Hardware

  •  DIP switch: LFP (Link Fault Passthrough) and FEF (Far End Fault) mode selection

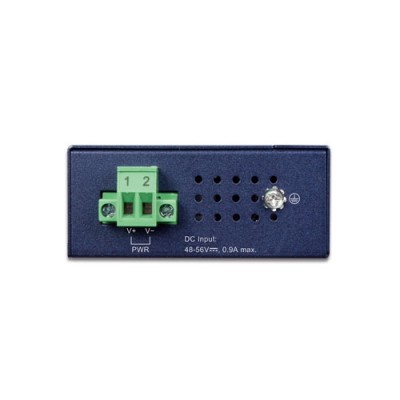

Industrial Case and Installation

  •  IP30 metal case
  •  DIN-rail and wall-mount designs
  •  48V~56V DC  power with reverse polarity protection
  •  Connective removable terminal block
  •  Supports 6000 VDC Ethernet ESD protection
  •  -40 to 75 degrees C operating temperature
  •  Free fall, shock-proof and vibration-proof for industries
Hardware Specifications
Copper Port10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance
Auto-negotiation, auto MDI/MDI-X with PoE injector function
SFP Slot1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Flow ControlBack pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size9K
LEDSystem: Power (Green)
Fiber 100/1000BASE-X: LNK/ACT (Green)
TP 10/100/1000BASE-T: LNK/ACT (Green)
PoE: Power-in-use (Amber)
Dimensions (W x D x H)30 x 70 x 104 mm
Weight231g
Power RequirementsDC 48~56V, supports reverse polarity protection
(>51V DC for PoE+ output recommended)
Power ConsumptionSystem ON without loading
DC 48V: 0.96W/3.27BTU
DC 56V: 1.12W/3.82BTU
Full loading with PoE
DC 48V:35W/119BTU(PoE:30W)
DC 56V:42W/143BTU(PoE: 36W)
DIP SwitchOff: LFP (Link Fault Passthrough) disable
On: LFP (Link Fault Passthrough) enable
FEF (Far End Fault) works with LFP to prevent data loss
The DIP switch is turned off by default
EnclosureIP30 metal case
InstallationDIN-rail kit and wall-mount ear
ESD Protection6KV DC
Cables10/100/1000BASE-T:
2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)
EIA / TIA-568 100-ohm STP (maximum 100 meters)
100BASE-FX/1000BASE-SX/LX:
Multi-mode: 50/125μm or 62.5/125μm optical fiber
Single-mode: 9/125μm optical fiber
Power Over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus
PoE Power Output48~56V DC: 36 watts max.
PoE Power Supply TypeEnd-span
Power Pin Assignment1/2(+), 3/6(-)
PoE Power Budget36 watts
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Protocols and Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet (EEE)
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environment
TemperatureOperating: -40~75 degrees C
Storage: -40~85 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-02-022.0IGTP-815AT



User's Manual

DateVersionDescriptionDownload
2021-08-272.1[Release for hardware version 2.0.]
Modify contents of user manual.
2021-05-282.0Release for hardware version 2.0.
