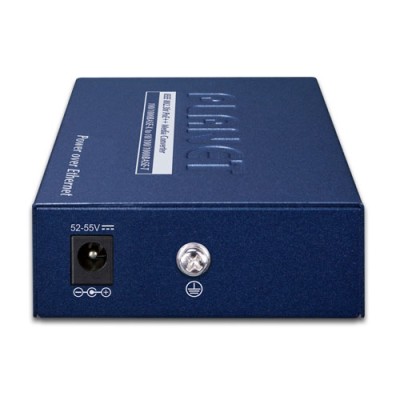

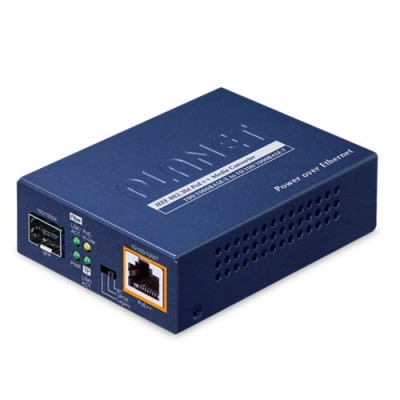

PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)

PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
PLANET GUP-805A-60W 100/1000BASE-X SFP to 10/100/1000BASE-T 802.3bt PoE++ Media Converter (60 Watts)
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: GUP-805A-60W
  • Βαρος: 0.87kg
  • Διαστασεις: 7.00 x 9.40 x 2.60
164,97€
Χωρίς ΦΠΑ: 133,04€

802.3bt PoE++ 60-watt Power over 4-pair UTP Solution

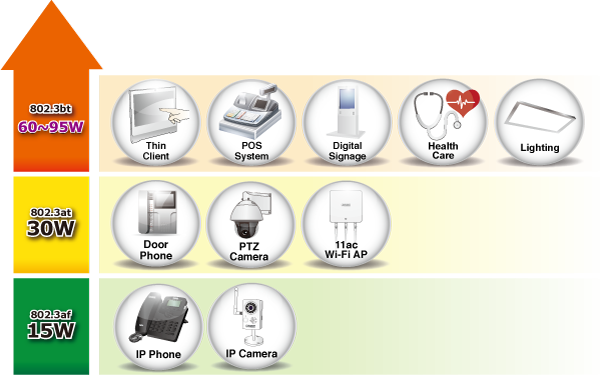

As PLANET GUP-805A-60W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 60 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings



With a total power budget of up to 60 watts for different kinds of PoE applications, the GUP-805A-60W provides a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.



Model
PoE Standard
PoE Budget
LAN Port Speed
SFP Slot Speed
GUP-805A-60W
IEEE 802.3af/at/bt
60 watts
10M/100M/1000Mbps
100M/1000BASE-X









High Performance and Steady Network Communications Guaranteed Despite Distance Extension

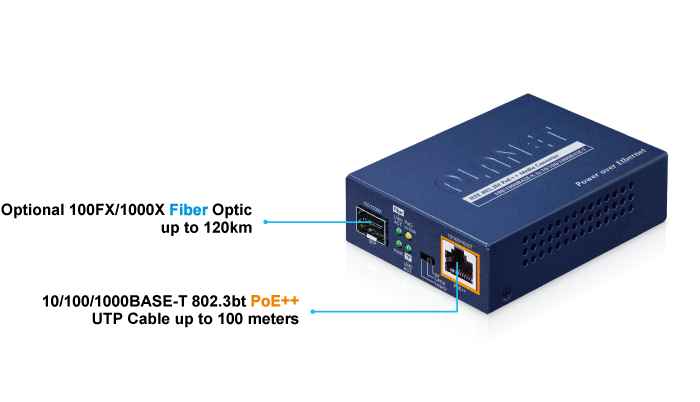

The GUP-805A-60W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-60W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications. The available SFP LC fiber interfaces are shown below:



Optic Mode
Connector Type
Distance
Multi-mode
Duplex LC220m/550m/2km
Single mode
Duplex LC
20/40/60/80/120km
Single mode WDM
Simplex LC
2/10/20/40/80/120km

  802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options

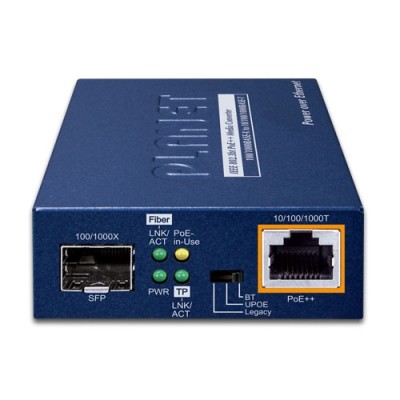

To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-60W provides one DIP switch for multi-PoE operation modes that include 60-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

  • 802.3bt PoE++ Power Output Mode
  • UPOE Power Output Mode
  • Legacy Power Output Mode



PoE Mode
Function
BT
This mode fully supports IEEE 802.3af/at/bt standards.
UPOE
This mode fully supports Cisco UPoE standards or PoH standards.
Legacy
The legacy detection is to identify the valid current signature of the PDs that do not fully follow the IEEE 802.3af/at/bt standard.
This protects against damage to the PDs as the right PoE mode is applied.



Flexible and User-friendly PoE Deployment with Gigabit SFP Fiber Extension

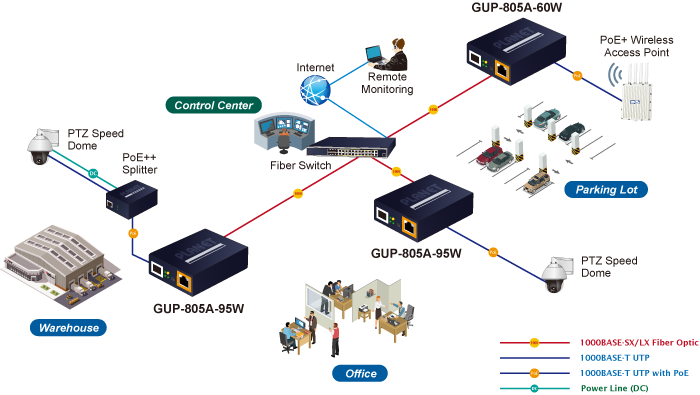

For the places difficult to find the power outlet, the GUP-805A-60W provides the easiest way to power network equipment such as PTZ (Pan, Tilt & Zoom) IP cameras, speed dome IP cameras, color touch-screen VoIP telephones, multi-channel (IEEE 802.11a/b/g/n/ac) wireless LAN access points and other network devices that need higher power to function normally. For instance, users can flexibly install security IP camera, wireless access point and other IEEE 802.3bt/at/af compliant network equipment in the public areas such as stations, freeways, airports and campuses for surveillance and wireless roaming needs.







Gigabit 802.3bt PoE++ and PoE+ Network Deployment Solution

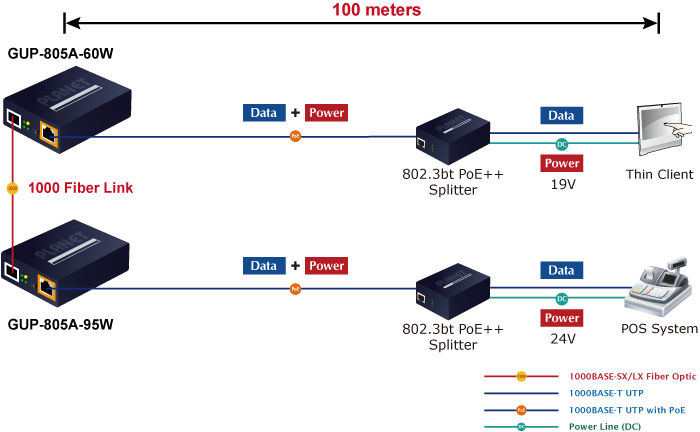

PLANET GUP-805A-60W can easily build an 802.3BT PoE++ networking solution for the enterprises. For instance, they can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GUP-805A-60W and 802.3bt PoE++ Splitter-POE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GUP-805A-60W, the POE-173S separates digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ (pan, tilt & zoom) network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.



Physical Port

  • Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
  • Copper RJ45 interface with Data + Power output
  • Copper port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X.
  • Fiber media allows
    • Multi-mode fiber using LC connector
    • Single-mode fiber using LC connector



Power over Ethernet

  • Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span + mid-span PSE
  • Backward Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE
  • Provides DC 52V~55V power over RJ45 Ethernet cable to devices with Ethernet port
  • RJ45 PoE++ port with built-in 802.3bt type-4 PoE 60W injector function
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • IEEE 802.3bt/IEEE 802.3at splitter devices compatibility



Layer 2 Features

  • Store-and-Forward mechanism
  • Non-blocking full wire-speed forwarding rate
  • IEEE 802.1Q Tag VLAN transparent, multicast pass through
  • 9K jumbo frame
  • IEEE 802.3x full-duplex and half-duplex back-pressure flow control to eliminate the loss of packets



Mechanical

  • Metal case
  • LED indicators for easy network diagnostics
  • DIP switch for PoE power feeding options (BT/UPOE/Legacy) selection
  • DC 52V~55V power input socket
  • Wall mounting or DIN-rail installation (optional)
  • Compact in size, easy installation
Interface
Copper Port10/100/1000BASE-T Ethernet RJ45 interface
Auto-negotiation, auto MDI/MDI-X with PoE injector function
SFP Interface100/1000BASE-X SFP interface
Fiber ModeMay vary on SFP Module
Fiber Port Type (connector)SFP, LC type
Fiber Maximum DistanceMay vary on SFP Module
Power Over Ethernet
PoE OutputIEEE 802.3af Power over Ethernet PSE
IEEE 802.3at Power over Ethernet Plus PSE
IEEE 802.3bt Power over Ethernet Plus Plus PSE
Power OutputPoE 52-55V DC, 60 watts
PoE Power Budget60 watts
PoE Power Supply TypeEnd-span + Mid-span
Power Pin Assignment802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
Hardware Specifications
EnclosureMetal case
Dimensions (W x D x H)94 x 70 x 26 mm
Weight144g
LEDSystem: PWR (Green)
Fiber 100/1000BASE-X: LNK/ACT(Green)
TP 10/100/1000BASE-T: LNK / ACT(Green)
PoE: Power-in-use (Amber)
DIP SwitchPoE power feeding options (BT/UPOE/Legacy) selection
Power SupplyDC 52V~55V Power Socket, external AC-to-DC adapter
InstallationWall-mount or DIN-rail installation(Optional)
Layer 2 Features
Switch ArchitectureStore-and-Forward
Forwarding RateNon-blocking full wire-speed forwarding rate
Flow ControlBack pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Maximum Frame Size9K
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Protocols and Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit Ethernet over TP
IEEE 802.3z Gigabit Ethernet over Fiber Optic
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
CablesTP: Cat 3/4/5/5e/6 UTP cable
Fiber: Multi-mode: 50/125m or 62.5/125μm optic fiber
Single-mode: 9/125μm optic fiber
Environment
TemperatureOperating: 0 ~ 50 degrees C
Storage: -10 ~ 70 degrees C
Humidity5% ~ 95% non-condensing
