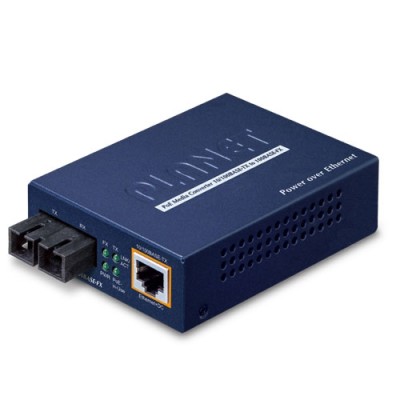

PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter

PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
PLANET FTP-802S15 100Base-FX to 10/100Base-TX PoE Media Converter
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: FTP-802S15
  • Βαρος: 0.52kg
  • Διαστασεις: 7.00 x 2.60 x 9.70
114,02€
Χωρίς ΦΠΑ: 91,95€

PoE
10M 100M
Metal Housing KG
802.3af End-span
15.4w per port


More than a Fiber Media Converter -- a Power over Ethernet Injector as well
The best data link and power sourcing solution for long reach network equipment

PLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies:
Media Conversion : 100Base-FX to 10/100Base-TX
Power over Ethernet : Power Sourcing Equipment (PSE), PoE Injector
Providing both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.

PoE Optimizes the Installation and Power Management of Network Devices
The IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.

Fiber-optic Link Capability Extends the Range of Network Deployments
The maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.

Advantage of Combined PoE and Media Conversion
With the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.

The IEEE 802.3af Equipment Installation
The FTP-80X provides the easiest way to power your Ethernet devices such as PLANET IEEE 802.3af Power over Ethernet Splitter (POE-151S / 152S) with non PoE Internet camera or wireless PoE access point (IAP-2000PE). For instance, security IP camera, wireless access point and other IEEE 802.3af compliant network equipment can be easily installed around corners in public areas such as stations or freeways for surveillance demands, or wireless roaming environment in campuses or airports can be set up.



  • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3afPower over Ethernet standards
  • Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port
  • IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss
  • Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port
  • Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation
  • 100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm) on FTP-802
  • 100Base-FX interface for up to 15km (single-mode fiber 9µm/125µm) on FTP-802S15

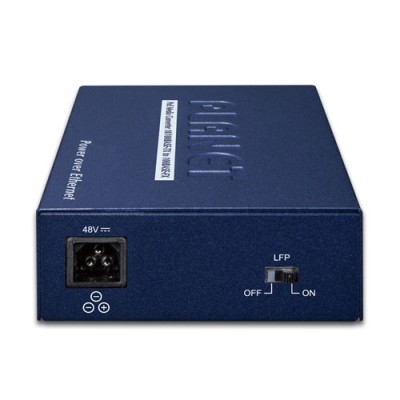

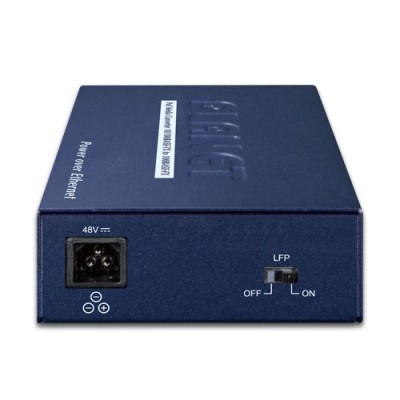

  • DIP-switch: LFP (Link Fault Pass-through) mode selection
  • Compact in size, easy to install

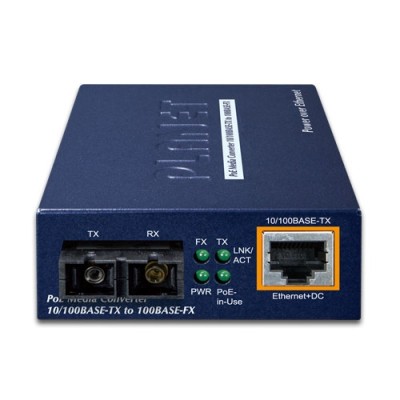

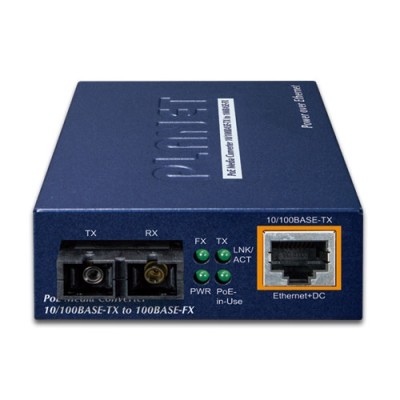

  • LED indicators for easy network diagnostics
Interface
Copper1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function
FiberFTP-802
Multi-mode: 50/125µm or 62.5/125µm optical fiber
FTP-802S15
Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
Fiber Port Type (connector)FTP-802 : SC
FTP-802S15 : SC
Cable DistanceFTP-802 : 2km
FTP-802S15 : 15km
Optical FrequencyFTP-802 : 1310nm
FTP-802S15 : 1310nm
Launch Power(dBm)FTP-802 : max.-14 min.-19.0
FTP-802S15 : max. -7 min.-20
Receive SensitivityFTP-802 : -34.5
FTP-802S15 : -28
Maximum Input PowerFTP-802 : -14
FTP-802S15 : -8
Power over Ethernet
PoE StandardIEEE 802.3af Power over Ethernet
Power OutputPoE 48V DC, max. 15.4 watts, 350mA
Power Pin Assignment1/2(+) , 3/6(-)
Hardware Specifications
Switch ArchitectureStore-and-Forward
Flow ControlBack pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
LEDSystem: Power, Status
FX / LNK: Data Active, Fiber Link
TX / LNK: 10/100 Link / Active
PoE in Use: Detects PSE Device
Dimensions (H x W x D)26 x 70 x 97 mm
Weight0.2 kg
Power Supply48V DC, 0.4A external AC-to-DC adapter
Operating Temperature0~50 degrees C
Operating Humidity5~90% (non-condensing)
LFP ModeEnable: when either TP port or FX port is broken, shut down the other port
Disable: Link LED indicators is still on if connection of the other end is broken
Standards Conformance
Regulation ComplianceFCC Part 15 Class A, CE
Protocols and Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
CablesTP: Cat 5/5e UTP cable
Fiber: Multi-mode: 50/125µm or 62.5/125µm optical fiber
Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
