PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)

PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
PLANET POE-171A-95 Single-Port Multi-Gigabit 802.3bt PoE++ Injector (95 Watts)
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: POE-171A-95
  • Βαρος: 0.85kg
  • Διαστασεις: 7.03 x 9.40 x 2.62
198,93€
Χωρίς ΦΠΑ: 160,43€

Advanced Multi-Gigabit and 802.3bt PoE++ Network Solution

PLANET POE-171A-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 10M/100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.

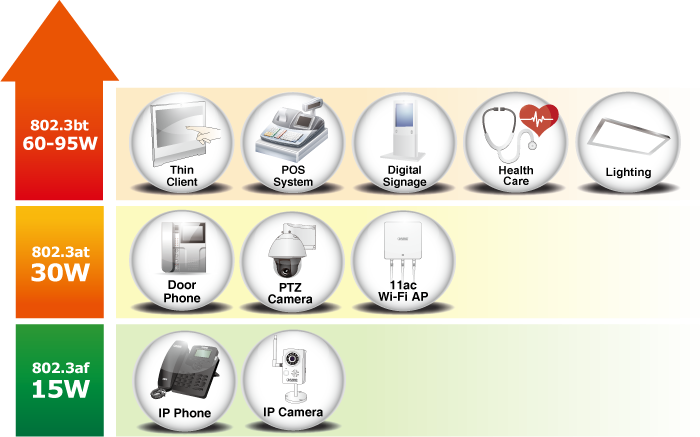

The POE-171A-95 is designed specifically to meet the demand for growing higher power required network equipment such as:

  • PTZ speed dome
  • AIO (All-in-One) touch PC
  • Remote digital signage display
  • Other network devices that need higher power to work normally

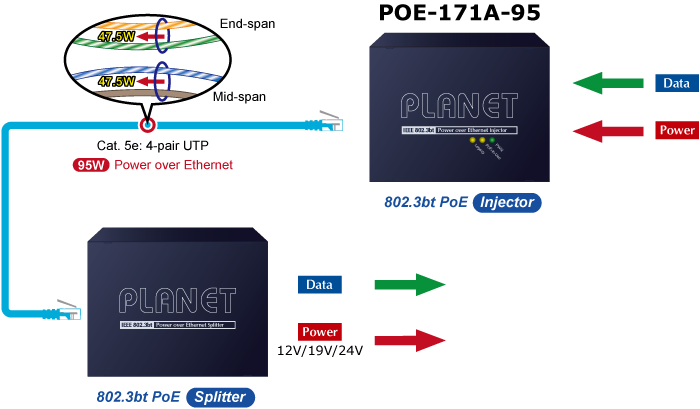

The POE-171A-95 delivers the Ethernet digital data with DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-173S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.



Intelligent LED Indicator for PoE Mode and Real-time PoE Usage



The POE-171A-95, when switched to the legacy mode, provides power to those PD devices which do not fully follow the IEEE 802.3af/at/bt standard. The Legacy LED will turn on when the Legacy mode is enabled. If the Legacy mode can’t power on the PD, the Force mode will be enabled automatically to provide the PD with a maximum of 60 watts.

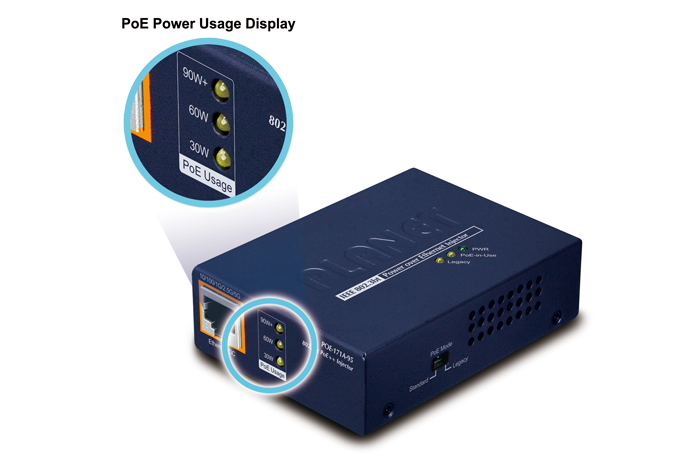

Moreover, the POE-171A-95 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. “PoE Power Usage” displayed on the front panel of the POE-171A-95 has three LED indicators of different power usages. Via the power usage LED, the POE-171A-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.

95 watts of Power over 4-pair UTP



Instead of delivering power over 2-pair twisted UTP – be it  end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), the POE-171A-95 provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.



PoE Standard

IEEE 802.3af
(802.3at Type 1)

IEEE 802.3at
(802.3at Type 2)

IEEE 802.3bt
(802.3bt Type 3)

IEEE 802.3bt
(802.3bt Type 4)

UPoE

Maximum Power delivered by PSE

15.4 watts

30 watts

60 watts

95 watts

95 watts

Power Available at PD

12.95 watts

25.5 watts

51 watts

71 watts

72 watts

Voltage Range

48V

50~57V

52~57V

52~57V

52~57V

Twisted-pair Used

2-pair

4-pair

4-pair

4-pair

Supported Modes

End-span or Mid-span

End-span + Mid-span

End-span + Mid-span

End-span + Mid-span

Supported Cabling

Cat. 3/5/5e/6

Cat. 5e/6

Cat. 5e/6

Cat. 5e/6

All-in-One and Compact Size Design

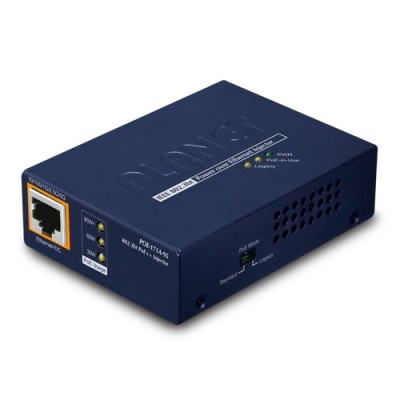

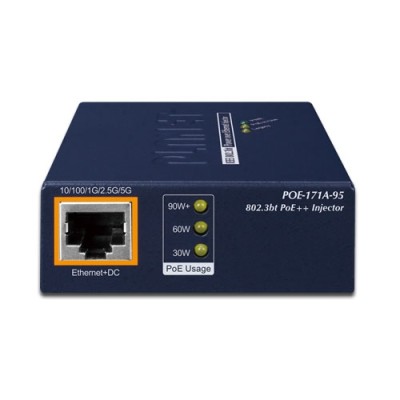

It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Besides, the POE-171A-95 comes in compact housing, and provides one 52~56V DC input power jacket, one power LED, PoE-in-use LED and legacy LED. Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the side panel. Simply plug in the Ethernet cables and DC power cord, and the POE-171A-95 is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software configuration.



Quick and Easy Cabling Installation for PoE Network Deployment

Backward compatible with both 802.3af/at PoE standards, the POE-171A-95 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-171A-95 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.



Installation of 802.3bt PoE Injector

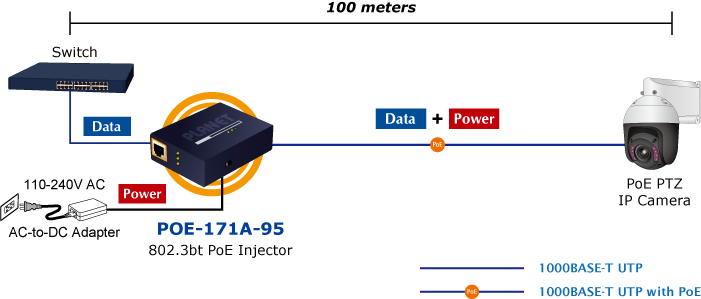

Due to the backward capability of IEEE 802.3af/at PoE standard, the POE-171A-95 can directly connect with any IEEE 802.3af/at end-nodes, such as PTZ (Pan, Tilt & Zoom) speed dome IP cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.





Installation of 802.3bt PoE Injector and Splitter

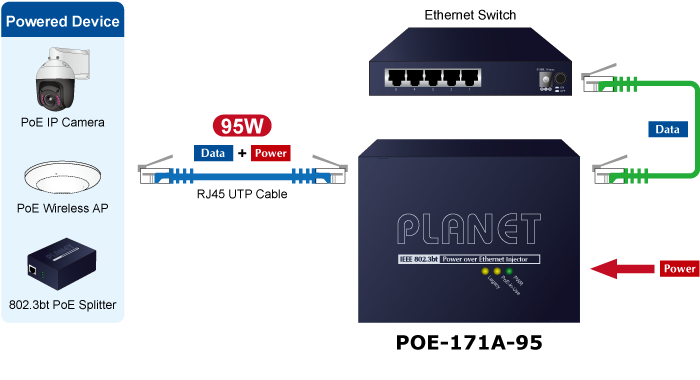

For a place which is hard to find the power inlet, the POE-171A-95 and IPOE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ network cameras, PTZ speed dome cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise office or home.





Extended Installation of IEEE 802.3bt Injector and PoE Network

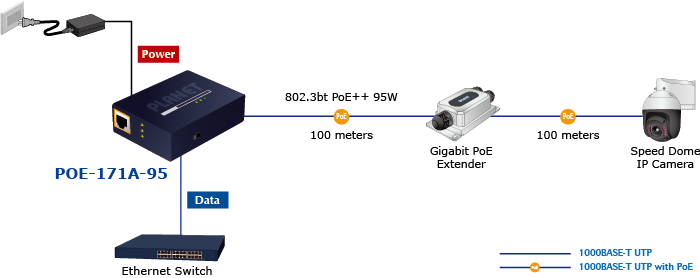

Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the POE-171A-95 and PLANET PoE Extender, IPOE-E174, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the POE-171A-95. The POE-171A-95 delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.





Interface

  • 2 RJ45 interfaces
    • 1-port Data + Power output
    • 1-port Data input
  • 1 DC 52~56V input power socket

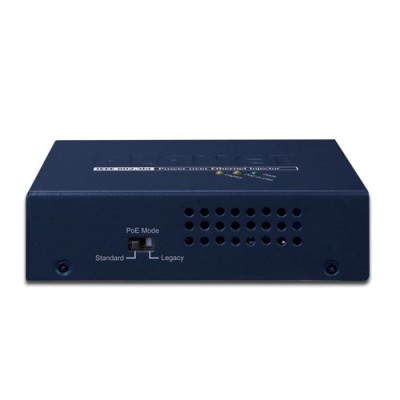

  • 1 PoE mode (standard/legacy and force) DIP switch



Power over Ethernet

  • Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
  • Supports PoE power up to 95 watts for PoE port
  • Auto-detection of PoE IEEE 802.3af/at/bt equipment and devices from being damaged by incorrect installation
  • Monitors the status of the total PoE usage in real time
  • Remote power feeding up to 100m
  • Auto-detection of DC input voltage



Hardware

  • All-in-one compact size design

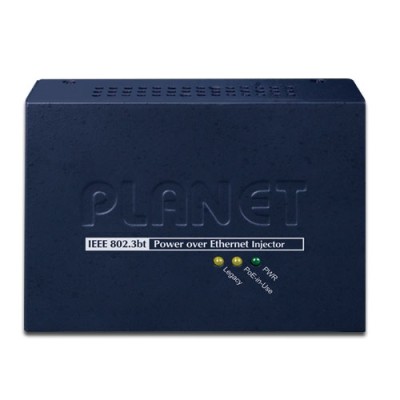

  • LED indicators for Power LED, PoE-in-Use LED, Legacy LED and PoE Usage LED
  • Wall-mount design
  • Metal case
  • Supports 6KV DC Ethernet ESD protection
Hardware Specifications
InterfaceInput Port
1 x RJ45 STP
Data In

Output Port
1 x RJ45 STP
PoE (Data + Power) Out

DC Socket
1 x 52~56V DC input socket
Network CableTwisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat. 5e, 6, 6A
5G: 4-pair UTP Cat. 6, 6A
LED IndicatorsSystem: Power x 1 (Green)
PoE Port: PoE-in-Use x 1 (Amber)
Legacy mode: Legacy x 1 (Amber)
PoE Usage: PoE Usage x 3 (Amber)
Data Rate10M/100M/1G/2.5G/5Gbps
ESD Protection6KV DC
EnclosureMetal case
Dimensions (W x D x H)94 x 70.3 x 26.2 mm
Weight250g
Power RequirementsDC 52~56V, 2.5A max.
Power Consumption130 watts max.
No. of devices that can be powered1
Power over Ethernet
PoE StandardIEEE 802.3at/bt PSE
PoE Power Output BudgetDC 52~56V/95-watt PoE via 4-pair
PoE Power OutputMax. 89.5W@1m cable
Max. 75W@100m cable
PoE Power Supply TypeEnd-span + Mid-span
Power Pin AssignmentPair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE ModeStandard mode
Legacy and Force modes
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3bt 4-pair Power over Ethernet Type 4
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3af Power over Ethernet
Regulatory ComplianceFCC Part 15 Class A, CE
Environment
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Operating Humidity5 ~ 90%, relative humidity, non-condensing
Storage Humidity5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package ContentsPOE-171A-95
User’s Manual
100 ~ 240V AC-to-DC power adaptor
AC power cord



User's Manual

DateVersionDescriptionDownload
2022-08-264.0Release for hardware version 4.0.



EC Declaration

DateVersionDescriptionDownload
2022-11-014.0EC declaration.
