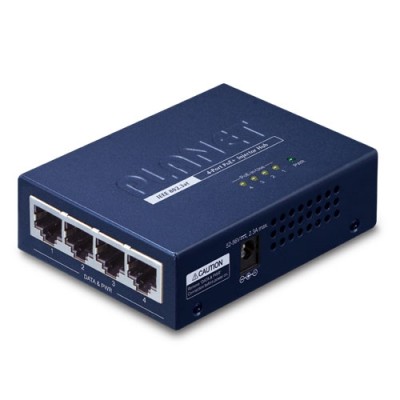

PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub

PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub
PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub
PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub
PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub
PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub
PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub
PLANET HPOE-460 4-port Gigabit IEEE 802.3at Power over Ethernet Plus Injector Hub
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: HPOE-460
  • Βαρος: 1.06kg
  • Διαστασεις: 2.60 x 9.70 x 7.00
157,69€
Χωρίς ΦΠΑ: 127,17€

802.3af/at Power PoE for SOHO PoE Applications

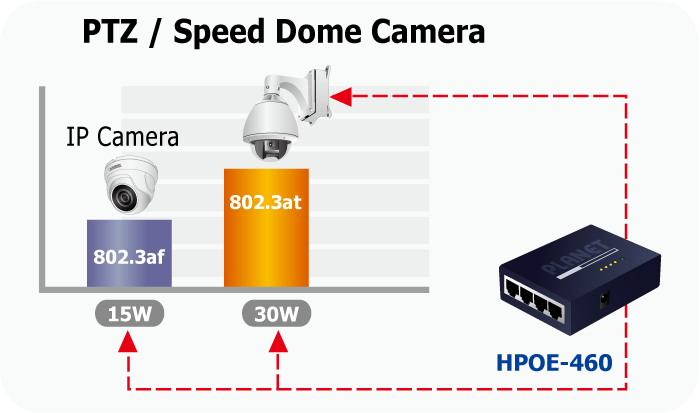

PLANET HPOE-460 is a 4-port Gigabit IEEE 802.3at PoE+ Injector Hub, featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that deliver up to 30-watt power output and data per port over one Cat 5e/6 Ethernet cable. It is designed specifically to satisfy the demand of higher power consuming network PDs (powered devices) such as PTZ (pan, tilt, zoom)/speed dome network cameras, multi-channel (802.11ac/b/g/n/a) wireless LAN access points and other network devices by providing the double amount of PoE power, more than the conventional 802.3af PoE PSE.

The IEEE 802.3at Power over Ethernet Plus standard is defined to provide each PoE device with a maximum of up to 30 watts of input power, doubling the amount of PoE power of the conventional 802.3af PoE PSE. The IEEE 802.3at PoE+ standard is an ideal solution to meeting the high power requirements directly via the RJ45 port.





Quick and Easy PoE Network Deployment

With 4 10/100/1000BASE-T Gigabit Ethernet ports, the HPOE-460 supports full DC 52V~56V power for any remote 802.3af/ 802.3at powered device (PD) without affecting data transmission performance. Supporting PoE power budget of 120 watts, the HPOE-460 provides sufficient 15.4/30.8-watt PoE power to up to 4 remote PD devices. It offers a cost-effective and quick solution to upgrading network system to IEEE 802.3af/IEEE 802.3at Power over Ethernet system without replacing the existing Ethernet switch.

There are 8 RJ45 STP ports on the front panel of the HPOE-460, of which half of the ports on the right panel function as "Data input" and the other half on the left panel function as "PoE (Data and Power) output". The 4 "PoE (Data and Power) output” ports are also the power injectors that transmit DC voltage to the Cat 5/5e/6 cable and transfer data and power simultaneously between the injectors and splitters. For the places hard to find the power inlet, the HPOE-460 and IEEE 802.3at Power over Ethernet Splitter (POE-162S/IPOE-162S) provide the easiest way to power your Ethernet devices such as IP cameras on the ceiling and wireless access point installed on the top of the building.

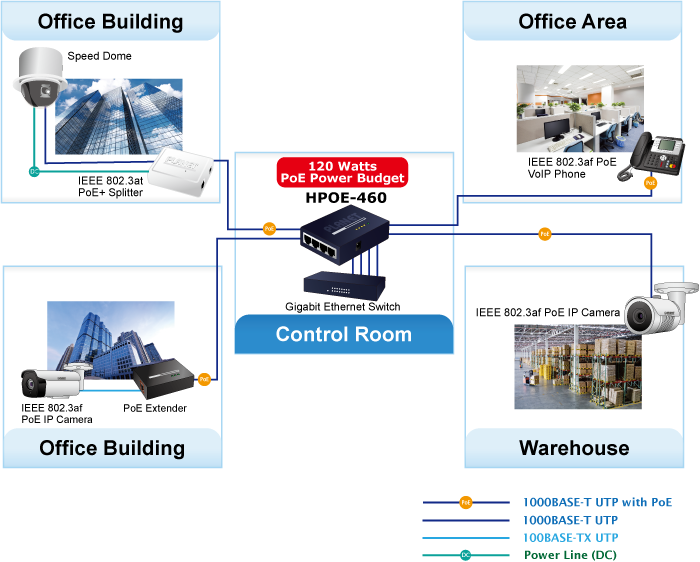

SOHO Gigabit PoE Network Deployment

The HPOE-460 provides the easiest way to power your Ethernet devices such as PTZ and speed dome IP cameras on the ceiling, the wireless access point installed on the roof of the building and the PoE IP phones in the office.

With 4 10/100/1000BASE-T Gigabit Ethernet ports, the HPOE-460 supports full DC 52V~56V power for any remote 802.3af/ 802.3at PD. Furthermore, the HPOE-460 can be directly connected to any third-party IEEE 802.3af/802.3at compliant devices installed 100 meters away and allow the administrator to centrally control the power system of the network devices.



8-port RJ45

  • 4-port 10/100/1000Mbps “Data Input
  • 4-port 10/100/1000Mbps “Data + Power Output



Power over Ethernet

  • IEEE 802.3at and IEEE 802.3af Power over Ethernet mid-span PSE
  • Up to 4 IEEE 802.3at /802.3af devices powered
  • DC 52V~56V power over RJ45 Ethernet cable to devices with Ethernet port
  • PoE power up to 30.8 watts (802.3at PoE+)/15.4 watts (802.3af PoE) for each PoE port
  • Remote power feeding up to 100m
  • Full power support for each PoE port
  • Automatically detects PD
  • Circuit protection prevents power interference between ports



Hardware

  • Desktop palm size, wall mountable
  • Power input LED
  • FCC Part 15 Class B, CE

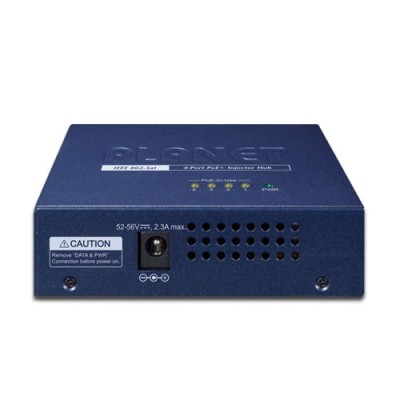

  • 100~240V AC, 50/60Hz, 2A universal power supply adapter with DC 52V~56Vpower output
  • Plug and Play



Standard Compliance

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at Power over Ethernet Plus
Hardware
Interface“Data” Input Ports:4 x RJ45
“Data + Power” Output Ports:4 x RJ45
Data Rate10/100/1000Mbps
LEDSystem: Power x 1 (Green)
Per PoE Port: PoE ready/in-use x 4 (Amber)
Dimensions (W x H x D)97 x 26 x 70mm
Weight208g
Power RequirementsDC 52V~56V
Network Cable10BASE-T: 4-pair UTP Cat. 5, up to 100m (328ft)
100 BASE-TX: 4-pair UTP Cat. 5, up to 100m (328ft)
1000 BASE-T: 4-pair UTP Cat. 5e/6, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m or 328ft)
Power over Ethernet
PoE Power Supply TypeMid-span
PoE Power OutputIEEE 802.3af per port DC 52V~56V 15.4 watts
IEEE 802.3at per port DC 52V~56V 30.8 watts
Power Pin Assignment4/5(+), 7/8(-)
PoE Power Budget120 watts
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100 BASE-TX Fast Ethernet
IEEE 802.3ab 1000 BASE-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Regulatory ComplianceFCC Part 15 Class B, CE
Environment
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2023-04-143.0HPOE-460



User's Manual

DateVersionDescriptionDownload
2022-11-113.0Release for hardware version 3.0.



EC Declaration

DateVersionDescriptionDownload
2022-04-293.0Release for hardware version 3.0.
