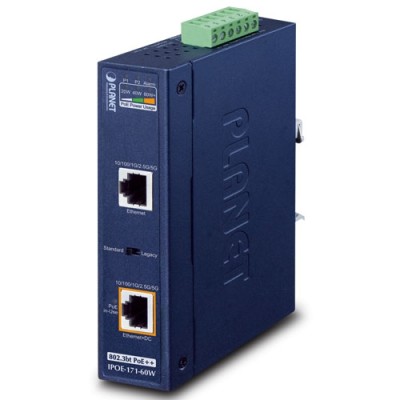

Advanced Industrial Multi-Gigabit and 802.3bt PoE++ Network Solution

PLANET IPOE-171-60W is a Single-Port, Industrial 802.3bt Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables. It is also equipped with two 100M/1G/2.5G/5GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.

It is designed specifically to meet the demand for growing higher power required network equipment such as:

  • Lighting
  • All-in-one touch PC
  • Remote digital signage display
  • Other network devices that need higher power to work normally

The IPOE-171-60W delivers the Ethernet digital data with DC power over the twisted-pair cables as a 60-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the IPOE-173S, will separate the digital data and the power into three optional outputs (12V/24V DC) with distance up to 100 meters.

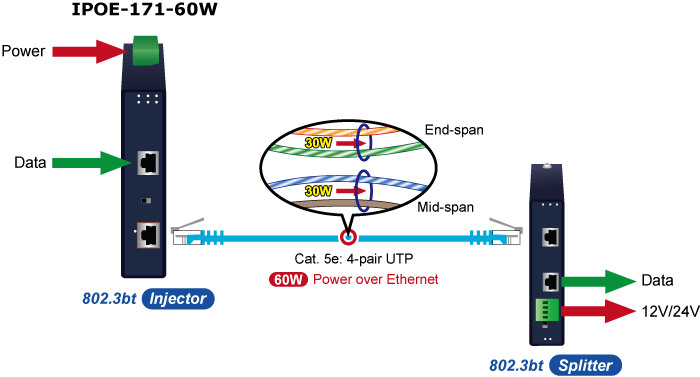

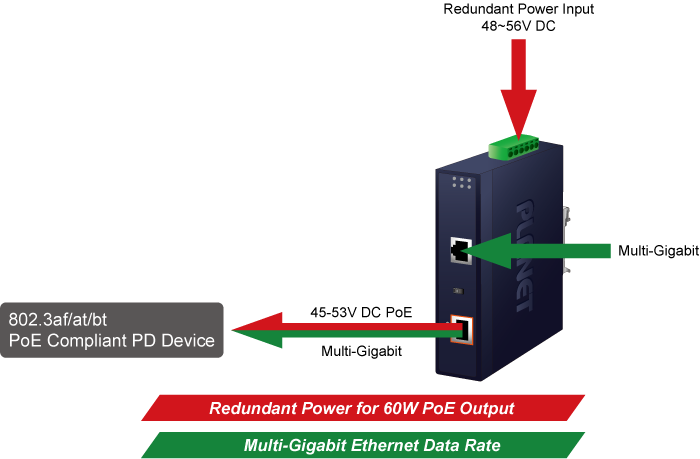

60 watts of Power over 4-pair UTP

Instead of delivering power over 2-pair twisted UTP – be it  end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), the IPOE-171-60W provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling.

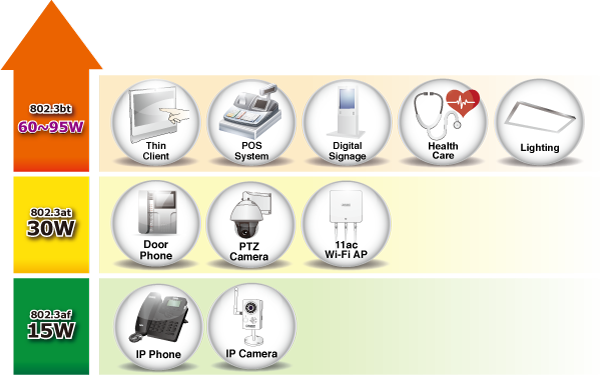

PoE Standard
IEEE 802.3af
(802.3at Type 1)
IEEE 802.3at
(802.3at Type 2)
IEEE 802.3bt
(802.3bt Type 3)
Maximum Power delivered by PSE
15.4 watts
30 watts
60 watts
Power Available at PD
12.95 watts
25.5 watts
51 watts
Voltage Range
48V
50~57V
50~57V
Twisted-pair Used
2-pair
4-pair
Supported Modes
End-span or Mid-span
End-span + Mid-span
Supported Cabling
Cat. 3/5/5e/6/6A
Cat. 5e/6/6A

Intelligent LED Indicator for Power Input and Real-time PoE Usage

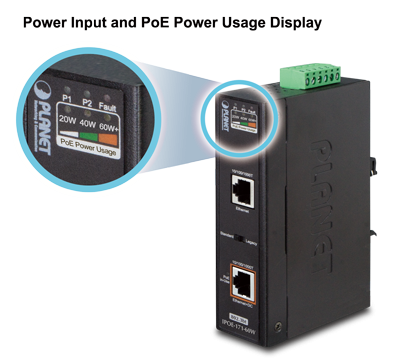

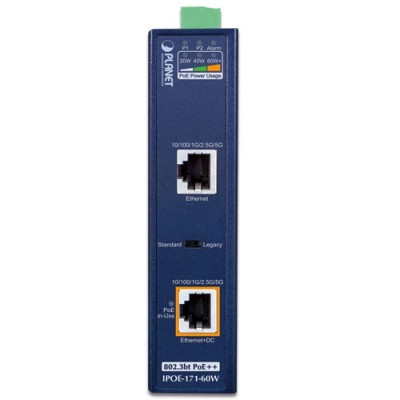

The IPOE-171-60W helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. “Power Input” allows user to know the status of power input. “PoE Power Usage” displayed on the panel of the IPOE-171-60W has three LED indicators of different power usages. Via the power usage LED, the IPOE-171-60W enables the administrator to monitor the status of the power usage of the connected PDs in real time.

High Compatibility and Compact Size Design

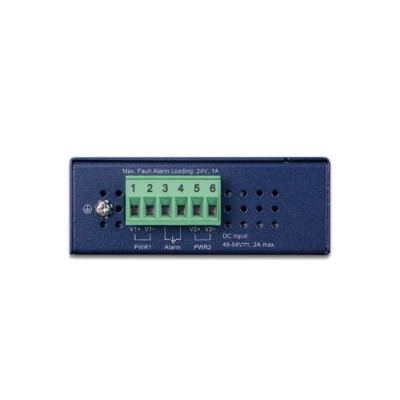

It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for industrial users to own it. Besides, the IPOE-171-60W comes in compact housing, and provides two DC redundant power inputs, two power LEDs, alarm LED and PoE-in-Use LED. Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the front panel.

Moreover, the IPOE-171-60W, when switched to the Legacy mode and Force mode, provides power to those PD devices which do not fully follow the IEEE 802.3at/bt standard. It is helpful to enhance the compatibility of IPOE-171-60W with other PDs.

Simply plug in the Ethernet cables and DC power wire, and the IPOE-171-60W is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software configuration.



  Quick and Easy Cabling Installation for PoE Network Deployment

Backward compatible with both 802.3af/at PoE standards, the IPOE-171-60W allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The IPOE-171-60W frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.

 Stable Operating Performance under Difficult Environments

Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-171 series will be one of the ideal solutions that provide a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets. The IPOE-171 series can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-171 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for efficient use of cabinet space.

Installation of 802.3bt PoE Injector

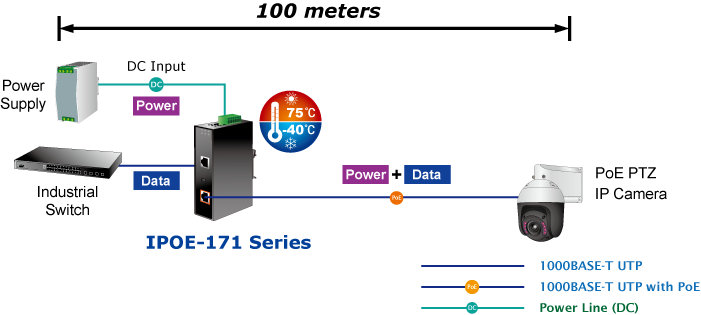

Due to the backward capability of IEEE 802.3at PoE standard, the IPOE-171-60W can directly connect with any IEEE 802.3at end-nodes, such as PTZ (Pan, Tilt & Zoom) speed dome IP cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.

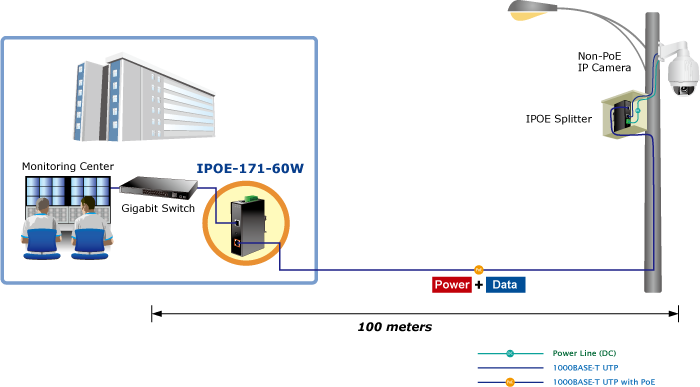

Installation of 802.3bt PoE Injector and Splitter

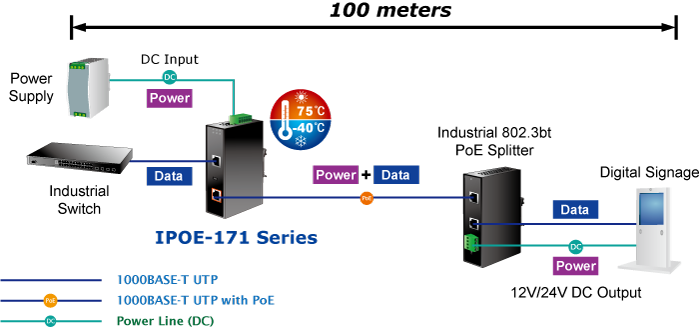

For a place which is hard to find the power inlet, the IPOE-171-60W and IPOE-173S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ network cameras, PTZ speed dome cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise office or home.

Extended Installation of IEEE 802.3bt Injector and PoE Network

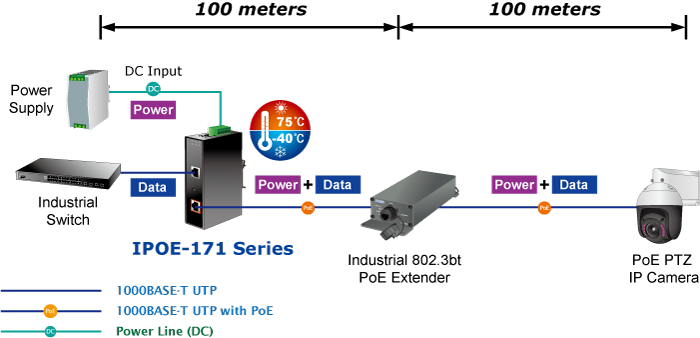

Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the IPOE-171-60W and PLANET PoE Extender, IPOE-E302, can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the IPOE-171-60W. The IPOE-171-60W delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.

Interface

  • 2 Multi-Gigabit RJ45 interfaces
    • 1-port Data + Power output
    • 1-port Data input
  • 1 terminal block for master and slave power input. (Power Range: 48 ~ 54V DC redundant power)
  • 1 PoE mode (standard/legacy and force) DIP switch



Power over Ethernet

  • Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
  • Supports PoE power up to 60 watts for PoE port
  • Auto-detection of PoE IEEE 802.3at/bt equipment and devices from being damaged by incorrect installation
  • Monitors the status of the total PoE usage in real time
  • Remote power feeding up to 100m
  • Auto-detection of DC input voltage



Hardware

  • IP30 slim-type metal case
  • LED indicators for Power LED , PoE-in-Use LED and PoE Usage LED



Industrial Case and Installation

  • Solid wall mount or DIN-rail mount installation
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature



Hardware Specifications
InterfaceInput Port:1 x RJ45 STP
Data In
Output Port:1 x RJ45 STP
PoE (Data + Power) Out
Input power terminal block:1
Network Cable*Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1G/2.5G: 4-pair UTP Cat. 5e, 6, 6A
5G: 4-pair UTP Cat. 6, 6A
LED IndicatorsSystem: Power 1 (Green), Power 2 (Green), Alarm(Red)
PoE Port: PoE-in-Use x 1 (Amber)
PoE Usage: PoE Usage x 3 (Amber)
Data Rate10M/100M/1G/2.5G/5Gbps
ESD Protection6KV DC
EnclosureMetal case
Dimensions (W x D x H)135 x 87.8 x 32 mm
Weight406g
Power RequirementsDC 48~54V, 2A max.
Unit Output VoltageDC 45~53V
Power Consumption75 watts max.
No. of devices that can be powered1
InstallationDIN-rail kit or wall-mount ear
AlarmProvides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
EnclosureIP30 slim type metal case
Power over Ethernet
PoE StandardIEEE 802.3at/bt PSE
PoE Power Output BudgetDC 50~53V / 60-watt PoE via 4-pair
DC 45~53V / 30-watt PoE via 2-pair
PoE Power OutputMax. 60W@1 m cable
Max. 51W@100m cable
PoE Power Supply TypeEnd-span + Mid-span
Power Pin AssignmentPair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE ModeStandard mode
Legacy and Force mode
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus
IEEE 802.3at Power over Ethernet Plus
Regulatory ComplianceFCC Part 15 Class A, CE
Environment
Operating Temperature-40 ~ 75 degrees C
Storage Temperature-40 ~ 85 degrees C
Operating Humidity5 ~ 90%, relative humidity, non-condensing
Storage Humidity5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package ContentsIPOE-171-60W
User's manual
Wall-mount kit
Dust cap



Datasheet
