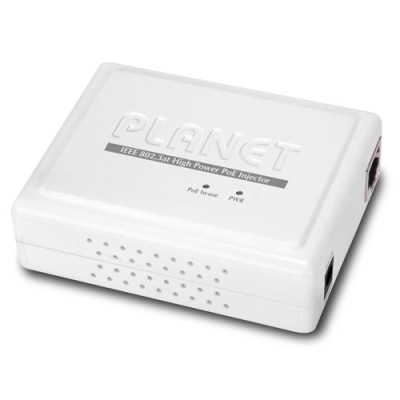

PLANET POE-161 IEEE802.3at High Power PoE Injector - 30W

PLANET POE-161 IEEE802.3at High Power PoE Injector - 30W
PLANET POE-161 IEEE802.3at High Power PoE Injector - 30W
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: POE-161
  • Βαρος: 0.55kg
47,55€
Χωρίς ΦΠΑ: 38,34€

PLANET Technology has announced a complete IEEE 802.3af Power over Ethernet Injector solution to filling flexible powering demand from various Ethernet environments where power outlets are hard to find. Now, PLANET has releases the next generation Power over Ethernet Injector, POE-161, with brand-new IEEE 802.3at High Power over Ethernet technology applied. The POE-161 provides the following key features:
 ■ IEEE 802.3at Power over Ethernet stanard compliant
 ■ Maximum 30W output power support
 ■ 10/100/1000Mbps duplex mode support


The POE-161 is a Single-Port, Mid-Span IEEE 802.3at High Power over Ethernet Injector with maximum up to 30 watts of power output over Ethernet cables. It is designed specifically to fill the demand of the growing higher power required network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen / video and voice over IP (VoIP) telephones, multi-channel (11a / b / g / n) wireless LAN access points and other network devices that need higher power to function normally. The POE-161 High Power Injector is an ideal solution to delivering data and power to network devices directly via the RJ-45 Port interface without the need of installing extra power outlets and electrical cabling.

Quick and Easy High Power PoE Network Deployment
The POE-161 is a Mid-Span IEEE 802.3at Gigabit High Power over Ethernet Injector which provides DC 56V over Ethernet cables. The POE-161 inserts DC voltage into Cat.5/5e/6 cable, allowing the cable between the Injector (POE-161) and Splitter (POE-162S) to transfer data and power simultaneously for up to 100 meters. The POE-161 delivers the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3at Gigabit High Power over Ethernet Injector, and the connected IEEE 802.3at Gigabit High Power over Ethernet splitter will spilt the digital data and the power into two selectable DC outputs (12VDC / 24VDC).

Cost effective and Easy Cabling Installation
With IEEE 802.3at Gigabit High Power over Ethernet devices installed, the system administrator can use only one single RJ-45 Ethernet cable to carry both power and data to each device. Besides, by connecting to the high power PoE splitter POE-162S, the POE-161 can offer benefits of cost saving, easy networking planning and high reliability. Upon the installation of IEEE 802.3at compliant devices, the POE-161, when functioning with the POE-162S, can keep the connection while migrating or splitting the power and the Ethernet digital packets. It thus reduces cables, eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place, and most of all, reduces installation time. The high Power over Ethernet solution frees the Security IP Camera and wireless AP deployment from restrictions of power outlet locations.

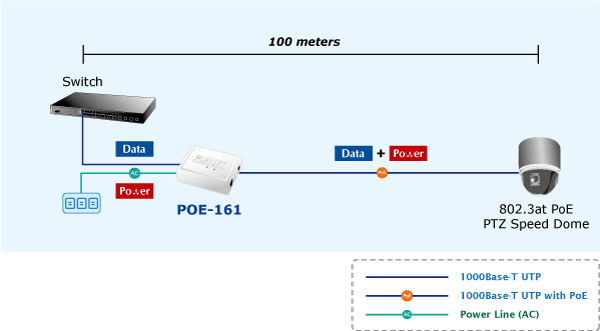

Connection to IEEE 802.3at Compliant Devices
With its capability of IEEE 802.3at Power over Ethernet, the POE-161 can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points and other network devices which support IEEE 802.3at Power over Ethernet .

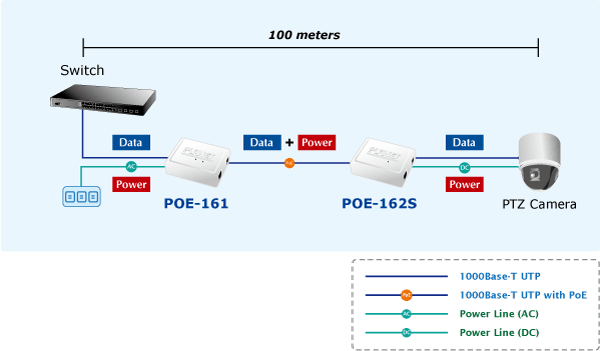

The IEEE 802.3at Injector and Splitter Installation:
For a place which is hard to find the power inlet, the POE-161 and POE-162S operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ Speed Dome, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or used in enterprise office or home.

RJ-45 Interface

  • 2-Port RJ-45 interfaces
    –1-Port Data + Power output
    –1-Port Data input
  • 1 DC 56V input power socket



PoE

  • Complies with IEEE 802.3at Gigabit High Power over Ethernet standard, Mid-Span PSE
  • Provides DC 56V power over RJ-45 Ethernet cable to devices with Ethernet port
  • Provides PoE power to 1 IEEE 802.3at compliant device
  • Supports PoE Power up to 30 watts for PoE port
  • Auto-detects PoE IEEE 802.3at equipment, protecting the devices from being damaged by incorrect installation
  • Remote power feeding up to 100m
  • IEEE 802.3af Splitter devices compatible



Hardware

  • Plastic case
  • LED indicators for Power LED and PoE In-use



Standard Compliance

  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3at Power over Ethernet
  • FCC Part 15 Class A, CE
Hardware Specifications
Hardware Versionversion 2
Interface"Data" Input Port:1 x RJ-45 STP
"PoE (Data+Power)" Output Port:1 x RJ-45 STP
DC 56V Input Power Socket:1
LED IndicatorSystem: Power x 1 (Green)
PoE Port: PoE in Use x 1 (Green)
Network Cable10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate10/100/1000Mbps
Dimensions (W x D x H)95 x 70 x 25 mm
Weight83g
Unit Input VoltageDC 56V, 0.53A
Power Requirements100-240V AC, 50/60Hz
Power Consumption30 watts (max).
Number of devices can be powered1
Power over Ethernet
PoE StandardIEEE 802.3at Gigabit Power over Ethernet standard / Mid-Span PSE
PoE Power OutputDC 56V / 30 watts
PoE Power supply TypeMid-Span
Power Pin Assignment4/5(+), 7/8(-)
Standards Conformance
Standards ComplianceIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
Regulation ComplianceFCC Part 15 Class A, CE
Environment
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2015-07-211.0Datasheet



User's Manual

DateVersionDescriptionDownload
2022-02-182.1Modify contents of user manual.
2016-11-252.0Release for hardware version 2.0.
Modify contents of user manual.
2011-10-051.1IEEE 802.3at redefine.
2010-01-281.0Initial release



EC Declaration

DateVersionDescriptionDownload
2010-08-271.0Initial Release
