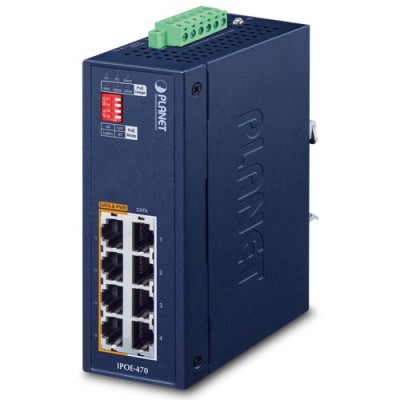

Name: PLANET IPOE-470 Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub
Brand: PLANET
Price: 310.53 EUR
Availability: InStock
Rating: 5 (2 reviews)

PLANET IPOE-470 Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub

PLANET IPOE-470 Industrial 4-port 10/100/1000T 802.3bt PoE++ Injector Hub

Διαθεσιμοτητα: Άμεσα Διαθέσιμο
Κατασκευαστης: PLANET
Κωδικος Προϊοντος: IPOE-470
Βαρος: 0.85kg
Διαστασεις: 8.78 x 5.00 x 13.50

Σύμφωνα με 2 αξιολογήσεις. - Γράψτε μια αξιολόγηση

310,53€

Χωρίς ΦΠΑ: 250,43€

Ποσότητα

Καλάθι

Άμεση Αγορά

Compact and Robust Industrial 802.3bt PoE++ Network Solution

PLANET IPOE-470 4-port industrial IEEE 802.3bt PoE++ injector hub series features four 10/100/1000/2500BASE-T 95-watt 802.3bt type-4 PoE++ injector ports. With a total PoE budget of 240 watts, it delivers 802.3bt PoE++ power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

The IPOE-470 provides a quick, safe and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises. It is designed to perfectly upgrade an existing network infrastructure to 802.3bt PoE++ network system without replacing the existing Ethernet switches and also enables centralization of the power supply.

Model	DC Redundant Power Input	PoE Standard	PoE Budget
IPOE-470	48~56V DC	IEEE 802.3bt PoE++	240 watts

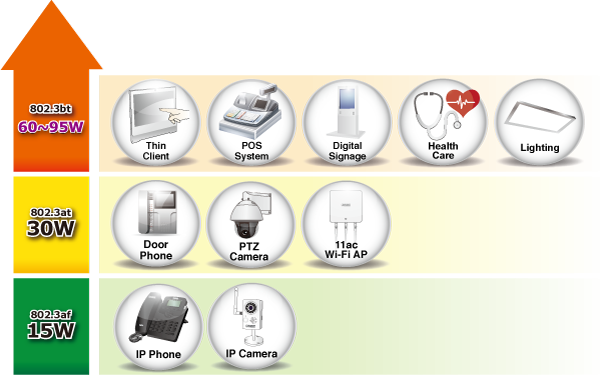

802.3bt PoE++ Meets Ultra Power Demands of Powered Devices

As the IPOE-470 adopts the IEEE 802.bt PoE++ standard and Ultra PoE technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant PD. It possesses the triple amount of the power capability when compared to the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

PoE PTZ speed dome cameras
Network devices
Thin clients
AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
Remote digital signage displays
PoE lightings

Quick and Easy 802.3bt/at PoE Network Deployment

The IPOE-470 is installed between a regular Ethernet Switch and the PDs. Four ports are network (Ethernet) ports for data input while the other four ports are PoE++ ports for data and power output. Both power and data are transferred simultaneously over the UTP cables to various 802.3bt/at PDs without affecting the existing network performance and functions.

With data and Power over Ethernet from one unit, the IPOE-470 can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

Intelligent LED Indicator for Power Input and Real-time PoE Usage

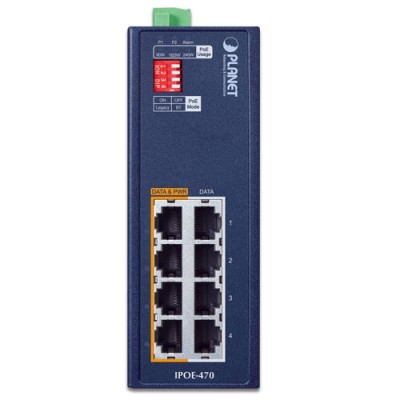

The IPOE-470 helps users to monitor the current status of power input and PoE power usage easily and efficiently via its advanced LED indication. The “Power Input” allows user to know the status of dual DC power input. The “PoE Usage” displayed on the panel of the IPOE-470 has three amber LED indicators of different power usages indicating 80W, 160W and 240W. Via the power usage LED, the IPOE-470 enables the administrator to monitor the status of the power usage of the connected PDs in real time.

Convenient and Reliable Power System

To facilitate the 802.3bt PoE++ usage with commonly-used 48~54V DC power input for transportation and industrial-level applications. Its voltages design is suitable for operating with high availability applications requiring dual or backup power inputs.

Ultra Power Budget for PoE Extension

With up to 95-watt PoE output capability, the IPOE-470 can extend much longer distances by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.

Stable Operating Performance under Difficult Environments

Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-470 series (IPOE-470 and IPOE-470-12V) provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets.

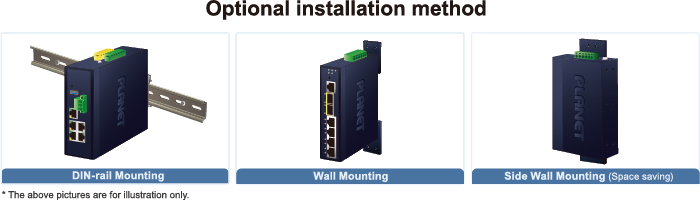

The IPOE-470 series can be easily installed by way of Plug and Play and operates stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-470 series is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for space-limited environments.

Robust Protection

The IPOE-470 series provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

IEEE 802.3bt PoE++ Injector and 802.3bt PoE++ Compliant Devices Installation

Having the capability of IEEE 802.3bt Power over Ethernet standard, the IPOE-470 can directly connect and inject power via RJ45 Ethernet cable to any IEEE 802.3bt end-nodes like PoE PTZ speed dome cameras, thin clients, all-in-one touch PCs, point of sale (POS), information kiosks, remote digital signage displays and PoE lightings.

IEEE 802.3bt PoE++ Injector and 802.3bt PoE++ Splitter Installation

For a place which is hard to find the power inlet, the IPOE-470 and IPOE-173S can operate as a pair to provide the easiest way to power your Ethernet devices which need high power input, such as PTZ (pan, tilt, zoom) IP cameras, color touch-screen voice over IP (VoIP) telephones, and multi-channel wireless LAN access points installed on the top of the building or in enterprise office or home, as well as thin clients, all-in-one touch PCs, point of sale (POS), information kiosks and remote digital signage displays.

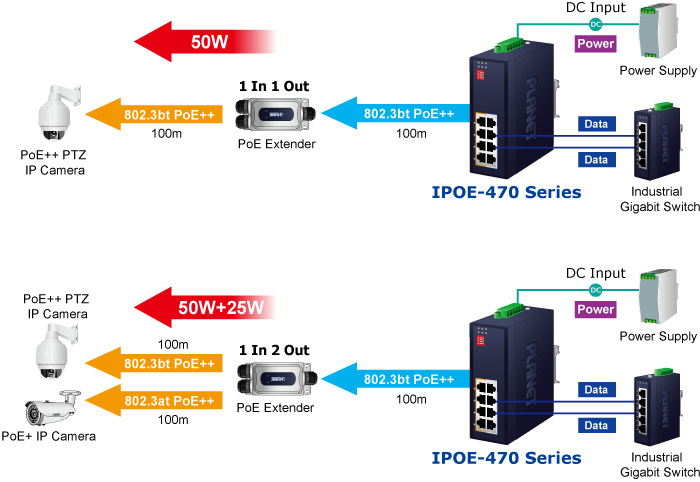

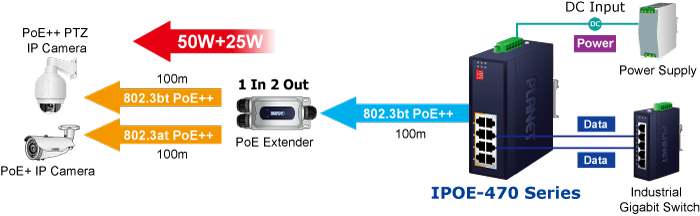

IEEE 802.3bt PoE++ Injector and 802.3at PoE+ Network Extension Installation

Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance and also the long-distance IP camera distribution, the IPOE-470 series and PLANET IPOE-E302 PoE Extender can be a quick and cost-effective option. In the simplest application, the PoE Extender enables a PoE IP camera to be installed up to 200 meters away from the IPOE-470 series. The IPOE-470 series delivers PoE power over the first 100 meters to the PoE Extender over UTP cables, and then the PoE Extender forwards the Ethernet data and remaining PoE power to the remote PoE IP cameras.

Physical Ports

Four 10/100/1000/2500BASE-T Gigabit RJ45 interfaces
- 4-port data input
Four 10/100/1000/2500BASE-T Gigabit RJ45 interfaces
- 4-port data + power output

Power over Ethernet

Complies with 802.3bt Power over Ethernet Plus Plus type 4 PSE
Backward compatible with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PSE
Up to 4 IEEE 802.3at/IEEE 802.3bt PoE devices powered
Up to 240-watt PoE budget
Supports PoE output power up to 95 watts for each PoE port
All PoE ports support 802.3at end-span/mid-span PoE 36-watt injector function
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Forwards both Ethernet data and PoE power to remote device over a 100-meter (328ft.) distance
3 real-time PoE power usage indicators

Industrial Case and Installation

IP30 metal case
DIN-rail and wall-mount designs
1 terminal block for master and slave power input with reverse polarity protection
- IPOE-470 supports 48~54V DC redundant power
Supports 6KV DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Plug and Play installation

Hardware Specifications
Copper Ports	4-pair 10/100/1000/2500BASE-T RJ45 Data input (Ports 1 to 4) Data + PoE output (Ports 1 to 4)

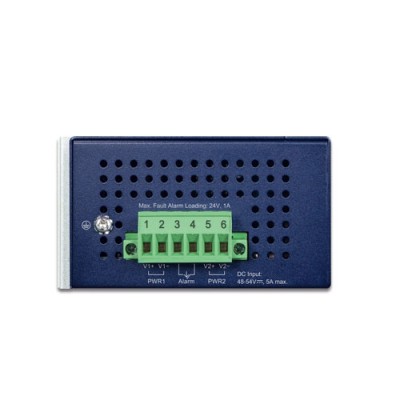

Connector	Removable 6-pin terminal block Pins 1 and 2 for Power 1 Pins 5 and 6 for Power 2 Pins 3 and 4 for fault alarm
Data Rate	10/100/1000/2500Mbps
Power Requirements	48~54V DC, redundant power with reverse polarity protection
Power Consumption(Ethernet Full Loading)	System ON without loading 48V DC: 1.92 watts/6.6BTU 54V DC: 2.16 watts/7.4BTU System ON without loading 12V DC: 2.52 watts/8.6BTU 24V DC: 3.6 watts/12.3BTU 48V DC: 3.36 watts/11.5BTU 54V DC: 3.24 watts/11.1BTU
DIP Switch	Per PoE port OFF: BT– 802.3bt PoE++ 95W PoE output ON: Legacy - 60w Ultra PoE output
Dimensions	50 x 87.8 x 135 mm (W x D x H)
Weight	544g
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount kit
LED Indicator	System: Power 1 (Green) Power 2 (Green) Alarm (Red) PoE Usage: 80W/160W/240W (Amber) 802.3bt PoE++ Port: PoE-in-use x 1 (Amber)
ESD Protection	6KV
Surge Protection	6KV
Network Cable	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 1000BASE-T: 4-pair UTP Cat. 5e, 6
Power over Ethernet
PoE Standard	IEEE 802.3bt PoE++, 4-pair type 4 PSE Backward compatible with IEEE 802.3at PoE+ PSE
PoE Power Supply Type	802.3bt PoE++/Legacy End-span + Mid-span 802.3at PoE+ End-span/Mid-span
Power Pin Assignment	Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/Legacy: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Power Output	Max. 95 watts to 802.3bt PoE++ PD Max. 60 watts to Legacy PD Max. 36 watts to 802.3at PoE+ PD
PoE Power Budget (max.)	120W@48V DC input 240W@52V-54V DC input
Number of devices that can be powered	4
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
