PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway

PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
PLANET IVR-300W Industrial 5-Port 10/100/1000T + 802.11ax Wi-Fi VPN Security Gateway
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IVR-300W
  • Βαρος: 1.16kg
  • Διαστασεις: 13.50 x 5.00 x 13.50
773,91€
Χωρίς ΦΠΑ: 624,12€

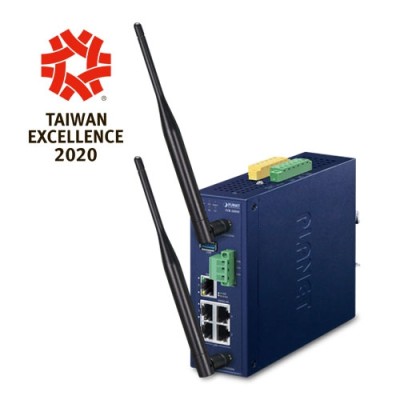

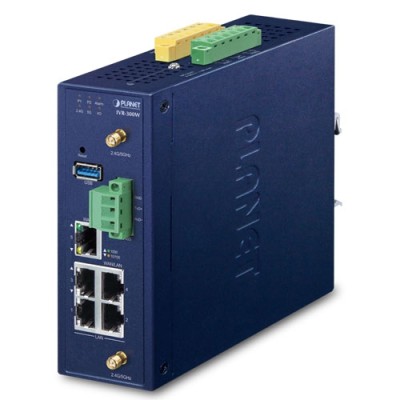

Powerful Wi-Fi 6 Industrial VPN Security Solution

PLANET has launched the IVR-300W 802.11ax Wi-Fi VPN Security Gateway for demanding applications. It features five Ethernet ports (4 LANs and 1 WAN), IEEE 11ax Wi-Fi capability, serial port (RS485), and DI and DO interfaces. Incorporating SD-WAN function, it can greatly increase WAN optimization for multiple WAN links to be managed. Furthermore, its Dual-WAN Failover and Outbound Load Balance features can improve the network efficiency while the web-based interface provides friendly and user experience.

It’s ideal for the harsh environment as it can operate stably at temperatures from -40 to 75 degrees C. Its compact IP30 metal case allows either DIN-rail or wall mounting for efficient use of cabinet space.



Wireless 11ax Brings Excellent Data Link Speed

The IVR-300W is designed with high power amplifier and 2 highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the total bandwidth reaches 1800Mbps, and the 2-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother. The IEEE 802.11ax also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

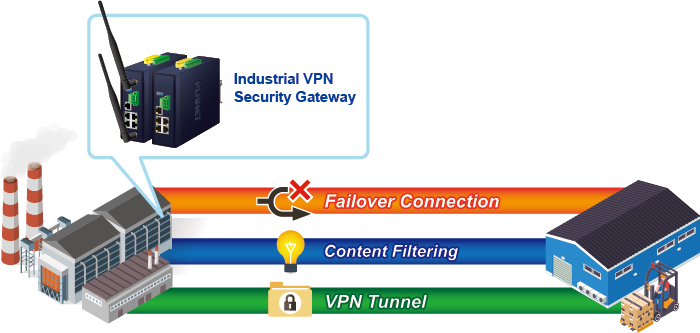

Ideal VPN Security Gateway Solution for Factories and Transportations

The IVR-300W provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the IVR-300W makes the connection secure, more flexible, and more capable.

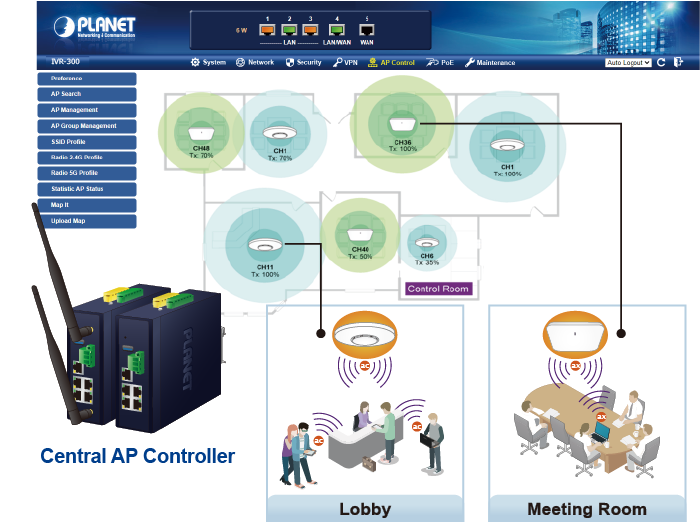

Centralized Remote Control of Managed APs

The IVR-300W provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, wireless profiles for different purposes can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

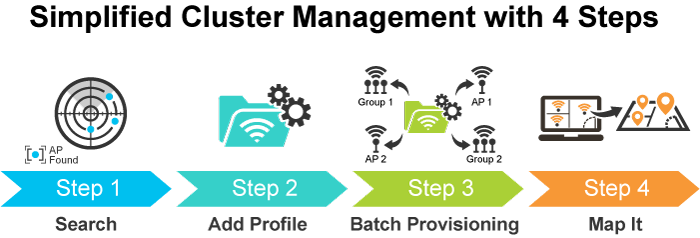

For example, to configure multiple smart APs of the same model, the IVR-300W allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

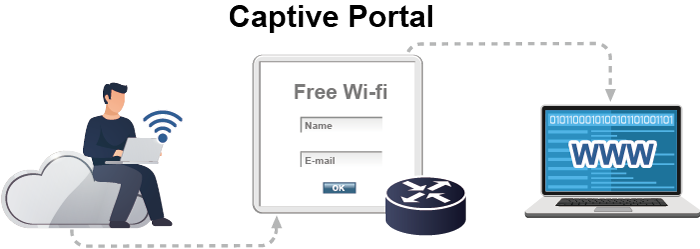

Wi-Fi Deployments and Authentication with Simplified Management

The IVR-300W also provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The IVR-300W can offer a secure Wi-Fi network with easy installation for your business.

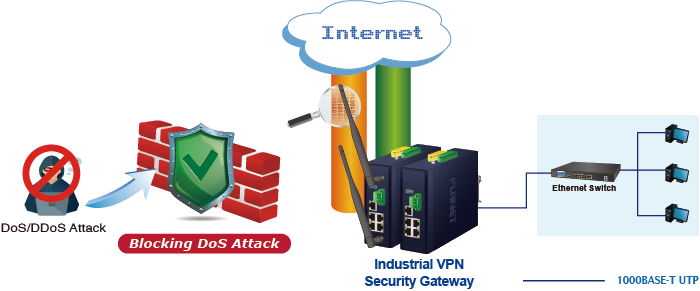

Excellent Ability in Threat Defense

The IVR-300W has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the IVR-300W is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the IVR-300W offers an easy-to-use, platform independent management and configuration facility. The IVR-300W supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

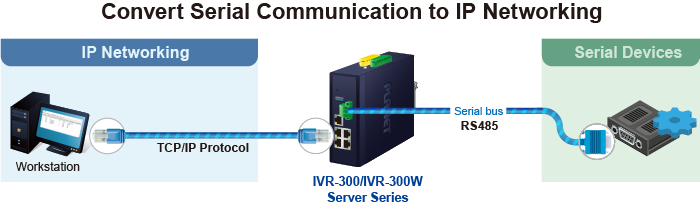

Cost-effective Solution for RS485 to Ethernet Application

The IVR-300W provides a feature that can convert the Serial RS485 communication to IP networking. Ethernet signal allows two types of segments to connect easily, efficiently and inexpensively. The solution helps users and SIs save expenses as there is no need to replace the existing serial equipment and software system.



Convenient and Reliable Redundant Power System

To facilitate transportation and industrial-level applications, the IVR-300W provides an integrated power solution with a wide range of voltages (9~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 9~54V DC power supply inputs for high availability applications.

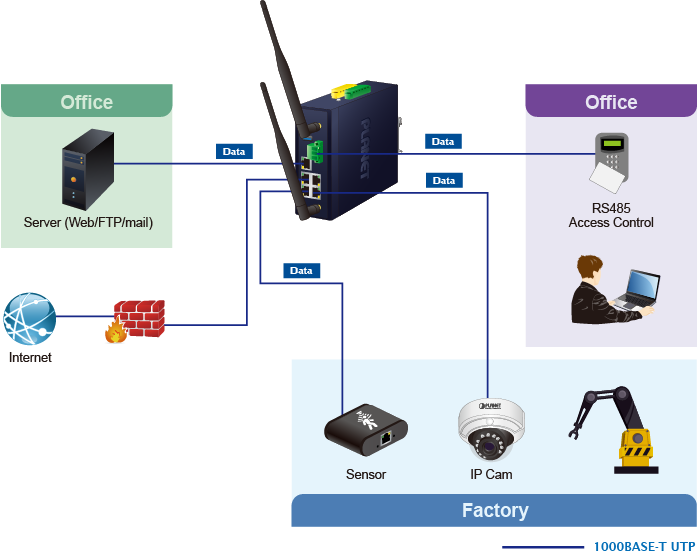

Ideal VPN Security Gateway

PLANET IVR-300W can work as a VPN security gateway in an industrial application for a company that has a factory and many different divisions. With IPSec/GRE/PPTP/L2TP/SSL VPN solutions, the IVR-300W installed at the headquarters provides branches, vendors, and mobile workers with secure data communication no matter how long the distance would be.



The IVR-300W connects dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.



Highlights

  • Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards
  • Dual-WAN function
  • 1 USB 3.0 port for system configuration backup and firmware upgrade
  • 2 x DI/DO and 1 serial port (RS485) for Modbus applications
  • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • Stateful packet inspection (SPI) firewall and content filtering
  • Blocks DoS/DDOS attack, port range forwarding
  • High Availability, AP Controller, Captive Portal and RADIUS
  • Planet NMS controller system and CloudViewer app supported
  • -45 to 75 degrees C operating temperature; DIN-rail and fanless designs

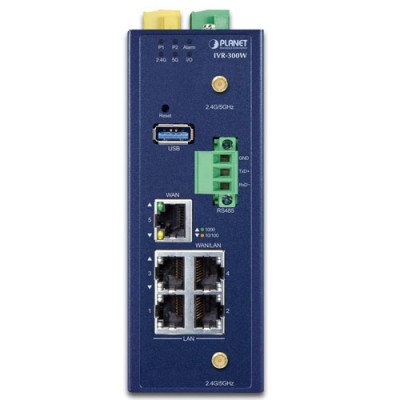

Hardware

  • 4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • 1 x 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
  • 1 x  3-pin terminal block (RS485)
  • 1 x reset button
  • 1 x USB 3.0 port



RF Interface Characteristics

  • Features 2.4GHz (802.11b/g/n/ax) and 5GHz (802.11a/n/ac/ax) dual band for carrying high load traffic
  • 2T2R MIMO technology for enhanced throughput and coverage
  • Provides multiple adjustable transmit power control
  • High speed up to 1.8Gbps (600Mbps for 2.4GHz or 1200Mbps for 5GHz) wireless data rate



IP Routing Feature

  • Static Route
  • Dynamic Route
  • OSPF



Firewall Security

  • Cybersecurity
  • Stateful Packet Inspection (SPI) firewall
  • Blocks DoS/DDoS attack
  • Content Filtering
  • MAC Filtering and IP Filtering
  • NAT ALGs (Application Layer Gateway)
  • Blocks SYN/ICMP Flooding



VPN Features

  • IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
  • Max. Connection Tunnel Entries: 60 VPN tunnels,
  • Encryption methods: DES, 3DES, AES, AES-128/192/256
  • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512



Networking

  • Outbound load balancing for Ethernet WANs
  • Auto-failover between Ethernet WANs network
  • High Availability
  • Captive Portal
  • RADIUS Server
  • Static IP/PPPoE/DHCP client for WAN
  • DHCP server/NTP client for LAN
  • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
  • MAC address clone
  • DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP



Others

  • Setup wizard
  • Dashboard for real-time system overview
  • Support for HTTP or HTTPS
  • Auto reboot
  • PLANET NMS System and Smart Discovery Utility for deployment management
  • PLANET CloudViewer app for real-time monitoring
  • Configuration backup and restoration via remote/USB port
  • Firmware upgrade via remote/USB port



Hardware Specifications
Copper Ports5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Serial Interface1 x 3-pin terminal block for RS485
USB Port1 USB 3.0 port
DI & DO Interfaces2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.

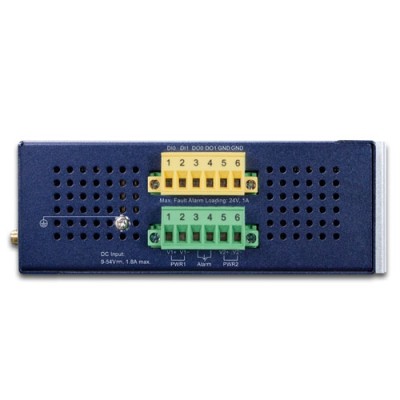

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
EnclosureIP30 metal case
InstallationDIN-rail, desktop, wall-mounting
LED IndicatorsSystem:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)

Ethernet Interfaces (Ports 1-4 and WAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)

Wi-Fi:
2.4G (Green)
5G (Green)
Dimensions (W x D x H)50 x 135 x 135 mm
Weight773g
Power Requirements – DC9~54V DC, 1.8A
Power ConsumptionMax. 3.8 watts/12.95 BTU (No Loading)
Max.15.6 watts/53.19 BTU (Full loading)
Wireless
StandardIEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11g/b/n/ax 2.4GHz
Band Mode2.4G & 5G concurrent mode
Antenna5 dBi external antennas with SMA connectors for Wi-Fi
Frequency Range2.4GHz
America FCC: 2.412~2.462GHz
Europe ETSI: 2.412GHz~2.472GHz

5GHz
5.15GHz ~5.875GHz
Operating Channels2.4GHz
America FCC: 1~11
Europe ETSI: 1~13

5GHz
America FCC:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140

Europe ETSI:
Non-DFS: 36, 40, 44, 48
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

5GHz channel list may vary in different countries according to their regulations.
Channel Width20MHz, 40MHz, 80MHz
Data Transmission RatesTransmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz

*The estimated transmission distance is based on the theory. The actual distance may vary in different environments.
Transmission Power11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
17dBm@MCS7,HT40
11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9
11ax HT20: 20+/-1.5dBm @MCS9
11ax HT40: 17 +/- 1.5dBm @MCS9
11ax HT80: 14.5 +/- 1.5dBm @MCS11
Encryption SecurityWEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES) / WPA3-PSK (TKIP/AES)
802.1x Authenticator
Wireless AdvancedWi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering
Advanced Functions
VPNIPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN TunnelsMax. 60
VPN ThroughputMax. 108Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility and NMS controller supported
Secure Management InterfacesTLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2023-07-281.0IVR-300W



Firmware

DateVersionDescriptionDownload
2023-05-051.2102b230419Supports Planet 802.11ac APs, WDAP-W1200AC and WDAP-C7210E(V2), for AP control feature.



Quick Guide

DateVersionDescriptionDownload
2023-05-191.2Add IVR-300FP.
2022-02-231.1Initial release for IVR-300/300W



User's Manual

DateVersionDescriptionDownload
2023-06-231.2Add IVR-300FP.
2022-05-061.1Initial release.



EC Declaration

DateVersionDescriptionDownload
2023-05-151.0EC Declaration.
