PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power

PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power
PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power
PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power
PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power
PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power
PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power
PLANET IVR-300 Industrial 5-Port 10/100/1000T VPN Security Gateway with Redundant Power
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IVR-300
  • Βαρος: 1.20kg
  • Διαστασεις: 13.50 x 5.00 x 13.50
611,36€
Χωρίς ΦΠΑ: 493,03€

Powerful Industrial VPN Security Solution

PLANET has launched the IVR-300 VPN Security Gateway for demanding applications. It features five Ethernet ports (4 LANs and 1 WAN), serial port (RS485), and DI and DO interfaces. Incorporating SD-WAN function, it can greatly increase WAN optimization for multiple WAN links to be managed. Furthermore, its Dual-WAN Failover and Outbound Load Balance features can improve the network efficiency while the web-based interface provides friendly and user experience.

It’s ideal for the harsh environment as it can operate stably at temperatures from -40 to 75 degrees C. Its compact IP30 metal case allows either DIN-rail or wall mounting for efficient use of cabinet space.

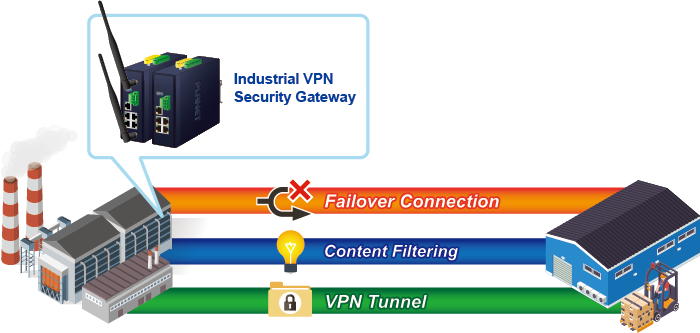

Ideal VPN Security Gateway Solution for Factories and Transportations

The IVR-300 provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the IVR-300 makes the connection secure, more flexible, and more capable.

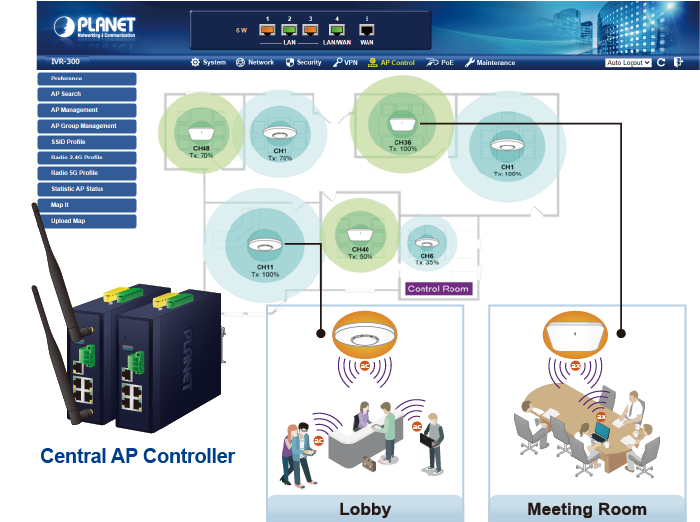

Centralized Remote Control of Managed APs

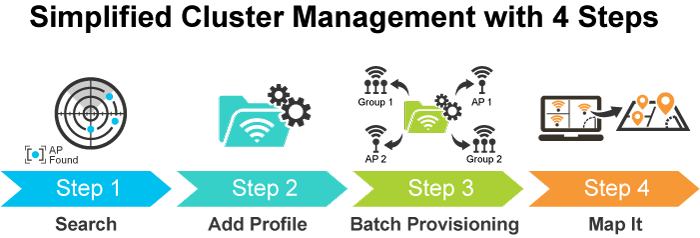

The IVR-300 provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, wireless profiles for different purposes can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.



For example, to configure multiple smart APs of the same model, the IVR-300 allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

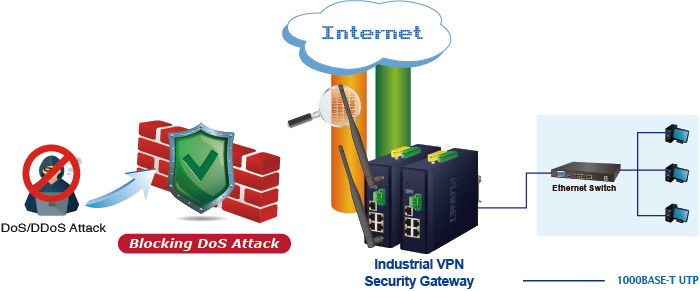

Excellent Ability in Threat Defense

The IVR-300 has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the IVR-300 is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the IVR-300 offers an easy-to-use, platform independent management and configuration facility. The IVR-300 supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

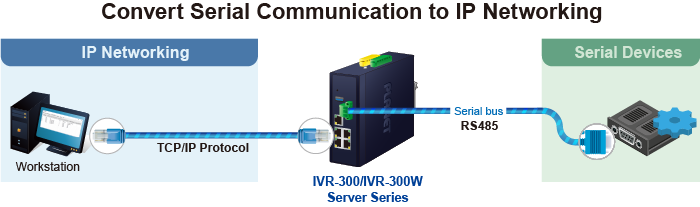

Cost-effective Solution for RS485 to Ethernet Application

The IVR-300 provides a feature that can convert the Serial RS485 communication to IP networking. Ethernet signal allows two types of segments to connect easily, efficiently and inexpensively. The solution helps users and SIs save expenses as there is no need to replace the existing serial equipment and software system.



Convenient and Reliable Redundant Power System

To facilitate transportation and industrial-level applications, the IVR-300 provides an integrated power solution with a wide range of voltages (9~54V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 9~54V DC power supply inputs for high availability applications.

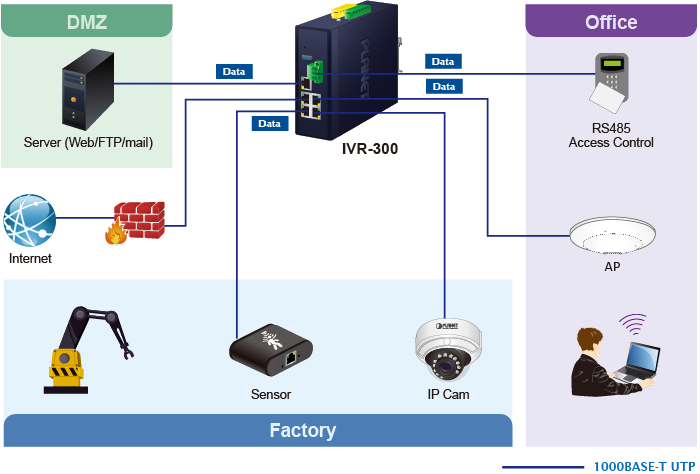

Ideal VPN Security Gateway

PLANET IVR-300 can work as a VPN security gateway in an industrial application for a company that has a factory and many different divisions. With IPSec/GRE/PPTP/L2TP/SSL VPN solutions, the IVR-300 installed at the headquarters provides branches, vendors, and mobile workers with secure data communication no matter how long the distance would be.



The IVR-300 connects dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.



Highlights

  • Dual-WAN function
  • 1 USB 3.0 port for system configuration backup and firmware upgrade
  • 2 x DI/DO and 1 serial port (RS485) for Modbus applications
  • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • Stateful packet inspection (SPI) firewall and content filtering
  • Blocks DoS/DDOS attack, port range forwarding
  • High Availability, AP Controller, Captive Portal and RADIUS
  • Planet NMS controller system and CloudViewer app supported
  • -45 to 75 degrees C operating temperature; DIN-rail and fanless designs



Hardware

  • 4 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • 1 x 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
  • 1 x  3-pin terminal block (RS485)
  • 1 x reset button
  • 1 x USB 3.0 port



IP Routing Feature

  • Static Route
  • Dynamic Route
  • OSPF



Firewall Security

  • Cybersecurity
  • Stateful Packet Inspection (SPI) firewall
  • Blocks DoS/DDoS attack
  • Content Filtering
  • MAC Filtering and IP Filtering
  • NAT ALGs (Application Layer Gateway)
  • Blocks SYN/ICMP Flooding



VPN Features

  • IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
  • Max. Connection Tunnel Entries: 60 VPN tunnels,
  • Encryption methods: DES, 3DES, AES, AES-128/192/256
  • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512



Networking

  • Outbound load balancing for Ethernet WANs
  • Auto-failover between Ethernet network WANs
  • High Availability
  • Captive Portal
  • RADIUS Server
  • Static IP/PPPoE/DHCP client for WAN
  • DHCP server/NTP client for LAN
  • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
  • MAC address clone
  • DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP



Others

  • Setup wizard
  • Dashboard for real-time system overview
  • Support for HTTP or HTTPS
  • Auto reboot
  • PLANET NMS System and Smart Discovery Utility for deployment management
  • PLANET CloudViewer app for real-time monitoring
  • Configuration backup and restoration via remote/USB port
  • Firmware upgrade via remote/USB port

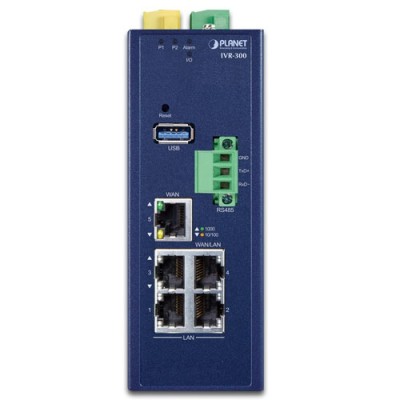

Hardware Specifications
Copper Ports5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Serial Interface1 x 3-pin terminal block for RS485
USB Port1 USB 3.0 port
DI & DO Interfaces2 Digital Input (DI):
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input Load to 24V DC, 10mA max.

2 Digital Output (DO):
Open collector to 24V DC, 100mA max.

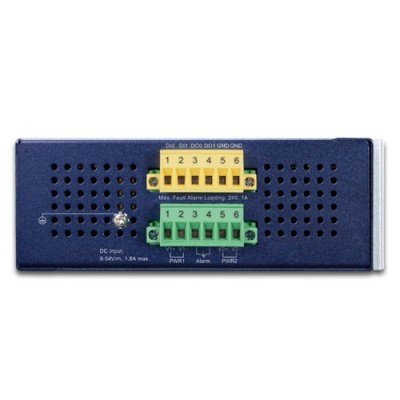

ConnectorRemovable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
EnclosureIP30 metal case
InstallationDIN rail, desktop, wall-mounting
LED IndicatorsSystem:
P1 (Green)
P2 (Green)
Alarm (Red)
I/O (Red)

Ethernet Interfaces (Ports 1-4 and WAN Port):
1000 LNK/ACT (Green)
10/100 LNK/ACT (Amber)
Dimensions (W x D x H)50 x 135 x 135 mm
Weight712g
Power Requirements – DC9~54V DC, 1.8A
Power ConsumptionMax. 3.7 watts/12.61 BTU (No Loading)
Max. 8.7 watts/29.66 BTU (Full loading)
Advanced Functions
VPNIPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN TunnelsMax. 60
VPN ThroughputMax. 108Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility and NMS controller supported
Secure Management InterfacesTLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment
OperatingTemperature: -40 ~ 75 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative humidity: 5 ~ 90% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2023-07-281.0IVR-300



Firmware

DateVersionDescriptionDownload
2024-08-061.2102b240802Function Added:
-Added PSTI function.
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.
2023-09-011.2102b2308101. Added VLAN Isolation.
2.Enhanced IP Filtering function.
2023-05-051.2102b230419Supports Planet 802.11ac APs, WDAP-W1200AC and WDAP-C7210E(V2), for AP control feature.



Quick Guide

DateVersionDescriptionDownload
2023-05-191.2Add IVR-300FP.
2022-02-231.1Initial release for IVR-300/300W



User's Manual

DateVersionDescriptionDownload
2023-06-231.2Add IVR-300FP.
2022-05-061.1Initial release.



EC Declaration

DateVersionDescriptionDownload
2023-05-151.0EC Declaration.
