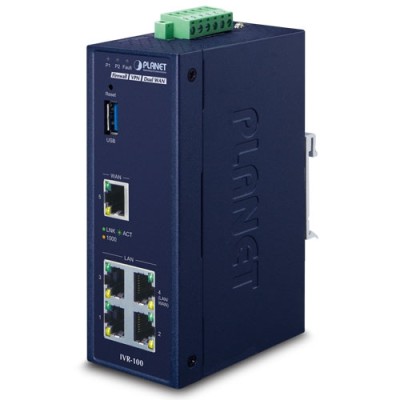

PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway

PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway
PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway
PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway
PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway
PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway
PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway
PLANET IVR-100 Industrial 5-Port 10/100/1000T VPN Security Gateway
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IVR-100
  • Βαρος: 0.75kg
  • Διαστασεις: 8.78 x 13.50 x 5.00
305,68€
Χωρίς ΦΠΑ: 246,52€

Powerful Industrial VPN Security Solution

The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the IVR-100 Industrial VPN Security Gateway, an all-in-one appliance that carries several main categories across your industrial network security deployments: Cyber security, SPI firewall security protection, policy auditing (Content Filtering, VPN Tunnel and VLAN), and easy management (Setup Wizard, QoS and Dashboard). Furthermore, its Dual-WAN Failover and Outbound Load Balance features can improve the network efficiency while the web-based interface provides friendly and consistent user experience. For the harsh environment, the IVR-100 can not only operate stably under temperature range from -40 to 75 degrees C, but also is equipped with a compact IP30 metal case that allows either DIN-rail or wall mounting for efficient use of cabinet space.



Excellent Ability in Threat Defense

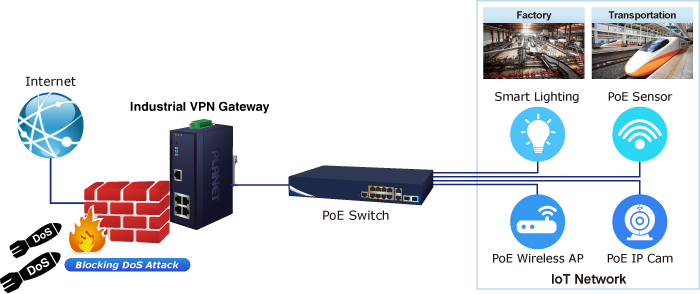

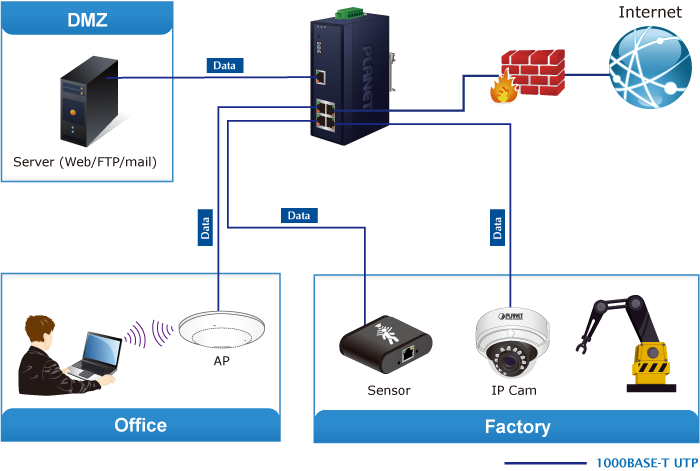

The IVR-100 built-in SPI (stateful packet inspection) firewall and anti DoS/DDoS attack functions provide high efficiency and extensive protection for your network. Virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.



Ideal VPN Security Gateway Solution for SMBs

The IVR-100 provides complete data security and privacy for accessing and exchanging most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the IVR-100 makes the connection solidly secure, more flexible, and more capable.



The IVR-100 supports many popular security features including Content Filtering to block specific URL, MAC/IP filtering, outbound load-balancing and more. Furthermore, it provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirements nowadays, and the dual-WAN interfaces enable the IVR-100 to support outbound load balancing and WAN fail-over features.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the IVR-100 is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the IVR-100 offers an easy-to-use, platform independent management and configuration facility. The IVR-100 supports SNMP and it can be managed via any management software based on the standard SNMP protocol.



Improving Network Efficiency

The IVR-100 has link redundancy, content filtering and many more functions to make the entire network system perform better. It is applicable to the small-scale sector (from 10 to 50 people), using a compact industrial design, with five Gigabit ports (WAN/LAN). The IVR-100’s economical price with complete cable management features make it an inevitable choice for the next-generation office network load balancer.



The IVR-100’s built-in content filtering feature can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites  like Facebook, YouTube and Yahoo.



The IVR-100 can connect dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.



Convenient and Reliable Power System

To facilitate transportation and industrial-level applications, the IVR-100 provides an integrated power solution with a wide range of voltages (9~48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 9~48V DC power supply inputs for high availability applications.



Stable Operating Performance under Difficult Environments

Today, the VPN demand expands from commercial applications to many critical networks in the harsh environment. The IVR-100 will be one of the ideal solutions that provide a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets. The IVR-100 can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IVR-100 is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for efficient use of cabinet space.



Ideal VPN Security Gateway

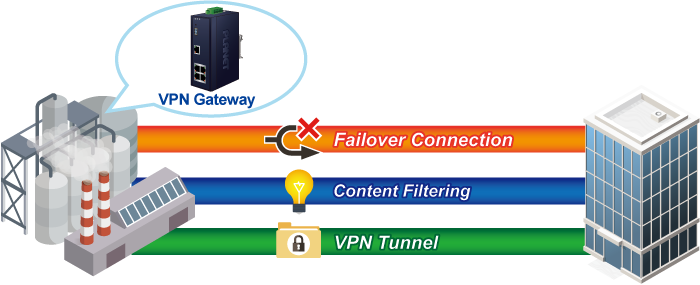

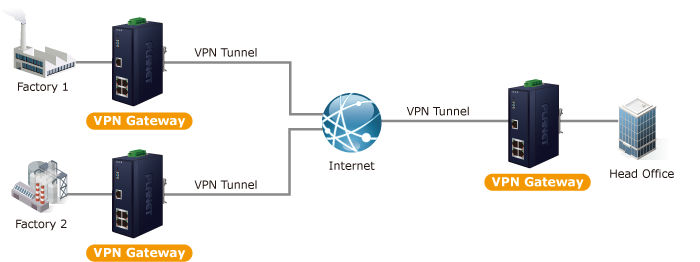

PLANET IVR-100 can work as a VPN security gateway in an industrial application for a company that has a factory and many different divisions. With IPSec/GRE/PPTP/L2TP/SSL VPN solutions, the IVR-100 provides secured data communication for branches, vendors, and mobile workers with a flexible way to connect back to the headquarters.

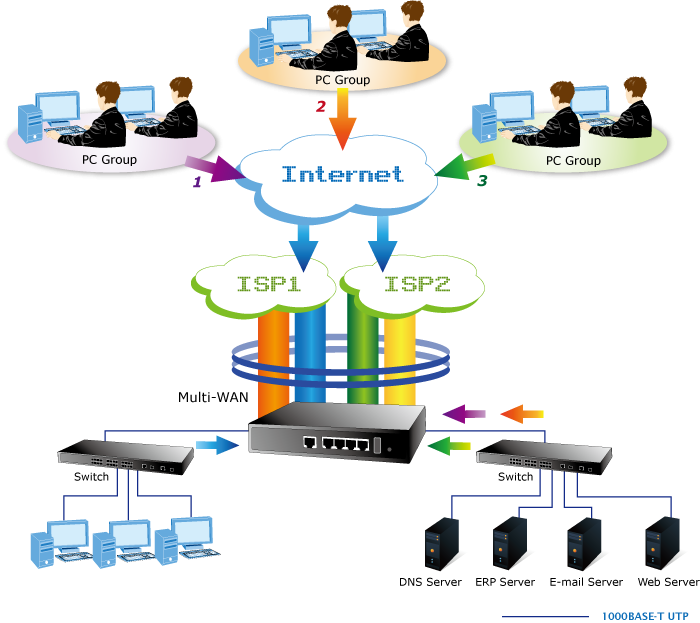

The IVR-100 connects dual WANs with up to two different ISPs. It creates a stable and qualified VPN connection for many important applications such as VoIP, video conferencing and data transmission.



Hardware

  • 5 10/100/1000BASE-T RJ45 ports
  • 1 undefined Ethernet port (LAN/WAN)
  • Dual-WAN function
  • 1 USB 3.0 port for system configuration backup and firmware upgrade
  • Reset button



Industrial Case and Installation

  • IP30 metal case
  • Solid DIN-rail, wall-mount  or side wall-mount design
  • Supports 6KV DC Ethernet ESD protection
  • Fault alarm for power input failed
  • DC redundant power with reverse polarity protection
  • -40 to 75 degrees C operating temperature



IP Routing Feature

  • Static Route
  • Dynamic Route (RIPv1/v2)



Firewall Security

  • Stateful Packet Inspection (SPI) firewall
  • Blocks DoS/DDoS attack
  • Web filtering
  • MAC/IP filtering
  • Blocks SYN/ICMP flooding



VPN Features

  • IPSec (Host to Host)/GRE/PPTP server/L2TP/SSL(Open VPN)
  • Max. Connection Tunnel Entries: 60 VPN tunnels,
  • Encryption methods: DES, 3DES, AES, AES-128/192/256
  • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512



Networking

  • Outbound load balancing
  • Failover for dual-WAN
  • PPPoE/Static IP/DHCP client for WAN
  • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • Port forwarding
  • QoS
  • DMZ
  • VLAN
  • IGMP Proxy
  • SNMP (v1/v2C/v3)
  • DHCP server/NTP client
  • MAC address clone
  • DDNS: PLANET DDNS, PLANET Easy DDNS, DynDNS or No-IP
  • Cybersecurity



Others

  • Setup wizard
  • Dashboard for real-time system overview
  • Supported access by HTTP or HTTPS
  • Auto reboot
  • Configuration backup and restoration via remote/USB port
  • Firmware upgrade via remote/USB port
  • Event message logging to remote syslog server
  • PLANET Smart Discovery utility/UNI-NMS supported



Hardware

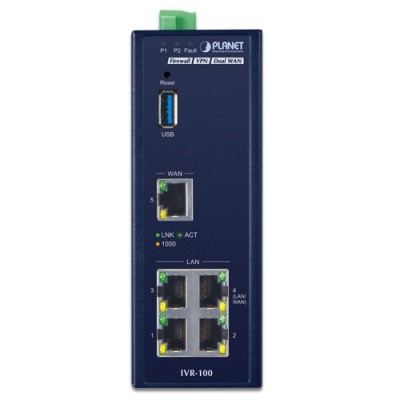

Ethernet5 10/100/1000BASE-T RJ45 Ethernet ports including
  • 3 LAN ports
  • 1WAN port
  • 1 LAN/WAN port
USB Port1 USB 3.0 port for system configuration backup and firmware upgrade
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
EnclosureIP30 metal case
LED IndicatorsPower1/Power2 (Green)
Fault (Red)
InstallationDIN-rail, wall-mount or side wall-mount design

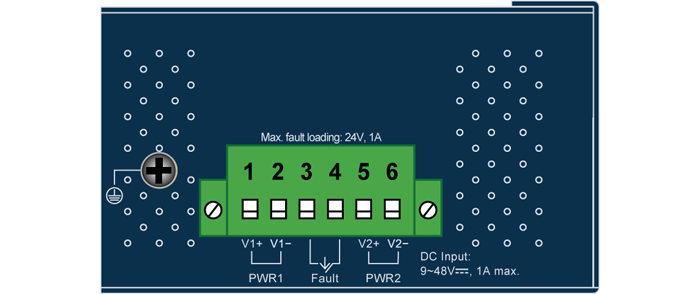

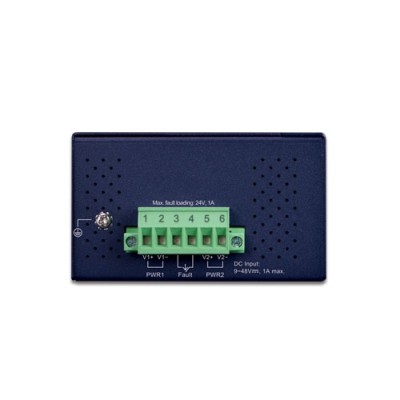

ConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1
Pin 3/4 for power fault alarm
Pin 5/6 for Power 2
AlarmOne relay output for power failure.
Alarm relay current carry ability: 1A @ 24V AC
Power Requirements9-48V DC, 1A max.
Power Consumption9W max.
Weight0.53kg
Dimensions (W x D x H)135 x 87.8 x 50 mm
ESD Protection6KV DC
Software
ManagementWeb browser
Operation ModeRouting mode
Routing ProtocolStatic route: 32
Dynamic route (RIPv1/v2): 4096
NAT ThroughputMax. 900Mbps
Firewall SecurityStateful packet inspection (SPI)
Blocks DoS/DDoS attack
Outbound Load BalancingSupported algorithms: Weight
ProtocolIPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, SNMP(v1/v2C/v3), PPPoE, SNMP, QoS, VLAN, IGMP Proxy
Content FilteringMAC filtering
IP filtering
Web filtering
LogSystem operation log
Event message logging to remote syslog server
OthersOutbound load balancing
Failover for dual-WAN
Port forwarding
DMZ
Cybersecurity
Dashboard
Setup wizard
Auto reboot
PLANET Smart Discovery utility/UNI-NMS supported
VPN
VPN FunctionIPSec (Host to Host)/GRE/PPTP server/L2TP/SSL (Open VPN)
VPN TunnelsMax. 60
VPN ThroughputMax. 100Mbps
VPN concurrent usersMax. 60
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Standards Conformance
Regulatory ComplianceCE, FCC
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
Environment Specifications
OperatingTemperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -40 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Standard Accessories
Packet ContentsIVR-100 x 1
Quick Installation Guide x 1
Wall-mount Kit x 1
Dust Cap x 5



Datasheet

DateVersionDescriptionDownload
2019-11-221.0IVR-100



Firmware

DateVersionDescriptionDownload
2022-02-091.2102b220209support SD-WAN
2021-02-031.1907b210122* New:
1. Added Captive Portal
2. Added RADIUS server/client
3. Support to change http/https port
4. Added NAT ALGs setting
5. Added Multi-subnet feature
6. Added IPv6 for LAN

* Improvements:
Enhance OpenSSL certificate compatibility.
2020-03-261.1907b200326* New:
1. PPTP/L2TP/OpenVPN Client.
2. UPnP function.
3. OSPF function.
4. Added PPPoE, VLAN, QoS, Remote Syslog, IGMP, and trace functions.

* Fixes:
1. Fixed SSL VPN status and issue.
2. Fixed DHCP Domain length limit.
3. Dual WAN online status on Dashboard page.

* Improvements:
1. Web Filter function supports FQDN to block HTTPs website.
2. VPN AES hardware acceleration.
3. Enhanced firewall and upgraded configuration or firmware from USB storage, event log, statistics, and DHCP functions.
4. Improved the Wizard to enhance the security level.
2019-12-061.1907b191203Initial release.



Quick Guide

DateVersionDescriptionDownload
2023-05-191.2Add IVR-300FP.
2022-02-231.1Add IVR-300 and IVR-300W Series
2019-10-041.0Initial Release For IVR-100_IVR-300 Series_v1.0



User's Manual

DateVersionDescriptionDownload
2023-06-231.2Add IVR-300FP.
2022-05-061.1Add IVR-300 series.
2020-12-161.0Initial release.



EC Declaration

DateVersionDescriptionDownload
2021-03-171.0Initial release
