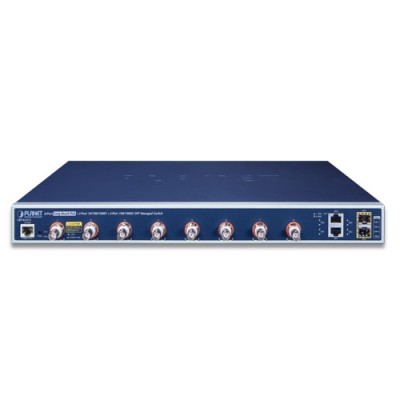

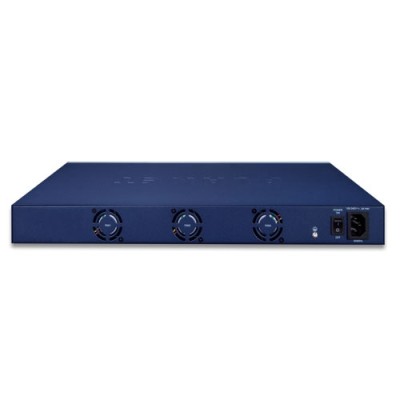

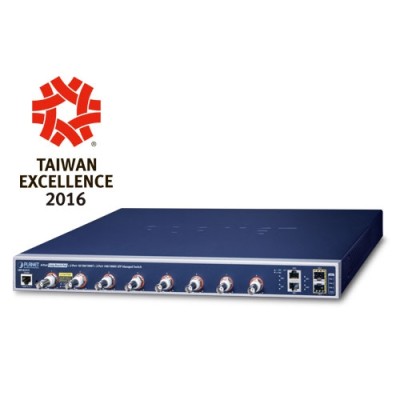

PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch

PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch
PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch
PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch
PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch
PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch
PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch
PLANET LRP-822CS 8-port Long Reach PoE + 2-port 10/100/1000T + 2-port 100/1000X SFP Managed Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: LRP-822CS
  • Βαρος: 5.32kg
  • Διαστασεις: 30.00 x 44.00 x 4.45
1.329,47€
Χωρίς ΦΠΑ: 1.072,15€

PLANET Long Reach PoE Solution enables all enterprises and network service providers to set up an IP infrastructure in a remote location where 802.3af/at PoE compliant powered devices can receive both data and power via PLANET switches, and PLANET LRP extenders and injectors over a long distance but not limited to the normal 100 meters.

Intelligent Long Reach PoE Switch on Coaxial-based Network
PLANET LRP-822CS, a brand-new Multi-channel Long Reach PoE Switch, features an extended Ethernet and PoE networking of up to 1,000 meters over the existing coaxial cables going to multiple PoE IP cameras. It provides IPv6 / IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 8 BNC ports with Long Reach PoE Injector function, 2 Gigabit copper ports and 2 extra 100/1000BASE-X SFP fiber slots. Each of the eight BNC ports provides 36 watts of power with a total power budget of up to 240 watts. As an advanced PoE switch, the LRP-822CS features intelligent PoE functions to improve the availability of critical applications. It provides a quick, safe and cost-effective PoE network solution to upgrading the existing coaxial cable infrastructure from the analog system to the HD IP surveillance system.

Multi-channel Long Reach Power over Ethernet
To support the enterprises in easily building a multi-channel and centrally-controlled Long Reach PoE system, the LRP-822CS works with the Long Reach PoE Extenders, LRP-101CE, via its 8 BNC ports being the Long Reach PoE injectors for all connected LRP Extenders. Each of the BNC port features long range data and power transmission for distance up to 1,000m (3,280ft) over coaxial cable to the LRP Extender, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE.

Centralized Power Management
With the centrally-managed 240-watt PoE budget, the LRP-822CS eliminates the need for an additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE powered devices at long range. The Long Reach PoE capabilities provided help to reduce installation time and deployment costs for network devices as a result of freeing from restrictions of power outlet locations.

Daisy-chaining Multiple Nodes
PLANET Long Reach PoE solution can easily build a power system for centrally-controlled IP cameras in a high availability network infrastructure. It gives users the flexibility to expand small area network with BNC T-connector for sharing four nodes per port when needed, making the LRP-822CS with 8 BNC Long Reach PoE Ports an ideal support for up to 32 IP cameras.

Built-in Unique PoE Functions for Powered Devices Management
As a managed PoE switch for surveillance, wireless and VoIP networks, the LRP-822CS particularly features the following special PoE Management functions to accomplish a highly-efficient Long Reach network:
■ PD Alive Check
■ Scheduled Power Recycling
■ PoE Schedule
■ PoE Usage Monitoring

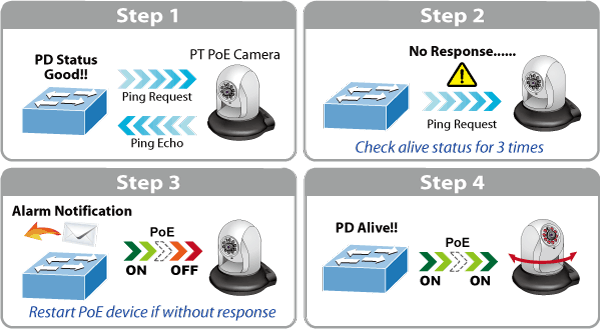

Intelligent Powered Device Alive Check
The LRP-822CS can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the LRP-822CS will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

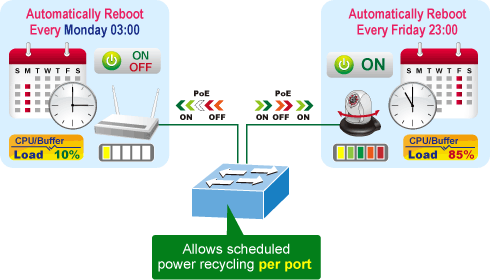

Scheduled Power Recycling
The LRP-822CS allows each of the connected PoE IP cameras or PoE wireless access points via the LRP-101CE to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or wireless AP crash resulting from buffer overflow.

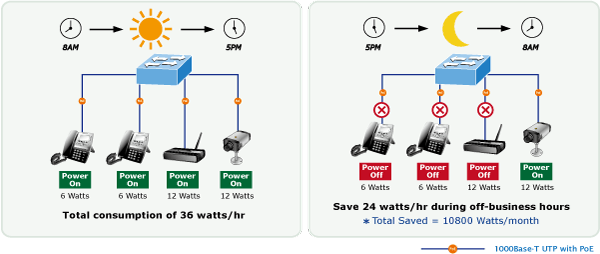

PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the LRP-822CS can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring
Via the power usage chart in the web management interface, the LRP-822CS enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

PoE Over-temperature Protection System
The over-temperature protection of the LRP-822CS offers a safe and stable PoE operation by limiting the output power in order to avoid destructive breakdown due to unexpected overheating.

Environment-friendly, Smart Fan Design for Silent Operation
The LRP-822CS features a 19-inch metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology to automatically control the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The LRP-822CS is able to operate reliably, stably and quietly in any environment without affecting its performance.

IPv6 / IPv4 Dual Stack
Supporting both IPv6 and IPv4 protocols, the LRP-822CS helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

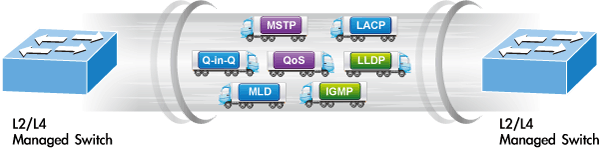

Robust Layer 2 Features
The LRP-822CS can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping, and MLD Snooping. Via the link aggregation, the LRP-822CS allows the operation of a high-speed trunk to combine with multiple ports such as an 8Gbps fat pipe, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 Protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Efficient Traffic Control
The LRP-822CS is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.

Powerful Security
PLANET LRP-822CS offers comprehensive IPv4 / IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port Security function allows to limit the number of network devices on a given port.

Advanced Network Security
The LRP-822CS also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now build highly-secured corporate networks with considerably less time and effort than before.



Advanced Network Security
The LRP-822CS also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now build highly-secured corporate networks with considerably less time and effort than before.

Friendly and Secure Management
For efficient management, the LRP-822CS is equipped with console, Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the LRP-822CS offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet and the console port. Moreover, the LRP-822CS offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

Flexibility and Long-distance Extension Solution
The LRP-822CS provides two Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper to be connected with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through another two dual-speed fiber SFP slots, it can connect with the 100BASE-FX / 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). The LRP-822CS is well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism
The LRP-822CS also supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

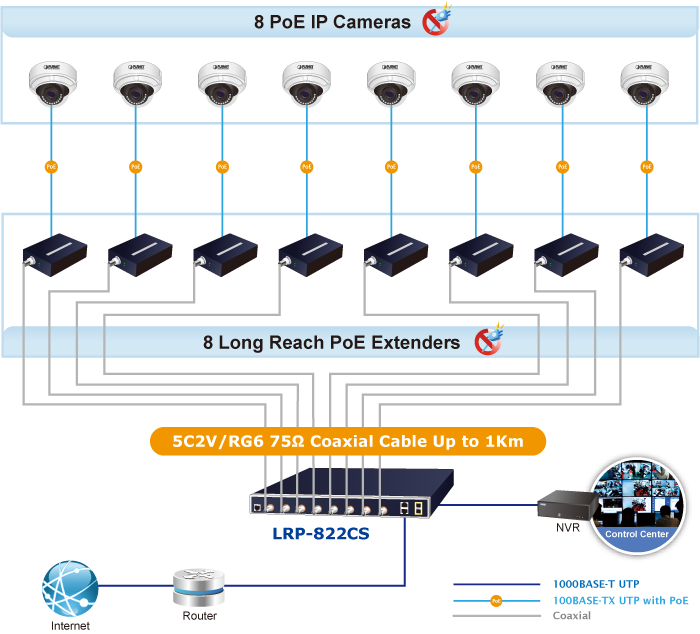

Long Reach PoE IP Surveillance Solution
The LRP-822CS provides robust Long Reach PoE features to prevent network interruptions and extend the transmission of data and power via coaxial cable for up to 1km by working with the Long Reach Extender LRP-101CE. It incorporates PLANET’s new Long Reach PoE technology into customer’s IP surveillance network to increase the distance of system transmission but to decrease the cost of installation. Applying the Long Reach Power over Ethernet functions in the LRP-822CS, the LRP-101CE can directly connect with any IEEE 802.3at/af end-nodes like IP cameras. Furthermore, the power management of the IP camera system can be centrally controlled via the LRP-822CS.

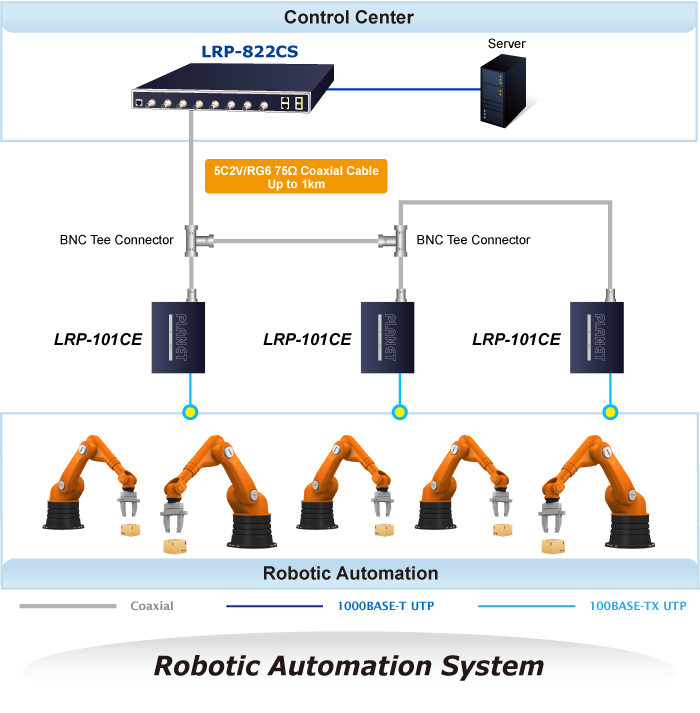

Highly-scalable Solution for Robotic Automation System
The LRP-822CS brings network infrastructure higher flexibility but lower in cost. Providing eight Fast Ethernet Long Reach PoE coaxial ports, two Gigabit TP ports and two Gigabit SFP slots, the LRP-822CS can easily build a Long Reach Ethernet (LRE) networking area consisting of 1km coaxial cable on the robotic automation system for the factory. Obviously, the Long Reach PoE system gives you the flexibility to expand small area network with BNC Tee Connector for sharing four nodes per port when needed.

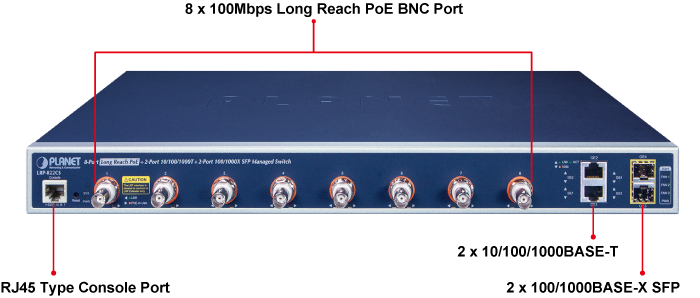

Physical Port

  • 8 100Mbps BNC female ports with Long Reach PoE Injector function
  • 2 10/100/1000BASE-T Gigabit RJ45 copper ports
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • RJ45 console interface for switch basic management and setup


Long Reach Power over Ethernet

  • Supports PoE power up to 36 watts for each PoE port
  • Remote power feeding up to 1 kilometer with 5C2V/RG6 75Ω coaxial cable
  • Long Reach PoE Management
  • - Total Long Reach PoE power budget control- Per port Long Reach PoE function enable/disable- Long Reach PoE port power feeding priority- Per Long Reach PoE port power limitation- Long Reach PD alive check- Long Reach PoE schedule


Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)- Protocol VLAN- Voice VLAN- Private VLAN- Management VLAN- GVRP
  • Supports Spanning Tree Protocol
  • - STP (Spanning Tree Protocol)- RSTP (Rapid Spanning Tree Protocol)- MSTP (Multiple Spanning Tree Protocol)- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • - IEEE 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 4 trunk groups, up to 4 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops


Quality of Service

  • Ingress / Egress rate limit per port bandwidth control
  • Storm control support
  • - Broadcast / Unknown unicast / Unknown multicast
  • Traffic classification
  • - IEEE 802.1p CoS- ToS / DSCP / IP Precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies


Multicast

  • Supports IGMP snooping v2 and v3
  • Supports MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering


Security

  • Authentication
  • - IEEE 802.1X Port-based network access authentication- Built-in RADIUS client to co-operate with the RADIUS serversRADIUS / TACACS+ login user access authentication
  • Access Control List
  • - IPv4 / IPv6 IP-based ACL- MAC-based ACL
  • MAC Security
  • - Static MAC- MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter untrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention
  • SSH / SSL


Management

  • IPv4 and IPv6 dual stack management
  • Switch management interface
  • - Web switch management- Telnet command line interface- SNMP v1, v2c and v3- SSH / SSL secure access
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System maintenance
  • - Firmware upload/download via HTTP / TFTP- Configuration upload/download through Web interface- Dual images- Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Cable diagnostics
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • SNMP trap for interface linkup and linkdown notification
  • Event message logging to remote Syslog server
  • Four RMON groups (history, statistics, alarms and events)
  • PLANET Smart Discovery utility
  • Smart fan with speed control
Hardware Specifications
Ethernet Interfaces■ Copper:
• 2 x 10/100/1000BASE-T RJ45
• Auto-negotiation/ Auto-MDI/MDI-X

■ Fiber Optic:
• 2 x 100/1000BASE-X SFP slot
• Supports 100/1000Mbps dual mode and DDM

■ Jumbo Frame:
• 10Kbytes with GE1 to GE4
Long Reach PoE Interfaces■ Connectivity:
• 8 x BNC female connectors
Long Reach PoE over coaxial PSE (Power Source Equipment)
- BNC center pole : DC+ / Hi
- BNC shield : DC - / Lo

■ Power Output:
• Per port 54V DC, 36 watts max.

■ Total Power Budget:
• 240 watts (max.) @ 25 degrees C
• 200 watts (max.) @ 50 degrees C

■ Cabling:
• Coaxial cable: 75 ohm
• RG-6/U cable (Recommended)

■ Maximum Distance:
• Max. 200m with PoE+ output (656ft.)
• Max. 400m with PoE output (1,312ft.)
• Max. 1200m without PoE output (3,937ft.)

■ Long Reach Ethernet Standard:
• IEEE 1901

■ Modulation Type:
• Wavelet-OFDM

■ Security:
• 128-bit AES encryption

■ Frequency Band:
• 2 ~ 28MHz

■ Performance:
RG-6/U
Distance
Data Rate*
LRP-101CE
PoE Output@25 degrees C*
TX**
RX**
200m
93.2Mbps
92.0Mbps
22.9W
400m
82.4Mpbs
73.6Mbps
18.7W
600m
77.2Mbps
62.3Mbps
15.0W
800m
60.2Mbps
54.3Mbps
10.4W
1000m
38.1Mbps
38.1Mbps
7.8W
1200m
25.6Mbps
25.0Mbps
---

* The actual data rate and PoE output vary on the quality of the copper wire and environmental factors. The performance result above is based on the testing via the RG-6/U coaxial cable.

** TX: LRP-822CS to LRP-101CE; RX: LRP-101CE to LRP-822CS.

■ Multiple Nodes:
Up to 4 LRP extenders within 1km RG-6/U coaxial cable*

* The actual extender nodes vary on the quality of the copper wire and environmental factors.

■ LRP Compatibility:
LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender
Console1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch ArchitectureStore-and-Forward
Switch Fabric9.6Gbps / non-blocking
Address Table8K entries
Shared Data Buffer4.1 megabits
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
LEDPWR, SYS, LNK, PoE-in-Use, 1000, LNK/ACK, Fan 1 Alert, Fan 2 Alert,
PoE PWR Alert
Dimensions (W x D x H)440 x 300 x 44.5 mm, 1U height
Weight3878g
Power RequirementsAC 100~240V, 50/60Hz, auto-sensing
ESD Protection6KV DC
Power Consumption320 watts / 1091.8 BTU
EnclosureMetal
Layer 2 Functions
Port MirroringTX / RX / both
Many-to-1 monitor
VLAN802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link AggregationIEEE 802.3ad LACP and static trunk
Supports 4 groups of 4-port trunk
Spanning Tree ProtocolSTP / RSTP / MSTP
IGMP SnoopingIGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD SnoopingMLD (v1/v2) Snooping, up to 256 multicast groups
Access Control ListIPv4/IPv6 IP-based ACL / MAC-based ACL
QoS8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR
SecurityIEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS / TACACS+ user access authentication
IP-MAC port binding
MAC filter
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management InterfacesWeb browser / Telnet / SNMP v1, v2c
Firmware upgrade by HTTP / TFTP protocol through Ethernet network
Remote / Local Syslog
System log
LLDP protocol
SNTP
Secure Management InterfacesSSH, SSL, SNMP v3
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulation ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 1901 Broadband Power Line
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2016-04-011.0LRP-822CS



Quick Guide

DateVersionDescriptionDownload
2021-10-151.3Modify contents of Quick Guide.
2015-05-151.0Initial release.



User's Manual

DateVersionDescriptionDownload
2015-08-071.1Add LRP-1622CS.



EC Declaration

DateVersionDescriptionDownload
2015-06-181.0EC Declaration
