  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: LRP-101C-KIT
  • Βαρος: 0.46kg
  • Διαστασεις: 7.00 x 9.40 x 2.60
363,91€
Χωρίς ΦΠΑ: 293,47€

PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.

Convenient PoE over Coaxial Extender in Harsh Environment
The LRP-101C-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over Coaxial Extender Kit featuring long range data and power transmission for distance up to 1,000m (3,280ft.) over coaxial cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101C-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.

Composition of Long Reach PoE over Coaxial Extender Kit

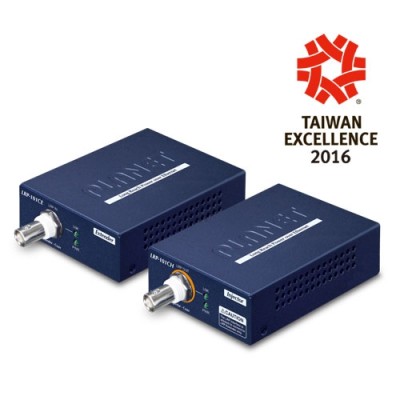

The LRP-101C-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:

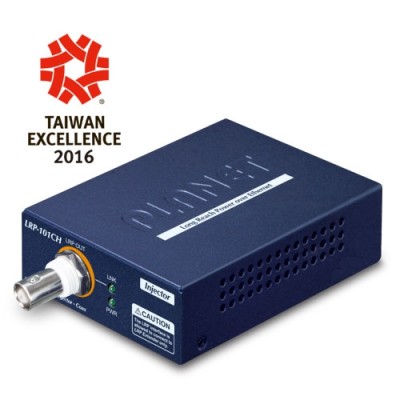

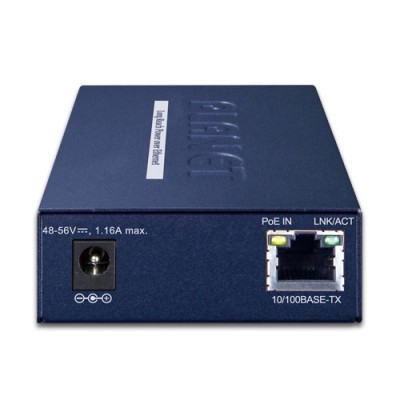

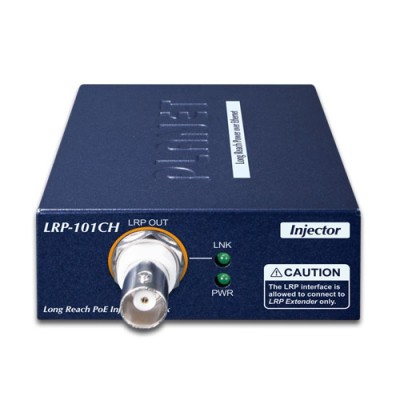

LRP-101CH: 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector

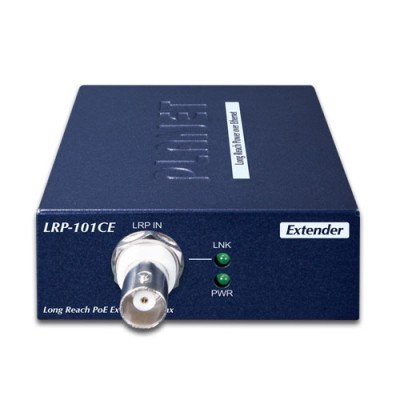

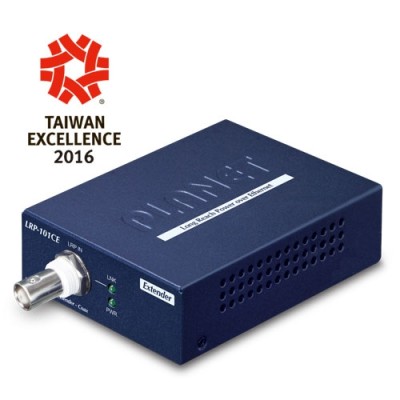

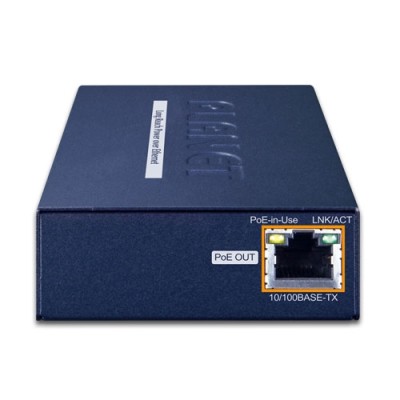

LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

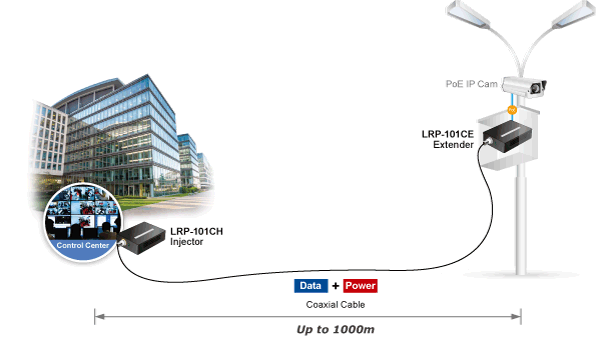

The LRP-101CH transmits data and power over coaxial cable to the LRP-101CE, which can be located as far as 1,000m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.

Functions
LRP Injector
LRP Extender
LRP-101CH
LRP-101CE
Power Input
RJ45 with 802.3at/af PoE input or power adapter with 48~56V DC in
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output
LAN Connection
NVR or PoE+ Ethernet switch at head-end
PoE IP camera, PoE wireless AP, PoE access control at remote site

IP Ethernet and Power over Long Existing Coaxial Cable

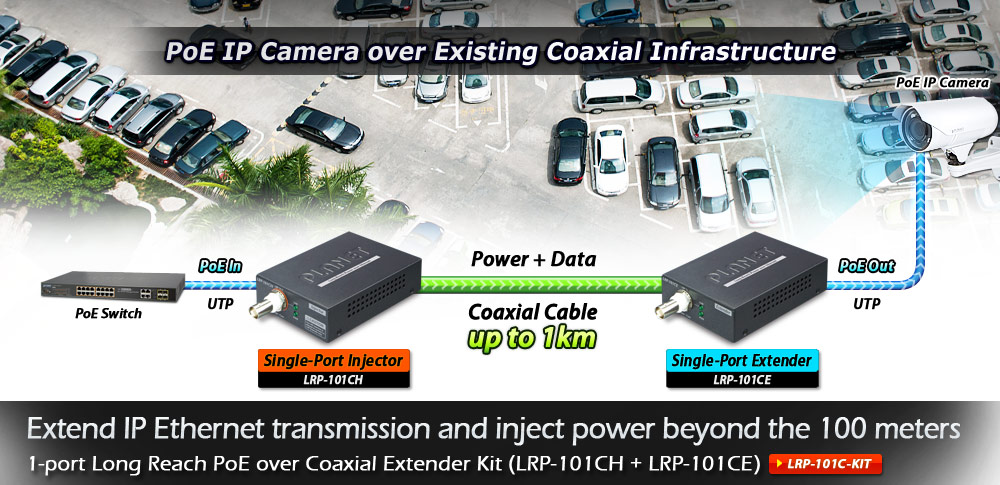

A normal UTP cable can only be extended up to 100 meters, but the LRP-101C-KIT can extend PoE networking up to 1,000 meters (3,280ft.) over existing 75 ohm coaxial cable with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.

Stable Operating Performance under Difficult Environments
PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.

Plug-n-play Installation

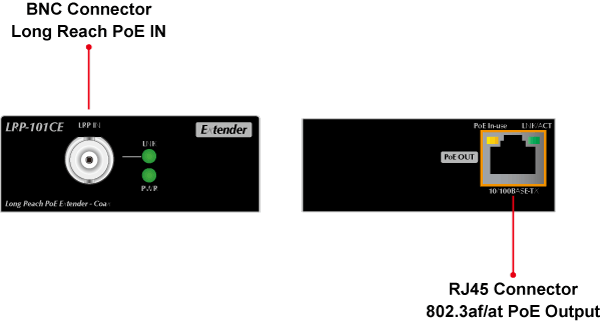

With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.

The LRP-101C-KIT includes two products: The LRP-101CH, a Coax Long Reach PoE Injector (LRP injector), and the LRP-101UE, a Coax Long Reach PoE Extender (LRP extender). Working in pair, the LRP-101CH can be powered by either external DC power adapter or PoE+ Ethernet switch, and from there, the LRP-101CE’s 802.3at standard PoE output goes to PoE Powered Device (PD). The LRP-101C-KIT can be widely used in Intelligent Transportation Systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts and so on.

The LRP-101C-KIT can function in two different kinds of combinations:

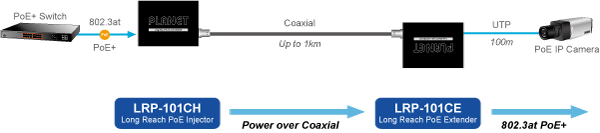

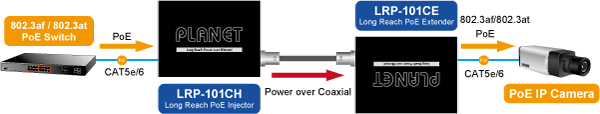

Type 1: LRP-101CH with PoE power input and LRP-101CE with PoE power output
The LRP-101CH injector is powered by IEEE 802.3at/af PoE source and it transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.

Functions
LRP Injector
LRP Extender
LRP-101CH
LRP-101CE
Power Input
RJ45 with 802.3at/af PoE input
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output



Type 2: LRP-101CH with 48~56V DC power input and LRP-101CE with PoE power output
The LRP-101CH injector is powered via the DC power adapter and it transmits data and power over coaxial cable to the LRP-101CE extender. An IEEE 802.3at/af compliant PoE PD will then automatically be powered by the LRP-101CE via UTP cabling.

Functions
LRP Injector
LRP Extender
LRP-101CH
LRP-101CE
Power Input
Power adapter with 48~56V DC in
BNC with DC power over coaxial input
Power Output
BNC with DC power over coaxial output
RJ45 with 802.3at/af PoE output



Power over Ethernet

  • Eliminates power cabling with PoE over coaxial
  • Supports Power over Ethernet PSE (PoE Injector)
  • Power and Ethernet data transmission of 1,000m over coaxial cabling
  • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet PD on RJ45 port
  • Supports Long Reach PoE power up to 30.8 watts (depending on power source and cable distance)
  • Supports PoE Power up to 25 watts (depending on power source and cable distance)
  • Auto detects remote powered device (PD)
  • Plug and Play; no PC required


Industrial Case and Installation

  • Supports extensive LED indicators for network diagnostics
  • Metal case protection
  • Compact size, DIN-rail and wall-mount design
  • Supports EFT surge protection of 2kV DC for power line
  • Supports Ethernet ESD protection of 4KV DC
  • -20 to 70 degrees C operating temperature
Hardware Specifications
Ethernet InterfaceLRP-101CH
■ Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
■ PoE Input: Supports both Mid-span and End-span PSE Input Range: 48~56V DC
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100 meters
■ Maximum Frame Size: 1522 bytes

LRP-101CE
■ Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
■ Power over Ethernet Standard: IEEE 802.3at/af PoE PSE
(Power Source Equipment)
■ PoE Output: 56V DC, 600mA max.
■ PoE Budget: Up to 25 watts
■ PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-)
■ Data Rate: 100/100Mbps
■ Cabling: Cat5e or above
■ Maximum Distance: 100 meters
■ Maximum Frame Size: 1522 bytes
Long Reach PoE InterfaceLRP-101CH
■ Connectivity: 1 x BNC female connector Long Reach PoE over coaxial PSE
(Power Source Equipment)
■ Power Output: 41~56V DC
■ Power Pin Assignment: 
BNC center pole: DC+
BNC shield: DC-
■ Cabling:
Coaxial cable: 75 ohm
RG-6/U cable, less than 12Ω/1,000ft.
RG-59/U cable, less than 30Ω/1,000ft.
■ Maximum Distance:
Max. 200m with PoE+ output (656ft.)
Max. 600m with PoE output (1,968ft.)
Max. 1200m without PoE output (3,937ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit
■ LRP Compatibility: LRP-101CE, 1-Port LRP Extender

LRP-101CE
■ Connectivity: 1 x BNC female Long Reach PoE over coaxial PD
(Powered Device)
■ Power Input: 37~56V DC
■ Power Pin Assignment: 
BNC center pole: DC+
BNC shield: DC-
■ Cabling:
Coaxial cable: 75 ohm
RG-6/U cable, less than 12Ω/1,000ft.
RG-59/U cable, less than 30Ω/1,000ft.
■ Maximum Distance:
Max. 200m with PoE+ output (656ft.)
Max. 600m with PoE output (1,968ft.)
Max. 1200m without PoE output (3,937ft.)
■ Long Reach Ethernet Standard: IEEE 1901
■ Modulation Type: Wavelet-OFDM
■ Security: 128-bit AES encryption
■ Frequency Band: 2 ~ 28 MHz
■ Encryption: AES 128-bit
■ LRP Compatibility: With power over coaxial input
LRP-101CH, 1-Port LRP Injector
LRP-822CS, 8-Port LRP over Coax Switch
LRP-1622CS, 16-Port LRP over Coax Switch

Performance**
Distance
Data Rate*
(Upload / Download)
LRP-101CE 802.3af/at PoE Output Capability**
LRP-101CH
with 56V DC in
LRP-101CH
with 30W PoE+ in
200m
93 / 93Mbps
29W
16W
400m
93 / 93Mbps
22W
14W
600m
87 / 91Mbps
13W
10W
800m
75 / 83Mbps
10W
8W
1000m
55 / 73Mbps
8W
7W
LED IndicatorsLRP-101CH
4 x LEDs
■ PWR
■ LRP LNK
■ PoE IN
■ LNK/ACT

LRP-101CE
4 x LEDs
■ PWR
■ LRP LNK
■ PoE-in-use
■ LNK/ACT
ESD Protection4KV DC
EFT ProtectionLRP-101CH
■ 2KV

LRP-101CE
■ -
EnclosureMetal case
InstallationWall mount or DIN rail with optional kit
Dimensions (W x D x H)94 x 70 x 26 mm
WeightLRP-101CH
■ 200g

LRP-101CE
■ 375g
Power RequirementsLRP-101CH
■ RJ45 PoE Input: 802.3at/af 48~56V DC
■ DC Input: 48~56V DC

LRP-101CE
■ BNC Power over Coaxial Input: 44~56V DC
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Regulation ComplianceFCC Part 15 Class A, CE
Environment
TemperatureOperating: -20~70 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)
Note
Note*1.Upload: LRP-101CE to LRP-101CH,data stream.
Download: LRP-101CH to LRP-101CE,data stream.
2.As there are various resistance values in the category of RG-59/U or
RG-6/U cable,the actual data rate will vary on the quality of the copper
wire and environment factors.
**Depending on what the DC/PoE Power Input and the length of coaxial
cable are.
