- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: ENW-9803
- Βαρος: 0.22kg
- Διαστασεις: 10.90 x 12.00 x 6.90

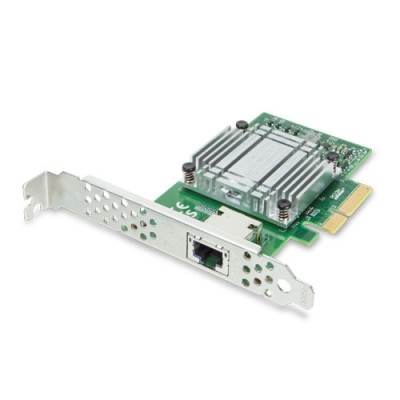

Enhanced from the current highly-praised version, PLANET ENW-9803 version 3 10GBASE-T PCI Express Server Adapter adopts Marvell AQtion LAN controller solution. It comes with PCI Express rev. 3.0 specification x4 interface and other advanced features as follows:
- Smaller and compact in design
- 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 Multi-gigabit network solution
- Supports iSCSI/FCoE/PXE/Other boot

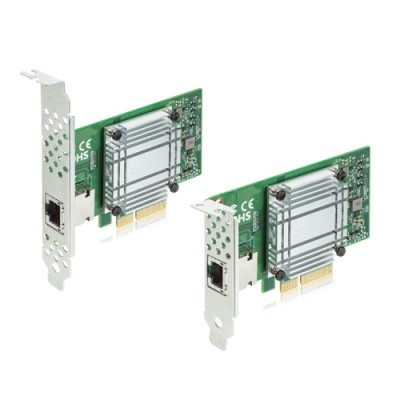

- Low profile bracket
10 Gigabit Performance yet Low Cost and Low Power
The ENW-9803 comes with one 10GBASE-T RJ45 interface and low-profile PCI Express form factor. As the new ENW-9803 uses Marvell AQtion LAN controller solution, it is a low-powered, high performance model that supports IEEE 802.az Energy Efficient Ethernet (EEE). The new ENW-9803 NIC adapter reference design supports auto-negotiation for allowing the NBASE-T solution to optimally select the best and flexible speed like 10 Gigabit Ethernet (10GbE), 5 Gigabit Ethernet (5GbE), 2.5 Gigabit Ethernet (2.5GbE), 1Gigabit Ethernet (GbE) or 100 Megabit Ethernet (100MbE) over Cat 5e/Cat 6/Cat 6A or better cabling. It is designed to address system application requirements by offering the best cost, 10Gbps high performance, low power consumption and better-quality solution in the 10Gbps network market today.
Cost-effective and Ideal 10G Copper NIC Adapter
Compared with 10G adapter with CX4 and SFP+ interface, PLANET 10GBASE-T PCI-E adapter is the best choice in that the ENW-9803 10GBASE-T can reach up to 100 meters over Cat.6a or Cat.7 RJ45 cable, whereas the CX4 and SFP+ interface only can work with fixed speed rate. However, the ENW-9803 10G copper NIC adapter can adjust and work with the speed rate of 100M/1G/2.5G/5G. The CX4 interface can only extend up to 15 meters in distance. The cost is too high for having an extra SFP+ interface for the SFP+ transceiver. However, with the ENW-9803, customers only spend on Cat.6a or Cat.7 cable as the ENW-9803 is bundled with RJ45 connector, thus costing less than the SFP+ transceiver.
10G Spec. | Interface | Media | Maximum Distance | Total Ownership Cost |
10GBASE-T | RJ45 | Cat.6a/Cat.7 UTP cable | 100 meters (328 ft) | Low |
10GBASE-CX4 | CX4 | Copper | 15 meters (49 ft) | Medium |
10GBASE-SR | SFP+ | Multi-mode fiber cord | 300 meters (984 ft) | High |
10GBASE-LR | SFP+ | Single mode fiber cord | 10 km (32808 ft) | High |
10GbE Device Designed for Low-power, Low-cost and Single-port Applications
The ENW-9803 is an optimized 10GbE device designed for low-power, low-cost and single-port applications required in application servers, high-end workstations and personal computers. This makes it ideal for enabling 1GbE to migrate to 10GbE for bandwidth-intensive workstation applications and low-end to mid-range network appliances. With the innovative PCI Express Bus Architecture, it offers increased bandwidth, reliability and additional functionality compared with standard GbE network cards. The performance of throughput at rates up to 20Gbps is unbelievable, thus eliminating the bottleneck that exists with the current Gigabit network. PLANET ENW-9803 is designed to connect your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.
Standard 802.1Q VLAN Support
Moreover, the ENW-9803 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 16K jumbo frame ability and IEEE 802.3 flow control support, it further optimizes throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most 10 Gigabit Ethernet environments.
Multiple OS Support
The ENW-9803 operates completely well with most of the popular and latest operating systems including Microsoft Windows Server, Linux and VMware, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9803 to be integrated into the system.
Server NICs
PLANET ENW-9803 is equipped with one 10 Gigabit RJ45 interface, giving 10 times more performance than the existing Gigabit transmission. Thus, the ENW-9803 can easily act as a server NIC of your networks by wiring to the backbone switches. With one PCI Express rev. 3.0 specification x4 Interface, the ENW-9803 is an ideal solution for the mainboard with PCI Express interface now and in the future.
- PCI Express rev. 3.0 specification x4 Interface
- 10Gbps throughput with 100-meter UTP cable
- Complies with IEEE 802.3an 10GBASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3u 100BASE-TX
- Complies with IEEE P802.3bz (NBASE-T) 5GBASE-T and 2.5GBASE-T
- IP, TCP, UDP checksum offloading
- IEEE 802.1Q VLAN ID tagged/IEEE 802.1p CoS
- Reduced CPU utilization and improved throughput
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- 16K jumbo frame size
- IEEE 802.3x full-duplex flow control
- PXE/Other boot support
- Complies with Microsoft and Linux platforms
Hardware Specifications | |
---|---|
Hardware Version | 3 |
Attachment Interface | PCI Express rev. 3.0 specification x4 interface |
Media Interface | RJ45 connector |
Data Rate | 10M/100M/1G/2.5G/5G/10Gbps |
Jumbo Frame | 2K/4K/9K/16K Bytes |
LED Indicators | 10G LNK Speed (Green)/100Mbps/1G/2.5G/5G LNK Speed (Amber) Dual Color LED LNK/ACT(Green) |
Dimensions (W x D x H) | 120 x 109 x 69 mm |
Weight | 82g |
Typical Power Consumption | 4.7watts/16BTU |
Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1G/2.5GBASE-T: 4-pair UTP Cat 5e/Cat 6/Cat 6A/ Cat 7 5GBASE-T: 4-pair UTP Cat 6/Cat 6A/Cat 7 10GBASE-T:4-pair UTP Cat 6A/Cat 7 |
Advanced Functions | |
Layer 2 Features | IEEE 802.3x Flow Control support IEEE 802.1Q VLAN support IEEE 802.1p CoS support |
Pre-boot Execution Environment (PXE) | Yes |
Data Plane Development Kit (DPDK) | Yes |
Operating System Support | Windows Server 2008R2 64 bits Windows Server 2012R2 64 bits Windows Server 2016R2 64 bits Windows Server 2019R2 64 bits Windows 7 32/64 bits Windows 8 32/64 bits Windows 10 32/64 bits Linux Stable Kernel Version(2.6.32.x to 5.x) Linux CentOS/RHEL(6.x to 7.x) Ubuntu (14.x to 16.x) UOS V20 VMware ESX/ESXi 4.x/5.x/6.x |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class B, CE |
Standards Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3bz IEEE 802.3an IEEE 802.3x IEEE 802.1Q IEEE 802.3az 10BASE-T Ethernet 100BASE-TX Ethernet 1GBASE-T Ethernet 2.5/5GBASE-T Ethernet 10GBASE-T Ethernet Flow Control and Back Pressure VLAN Tagging Energy Efficient Ethernet (EEE) |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 85 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Package | |
Package Contents | ENW-9803 Server Adapter Quick Installation Guide Low Profile Bracket |
