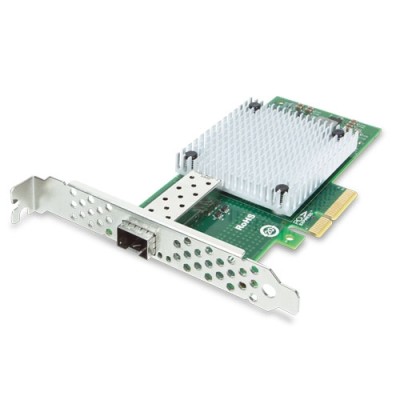

PLANET ENW-9801 10Gbps SFP+ PCI Express Server Adapter

PLANET ENW-9801 10Gbps SFP+ PCI Express Server Adapter
PLANET ENW-9801 10Gbps SFP+ PCI Express Server Adapter
PLANET ENW-9801 10Gbps SFP+ PCI Express Server Adapter
PLANET ENW-9801 10Gbps SFP+ PCI Express Server Adapter
PLANET ENW-9801 10Gbps SFP+ PCI Express Server Adapter
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ENW-9801
  • Βαρος: 0.23kg
  • Διαστασεις: 13.30 x 12.00 x 6.80
198,93€
Χωρίς ΦΠΑ: 160,43€

Enhanced from the current highly-praised version, PLANET ENW-9801 Version 3 10Gbps SFP+ PCI Express Server Adapter adopts Intel LAN controller solution. It comes with PCI Express rev. 2.0 specification x4 interface and other advanced features as follows:

  • Smaller and compact in design
  • Flexible 10G SFP+ module installation
  • Supports iSCSI/FCoE/PXE/Other boot

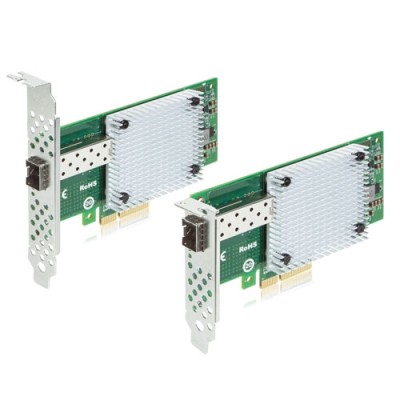

  • Low profile bracket



The Server Level Adapter to Expand Networking Environments

The ENW-9801 is a PCI Express 10Gbps Ethernet Adapter designed to meet high-performance system application requirements. With the innovative PCI Express Bus Architecture, the ENW-9801 provides superior performance than the network cards based on 32/64bit PCI architecture. It provides the best solution to one of the major issues of Server Farm Networks -- communication speed. Ten times faster than the existing 1000BASE-SX/LX fiber solutions, PLANET ENW-9801 is designed to connect your servers and workstations, guaranteeing extremely high throughput and excellent signal quality.

Moreover, the ENW-9801 supports IEEE 802.1Q VLAN which allows it to operate in a flexible and secure network environment. With 9K Jumbo Frame ability and IEEE 802.3 Flow Control support, it further optimizes throughput and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most 10 Gigabit Ethernet environments.



10 Gigabit Performance Boosts Network Traffic

The ENW-9801 is an optimal solution to Ethernet applications by providing low-power budgets and small form factor. It offers simple integration into any PCI Express x4 server slot via one SFP+ slot. The onboard controller featured on the ENW-9801 integrates embedded technology and a 10GbE MAC into a single chip that offers up to 10Gbps of network throughput. PLANET Network solution greatly reduces the TCP/IP packet processing tasks of the server’s CPU by performing enhanced data-handling algorithms, thereby providing nearly 10Gb line speed performance with the simplicity of a conventional Network Interface Card (NIC).



Multiple OS Support

The ENW-9801 operates completely well with most of the popular and latest operating systems including Microsoft Windows Server, Linux and VMware, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9801 to be integrated into the system.



Server NICs

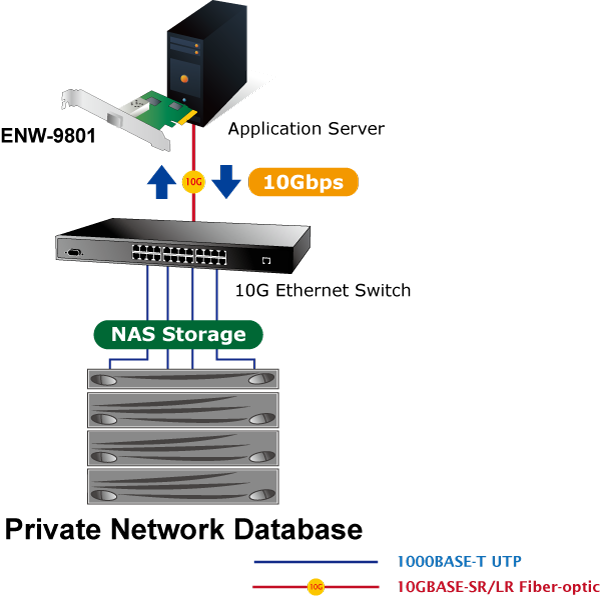

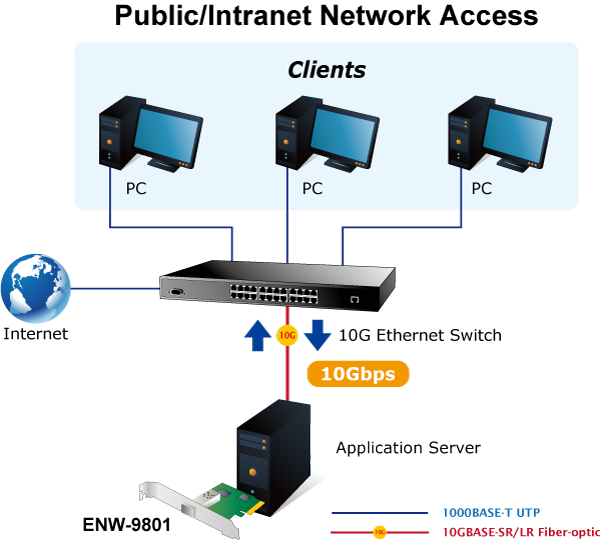

PLANET ENW-9801 is equipped with one 10 Gigabit SFP interface, giving ten times more performance than the existing Gigabit transmission. Thus, the ENW-9801 can easily act as a server NIC of your networks by wiring to the backbone switches. With one PCI Express rev. 2.0 specification x4 Interface, the ENW-9801 is an ideal solution to the mainboard with PCI Express interface now and in the future.



  • PCI Express rev. 2.0 specification x4 interface
  • IP, TCP, UDP checksum offloading
  • IEEE 802.1Q VLAN ID Tagged/IEEE 802.1p CoS
  • 9K jumbo frame size
  • IEEE 802.3x full-duplex flow control
  • IEEE 1588PTP (Precision Time Protocol) transparent clock mode
  • iSCSI/FCoE/PXE/Other boot support
  • Complies with Microsoft and Linux Platforms



Hardware Specifications
Hardware Version3
Attachment InterfacePCI Express rev. 2.0 specification x4 Interface
Media InterfaceSFP+ Connector
Optical Module OptionsLRM, LR, SR
Jumbo Frame4K/9K Bytes
LED IndicatorsLNK Speed (Green)
LNK/ACT(Green)
Dimensions (W x D x H)120 x 133 x 68 mm
Weight93g
Typical Power Consumption4.8 watts/16.3BTU
Advanced Functions
Layer 2 FeaturesIEEE 802.3x Flow Control support
IEEE 802.1Q VLAN support
IEEE 802.1p CoS support
Internet Small Computer System Interface (iSCSI)Yes
Fiber Channel over Ethernet (FCoE)Yes
Pre-boot Execution Environment (PXE)Yes
Data Plane Development Kit (DPDK)Yes
Operating System SupportWindows Server 2008R2 64 bits
Windows Server 2012R2 64 bits
Windows Server 2016R2 64 bits
Windows Server 2019R2 64 bits
Windows 7 32/64 bits
Windows 8 32/64 bits
Windows 10 32/64 bits
Linux Stable Kernel Version (2.6.32.x to 5.x)
Linux CentOS/RHEL (6.x to 7.x)
Ubuntu (14.x to 16.x)
UOS V20
VMware ESX/ESXi 4.x/5.x/6.x
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3ae 10Gbps Ethernet
IEEE 802.3x Flow control and back pressure
IEEE 802.1Q VLAN tagging
IEEE 802.1AS Timing and synchronization
IEEE 802.3ad Link aggregation
IEEE 1588 Precision Time Protocol
IEEE 802.3az Energy Efficient Ethernet (EEE)
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 85 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Package
Package ContentsENW-9801 Server Adapter
Quick Installation Guide
Low Profile Bracket



Quick Guide

DateVersionDescriptionDownload
2021-11-163.0Initial release version 3.0



User's Manual

DateVersionDescriptionDownload
2022-01-283.0Release for hardware version 3.0.
