PLANET QSFP-40G-SR4 40GBASE-SR4 QSFP+ Fiber Transceiver (Multimode, MPO, 850nm, DDM) - 100m (0~70C)

PLANET QSFP-40G-SR4 40GBASE-SR4 QSFP+ Fiber Transceiver (Multimode, MPO, 850nm, DDM) - 100m (0~70C)
PLANET QSFP-40G-SR4 40GBASE-SR4 QSFP+ Fiber Transceiver (Multimode, MPO, 850nm, DDM) - 100m (0~70C)
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: QSFP-40G-SR4
  • Βαρος: 1.00kg
  • Διαστασεις: 10.00 x 10.00 x 4.00
118,88€
Χωρίς ΦΠΑ: 95,87€

PLANET QSFP-40G series consists of Quad Small Form Factor Pluggable (QSFP) transceiver modules that are specifically designed for high-performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the QSFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in QSFP MSA compliant ports at any time without the interruption of the host equipment operation.

The QSFP-40G series also supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

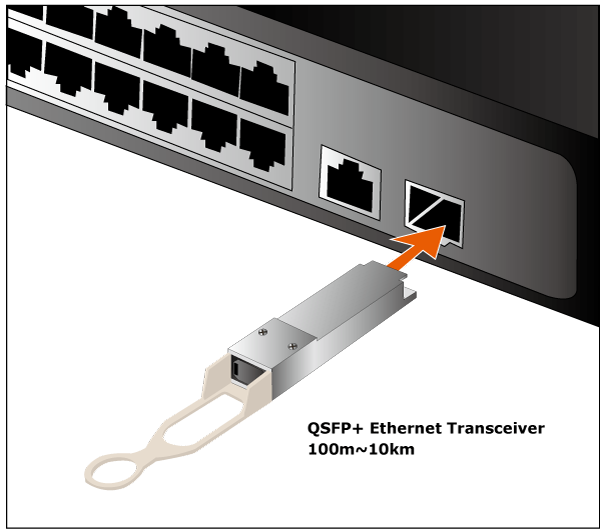

The QSFP-40G series of the QSFP+ Ethernet module can be installed in PLANET switch products with 40GBASE-SR4/LR4 QSFP+ interface. The deployment distance can be extended from 100 meters (multi-mode, MPO) up to 10 kilometers (single-mode, LC). The QSFP+ transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any QSFP+ port without having to power off the switch.



  • Comply with the IEEE 802.3ba 40GBASE-SR4/LR4 Ethernet standard
  • QSFP+ multi-source agreement (MSA) compliant
  • Single LC connector (QSFP-40G-LR4)
  • MPO/MTP optical connector (QSFP-40G-SR4)
  • Length up to 100m over OM3 fiber and 150m over OM4 fiber (QSFP-40G-SR4)
  • Single power supply 3.3V
  • Hot pluggable
  • Support Digital Diagnostic Monitoring (DDM)
  • Plug and Play Installation
  • 0 to 60 degrees C operating temperature
QSFP-40G-SR4
PackageQSFP+
PHY TypeIEEE 802.3ba 40 Gigabit Ethernet Standard
Fiber TypeMulti-mode
ConnectorMPO/MTP
Wavelength850nm
Maximum Distance100m(OM3)/150m (OM4)
Operating Temperature0~60 degrees C
QSFP-40G-LR4
PackageQSFP+
PHY TypeIEEE 802.3ba 40 Gigabit Ethernet Standard
Fiber TypeSingle-mode
ConnectorLC
Wavelength1310nm
Maximum Distance10km
Operating Temperature0~60 degrees C



Datasheet

DateVersionDescriptionDownload
2018-12-071.0QSFP-40G Series



User's Manual

DateVersionDescriptionDownload
2017-12-131.0Initial release.
