GPON OLT SFP Transceiver (Class C+, Optical Power: 3dBm~7dBm, Download 2.5G/Upload 1.25G, TX: 1490nm, RX: 1310nm) - 20km

GPON OLT SFP Transceiver (Class C+, Optical Power: 3dBm~7dBm, Download 2.5G/Upload 1.25G, TX: 1490nm, RX: 1310nm) - 20km
GPON OLT SFP Transceiver (Class C+, Optical Power: 3dBm~7dBm, Download 2.5G/Upload 1.25G, TX: 1490nm, RX: 1310nm) - 20km
GPON OLT SFP Transceiver (Class C+, Optical Power: 3dBm~7dBm, Download 2.5G/Upload 1.25G, TX: 1490nm, RX: 1310nm) - 20km
GPON OLT SFP Transceiver (Class C+, Optical Power: 3dBm~7dBm, Download 2.5G/Upload 1.25G, TX: 1490nm, RX: 1310nm) - 20km
GPON OLT SFP Transceiver (Class C+, Optical Power: 3dBm~7dBm, Download 2.5G/Upload 1.25G, TX: 1490nm, RX: 1310nm) - 20km
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: GPL-GSFP-C+
  • Βαρος: 0.08kg
  • Διαστασεις: 1,845.00 x 12.20 x 1.20
57,25€
Χωρίς ΦΠΑ: 46,17€

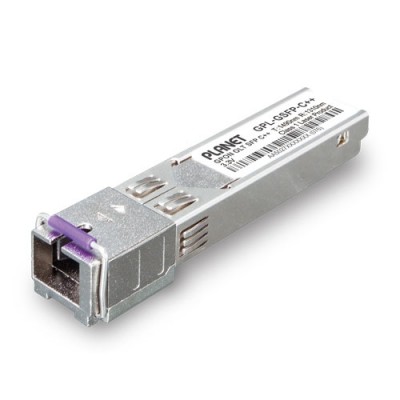

PLANET GPON OLT SFP Quad (small form factor pluggable) Transceiver (GPL-GSFP) is specifically designed for high-performance integrated duplex data link over single mode optical fiber, and its single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx. It is compliant with ITU-T G.984.2 and hot pluggable.

The GPON OLT SFP Transceiver also supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrators to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

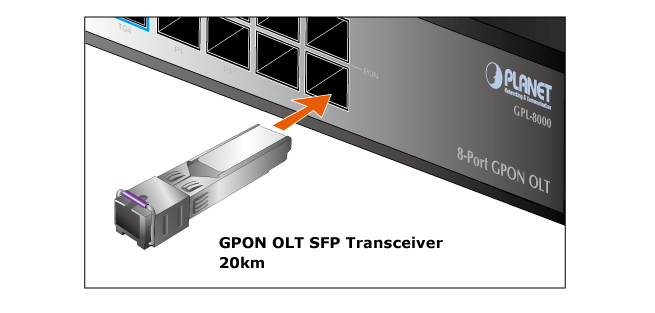

The GPL-GSFP can be connected to PLANET GPL-8000’s GPON SFP interface. With that, the deployment distance can be extended up to 20 kilometers (single-mode, SC). The GPL-GSFP is hot-pluggable and hot-swappable. You can plug in and pull out the transceiver to/from any GPON SFP port without having to power off the switch.

  • Supports ITU-T G.984.2 GPON OLT C+/C++application
  • TX:1490nm, RX:1310nm
  • Single SC (WDM) interface connector
  • Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
  • Distance up to 20km over 9/125µm fiber cable
  • Plug and Play installation
  • 2-wire interface for integrated digital diagnostic monitoring
  • Receiver Reset, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)

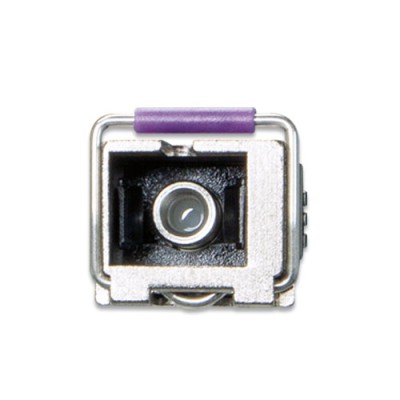

  • SFP package with SC/UPC receptacle optical interface
  • Single +3.3V power supply
  • 0 to 70 degrees C operating temperature
  • RoHS6 compliance



Product
Model
GPL-GSFP-C+GPL-GSFP-C++
Fiber TypeSingle-mode
ConnectorSC (WDM)
Optical Power
3dBm~7dBm4.5dBm~10dBm
WavelengthTX: 1490nm,RX: 1310nm
Maximum Distance20km
Operating Temperature0~70 degrees C



Datasheet

DateVersionDescriptionDownload
2022-02-111.0GPL-GSFP-C+/C++
