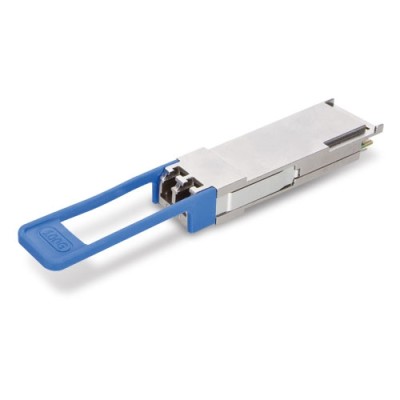

PLANET QSFP-100G-LR4 100GBASE-LR4 QSFP28 Fiber Transceiver (Single Mode, LC, 1310nm, DDM) - 10km (0~70C)

PLANET QSFP-100G-LR4 100GBASE-LR4 QSFP28 Fiber Transceiver (Single Mode, LC, 1310nm, DDM) - 10km (0~70C)
PLANET QSFP-100G-LR4 100GBASE-LR4 QSFP28 Fiber Transceiver (Single Mode, LC, 1310nm, DDM) - 10km (0~70C)
PLANET QSFP-100G-LR4 100GBASE-LR4 QSFP28 Fiber Transceiver (Single Mode, LC, 1310nm, DDM) - 10km (0~70C)
PLANET QSFP-100G-LR4 100GBASE-LR4 QSFP28 Fiber Transceiver (Single Mode, LC, 1310nm, DDM) - 10km (0~70C)
PLANET QSFP-100G-LR4 100GBASE-LR4 QSFP28 Fiber Transceiver (Single Mode, LC, 1310nm, DDM) - 10km (0~70C)
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: QSFP-100G-LR4
  • Βαρος: 0.09kg
  • Διαστασεις: 10.00 x 10.00 x 4.00
887,93€
Χωρίς ΦΠΑ: 716,07€

PLANET QSFP-100G series consists of Quad Small Form Factor Pluggable (QSFP28) transceiver modules that are specifically designed for high-performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the QSFP28 Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in QSFP28 MSA compliant ports at any time without the interruption of the host equipment operation.

The QSFP-100G series also supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

The QSFP-100G series of the QSFP28 Ethernet module can be installed in PLANET switch products with 100GBASE-SR4/LR4 QSFP28 interface. The deployment distance can be extended from 100 meters (multi-mode, MPO) to up to 10 kilometers (single-mode, LC). The QSFP28 transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any QSFP28 port without having to power off the switch.



  • Complies with the IEEE 802.3bm 100GBASE-SR4/LR4 Ethernet standard
  • QSFP28 multi-source agreement (MSA) compliant
  • Single LC connector (QSFP-100G-LR4)
  • MPO/MTP optical connector (QSFP-100G-SR4)
  • Distance up to 70m over OM3 fiber and 100m over OM4 fiber (QSFP-100G-SR4)
  • Single power supply of 3.3V
  • Hot pluggable
  • Supports digital diagnostic monitoring (DDM)
  • Plug and Play installation
  • 0 to 70 degrees C operating temperature



QSFP-100G-SR4
PackageQSFP28
PHY TypeIEEE 802.3bm 100GBASE-SR4
Fiber TypeMulti-mode
ConnectorMPO/MTP
Wavelength850nm
Maximum Distance70m (OM3)/100m (OM4)
Operating Temperature0~70 degrees C
QSFP-100G-LR4
PackageQSFP28
PHY TypeIEEE 802.3bm 100GBASE-LR4
Fiber TypeSingle-mode
ConnectorLC
Wavelength1310nm
Maximum Distance10km
Operating Temperature0~70 degrees C



Datasheet

DateVersionDescriptionDownload
2018-12-071.0QSFP-100G Series



User's Manual

DateVersionDescriptionDownload
2018-11-211.0Initial release
