PLANET CB-QSFP4X10G-1M 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable 1m

PLANET CB-QSFP4X10G-1M 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable 1m
PLANET CB-QSFP4X10G-1M 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable 1m
PLANET CB-QSFP4X10G-1M 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable 1m
PLANET CB-QSFP4X10G-1M 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable 1m
PLANET CB-QSFP4X10G-1M 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable 1m
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: CB-QSFP4X10G-1M
  • Βαρος: 0.26kg
  • Διαστασεις: 10.00 x 10.00 x 5.00
143,14€
Χωρίς ΦΠΑ: 115,43€

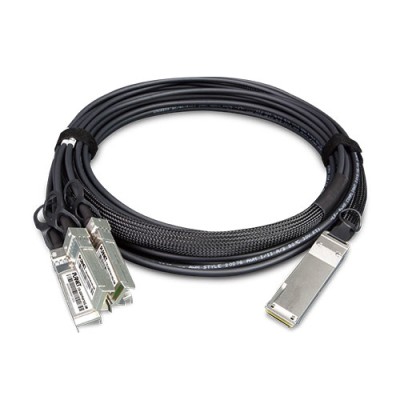

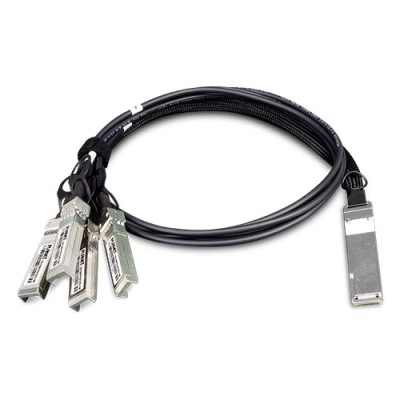

PLANET CB-QSFP4X10G-1/3/5M is a 40G QSFP+ to 4 10G SFP+ Direct Attached Copper Cable (1/3/5M in length), which is designed to work with PLANET products with a 40G QSFP+ interface to provide a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers. Each QSFP-SFP+ splitter cable features a single QSFP connector (SFF-8436) with a data rate of 40Gbps on one end, and each of the four SFP+ connectors (SFF-8431) has a data rate of 10Gbps on the other. The CB-QSFP4X10G-1/3/5M can be inserted into PLANET switches with a 40G SFP+ interface, such as XGS-6350-24X4C.

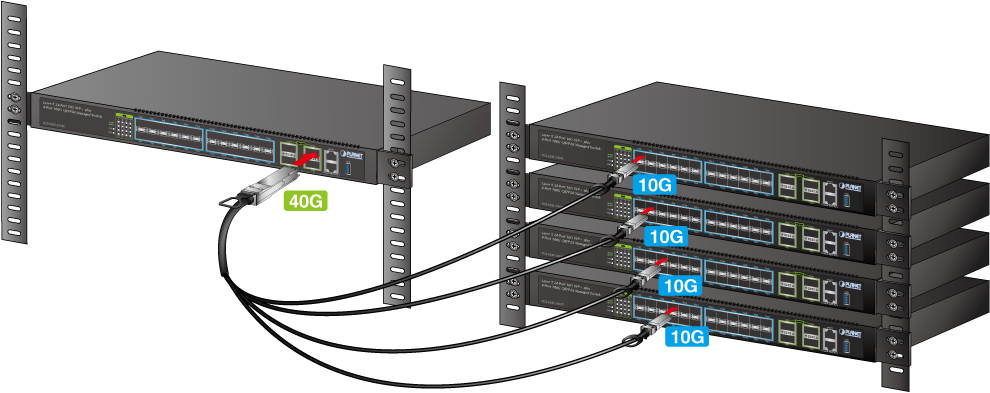

Using 40G performance for in-rack connections between servers and switches



  • Connector A: One QSFP 40Gbps Connector (SFF-8436 Compliant)
  • Connector B: Four SFP+ 10Gbps Connectors (SFF-8431 Compliant)
  • Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch
  • Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fiber Channel
  • Robust zinc die-cast SFP+ & QSFP connectors with pull-to-release latching
  • Bridge the gap between your 10G and 40G capable switches/host adapters
  • Up to 10.3125Gbps transfer rate per SFP+ channel (40Gbps in total)
  • Fully compliant with the latest SFP+ & QSFP MSA (Multi-Source Agreement)
  • Designated form factor and electrical compliance for QDR InfiniBand



CB-QSFP4X10G-1M
Connector TypeQSFP+ and SFP+
Data Transfer Rate40Gbps
Length1 meter
Operating Temperature-5 ~ 75 degrees C
CB-QSFP4X10G-3M
Connector TypeQSFP+ and SFP+
Data Transfer Rate40Gbps
Length3 meters
Operating Temperature-5 ~ 75 degrees C
CB-QSFP4X10G-5M
Connector TypeQSFP+ and SFP+
Data Transfer Rate40Gbps
Length5 meters
Operating Temperature-5 ~ 75 degrees C



Datasheet

DateVersionDescriptionDownload
2019-02-011.0CB-QSFP4X10G-1M_3M_5M
