PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch

PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
PLANET GS-4210-24UP4X 24-Port 10/100/1000T 802.3bt PoE + 4-Port 10G SFP+ Managed Ethernet Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: GS-4210-24UP4X
  • Βαρος: 6.75kg
1.154,79€
Χωρίς ΦΠΑ: 931,28€

Perfect Managed PoE++ Switch with Advanced L2/L4 Switching and Security

PLANET GS-4210-24UP4X Gigabit 802.3bt PoE++ Managed Switch features PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and a built-in L2/L4 Gigabit switching engine. The GS-4210-24UP4X comes with 24 10/100/1000BASE-T 802.3bt PoE++ ports and 4 10 Gigabit fiber ports, with a total power budget of 720 watts. The GS-4210-24UP4X offers a quick, safe, and cost-effective 802.3bt PoE++ network solution for small businesses and enterprises.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. Both SSHv2 and TLSv1.2 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

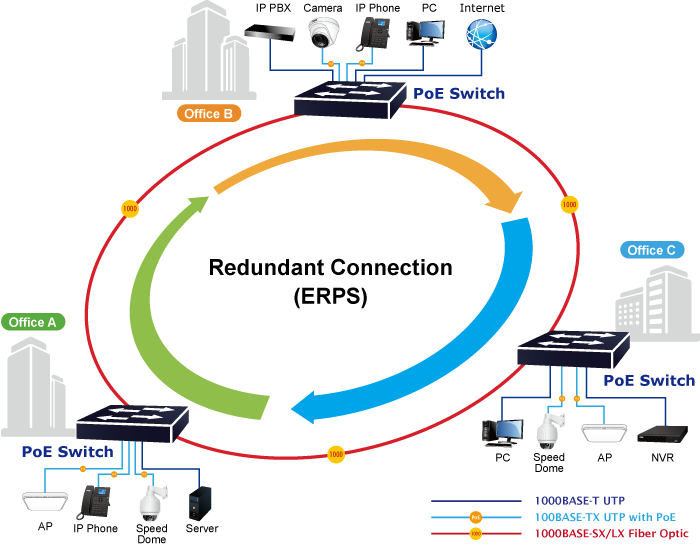

Redundant Ring, Fast Recovery for Critical Network Applications

The GS-4210-24UP4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.

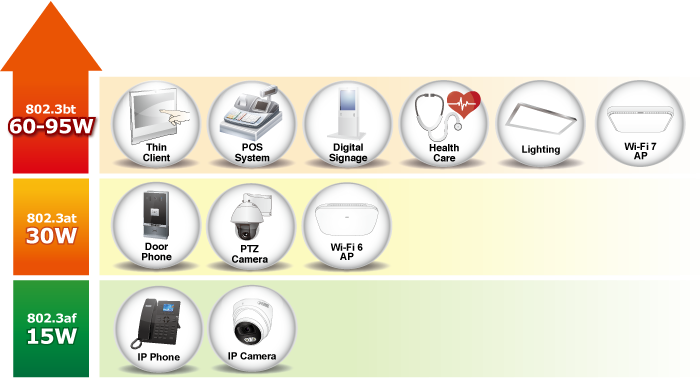

802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

As the GS-4210-24UP4X adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings



802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand of various powered devices consuming stable PoE power, the GS-4210-24UP4X supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode and 4-pair legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

  • 95W 802.3bt PoE++ Power Output Mode
  • 36W End-span 802.3at PoE+ Power Output Mode
PoE Watts
PoE Operation Mode
Power Output Mode
95W
802.3bt PoE++
(Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
36W
End-span 802.3at PoE
(Pins 1, 2, 3, 6)



Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE++ switch for surveillance, wireless and VoIP networks, the GS-4210-24UP4X features the following special PoE management functions:

  • PD Alive Check
  • Scheduled Power Recycling
  • PoE Schedule
  • PoE Usage Monitoring
  • PoE Extension



Intelligent Powered Device Alive Check

The GS-4210-24UP4X can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the GS-4210-24UP4X will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.



Scheduled Power Recycling

The GS-4210-24UP4X allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

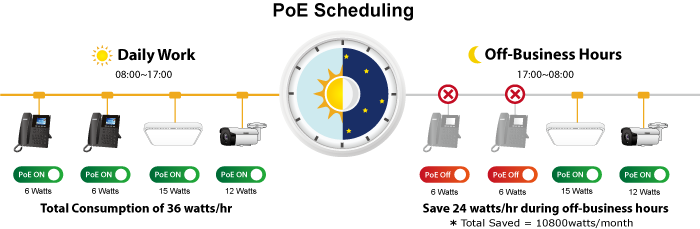

PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the GS-4210-24UP4X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or Enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.





PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-4210-24UP4X enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

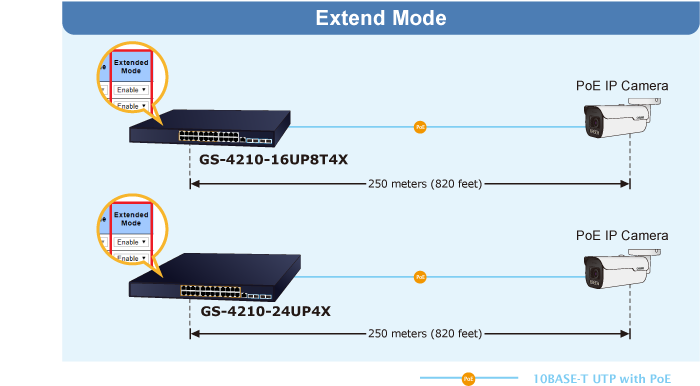

802.3at PoE+ Power and Ethernet Data Transmission Distance Extension

In the “Extend” operation mode, the GS-4210-24UP4X operates on a per-port basis at 10Mbps duplex operation but can support 50-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the GS-4210-24UP4X provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.



Environment-friendly, Smart Fan Design for Silent Operation

The GS-4210-24UP4X features a rack-mount metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. They are able to operate reliably, stably and quietly in any environment without affecting their performance.

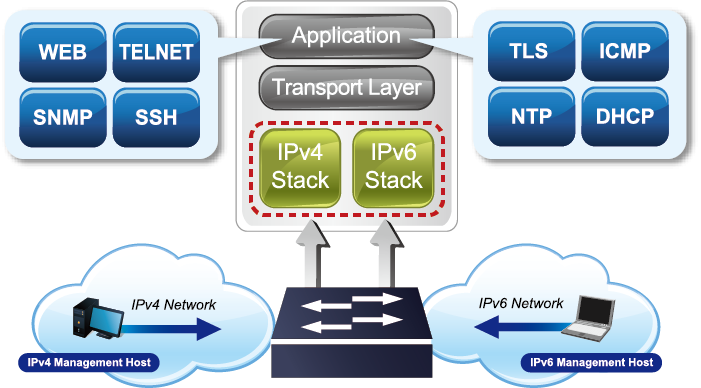

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the GS-4210-24UP4X helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.





Robust Layer 2 Features

The GS-4210-24UP4X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the GS-4210-24UP4X allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.



Efficient Traffic Control

The GS-4210-24UP4X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



Powerful Security

The GS-4210-24UP4X offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based user authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The GS-4210-24UP4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.



Efficient Management

For efficient management, the GS-4210-24UP4X is equipped with Command line, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the GS-4210-24UP4X offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.



Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS), NMSViewerPro and CloudViewerPro support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS, NMSViewerPro or CloudViewerPro, all kinds of businesses can now be speedily and efficiently managed from one platform.

Flexibility and Long-distance Extension Solution

The GS-4210-24UP4X can disable the PoE function to provide Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper for connecting surveillance network devices such as NVRs, Video Streaming Servers, or NAS systems to facilitate surveillance management. Alternatively, through its dual-speed fiber SFP slots, it features 100BASE-FX, 1000BASE-SX/LX, 2.5G, and 10G SFP (Small Form-factor Pluggable) fiber transceivers for uplinking to backbone switches and monitoring centers over long distances. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). These models are well suited for enterprise data centers and distribution applications.

Additionally, the GS-4210-24UP4X model is available, featuring 24 10/100/1000BASE-T 802.3bt PoE++ ports and 4 10G SFP ports, without additional TP ports. This model is ideal for scenarios requiring extensive PoE functionality and high-speed fiber connections.



Intelligent SFP Diagnosis Mechanism

The GS-4210-24UP4X supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current and transceiver supply voltage.

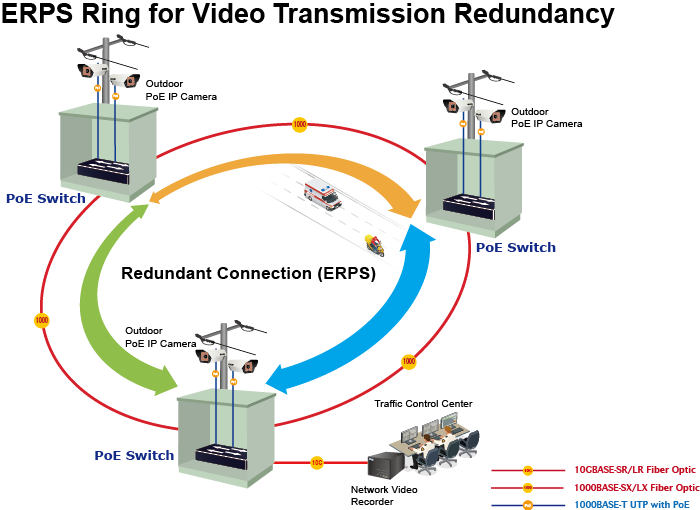

ITU-T G.8032 ERPS with PoE IP Surveillance System for SMBs/Workgroups

The GS-4210-24UP4X features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology into customer’s automation network to enhance system reliability and uptime. Applying the IEEE 802.3at Power over Ethernet standard, the GS-4210-24UP4X can directly connect with any IEEE 802.3at end nodes like PTZ (pan, tilt, zoom) network cameras and speed dome cameras. The GS-4210-24UP4X can easily build a power that can centrally control a wireless AP, IP camera and VoIP system for SMBs and workgroups in the enterprises with high availability network infrastructure.

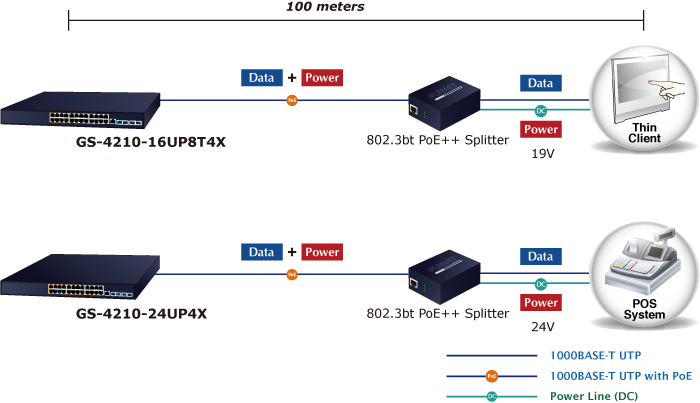

Gigabit 802.3bt PoE++ and PoE+ Network Deployment Solution

PLANET GS-4210-24UP4X can easily build an 802.3bt PoE++ networking solution on the cybersecurity system for the enterprises. For instance, it can work with the POS system and thin client to perform comprehensive security protection for today’s businesses. The GS-4210-24UP4X and 802.3bt PoE++ Splitter-POE-173S, operate as a pair to provide the easiest way to power your Ethernet devices which need high power input. Receiving data and power from the GS-4210-24UP4X, the POE-173S separates digital data and power into three optional outputs (12V, 19V or 24V DC) to non-PoE devices such as laptops, Thin Client, POS System, PTZ, network cameras, PTZ speed dome, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters.

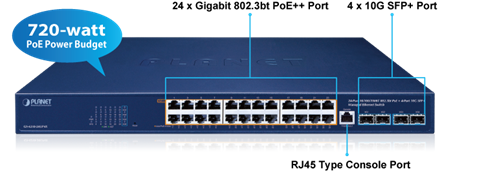

Physical Port

  • 24 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 24)
  • 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG4)
  • RJ45 to DB9 console interface for switch basic management and setup



Switching

  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 16K MAC address table size
  • 12K jumbo frame
  • Automatic address learning and address aging



Power over Ethernet

  • Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
  • 24 ports supporting IEEE 802.3bt PoE++ with each offering up to 95 watts (Ports 1-24)
  • Total PoE power budget of 720 watts
  • Automatic detection of powered devices (PD)
  • Built-in circuit protection to prevent power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
  • Advanced PoE management capabilities:
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limitation
    • Detection of PD classification
  • Intelligent PoE features
    • PD alive check
    • PoE schedule
    • Scheduled power recycling



Layer 2 Features

  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    • Protocol VLAN
    • Private VLAN (Protected port)
    • Management VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • STP (Spanning Tree Protocol)
    • RSTP (Rapid Spanning Tree Protocol)
    • MSTP (Multiple Spanning Tree Protocol)
    • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 8 trunk groups, up to 8 ports per trunk group
  • Supports port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)



Quality of Service

  • Ingress and egress rate limit per port bandwidth control
  • Storm control support
    • Broadcast/Unknown unicast/Unknown multicast
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies



Multicast

  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering



Security

  • Authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ login user access authentication
    • DHCP Option 82
  • Access control list
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC security
    • Static MAC
    • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • DoS attack prevention



Management

  • IPv4 and IPv6 dual stack management
  • Switch management interface
    • Web switch management
    • Console and telnet command line interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms and events)
    • SNMP trap for interface link up and link down notification
  • User privilege levels control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Static and DHCP for IP address assignment
  • System maintenance
    • Firmware upload/download via HTTP/TFTP
    • Configuration upload/download through HTTP/TFTP
    • Dual images
    • Hardware-based reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
    • SFP-DDM (digital diagnostic monitor)
    • Cable diagnostics
    • ICMPv4/ICMPv6 remote ping
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Event message logging to remote syslog server
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS, NMSViewerPro and CloudViewerPro for deployment management
Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PoE Injector Port24 ports with 802.3bt PoE++ injector function (Ports 1 to 24)
SFP Ports4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4)
Backward compatible with 100/1G/2.5GBASE-X SFP transceivers
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Power RequirementsAC 100~240V, 50/60Hz
Power Consumption/ DissipationMaximum 775 watts/2645.9 BTU (full loading)
Dimensions (W x D x H)440 x 330 x 44mm
Weight4358g
InstallationRack mount
Surge ProtectionCommon mode 4KV, Differential mode 2KV
ESD ProtectionContact Discharge 6KV DC
Air Discharge 8KV DC
Fan4 smart fans
LEDSystem
Power LED (Green)
SYS LED (Green)
Ports
10/100/1000 RJ45 Ports LNK/ACT (Green)
10G SFP+ Interface LNK/ACT (Green)
PoE-in-Use (Amber)
Switch Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric128Gbps/non-blocking
Switch Throughput@64Bytes95.23Mpps @64 bytes
Address Table16K entries
Shared Data Buffer12Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Jumbo FrameBack pressure for half duplex
Power over Ethernet
PoE StandardIEEE 802.3bt PoE++ PSE
Backward compatible with IEEE 802.3at/af PoE PSE
PoE Power Supply Type802.3bt : End-span+Mid-span
802.3at : End-span
PoE Power OutputPort 1 to 24 – 95W (max.)
Power Pin Assignment802.3bt/UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
802.3at PoE: End-span: 1/2(-), 3/6(+)
PoE Power Budget720 watts (max)
Number of 95W 802.3bt Type-4 PDs7
Number of 60W 802.3bt Type-3 PDs12
Number of 802.3at PDs24
PoE Management Functions
Enhanced PoE ModeSystem PoE Admin Mode
Consumption Mode/Allocation Mode
Temperature Threshold
Enhanced PoE ModeStandard/Legacy/UPoE
Active PoE Device Live DetectionYes
PoE Power RecyclingYes, daily or predefined schedule
PoE Schedule4 schedule profiles
PoE Extended ModeYes, max. up to 250 meters
Layer 2 Functions
Port MirroringTX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN802.1Q tagged VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP and static trunk
Supports 8 groups with 8 ports per trunk
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP SnoopingIPv4 IGMP snooping v2, v3
IGMP querier
Up to 256 multicast groups
MLD SnoopingIPv6 MLD snooping v1, v2, up to 256 multicast groups
QoS8 mapping IDs to 8 level priority queues
Port number
802.1p priority
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Security Functions
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries
Port SecurityBuilt-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC SecurityIP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries
Enhanced SecurityDHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management InterfacesConsole
Web browser
Telnet
SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
System ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP/TFTP
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS, NMSViewerPro and CloudViewerPro
Event ManagementRemote/Local Syslog
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
RFC 3621 Power Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3az for Energy-Efficient Ethernet
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environment
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 60 degrees C
Humidity5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-06-071.0GS-4210-24UP4X



Quick Guide

DateVersionDescriptionDownload
2024-05-313.2Initial Release.



User's Manual

DateVersionDescriptionDownload
2024-07-313.2Initial release.
