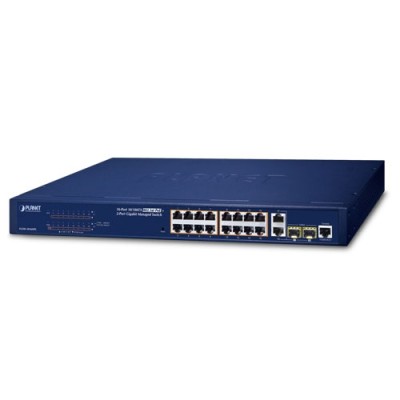

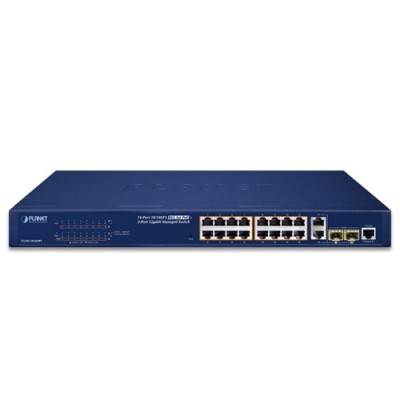

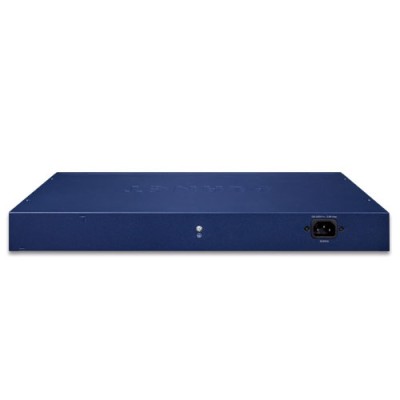

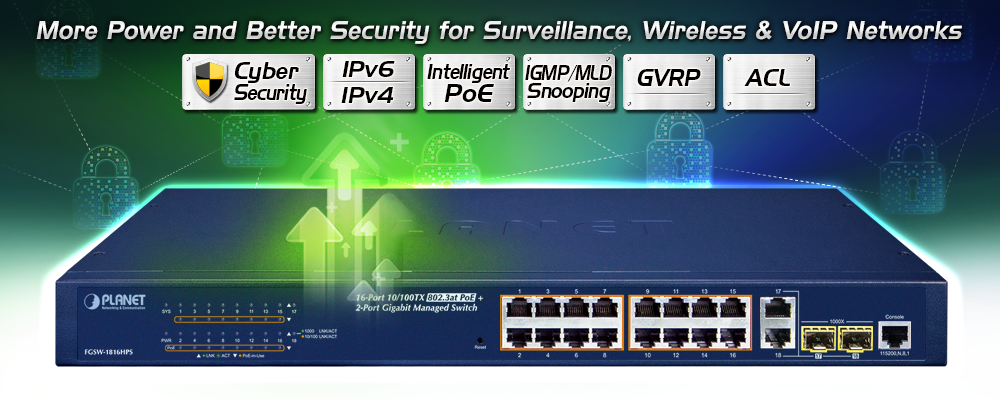

PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch

PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch
PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch
PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch
PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch
PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch
PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch
PLANET FGSW-1816HPS 16-Port 10/100TX 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Ethernet Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: FGSW-1816HPS
  • Βαρος: 3.64kg
  • Διαστασεις: 20.80 x 44.00 x 4.40
329,94€
Χωρίς ΦΠΑ: 266,08€

PLANET’s newly-revised FGSW-1816HPS Layer 2 PoE+ Managed Switch is designed for enterprises and industries where a network of PDs can be centrally managed. The Switch’s management functions have been enhanced to include intelligent PoE management, IPv6 management, ACL, GVRP, and more.

Cost-optimized Managed PoE+ Switch with L2/L4 Switching and Security

PLANET FGSW-1816HPS is an ideal Managed PoE+ Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price; the FGSW-1816HPS is equipped with 16 10/100BASE-TX Fast Ethernet ports and 2 Gigabit TP/SFP combo interfaces with inner power system. With its 16 Fast Ethernet ports integrated with 802.3at PoE+ injector function and total power budget of up to 240 watts, it offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.

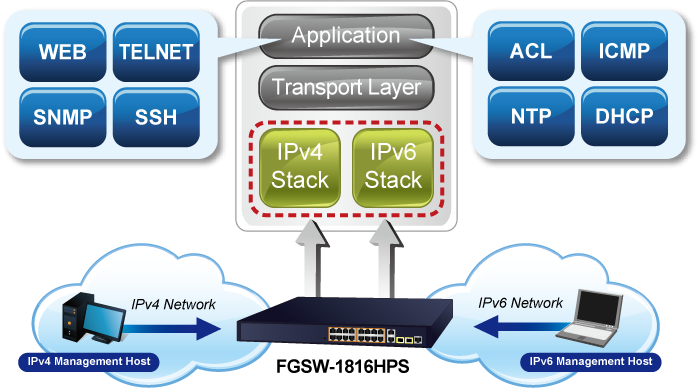

Solution for IPv6 Networking

With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the FGSW-1816HPS is the ideal choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.

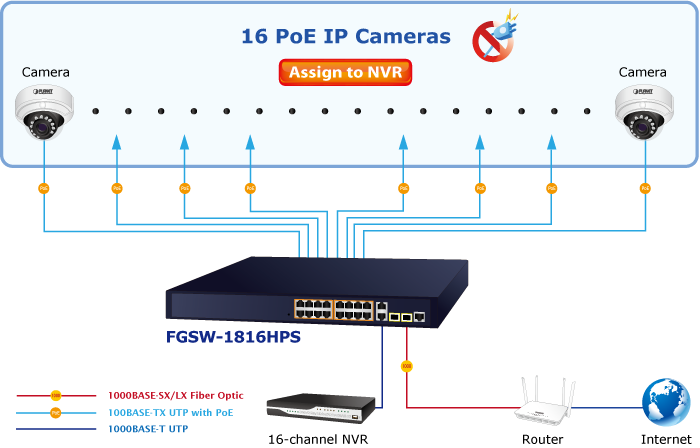

Built-in Unique PoE Functions for Surveillance Management

As a managed PoE Switch for surveillance network, the FGSW-1816HPS features the following intelligent PoE management functions:

  • PD Alive Check
  • PoE Port Sequence
  • PoE Schedule

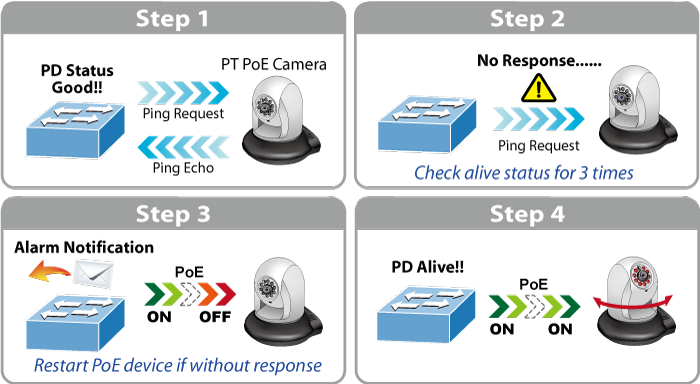

Intelligent Powered Device Alive Check

The FGSW-1816HPS can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the FGSW-1816HPS will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.



PoE Port Sequence

To prevent all the PoE ports of the FGSW-1816HPS from being active at the same time when the Switch has booted up, the PoE ports of the FGSW-1816HPS can be configured to allow each port to be activated at an interval time. In addition, the “Delay” setting is to delay power feeding on each port when the FGSW-1816HPS has completely booted up.

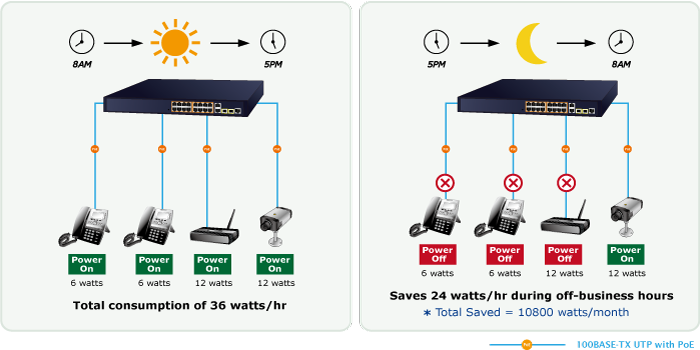

PoE Schedule for Energy Saving

Besides being used for IP surveillance, the FGSW-1816HPS is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the FGSW-1816HPS can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.

Ethernet Data Transmission Distance Extension

In the “Extended” operation mode, the FGSW-1816HPS operates on a per-port basis at 10Mbps duplex operation but can support PoE power output over a distance of up to 250 meters overcoming the 100 meters limit on Ethernet UTP cable.

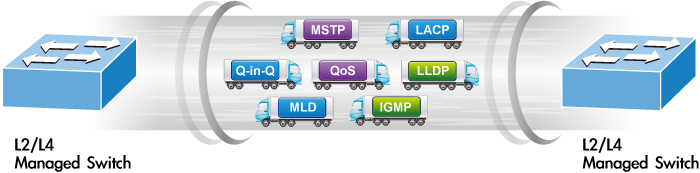

Robust Layer 2 Features

The FGSW-1816HPS can be programmed for advanced switch management functions, such as Multiple Spanning Tree Protocol (MSTP), BPDU filtering, BPDU Guard, dynamic port link aggregation, IGMP/MLD snooping, DHCP relay agent, loop detection and GVRP, voice VLAN and the Link Layer Discovery Protocol (LLDP). The Layer 2 protocol included is to help discover basic information about neighboring devices in the local broadcast domain. Other features included are the port-based/802.1Q VLAN and Q-in-Q VLAN, Layer 2/4 QoS, port mirroring, broadcast storm control and bandwidth control.

Enhanced Security and Traffic Control

The FGSW-1816HPS offers the comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP/MAC address or defined typical network applications. The FGSW-1816HPS also provides DHCP Snooping, ARP Inspection and MAC Verification functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Also included are per port MAC/IP address binding and MAC address binding.  The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.

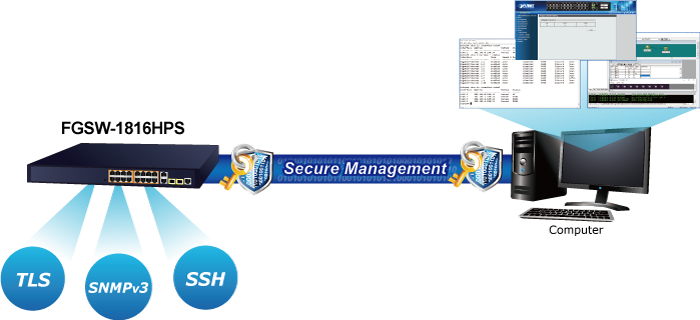

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity features that virtually need no effort and cost to have included the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and SSL protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.



Efficient Management

For efficient management, the FGSW-1816HPS is equipped with Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the FGSW-1816HPS offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the FGSW-1816HPS can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the FGSW-1816HPS offers secure remote management by supporting SNMPv3 connections which encrypt the packet content at each session.

Flexible and Extendable Uplink Solution

The FGSW-1816HPS provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these fiber SFP slots occupied by the 1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceivers, it can be uplinked to a backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2km (multi-mode fiber) to 10/20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well-suited for applications within the industrial data centers and distributions.

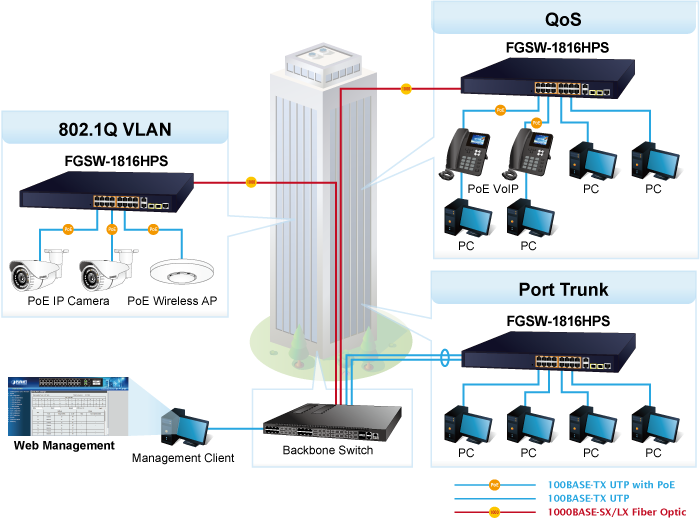

PDs are Centrally Managed

Providing 16 10/100BASE-TX PoE+ ports, in-line power interfaces and two Gigabit TP/SFP combo interfaces, the FGSW-1816HPS can easily build an IP camera system for the enterprises where its power is centrally controlled. It can work with one 16-channel NVR to perform comprehensive security monitoring with 16 IP cameras via one Gigabit TP/SFP combo port. The FGSW-1816HPS comes with non-blocking design, desktop size and SFP fiber-optic modules, bringing flexibility to building a network infrastructure at a low cost.

High-performance PoE Network Connectivity

All of its ports are 802.3af/at compliant, thus making high-performance Fast Ethernet network connectivity with PoE IP telephones, PoE IP cameras, PoE wireless access points and other devices possible, all at reasonable costs. The FGSW-1816HPS improves the network efficiency and protects the network clients with its following powerful features:

  • Layer 2 to Layer 4 security
  • QoS, 802.1Q VLAN, static trunk, LACP
  • Multicast IGMP snooping

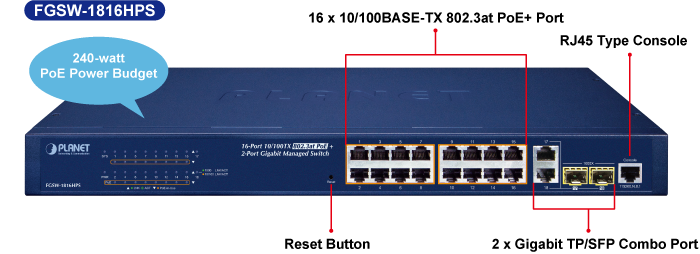

Physical Port

  • 16 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
  • 2 10/100/1000BASE-T Gigabit RJ45 copper ports
  • 2 1000BASE-X mini-GBIC/SFP slots, shared with port-17 to port-18
  • Reset button for system factory default



Switching

  • Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus
  • Complies with IEEE 802.3af Power over Ethernet
  • Up to 16 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 30 watts for each PoE port
  • 240-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 250m via extend mode
  • PoE Management
    • Per port PoE function enable/disable
    • Per Port PoE operation mode selection
    • Per PoE port power budget control
    • PD classification detection and  PoE consumption usage status
  • Intelligent PoE features
    • PD alive check
    • PoE port sequence



Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Supports VLAN
    • Port-based VLAN, up to 18 VLAN groups
    • IEEE 802.1Q tagged VLAN
    • Protocol VLAN
    • Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
    • GVRP
    • Voice VLAN
  • Supports Spanning Tree Protocol
    • STP (IEEE 802.1D Spanning Tree Protocol)
    • RSTP (IEEE 802.1w Rapid Spanning Tree Protocol)
    • MSTP (IEEE 802.1s Multiple Spanning Tree Protocol)
    • STP BPDU filtering, BPDU Guard
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • 1 LACP group, up to 2 ports per LACP group
    • Cisco ether-channel (static trunk)
    • 1  trunk group, up to 2 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop detection



Quality of Service

  • Ingress/Egress Rate Limit per port bandwidth control
  • Storm Control support
    • Broadcast/ Multicast /DLF (Destination Lookup Fail)/ARP/ICMP
  • Traffic classification
    • IEEE 802.1p Qos/CoS
    • TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies



Multicast

  • Supports IPv4 IGMP snooping v1/ v2 and v3
  • Supports IPv6 MLD snooping v1, v2



Security

  • Access Control List
    • IPv4/IPv6 IP-based ACL
    • MAC-based ACL
  • Port-MAC-IP Address Binding
    • Port-MAC-IP Port Setting
    • Port-MAC-IP Entry Setting
  • MAC Address Binding
    • Static MAC
    • MAC Filtering
  • DHCP snooping to filter distrusted DHCP messages
  • ARP Inspection discards ARP packets with invalid MAC address to IP address binding



Management

  • IPv4 and IPv6 dual stack management
  • Switch management interface
    • Web switch management
    • Telnet command line interface
    • SNMP v1, v2c and v3
  • BOOTP and DHCP for IP address assignment
  • System maintenance
    • Firmware upgrade via HTTP
    • Configuration upload/download through web interface
    • Hardware-based reset button for system reset to factory default
  • SNTP Network Time Protocol
  • Link Layer Discovery Protocol (LLDP)
  • Event message logging to remote Syslog server
  • PLANET Smart Discovery utility
Hardware Specifications
Copper Ports16 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports
PoE Injector Port16 802.3af/802.3at PoE+ injector ports
Gigabit Copper Ports2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots2 1000BASE-X SFP interfaces, shared with Port-17 to Port-18
Console1 RS232-to-RJ45 serial port (115200, N, 8, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
LEDSystem:
Power (Green)
SYS (Green)
10/100TX RJ45 Interfaces (Port 1 to Port 16):
LNK/ACT (Green), PoE-in-Use (Amber)
10/100/1000BASE-T RJ45 / SFP Interfaces (Port 17 to Port 18):
LNK/ACT 10/100 (Orange), 1000 (Green)
Thermal Fan2
Power Requirements100~240V AC, 50/60Hz, 3.6A (max.)
Power Consumption/DissipationMax.270 watts/921BTU
Dimensions (W x D x H)440 x 208 x 44 mm,1U height
Weight2332g
EnclosureMetal
Switching
Switch ArchitectureStore-and-Forward
Switch Fabric7.2Gbps/non-blocking
Switch Throughput@64bytes5.35Mpps @64bytes
MAC Address Table16K entries
Shared Data Buffer4Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame16K bytes
Power over Ethernet
PoE StandardIEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply TypeEnd-span
Power Pin Assignment1/2(+), 3/6 (-)
PoE Power OutputPer Port 54V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 54V DC, 600mA. Max. 30watts (IEEE 802.3at)
PoE Power Budget240 watts
Number of PDs, 7 watts16
Number of PDs, 15.4 watts15
Number of PDs, 30 watts8
Layer 2 Functions
Port MirroringTX/RX/both
Many-to-1 monitor
VLANPort-based VLAN, up to 18 VLAN groups
IEEE 802.1Q tagged VLAN
- Up to 256 VLAN groups, out of 4094 VLAN IDs
Protocol VLAN
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
GVRP
Voice VLAN
Link AggregationIEEE 802.3ad LACP supports one 2-port trunk group; static trunk supports one 2-port trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU filtering, BPDU Guard
IGMP SnoopingIPv4 IGMP snooping v1/ v2 and v3
MLD SnoopingIPv6 MLD snooping v1, v2
QoSIngress/Egress Rate Limit per port bandwidth control
Storm Control support
Broadcast/ Multicast /DLF (Destination Lookup Failure)/ARP/ICMP
Traffic classification
- IEEE 802.1p Qos/CoS
- TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies
Security Functions
Access Control ListIPv4/IPv6 IP-based ACL
MAC-based ACL
SecurityPort-MAC-IP Address Binding
- Port-MAC-IP Port Setting
- Port-MAC-IP Entry Setting
MAC Address Binding
- Static MAC
- MAC Filtering
Enhanced SecurityDHCP snooping to filter distrusted DHCP messages
ARP Inspection discards ARP packets with invalid MAC address to IP address binding
Management Functions
System ConfigurationConsole and Telnet command line interface
Web browser
SNMP v1, v2c
System ManagementIPv4 and IPv6 dual stack management
BOOTP and DHCP for IP address assignment
System maintenance
- Firmware upgrade via HTTP
- Configuration upload/download through web interface
- Hardware-based reset button for system reset to factory default
SNTP Network Time Protocol
Link Layer Discovery Protocol (LLDP)
Event message logging to remote Syslog server
PLANET smart discovery utility
Event ManagementEvent message logging to remote Syslog server
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2020-12-041.0FGSW-1816HPS



Firmware

DateVersionDescriptionDownload
2024-06-203.212b240612[Release for hardware version 3.0.]
Revised the wording of the message.
2024-06-033.212b240429[Release for hardware version 3.0.]
Function Added:
- Added PSTI function.
FW upgrade for PSTIA (Product Security and Telecommunications Infrastructure Act)
*Note: After updating the firmware, you will need to enter the product's MAC code at the first login. Please record the MAC code before proceeding with the update.
2021-06-093.212b200929[Release for hardware version 3.0]
Initial release.



Quick Guide

DateVersionDescriptionDownload
2024-06-053.1[Release for hardware version 3.0.]
For PSTI version.
2021-02-203.0Release for hardware version 3.0.



User's Manual

DateVersionDescriptionDownload
2021-02-203.0Release for hardware version 3.0.



EC Declaration

DateVersionDescriptionDownload
2021-04-273.0Release for hardware version 3.0.
