PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power

PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
PLANET XGS-6350-12X8TR Layer 3 12-Port 10G SFP+ + 8-Port 10/100/1000T Managed Switch with Dual 100~240V AC Redundant Power
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: XGS-6350-12X8TR
  • Βαρος: 5.37kg
  • Διαστασεις: 31.50 x 44.25 x 4.40
1.377,99€
Χωρίς ΦΠΑ: 1.111,28€

Powerful 10Gbps Solution for All Long-Reach Networks
PLANET XGS-6350-12X8TR is a Layer 3 Managed Gigabit Switch that provides high-density performance by its Layer 3 10Gigabit routing with 12 SFP+ fiber interfaces and 8 Gigabit interfaces delivered in a rugged case. The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 176Gbps switching fabric, the XGS-6350-12X8TR can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for enterprises, data centers, campuses and so on where VoIP, video streaming, and multicast applications are utilized.

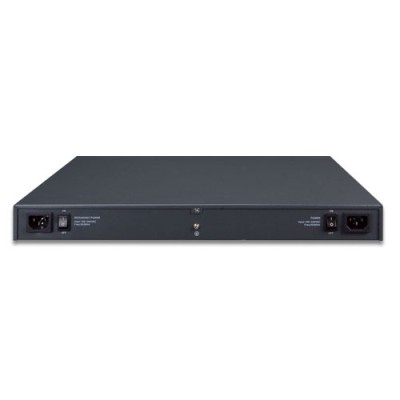

Dual AC Redundant Power to Ensure Continuous Operation
The XGS-6350-12X8TR is equipped with two 100~240V AC power supply units for redundant power supply installation. A redundant power system is also provided to enhance the reliability with dual AC power supply units. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.



Layer 3 Routing Support
The XGS-6350-12X8TR enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically. The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.. The OSPF is an interior dynamic routing protocol for autonomous system based on link-state. The protocol creates a link-state database by exchanging link-states among Layer3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

High Performance
The XGS-6350-12X8TR boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 132Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.



Abundant IPv6 Support
The XGS-6350-12X8TR provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The XGS-6350-12X8TR thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.



Excellent and Secure Traffic Control
The XGS-6350-12X8TR is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications.



Powerful Security
The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic. The XGS-6350-12X8TR also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the XGS-6350-12X8TR empowers enterprises and campuses to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.



Robust Layer 2 Features
The XGS-6350-12X8TR can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. In addition, the number of VLAN interfaces is 1K and the number of VLAN IDs is 4K. By supporting port aggregation, the XGS-6350-12X8TR allows the operation of a high-speed trunk combined with multiple ports. It enables up to 32 groups for trunking with a maximum of 8 ports for each group.



Efficient and Secure Management
For efficient management, the XGS-6350-12X8TR is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS-6350-12X8TR offers an easy-to-use, platform-independent management and configuration facility. The XGS-6350-12X8TR supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For reducing product learning time, the XGS-6350-12X8TR offers Cisco-like command via Telnet or console port. Moreover, the XGS-6350-12X8TR offers secure remote management by supporting SSH connection which encrypts the packet content at each session.

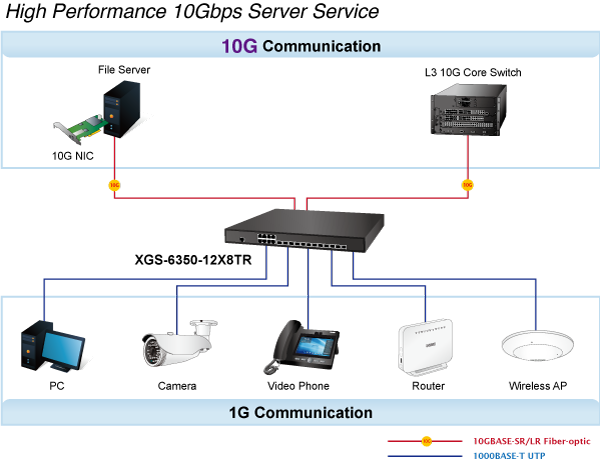

Flexibility and Extension Solution
The XGS-6350-12X8TR provides eight 100/1000Mbps Ethernet ports and twelve 1/10Gbps SFP+ Fiber ports. Each of the SFP+ slots supports Dual Speed, 10GBASE-SR/LR or 1000BASE-SX/LX. Therefore, the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) or up to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

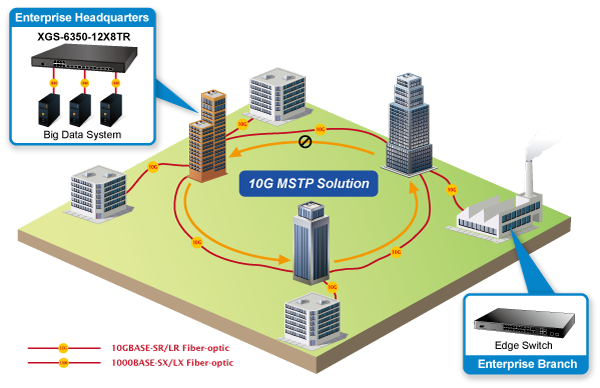

High Availability Mesh Networking Solution for Big Data System
By means of improving the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the XGS-6350-12X8TR offers up to 256Gbps data exchange speed via Optical Fiber interface and the transmission distance can be extended to 120km (single-mode fiber). The XGS-6350-12X8TR features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Multiple Spanning Tree Protocol (802.1s MSTP) into customer’s automation network to enhance system reliability and uptime. The XGS-6350-12X8TR is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

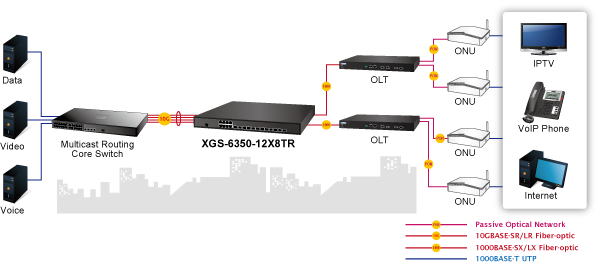

Triple Play Service of Backbone Network Solution
In telecommunications, triple play service is a marketing term for the provisioning over a single broadband connection of more bandwidth-intensive services, such as broadband Internet access, television and the latency-sensitive telephone. The XGS-6350-12X8TR provides up to 256Gbps bandwidth to exchange data, voice and video packets via fiber patch cable. It’s the suitable aggregation switch for ISPs and Telcos building a heavy traffic backbone network infrastructure.

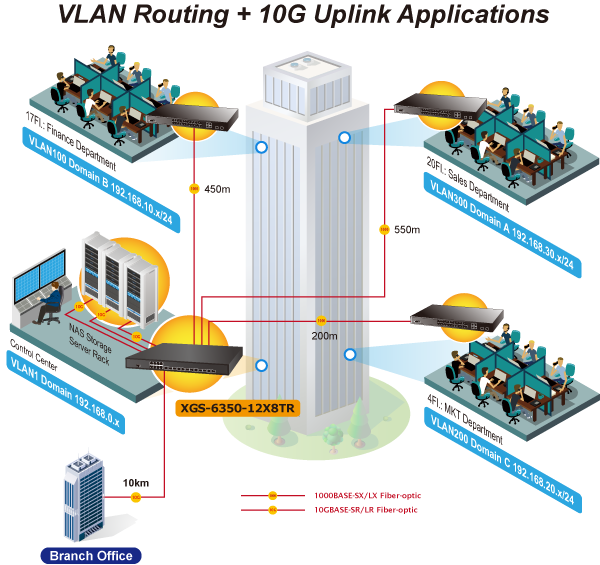

Layer 3 VLAN Routing and 10G Uplink Application
With the built-in robust Layer 3 routing protocols, the XGS-6350-12X8TR ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 32K routing entries. The XGS-6350-12X8TR, the ideal solution for enterprises, offers greater security, control and bandwidth conservation, and high-speed uplink.

Physical Ports

  • 8 10/100/1000BASE-T RJ45 ports
  • 12 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to DB9 console interface for switch basic management and setup



IP Routing Features

  • Supports maximum 32K static routes and route summarization
  • Supports dynamic routing protocol: RIP and OSPF



Multicast Routing Features

  • Supports Multicast Routing Protocols:
    • PIM-DM (Protocol Independent Multicast - Dense Mode)
    • PIM-SM (Protocol Independent Multicast - Sparse Mode)
    • PIM-SSM (Protocol Independent Multicast - Source-Specific Multicast Mode)



Layer 2 Features

  • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
  • Supports auto-negotiation and half-duplex/full-duplex modes for all 10BASE-T, 100BASE-TX and 1000BASE-T ports
  • Auto-MDI/MDI-X detection on each RJ45 port
  • Prevents packet loss flow control
    • IEEE 802.3x pause frame flow control in full-duplex mode
    • Back-pressure flow control in half-duplex mode
  • High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
  • 32KC MAC address table, automatic source address learning and aging
  • Supports VLAN
    • IEEE 802.1Q tag-based VLAN
    • GVRP for dynamic VLAN management
    • Up to 4094 active VLANs
    • Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
    • Private VLAN Edge (PVE) supported
    • GVRP protocol for Management VLAN
    • Protocol-based VLAN
    • MAC-based VLAN
  • Supports Link Aggregation
    • Maximum 32 trunk groups with up to 8 ports per trunk group
    • IEEE 802.3ad LACP (Link Aggregation Control Protocol)
    • Cisco ether-channel (static trunk)
  • Supports Spanning Tree Protocol
    • STP, IEEE 802.1D (Classic Spanning Tree Protocol)
    • RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
    • MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
    • BPDU & root guard
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
  • Provides port mirror (many-to-1)



Quality of Service

  • 8 priority queues on all switch ports
  • Supports strict priority and WRR (Weighted Round Robin) CoS policies
  • Traffic classification
    • IEEE 802.1p CoS/ToS
    • IPv4/IPv6 DSCP
    • Port-based WRR
  • Strict priority and WRR CoS policies



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3; and IPv6 MLD v1 and v2 snooping
  • Querier mode supports
  • Supports Multicast VLAN Register (MVR)



Security

  • IEEE 802.1x port-based network access authentication
  • MAC-based network access authentication
  • Built-in RADIUS client to co-operate with the RADIUS servers for IPv4 and IPv6
  • TACACS+ login users access authentication
  • IP-based Access Control List (ACL)
  • MAC-based Access Control List
  • Supports DHCP snooping
  • Supports ARP inspection
  • IP Source Guard prevents IP spoofing attacks
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
    • Console/Telnet Command Line Interface
    • Web switch management
    • SNMP v1, v2c and v3 switch management
    • SSH secure access
  • BOOTP and DHCP for IP address assignment
  • Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
  • SNTP (Simple Network Time Protocol) for IPv4 and IPv6
  • User privilege levels control
  • Syslog server for IPv4 and IPv6
  • Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
  • Supports ping, trace route function for IPv4 and IPv6



Stacking Management

  • Virtualized multiple XGS-6350 Series integrated into one logical device
  • Single IP address stack management, supporting up to 4 hardware units stacked together
  • Stacking architecture supports redundant Ring mode
Hardware Specifications
Ethernet Ports8 1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP+ Slots12 10GBASE-SR/LR SFP+ interface
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console1 x RJ45-to-DB9 serial port (9600, 8, N, 1)
Reset ButtonReset to factory default
Switch ArchitectureStore-and-forward
Switch Fabric176Gbps/non-blocking
Switch Throughput132Mpps
Address Table32K MAC address table with auto learning function
Shared Data Buffer3MB
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Frame9KB
LEDSystem:
PWR, SYS

Ports:
10/100/1000T RJ45 Port: LNK/ACT
1/10G SFP+ Slot: LNK/ACT
Dimensions (W x D x H)442.5 x 315 x 44 mm, 1U height
Weight4178g
Power Consumption55 watts/187.66 BTU (maximum)
Power RequirementsAC 100~240V, 50/60Hz
Fan2
Management Function
System ConfigurationConsole, Telnet, SSH, Web browser, SNMP v1, v2c and v3
ManagementSupports both IPv4 and IPv6 addressing
Supports the user IP security inspection for IPv4/IPv6 SNMP
Supports MIB and TRAP
Supports IPv4/IPv6 TFTP
Supports IPv4/IPv6 NTP
Supports RMON 1, 2, 3, 9 groups
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
Supports IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
Supports CLI, console, Telnet
Supports SNMPv1, v2c and v3
Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area
Supports Syslog server for IPv4 and IPv6
Supports TACACS+
Layer 3 Function
Routing ProtocolStatic routing, RIP and OSPF
Routing TableIPv4: 32K
IPv6: 8K
Multicast Routing ProtocolPIM-DM and PIM-SM
PIM-SSM
MSDP
DHCPDHCP client
DHCP server, default-route
VRRPConfigure VRRP in interface VLAN;
VRRP priority;
VRRP standby;
VRRP track
Load BalancingUse of equivalent routing, the correct load balancing function (by flow)
Layer 2 Function
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port StatusDisplay each port’s speed duplex mode, link status, flow control status and
auto negotiation status
VLAN802.1Q tag-based VLAN, up to 4K VLAN entries
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN
Bandwidth ControlTX/RX/both
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 32 groups with 8 ports per trunk group
QoS8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
MulticastIGMP v1/v2/v3 snooping
Querier mode support
MLD v1/v2 snooping
Querier mode support
Multicast VLAN Register (MVR)
Access Control ListSupports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 1K entries
Bandwidth ControlAt least 64Kbps stream
SecurityPort isolation
Supports IP + MAC + port binding
Identification and filtering of L2/L3/L4 based ACL
Defend against DOS or TCP attacks
Suppression of broadcast, multicast and unknown unicast packet
DHCP Snooping, DHCP Option 82
Command line authority control based on user levels
AuthenticationIEEE 802.1x port-based network access control
AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMPv2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMPv3 notification
RFC 2574 SNMPv3 VACM
RFC 2674 Bridge MIB Extensions
Standard Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
Environment
OperatingTemperature: 0 ~ 60 degrees C
Relative Humidity: 10 ~ 85% (non-condensing)
StorageTemperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-01-121.2Release for hardware version 2.0.



Firmware

DateVersionDescriptionDownload
2023-04-142.2.0C_107735[Release for hardware version 1.0.]
Fixed:
1.Supports I2C 9548.
2.Fixed DDM detect error.
2017-12-132.2.0B_48290Initial Release for hardware version 1.0.



Quick Guide

DateVersionDescriptionDownload
2024-08-021.3[Release for hardware version 2.0.]
Added PSTI function.
2017-11-171.0Initial Release.



User's Manual

DateVersionDescriptionDownload
2020-09-031.2Update environment contents of specification.
2019-10-161.1Modify contents of user manual.



EC Declaration

DateVersionDescriptionDownload
2019-01-091.0EC Declaration.
