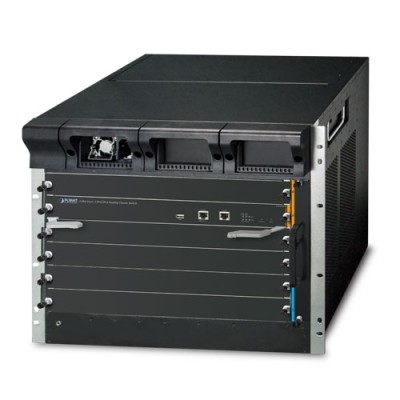

PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch

PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
PLANET CS-6306R 6-slot Layer 3 IPv6/IPv4 Routing Chassis Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: CS-6306R
  • Βαρος: 38.95kg
  • Διαστασεις: 37.00 x 48.20 x 39.70
2.692,90€
Χωρίς ΦΠΑ: 2.171,69€

Outstanding Flexibility and High Performance

PLANET CS-6306R Core Layer Routing Switch is specially designed for large network applications such as enterprises, campuses, communities, ISPs and data center networks where flexible configuration, large capacity, high density, high reliability and advanced traffic management are required.

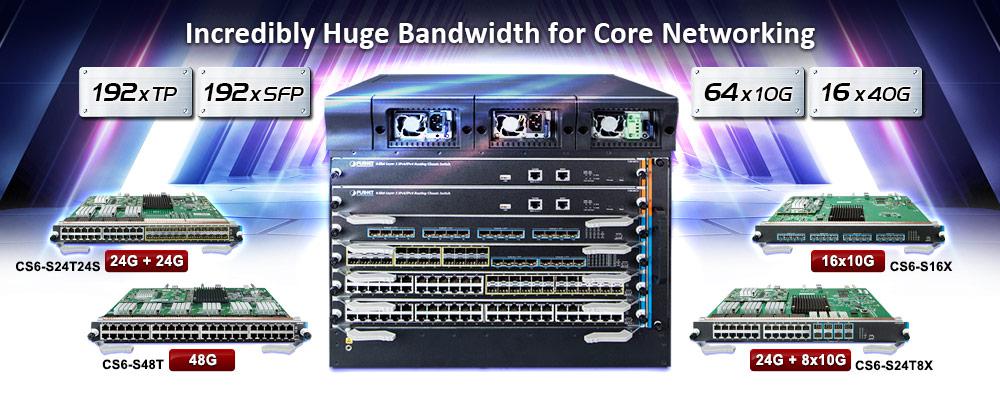

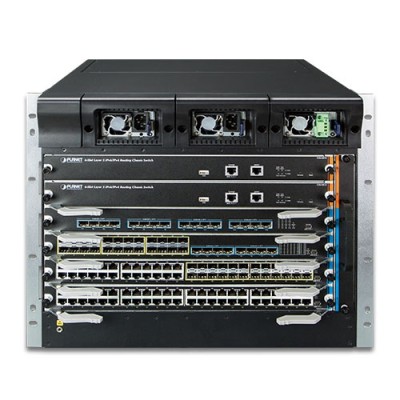

The CS-6306R is the High-density Chassis Ethernet Switch built with 6 module slots and redundant power supply. It provides great porting flexibility for network deployment by offering various combinable management modules and switch modules. For instance, one management module can be collaborated with four switch modules, or two management modules work to mutually perform system backup. Within the 9U height, single chassis, the maximum configuration can be:

  • 192 10/100/1000BASE-T Copper Slots
  • 192 100/1000BASE-SX/LX SFP Fiber Slots
  • 64 10G SFP+ Fiber Slots
  • 16 40G QSFP+ Fiber Slots



Positioned as the core layer switch, the CS-6306R serves ideally for large-sized networks and IP metropolitan networks by supplying advanced intelligent and secure features and giving high performance and flexibility.



Scalable 10-Gigabit and 40-Gigabit Performance

The CS-6306R delivers Gigabit, 10-Gigabit and 40-Gigabit Ethernet connectivity in a highly-flexible and resilient modular platform. With high switching capacity, the CS-6306R Chassis Switch supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. The scalable and flexible modular architecture supports up to 3Tbps forwarding performance in a single system. The CS-6306R is ideal for the core layer of campuses, enterprise networks and the aggregation layer of IP metropolitan networks and wide area networks.



Rich Multi-Layer Networking Protocols

The CS-6306R comes with the complete Layer 3 managed function with comprehensive protocols and applications to facilitate the rapid service deployment and management for both the traditional L2 and L3 networks. With support for advanced features, including RIP, RIPng, OSPFv2, OSPFv3, BGP, BGP4+ etc., this chassis switch is ideal for the traditional or fully virtualized data center.



Strong Multicast

The CS-6306R supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions. In Layer 3 multicast protocols, it features PIM-DM, PIM-SM and PIM-SSM which make the CS-6306R great for any robust networking.



Full IPv6 Support

The CS-6306R Chassis Switch supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.



High Reliability

The key components of the CS-6306R such as management module, power system and the fan system support redundancy design. All system modules support hot-swap and seamless switching without manual intervention.

It supports In-service Software Upgrade (ISSU) and Graceful Restart (GR) for OSPF/BGP routing protocol, guaranteeing the user data non-stop forwarding when the system is upgrading. It supports Bidirectional Forwarding Detection (BFD) that realizes fault detection and service recovery in seconds through linking with Layer 2 or Layer 3 protocol.



Redundant Ring, Fast Recovery for Critical Network Applications

The CS-6306R supports redundancy protection mechanism and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates Layer 3 Virtual Router Redundancy Protocol (VRRP) protocol, Layer 2 Spanning Tree Protocol IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) technology into customer’s network to enhance system reliability and uptime. In a certain simple Ring network, the recovery time could be less than 50ms to quickly bring the network back to normal operation.



Centralized Hardware Stacking Management

Several CS-6306R Chassis Ethernet Switches can be used to build a virtually logical facility. The CS-6306R gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The CS-6306R can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.



Powerful Security from Layer 2 to Layer 4

The CS-6306R offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The CS-6306R also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent from IP snooping attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Enhanced Quality of Service

The CS-6306R Switch fully supports DiffServ module, so users can specify a queue bandwidth on each port.  WRR/SP/SWRR scheduling is also provided. The CS-6306R supports the port security to enable trusted CoS, DSCP, IP precedence and port priority. Users can modify packets’ DSCP and COS values so that the traffic can be classified by port, VLAN, DSCP, IP precedence and ACL table. User can also modify packets’ DSCP and IP precedence values to specify different bandwidths for voice, data and video to customize different qualities of service.

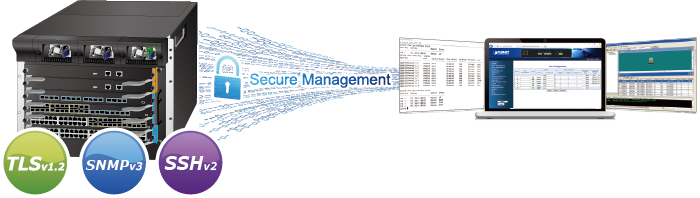

Efficient and Secure Management

For efficient management, the CS-6306R is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the CS-6306R offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the CS-6306R offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the CS-6306R offers secure remote management by supporting SSHv2, TLSv1.0 and SSLv3 connection which encrypts the packet content at each session.

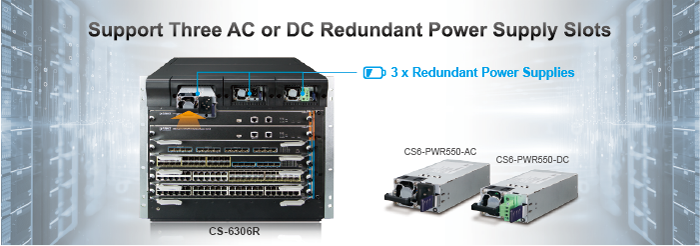

Extractive Power Supply Design to Increase Flexibility

The CS-6306R is equipped with one extractive 100~240V AC power supply unit, so it is easy to replace the power for users. Besides, the CS-6306R reserves another two backup power slots on the front panel and users can add the second AC or DC power to the redundant power supply installation. The AC power or DC power is optional. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.

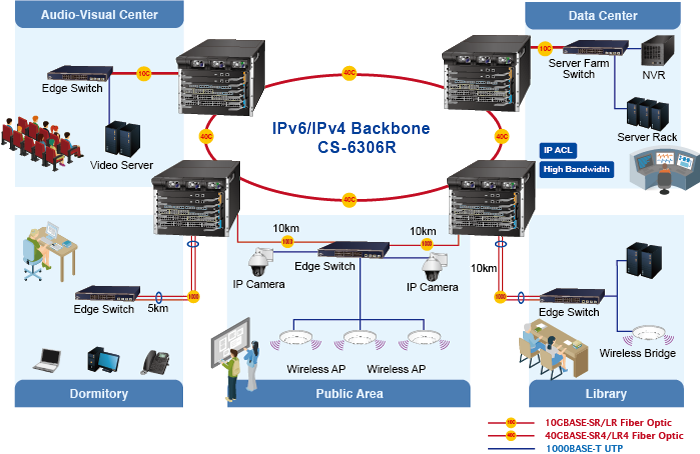

Carrier Class Backbone Switch for Campuses and Communities

For large area network communications designed for the enterprises, campuses and communities, PLANET CS-6306R Chassis Switch is the best choice for an affordable and scalable network deployment. It offers a high-capacity chassis platform with high quality and reliability in 10/100/1000BASE-T, 1000BASE-SX/LX, 10GBASE-SR/LR and 40GBASE-SR4/LR4 scalable solutions that integrate easily into any large network.

The CS-6306R can provide a maximum of up to either 192 high-density Gigabit Ethernet ports, 192 SFP ports, 64 10G SFP+ ports or 16 40G QSFP+ ports which are available for remote uplink connectivity in a single system and provide the uplink to the edge network through 1Gbps to 40Gbps optical transceiver modules. The CS-6306R offers a comprehensive set of modules for complex network and gives network manager the flexibility to expand large area network when needed.

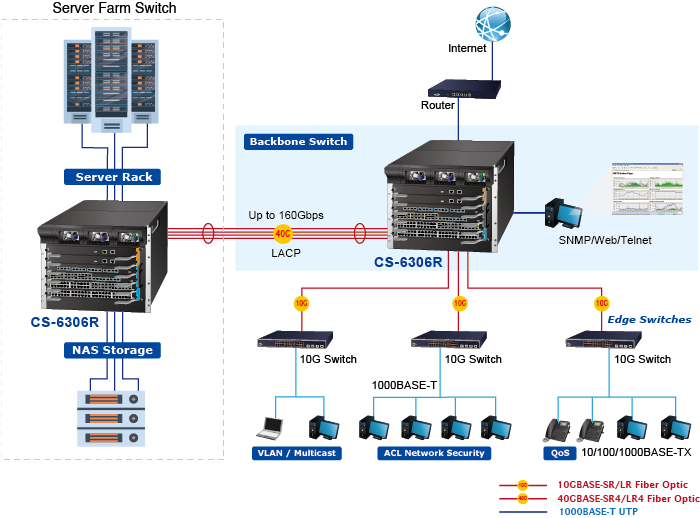

Reliable, High-performance and High-density Enterprise Backbone Switch

10/40-Gigabit Ethernet supported equipment has become the fundamental unit of enterprises and network servers. PLANET CS-6306R is the cost-effective, high-density and high-bandwidth chassis switch, which meets today’s market requirements. Its dedicated chassis architecture feature makes all modules in the platform operate together as one much larger switch providing multiple high-performance 10/40-Gigabit Ethernet network for backbone of enterprises, campuses or telecoms.

The redundant management modules and three power supplies provide the CS-6306R with nonstop network service ability. Moreover, all modules are hot-swappable. They can be added or exchanged without interrupting the operation of the whole system. The CS-6306R Chassis Switch is ideal for being a server farm switch connecting to servers and perfectly suitable for those networking environments requiring constant access to critical business applications.



Hardware and Performance

  • 6 open module slots design:
    • Up to 2 Management Modules
    • Up to 4 Switch Modules
  • Hot-swappable switching modules
  • 1 RJ45 serial console interface on Management Module for switch basic management and setup



Redundant Power System

  • 3 power slots
  • 100~240V AC and 36-72V DC power redundancy
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply



IP Routing Features

  • IPv4 Routing protocol supports RIP v1/v2, OSPFv2 and BGP4
  • IPv6 Routing protocol supports RIPng, OSPFv3 and BGP4+
  • Routing interface provides VLAN routing mode
  • Policy-based Routing (PBR) for IPv4
  • VRRP protocol for redundant routing deployment
  • Supports route redistribution



Multicast Routing Features

  • Supports Multicast Routing Protocols:
    • PIM-DM (Protocol Independent Multicast - Dense Mode)
    • PIM-SM (Protocol Independent Multicast - Sparse Mode)
    • PIM-SSM (Protocol Independent Multicast - Source-Specific Multicast Mode)
  • Supports IGMP v1/v2/v3



Layer 2 Features

  • Supports VLAN
    • IEEE 802.1Q tag-based VLAN
    • Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
    • GVRP for dynamic VLAN management
    • Private VLAN
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
  • Supports Spanning Tree Protocol
    • STP, IEEE 802.1D (Classic Spanning Tree Protocol)
    • RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
    • MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to 1)
  • Loop protection to avoid broadcast loops
  • Link Layer Discovery Protocol (LLDP)
  • Ethernet OAM 802.3ah/802.1ag/ITU-Y.1731



Quality of Service

  • Ingress shaper and egress rate limit per port bandwidth control
  • 8 priority queues on all switch ports
    • IEEE 802.1p CoS/DSCP/Precedence
    • VLAN ID
    • Policy-based ingress and egress QoS



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • MVR (Multicast VLAN Registration)



Security

  • Authentication
    • IEEE 802.1x port-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers
    • RADIUS/TACACS+ users access authentication
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List (ACL)
    • Time-based ACL
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Console and Telnet Command Line Interface
    • HTTP web switch management
    • SNMP v1 and v2c switch management
    • SSHv2, SSLv3, TLSv1.0 and SNMP v3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms, and events)
    • SNMP trap for interface Link Up and Link Down notification
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP
    • Reset button for system reboot or reset to factory default
    • Dual images
  • DHCP Functions:
    • DHCP Relay
    • DHCP Option 82
    • DHCP Server
  • User Privilege levels control
  • Network Time Protocol (NTP) and SNTP
  • Network Diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
    • ICMP remote IP ping
  • Syslog remote alarm
  • System Log



Stacking Management

  • Virtualized multiple CS-6306R switches integrated into one logical device
  • Single IP address stack management, supporting up to 2 hardware units stacked together
  • Stacking architecture supports redundancy Ring mode



Hardware Specifications
Total Number of Slots6
Max. Management Module2 (slots 5 and 6)
Supports dual master control redundancy and automatic recovery
Max. Switch Module4 (slots 1 to 4)
Number of Power Supply Bays3
Number of Fan Trays1, hot-pluggable
Dimensions (W x D x H)443.5 x 370 x 397 mm
482 x 370 x 397 mm (with rack-mount kit)
9U high
Weight21.6kg (empty)
24.8kg (Chassis with 1 AC power module and 1 management module)
Power RequirementAC: Input 100-240V, 7A max. 50~60 Hz
DC: Input 36-72V, 20A max.
Power Consumption320W
Management Module
Management PortOne 10/100/1000BASE-TX RJ45 port
ConsoleOne RJ45-to-RS232 serial port (9600, 8, N, 1)
USB1 x USB2.0 Type A for USB Storage device use.
ButtonReset button: System reboot only
Hot-swap button:
Force swap master and slave management modules
Host LED lit up to show the host swap procedure is completed
Available Switch Modules
CS6-S24S8X24-Port 1000BASE-X SFP + 8-Port 10GBASE-X SFP+
Backward compatible with 100BASE-FX SFP transceivers
CS6-S24T8X24-Port 10/100/1000BASE-T + 8-Port 10GBASE-X SFP+
SFP+ slot is backward compatible with 1000BASE-X SFP transceivers
CS6-S48T48-Port 10/100/1000BASE-T
CS6-S48S48-Port 1000BASE-X SFP
Backward compatible with 100BASE-FX SFP transceivers
CS6-S24T24S24-Port 10/100/1000BASE-T + 24-Port 1000BASE-X SFP
CS6-S16X16-Port 10GBASE-X SFP+
Backward compatible with 1000BASE-X SFP transceivers
CS6-S4Q4-Port 40GBASE-X QSFP+
Supports 40GBASE-SR4/LR4 QSFP+ transceivers and 40G QSFP+ to 4x10G SFP+ breakout cable
Total Port Capacity
Max. 10/100/1000BASE-T192
Max. 1000BASE-X SFP Ports192
Max. 10G SFP+ Ports64
Max. 40G QSFP+ Ports16
Switching Performance
Switch Processing SchemeStore-and-Forward
Switch Back plan3Tbps
Switch Capacity2.56Tbps
Switch Throughput810Mpps@64bytes
MAC Address Table32K
ARP Table16K
VLAN Table4K VLAN entries
ACL TableIngress Filter: 2560
Egress Filter: 1024
Shared Data Buffer32MB
Layer 3 InterfaceMax. 256 VLAN interfaces for IPv4
Max. 256 VLAN interfaces for IPv6
Routing TableIPv4 Protocol: 16K
IPv6 Protocol: 8K
Multicast Table8K (IPv4/IPv6 shared)
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame9216Bytes
FLASH64Mbytes
RAM1Gbytes
IPv4 Layer 3 Functions
IP Routing ProtocolRIP v1/v2
OSPFv2
BGP (Border Gateway Protocol)
Static routing
Multicast Routing ProtocolPIM-DM and PIM-SM
PIM-SSM
Routing Interface256
Routing FunctionsVRRP
Policy routing
Load balance through equal-cost routing
GR (Graceful Restart) of OSPF and BGP
BFD (Bidirectional Forwarding Detection) for OSPF and BGP
IS-IS, Intermediate system to intermediate system
IPv6 Layer 3 Functions
IP Routing ProtocolRIPng
OSPFv3
BGP4+
Multicast Routing ProtocolPIM-DM and PIM-SM
PIM-SSM
Routing FeaturesManual tunnel
ISATAP tunnel
6-to-4 tunnel
IPv6 FunctionsICMPv6, DHCPv6, ACLv6, IPv6 Telnet
IPv6 Neighbor Discovery
Path MTU Discovery
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port MirroringTX/RX/Both
Many to 1
Link AggregationSupports link aggregation cross switch module
VLANIEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
GVRP for VLAN management
Private VLAN
Up to 4K VLAN groups
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU protection, root protection
IPv4 IGMP SnoopingIPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IGMP Filtering and IGMP Throttling
IGMP Proxy reportin
IGMP mmulticast forwarding
Up to 8K multicast groups
IPv6 MLD SnoopingIPv6 MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Up to 8K multicast groups
QoS8 priority queues on all switch ports
Scheduling for priority queues
- Weighted Round Robin (WRR)
- Strict priority (SP)
- SP+WRR
Traffic classification:
- IEEE 802.1p CoS
- DSCP
- DiffServ
- Precedence
- TOS
- VLAN ID
- IP ACL
- MAC ACL
Policy-based ingress and egress QoS
802.1p and DSCP priority remark
Storm ControlSuppression of broadcast, multicast and unknown unicast packet
Bandwidth ControlIngress and Egress
At least 64Kbps stream
RingMSTP, IEEE 802.1s Multiple Spanning Tree Protocol
Security Functions
Access Control ListSupports Standard and Expanded ACL
- IP-based ACL
- MAC-based ACL
- Time-based ACL
ACL based on:
- MAC Address
- IPv4/IPv6 IP Address
- Protocol-number
- sport/dport
- ToS/Precedence
Ingress Filter: 2560 entries
Egress Filter: 1024 entries
SecurityMAC address limitation and MAC address filtering
MAC sticky (IP + MAC + Port binding)
Port isolation
DHCP snooping, DHCP option 82
Dynamic ARP inspection
IP source guard
Defined against DoS or TCP attacks
AAATACACS+ and IPv4/IPv6 over RADIUS
Network Access ControlIEEE 802.1x port-based network access control
Management Functions
System ConfigurationConsole and Telnet
Web browser
SNMP v1, v2c
Secure Management InterfacesSSHv2, SSLv3
Maximum 8 sessions for SSH and Telnet connection
Management InterfaceCLI/MGMT/Telnet/SSH
System ManagementIPv4 and IPv6 dual stack management
SNMP MIB and TRAP
SNMP RMON 1, 2, 3, 9 four groups
Firmware upgrade by TFTP protocol through Ethernet network
Configuration upload/download through TFTP protocol
Supports IEEE 802.1ab LLDP protocol
NTP and SNTP client
RADIUS authentication for IPv4/IPv6 login user name and password
Statistics analysis of sFlow and Netflow
Event ManagementRemote syslog
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMPv2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMPv3 notification
RFC 2574 SNMPv3 VACM
RFC 2674 Bridge MIB Extensions
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gigabit Ethernet
IEEE 802.3ba 40Gigabit Etherent
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1d Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Double VLAN tagging (Q-in-Q)
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3az Energy Efficient Ethernet
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
RFC 2080 RIPng for IPv6
RFC 2740 OSPFv3 for IPv6
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2021-11-051.0CS-6306R



Quick Guide

DateVersionDescriptionDownload
2022-04-111.1Modify contents of Quick Guide
2021-08-271.0Initial release for CS6-MCU & CS6-Sx series
2021-08-101.0Initial release



User's Manual

DateVersionDescriptionDownload
2022-05-181.0Initial release.
2021-08-201.0Initial release for CS6-PWR550-AC/DC



EC Declaration

DateVersionDescriptionDownload
2022-10-211.0EC declaration.
