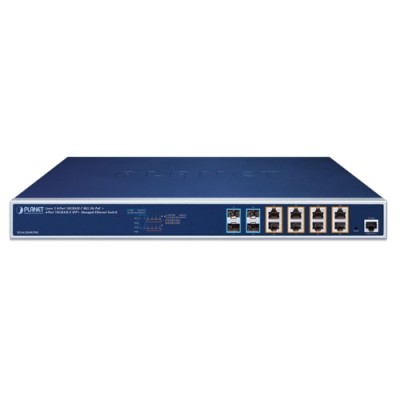

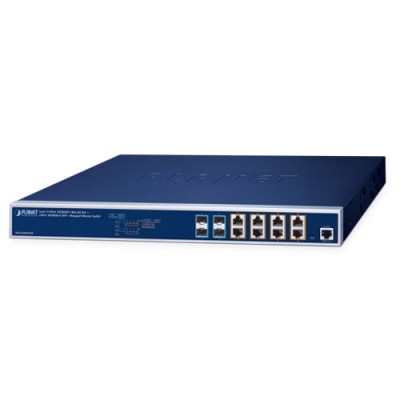

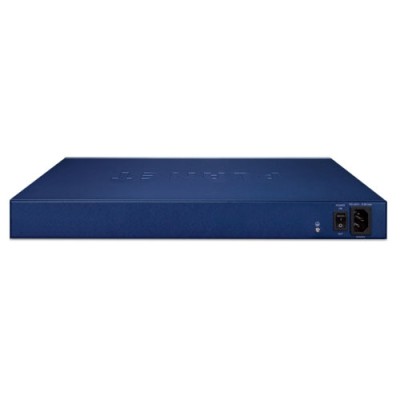

PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch

PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch
PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch
PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch
PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch
PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch
PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch
PLANET XGS-6320-8UP4X Layer 3 8-Port 10GBASE-T 95W 802.3bt PoE + 4-Port 10GBASE-X SFP+ Managed Ethernet Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: XGS-6320-8UP4X
  • Βαρος: 5.89kg
  • Διαστασεις: 300.00 x 440.00 x 1.00
1.914,14€
Χωρίς ΦΠΑ: 1.543,66€

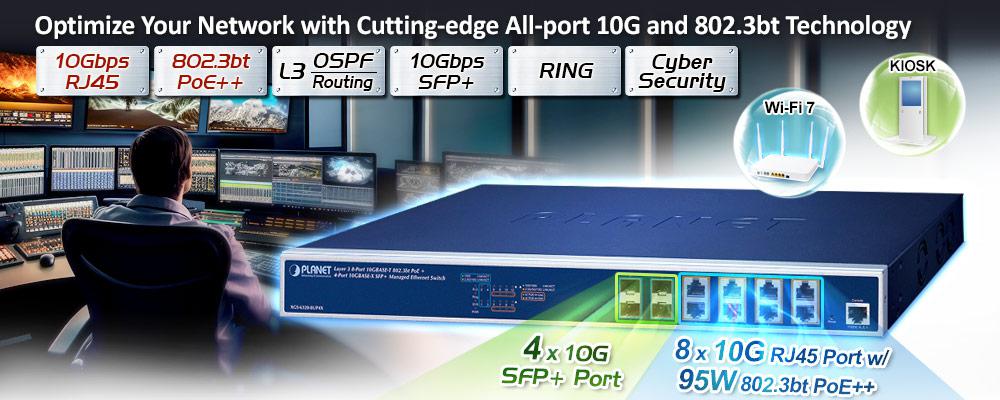

All-Port 10G L3 Managed Switch with an Exceptional 95W PoE++ Capability

PLANET XGS-6320-8UP4X Layer 3 10Gbps Ethernet PoE++ Switch is designed for high bandwidth and power-hungry devices like Wi-Fi 7/6E APs, NAS units, thin clients, and surveillance systems. Boasting 8 10GBASE-T copper ports and 4 10GBASE-X SFP+ fiber ports, it ensures flexible connectivity with extended reach.

With a robust 420W PoE budget, each copper port supplies a maximum of 95W PoE power, meeting IEEE 802.3bt PoE++ Type 4 PD device demands. Beyond power, the switch excels in data link capability, hardware-based Layer 3 routing, and a cutting-edge Layer 2 and Layer 4 switching engine. User-friendly IPv6/IPv4 management interfaces ensure seamless control.

Designed for metropolitan areas, smart cities, and enterprises, the XGS-6320-8UP4X empowers next-gen, high-bandwidth networks. Network performance can be elevated with PLANET's forward-thinking Ethernet PoE switch.

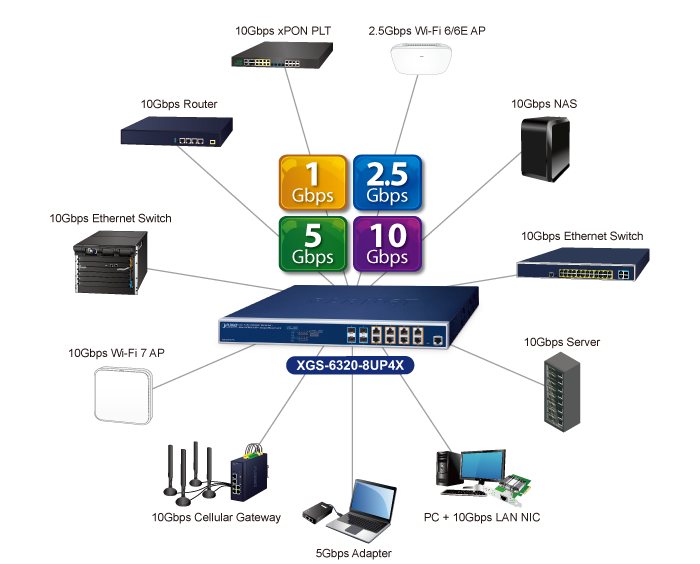

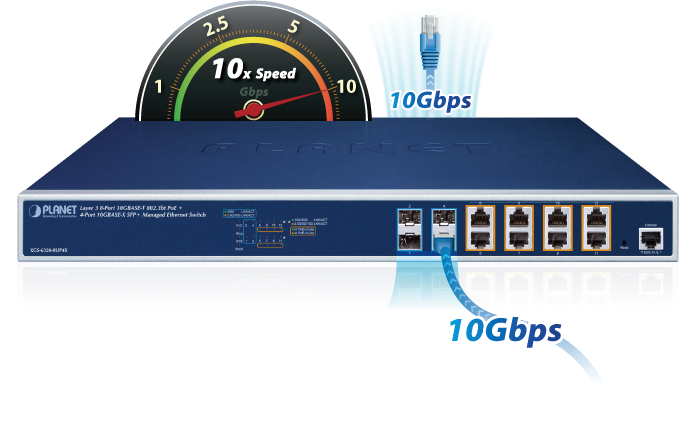

10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Diversified Bandwidth Applications

PLANET’s XGS-6320-8UP4X has the capability to reach a high speed of 10Gbps over copper or fiber-optic cabling which helps to accelerate the performance of large data transmission. The built-in 10GBASE-T copper interfaces support 5-speed (10G/5G/2.5G/1G/100) auto-negotiation, and 10Gbps data transmission with the existing Cat6/Cat6A UTP cabling, meaning the speed can be increased without costs. It can definitely give you the speed you demand and its Plug and Play makes installation easy.

The fiber-optic 10GBASE-X SFP+ interfaces support 3 speeds, 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

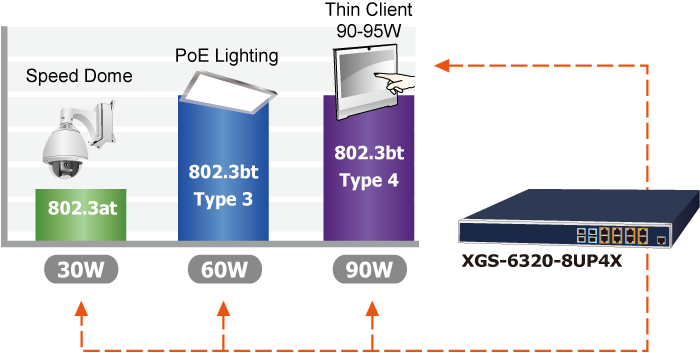

High Power and Full-speed Data Delivered over 4-pair UTP Cabling

The XGS-6320-8UP4X meets the standards of IEEE 802.bt PoE++ technology and has a total power capacity of 420 watts. It can supply up to 95 watts of power to each PoE-compliant powered device (PD) using all four pairs of standard Cat5e/6 Ethernet cabling, ensuring high power and full-speed data delivery. Compared to the conventional 802.3at PoE+, it offers triple power capacity, making it the perfect solution for higher power consuming PDs, including:

  • High-definition PoE PTZ speed dome cameras
  • Network devices
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings



802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand for supplying stable PoE power to various powered devices, the XGS-6320-8UP4X switch offers five different PoE power output modes for selection.

  • 95W 802.3bt PoE++ Power Output Mode
  • 95W Force Power Output Mode
  • 36W End-span PoE Power Output Mode
  • 36W Mid-span PoE Power Output Mode

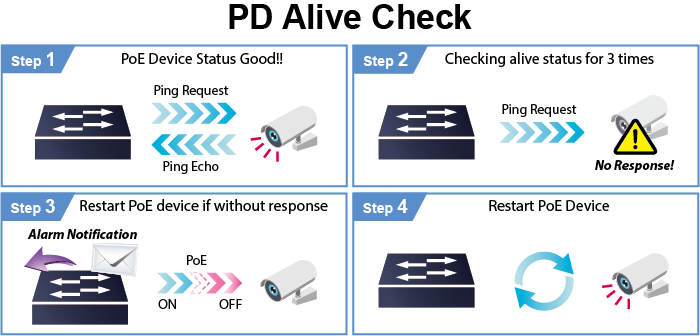

Intelligent Alive Check for Powered Devices

The XGS-6320-8UP4X can be configured to monitor the status of connected powered devices (PDs) in real time through ping action. If a PD stops working and responding, the XGS-6320-8UP4X will recycle the PoE port power and bring the PD back to working condition. This greatly enhances reliability, as the assigned PoE port automatically reboots the PD, reducing the administrator's management burden.

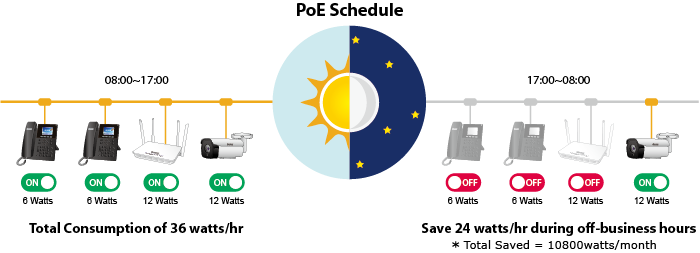

PoE Scheduling to Save Energy

By implementing the "PoE schedule" function, businesses can reduce their energy consumption during non-business hours or periods of low network usage. This not only helps to reduce energy costs but also minimizes the overall carbon footprint of the organization.

Furthermore, the XGS-6320-8UP4X's PoE scheduling feature provides a convenient and easy-to-use interface for managing power usage. The user can easily set the time intervals for each PoE port, allowing for more efficient power management.

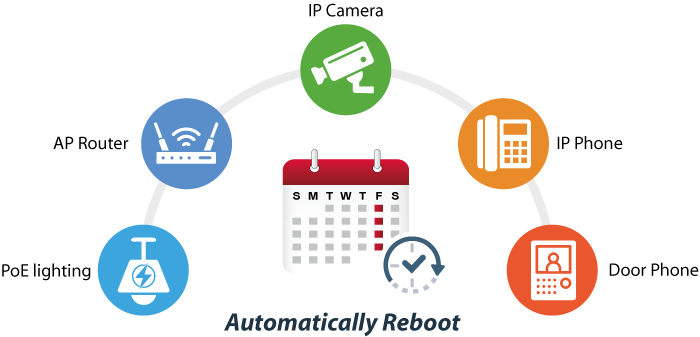

Scheduled Power Recycling

The XGS-6320-8UP4X enables connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. This will reduce the chance of IP camera or AP crashes resulting from buffer overflow.

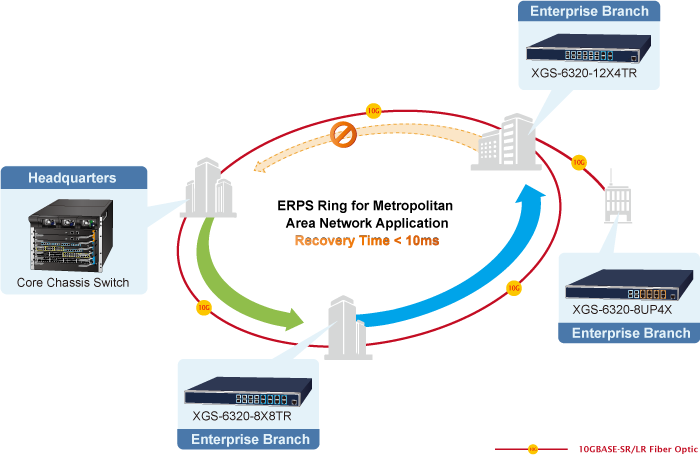

Redundant Ring, Fast Recovery for Critical Network Applications

The XGS-6320 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1w RSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.

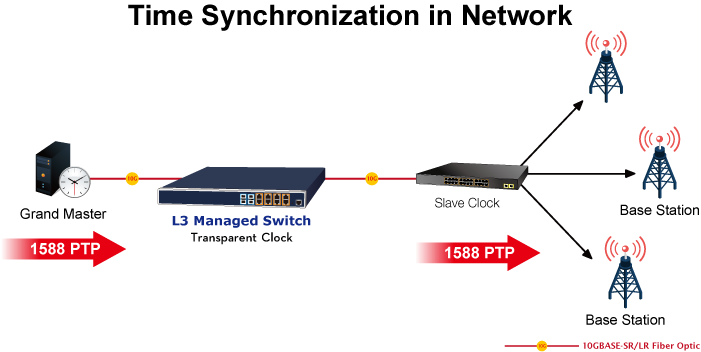

1588 Time Protocol for Industrial Computing Networks

The XGS-6320-8UP4X is ideal for implementing Precision Time Protocol (PTP) applications as a transparent clock. It can play an important role in an IEEE 1588 and Synchronous Ethernet network by supporting MEF service delivery and timing over packet solutions



Layer 3 Routing Support

The XGS-6320 series enables the administrator to conveniently boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.

The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Robust Layer 2 Features

The XGS-6320 series can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. It allows the operation of a high-speed trunk combining multiple ports. Supporting 8 trunk groups, it enables a maximum of up to 16 ports per trunk and supports connection fail-over as well.

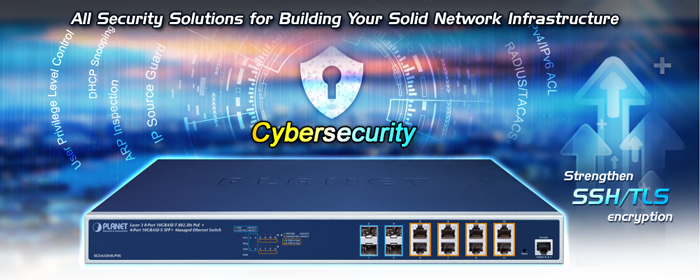

Cybersecurity Network Solution to Minimize Security Risks

The XGS-6320-8UP4X supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based, and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and more to provide a comprehensive security solution.

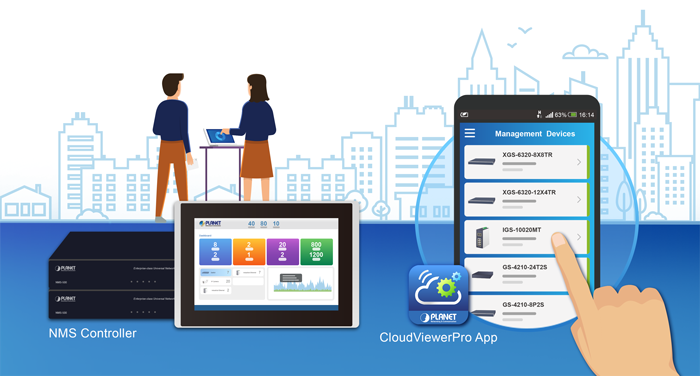

Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewerPro app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.

Intelligent SFP Diagnosis Mechanism

The XGS-6320 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert function, the XGS-6320 series further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection.

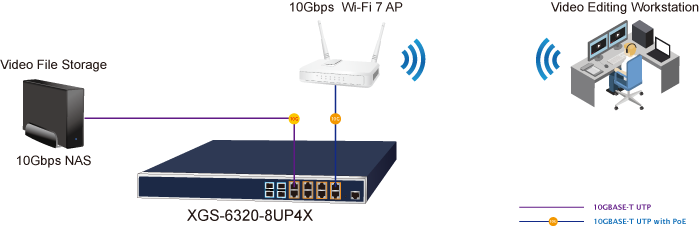

The Ultimate 10G Network

Upgrade effortlessly with our 10G PoE++ Switch – a perfect match for upcoming WiFi 7 Access Points. Seamlessly integrate with advanced wireless technology, enjoy efficient 10Gbps connectivity, and meet increasing power demands effortlessly.

Layer 3 VLAN Routing Application

With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the XGS-6320 series ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 3K routing entries. The XGS-6320 series is certainly a cost-effective and ideal solution for enterprises.

Physical Port

  • 8 10GBASE-T RJ45 ports, backward compatible with 100/1G/2.5G/5GBASE-T auto-negotiation and supports IEEE802.3bt PoE++ standard
  • 4 10GBASE-X SFP+ ports, backward compatible with  1000BASE-X and 2500BASE-X SFP transceivers
  • RJ45 type RS232 console interface for switch basic management



IEEE 802.3bt Power over Ethernet

  • Compliant with IEEE 802.3bt Type-4 PoE++ standard
  • Backward compatible with IEEE 802.3af/at PD device
  • Each port has a maximum power output of 95 watts (Using the maximum amount may reduce the number of available ports.)
  • Total of 420-watt PoE budget
  • Detects powered devices (PD) automatically.
  • Circuit protection prevents power interference between ports.
  • Power feeding up to 100m
  • PoE management features
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE admin-mode control
    • PoE port power feeding priority
    • Per PoE port power limit
    • PD classification detection
  • Intelligent PoE features
    • Temperature threshold setting
    • PoE usage threshold setting
    • PD alive check
    • PoE schedule
    • LLDP PoE Neighbors



Layer 3 IP Routing Features

  • IPv4 dynamic routing protocol supports RIPv2 and OSPFv2 and IPv6 OSPFv3
  • IPv6 dynamic routing protocol supports OSPFv3
  • IPv4/IPv6 hardware static routing
  • Routing interface provides per VLAN routing mode



Layer2 Features

  • Storm Control support
    • Broadcast/Multicast/Unknown unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Protocol-based VLAN
    • MAC-based VLAN
    • Voice VLAN
    • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol
    • IEEE 802.1w Rapid Spanning Tree Protocol
    • IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
    • BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 8 trunk groups, up to 16 ports per trunk group
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Link Layer Discovery Protocol (LLDP)
  • Compatible with Cisco uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)



Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP Precedence of IPv4/IPv6 packets
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking



Multicast

  • Supports IPv4 IGMP Snooping v1, v2 and v3
  • Supports IPv6 MLD Snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP Snooping port filtering
  • IPv6 MLD Snooping port filtering
  • Multicast VLAN Registration (MVR) support



Security

  • Authentication
    • IEEE 802.1x Port-based/MAC-based network access authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS/TACACS+ users access authentication
    • Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Web switch management
    • Console and Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMPv3 secure access
  • SNMP Management
    • Four RMON groups (history, statistics, alarms and events)
    • SNMP trap for interface Linkup and Link-down notification
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Reset button for system reboot or reset to factory default
    • Dual Images
  • DHCP Functions:
    • DHCP Relay
    • DHCP Option82
    • DHCP Server
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Network Diagnostic
    • ICMPv6/ICMPv4 Remote Ping
    • SFP-DDM (Digital Diagnostic Monitor)
  • SMTP, Syslog and SNMP trap remote alarm
  • System Log
  • PLANET Smart Discovery Utility for deployment management
  • PLANET UNI-NMS (Universal Network Management) and CloudViewerPro app for deployment management
Hardware Specifications
Copper Ports8 10GBASE-T RJ45 auto negotiation ports (Ports 5 to 12)
Backward compatible with 10G/5G/2.5G/1G/100Mbps data rate
SFP+ Slots4 10GBASE-SR/LR SFP+ ports (Ports 1 to 4)
Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
PoE Injector Port8 ports with 802.3bt PoE++ injector function from Ports 5 to 12
Console1 x RJ45-to-DB9, RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
RAM2,048Mbytes
Flash Memory128Mbytes
Dimensions (W x D x H)440 x 300 x 44mm, 1U height
Weight4,285g
Power Requirements100~240V AC, 50/60Hz, 5A max.
Power ConsumptionAC 110V: 34.5W / 117.7BTU (No loading) ; 502W / 1712.9BTU (Full loading)
AC 220V: 33.4W / 114BTU (No loading) ; 488W / 1665.1BTU (Full loading)
ESD Protection6KV DC
Surge Protection4KV DC
Fan3 smart fans
LEDSystem:
PWR (Green), SYS (Green), Ring (Green), Ring Owner (Green)
10GBASE-T RJ45 ports:
100/1000 LNK/ACT (Green)
2.5G/5G/10G LNK/ACT (Amber)
802.3bt PoE-in-Use (Green)
802.3at PoE-in-Use (Amber)
10GBASE-X SFP+ ports:
1000 LNK/ACT (Green)
2.5G/10G LNK/ACT (Amber)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric240Gbps/non-blocking
Throughput178.57 @ 64Bytes packet
Address Table32K entries, automatic source address learning and aging
Shared Data Buffer32Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame10Kbytes
Power Over Ethernet
PoE StandardIEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type802.3bt
End-span
Mid-span
Force
PoE Power OutputPer port 54V DC
802.3bt Type-4 mode: maximum 95 watts
End-span mode: maximum 36 watts
Mid-span mode: maximum 36 watts
Force mode: maximum 95 watts
Power Pin Assignment802.3bt: 1/2(-), 3/6(+),4/5(+), 7/8(-)
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
PoE Power Budget420W maximum
Max. Number of Type 2 PDs8
Max. Number of Type 3 PDs7
Max. Number of Type 4 PDs4
PoE Management Functions
Active PoE Device DetectionYes
PoE Power RecyclingYes, daily or predefined schedule
PoE Schedule4 schedule profiles
PoE Extend ModeYes, max. 160 meters
PoE System ManagementSystem PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port ManagementPort Enable/Disable/Schedule
PoE mode control
802.3bt
802.3at End-span
802.3at Mid-span
Force mode
Port Priority
Layer 3 Functions
IP InterfacesMax. 128 VLAN interfaces
Routing TableMax. 512 static route entries
Max. 3072 routing table entries
Routing ProtocolsIPv4 RIPv2
IPv4 OSPFv2
IPv6 OSPFv3
IPv4 hardware static routing
IPv6 hardware static routing
Layer 2 Functions
Port ConfigurationPort disable/enable
Flow Control disable/enable
Port link capability control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
RMirror – Remote Switched Port Analyzer (Cisco RSPAN)
Supports up to 5 sessions
VLANIEEE 802.1Q tag-based VLAN,
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Supports 7 MSTP instances
BPDU Guard, BPDU filtering and BPDU transparent
Root Guard
Link AggregationIEEE 802.3ad LACP (static trunk)
Supports 6 trunk groups with 12 ports per trunk
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD SnoopingIPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth ControlPer port bandwidth control
Ingress: 10Kbps~13128Mbps
Egress: 10Kbps~13128Mbps
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms @ 3 nodes
Recovery time <50ms @ 16 nodes
Supports Major ring and sub-ring
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
Peer-to-peer transparent clock
End-to-end transparent clock
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
Port number
802.1p priority
802.1Q VLAN tag
DSCP/TOS field in IP packet
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
MAC Address
IP Address
Ethertype
Protocol Type
VLAN ID
DSCP
802.1p Priority
Up to 512 entries
SecurityPort security
IP source guard, up to 512 entries
Dynamic ARP inspection, up to 1K entries
Command line authority control based on user level
Static MAC address, up to 64 entries
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management InterfacesConsole;Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewerPro app
Event ManagementRemote Syslog
System log
SMTP
SNMP MIBsRFC1213 MIB-II
RFC 2863 IF-MIB
RFC1643 Ethernet MIB
RFC2863 Interface MIB
RFC2665 Ether-Like MIB
RFC2737 Entity MIB
RFC2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC2618 RADIUS Client MIB
RFC3411SNMP-Frameworks-MIB
IEEE802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE802.3u 100BASE-TX
IEEE802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE802.3x flow control and back pressure
IEEE802.3ad port trunk with LACP
IEEE802.1D Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE802.1p Class of Service
IEEE802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 1588 PTPv2
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
RFC 5340 OSPF v3
RFC 2453 RIP v2
Environments
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-01-121.0XGS-6320-8UP4X



Quick Guide

DateVersionDescriptionDownload
2024-07-191.2Added PSTI function.
2023-12-081.1Initial release.



User's Manual

DateVersionDescriptionDownload
2024-02-011.1Initial release.
