- Διαθεσιμοτητα: Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: SGS-6310-48P6XR
- Βαρος: 6.96kg
- Διαστασεις: 30.00 x 44.00 x 4.40

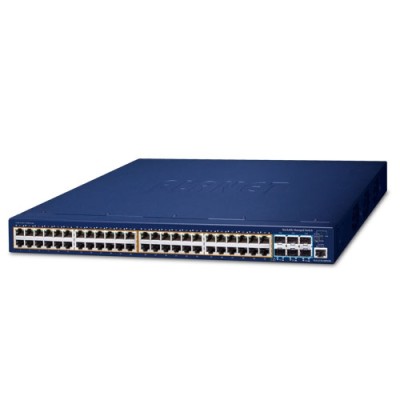

Resilient PoE, 10Gbps and Layer 3 Routing Solution for Enterprise Networking
PLANET SGS-6310 series is a brand-new Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The SGS-6310-48P6XR features 48 10/100/1000BASE-T RJ45 802.3at PoE+ ports with PoE budget up to 740 watts and 6 1G/10GBASE-X SFP+ ports with 216 Gbps switch fabric delivered in a 1U rugged case design.
The SGS-6310 series provides high-density performance, Layer 3 IPv4/IPv6 static routing, RIP and OSPF dynamic routing capability, ERPS ring, abundant L2/L4 switching engine and virtual switch stacking technology to fulfill the need of heavy transmission of all applications. It gives the enterprises, service providers and campuses flexible control over port density, uplinks and switch stack performance at an affordable price beyond value.
High Performance 10Gbps Ethernet Capacity

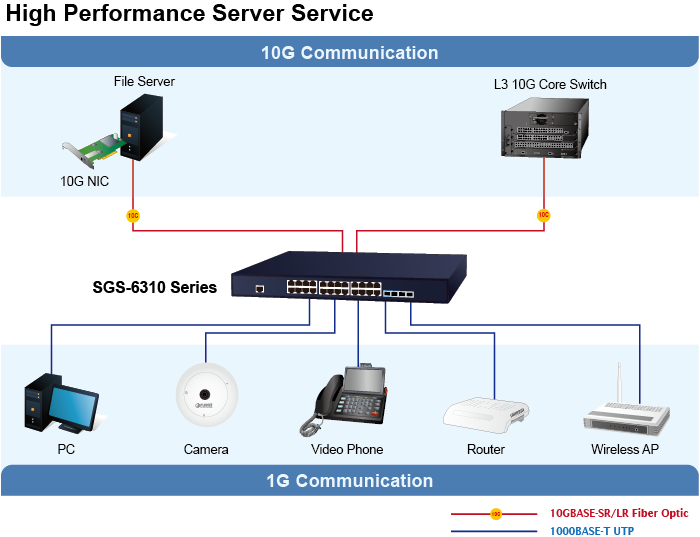

The six SFP+ ports built in the SGS-6310-48P6XR boast a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 120Gbps, which greatly meets high bandwidth demands in the LAN. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

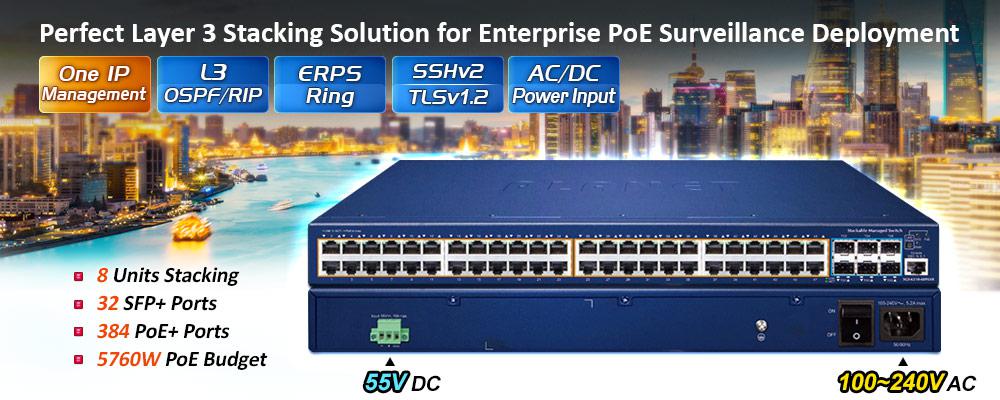

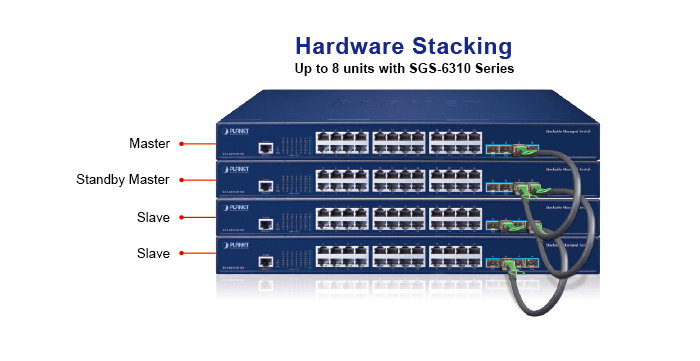

Centralized Hardware Stacking Management
Two of the 10G SFP+ ports can be configured to connect several SGS-6310 series for building a virtually logical facility. The stackable SGS-6310 series, suitable for the enterprises, service providers and telecoms, provides high port density, large uplink bandwidth and high stacking performance, thus giving great flexibility for different application requirements. The SGS-6310 series can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network operations.
Centralized Power Management for Gigabit Ethernet PoE Networking
To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the SGS-6310-48P6XR feature high-performance Gigabit IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras or even box type IP cameras with built-in fan and heater.
The SGS-6310-48P6XR’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from the restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates the cost for additional AC wiring and reduces installation time.

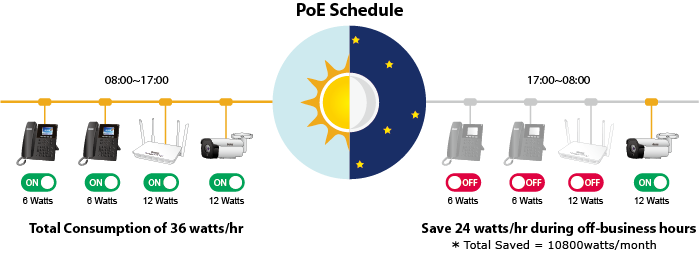

PoE Schedule for Energy Savings
Besides being used for IP surveillance, the SGS-6310-48P6XR are certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy savings worldwide and contributing to the environmental protection on the Earth, it can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save energy and budget.

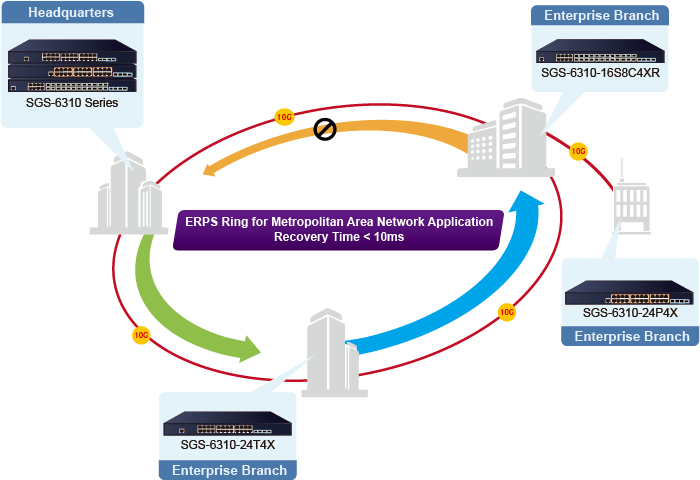

Redundant Ring, Fast Recovery for Critical Network Applications
The SGS-6310 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.
Layer 3 Routing Support
The SGS-6310 series enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.
- The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
- The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.
Strong Multicast
The SGS-6310 series supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the SGS-6310 series great for any robust networking.
Full IPv6 Support
The SGS-6310-Series supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.
Robust Layer 2 Features
The SGS-6310 series can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port link aggregation, the SGS-6310 series allows the operation of a high-speed trunk combined with multiple ports. It enables up to 64 groups for trunking with a maximum of 8 ports for each group.
Excellent Layer 2 to Layer 4 Traffic Control
The SGS-6310 series is loaded with powerful traffic management and WRR features to enhance services offered by enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.
Powerful Network Security
The SGS-6310 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.
Advanced IP Network Protection
The SGS-6310 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Efficient and Secure Management
For efficient management, the SGS-6310 series is equipped with console, Web and SNMP management interfaces.
- With the built-in Web-based management interface, the SGS-6310 series offers an easy-to-use, platform-independent management and configuration facility.
- For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the SGS-6310 series offers Cisco-like command and customer doesn’t need to learn new command from these switches.
- For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.
Moreover, the SGS-6310 series offers secure remote management by supporting SSHv1/v2 and TLSv1.2 connection which encrypts the packet content at each session.
Intelligent SFP Diagnosis Mechanism
The SGS-6310 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

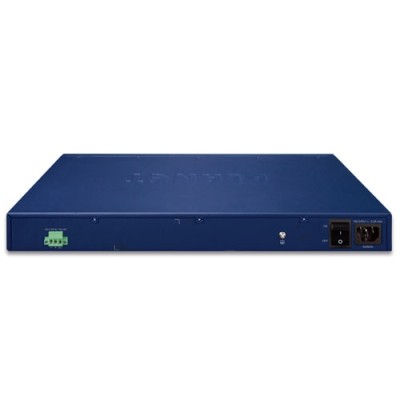

Redundant Power to Ensure Continuous Operation
The SGS-6310-48P6XR are equipped with 100~240V AC and 55V DC power supply unit for redundant power supply. A redundant power system is also provided to enhance the reliability with power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.
Excellent Solution to Enterprise Security and QoS Switch
The SGS-6310 series performs 128 Gigabits per second non-blocking switch fabric, so it can easily provide a local 10Gbps high bandwidth Ethernet network for the backbone of your department. With the four built-in SFP+ ports, the SGS-6310 series provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

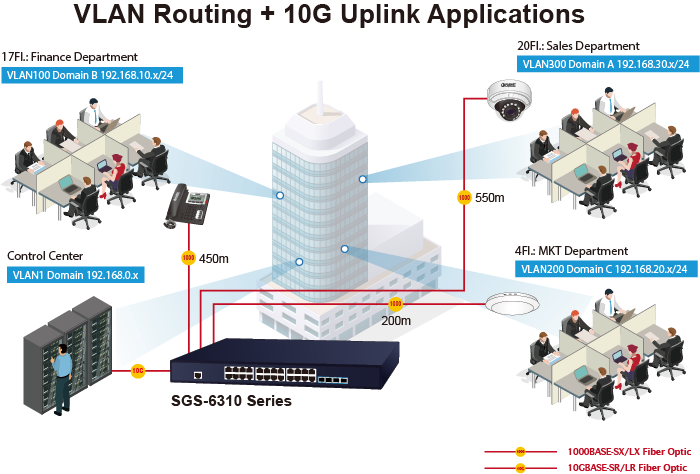

Layer 3 VLAN Routing
With the built-in robust Layer 3 traffic routing protocols, the SGS-6310 series ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The SGS-6310 series is certainly a cost-effective and ideal solution for enterprises.

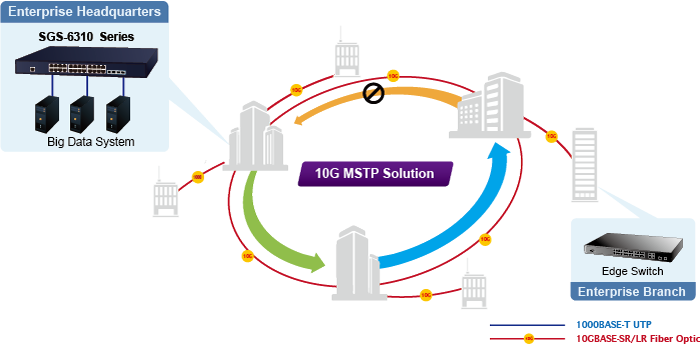

High Availability Mesh Networking Solution for Big Data System
With highly-flexible, highly-extendable and easy-to-install features, the SGS-6310 series offers up to 128Gbps data exchange speed via optical fiber interface and the transmission distance can be extended to 120km. The SGS-6310 series features strong, rapid, self-recovery capability to prevent interruptions and external intrusions. It incorporates IEEE 802.1s MSTP (Multiple Spanning Tree Protocol, spanning tree by VLAN) into customer’s automation network to enhance system reliability and uptime. The SGS-6310 series is the ideal solution for data centers, service providers and telecoms to build redundant connection and establish high bandwidth for Big Data server farm.

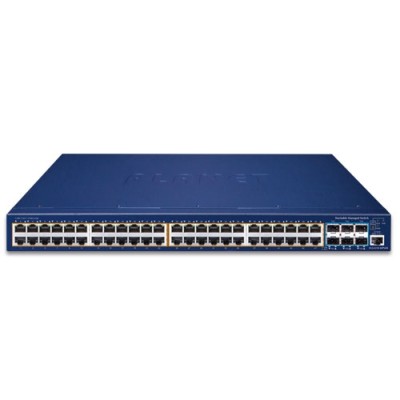

Physical Ports
- 48-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 48-port IEEE 802.3at PoE+ injector
- 6 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP
- RJ45 to DB9 console interface for switch basic management and setup
Stacking Features
- Hardware Stacking
- Virtualized multiple SGS-6310 series stacked into one logical facility
- Connects with stack members via assigned 10G SFP+ interfaces
- Single IP address stack management, supporting up to 8 hardware units stacked together
- Stacking architecture supports redundant Ring mode
IP Routing Features
- IPv4 routing protocol supports RIPv1/v2 and OSPFv2
- IPv6 routing protocol supports RIPng and OSPFv3
- Routing interface provides per VLAN routing mode
- VRRPv1/v3 protocol for redundant routing deployment
- Supports route redistribution
- Supports hardware-based wire-speed VLAN routing
Multicast Routing Features
- Supports IPv4 IGMP v1/v2/v3, IGMP Snooping.
- Supports IGMP Fast Leave, MVR, IGMP filter
- Supports IPv6 MLD V1, MLD snooping
Layer 2 Features
- 16K MAC address table, automatic source address learning and aging
- Supports VLAN
- IEEE 802.1Q tag-based VLAN
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- GVRP protocol for dynamic VLAN management
- Private VLAN Edge (PVE) supported
- MAC-based VLAN
- IP subnet-based VLAN
- Voice VLAN
- Supports Link Aggregation
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Static mode and LACP mode
- Maximum 64 trunk groups, up to 8 ports per trunk group
- Supports Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
- Supports BPDU & root guard
- Port mirroring to monitor the incoming or outgoing traffic on a particular port (one-to-one and many-to-one)
- Provides port mirror (many-to-1)
- Supports G.8032 ERPS (Ethernet Ring Protection Switching)
- Loop protection to avoid broadcast loops
- Link Layer Discovery Protocol (LLDP)
- Compatible with Cisco UDLD (uni-directional link detection) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Quality of Service
- 8 priority queues on all switch ports
- Support for strict priority and WRR (Weighted Round Robin) CoS policies
- Traffic classification
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
- Strict priority and WRR CoS policies
Multicast
- Supports IPv4 IGMP snooping v1, v2 and v3
- Supports IPv6 MLD v1 snooping
- Querier mode support
- Supports Multicast VLAN Register (MVR)
Security
- Authentication
- IEEE 802.1x port-based network access authentication
- MAC-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
- RADIUS/TACACS+ login users access authentication
- Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Time-based ACL
- DHCP snooping to filter distrusted DHCP messages
- IP Source Guard prevents IP spoofing attacks
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
Management
- IPv4 and IPv6 dual stack management
- Switch Management Interface
- Console/Telnet Command Line Interface
- HTTP Web switch management
- SNMP v1 and v2c switch management
- SSHv1/v2, TLSv1.2 and SNMPv3 secure access
- SNMP Management
- Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
- SNMP trap for interface Link Up and Link Down notification
- BOOTP and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
- SNTP (Simple Network Time Protocol) for IPv4 and IPv6
- User privilege levels control
- Syslog server for IPv4 and IPv6
- Supports sFlow
- DHCP Functions
- DHCP Option82
- DHCP server/relay/client
- Network Diagnostic
- Supports ping, traceroute function for IPv4 and IPv6
- Supports DDM (Digital Diagnostic Monitor)
- Supports ISSU (In-service Software Upgrade) to guaranteeing non-stop user data transmission when the system is upgraded.
Power over Ethernet
- Complies with IEEE 802.3af/at Power over Ethernet Plus, end-span PSE
- Up to 48 ports of IEEE 802.3af/at devices powered
- Support up to 6KV thunder-proof of the PoE port and power supply
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PoE schedule
Redundant Power System
- 100~240V AC and 55V DC Dual power redundant
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
Hardware Specifications | |
---|---|
Copper Ports | 48 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
10G SFP+ Ports | 6 10GBASE-SR/LR SFP+ interface Backward compatible with 1000BASE-X SFP transceiver |
Console Port | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
DRAM | 512Mbytes |
Flash Memory | 16Mbytes |
Dimensions (W x D x H) | 440 x 300 x 44mm |
Weight | 5200g |
Power Consumption | 48 watts/163.68 BTU (System) 830 watts/2830.3 BTU (System+PoE) |
Power Requirements- AC | AC: 100~240V, 50/60Hz |
Power Requirements- DC | DC 55V |
Fan | 2 |
LED | System: SYS, PWR, PoE (Green) Ports: 10/100/1000T RJ45 Port: LNK/ACT and PoE-in-Use (Green) 1/10G SFP+ Port: LNK/ACT (Green) |
Switching Specifications | |
Switch Architecture | Store-and-forward |
Switch Fabric | 216Gbps/non-blocking |
Switch Throughput | 160.7Mpps |
Address Table | 32K MAC address table with auto learning function |
ARP Table | 2K |
Routing Table | 2040 |
VLAN Interface | 64 |
IP Interface | 64 |
ACL Table | 1024 |
Shared Data Buffer | 1.5MB |
Jumbo Frame | 9KBytes |
Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
Power over Ethernet Specifications | |
PoE Standard | IEEE 802.3af/at PoE+ PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 54V DC, 30 watts (max.) |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 370 watts (max.) AC 740 watts (max.) DC 740 watts (max.) AC + DC |
IPv4 Layer 3 Functions | |
IP Routing Protocol | Static route RIPv1/v2 OSPFv2 Hardware-based Layer 3 routing |
Routing Features | VRRP v1/v3 ARP ARP Proxy IGMP Proxy |
IPv6 Layer 3 Functions | |
IP Routing Protocol | RIPng OSPFv3 IPv6 LPM Routing IPv6 Policy-based Routing (PBR) IPv6 VRRPv3 IPv6 RA (Router Advertisement) Hardware-based Layer 3 routing |
Routing Features | Configured Tunnels GRE Tunnel ISATAP Tunnel,6 to 4 tunnel Manual tunnel |
Other | ICMPv6, IPv6 ND |
Layer 2 Functions | |
Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Bandwidth control on each port Port loopback detect |
Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
VLAN | 802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN |
Spanning Tree Protocol | STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU and root guard |
Multicast | IPv4 IGMP v1/v2/v3 snooping Querier mode support IPv6 MLD v1 snooping Multicast VLAN Register (MVR) Up to 1024 multicast groups (IPv4 + IPv6) |
Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group |
Bandwidth Control | TX/RX/Both At least 64Kbps step |
QoS | 8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: CAR, HQoS, MAC/IP/TCP/UDP IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR Tail-Drop, WRED, flow monitoring and traffic shaping |
Ring | Supports ITU-G G.8032 ERPS Recovery time < 10ms @ 3units Recovery time < 50ms @ 16units |
Security Functions | |
Access Control List | Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 1024 entries |
Security | Port isolation, Port security, “IP+ MAC+ port” binding MAC sticky DAI & IP source guard, PPPoE+ L2/L3/L4 ACL flow identification Filtration Anti-attack from DDo S, TCP’s SYN Flood, UDP Flood Broadcast / multicast / unknown unicast storm-control Supports MD5, SHA-256, RSA-1024, AES256 |
AAA Authentication | TACACS+ and IPv4/IPv6 over RADIUS |
Network Access Control | IEEE 802.1x port-based network access control MAC-based authentication RADIUS/TACACS authentication |
Switch Management Functions | |
System Configuration | Console and Telnet Web browser SNMP v1, v2c |
Secure Management Interfaces | SSHv1/v2, TLSv1.2 and SNMPv3 |
System Management | Supports both IPv4 and Ipv6 addressing Supports the user IP security inspection for Ipv4/Ipv6 SNMP Supports MIB and TRAP Supports RMON 1, 2, 3, 9 four groups Supports IPv4/IPv6 FTP/TFTP Supports IPv4/IPv6 NTP Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password The right configuration for users to adopt RADIUS server’s shell management Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area Supports IPv4 and IPv6 DHCP server |
Event Management | Supports Syslog server for IPv4 and IPv6 |
Hardware Stacking | 8 members max. 2 10G SFP+ slots are functioned as Stacking Up and Down interfaces |
Hardware Stacking Compatibility List | SGS-6310-24T4X SGS-6310-24P4X SGS-6310-16S8C4XR SGS-6310-48T6X SGS-6310-48P6XR |
SNMP MIBs | RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
Standard Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring |
Environment | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Datasheet
Date | Version | Description | Download |
---|---|---|---|
2024-08-23 | 1.0 | SGS-6310-48P6XR |
Firmware
Date | Version | Description | Download |
---|---|---|---|
2023-04-14 | 2.2.0F Build 102862 | 1. PoE Function improved 2. ACL Function improved |
Quick Guide
User's Manual
Date | Version | Description | Download |
---|---|---|---|
2023-09-15 | 1.1 | Modify contents of user manual. | |
2023-01-13 | 1.0 | Initial release. |
EC Declaration
Date | Version | Description | Download |
---|---|---|---|
2022-11-24 | 1.0 | EC Declaration. |
