PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch

PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
PLANET SGS-6310-24P4X L3 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ Stackable Managed Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: SGS-6310-24P4X
  • Βαρος: 4.20kg
  • Διαστασεις: 21.00 x 44.00 x 4.40
863,67€
Χωρίς ΦΠΑ: 696,51€

Resilient PoE, 10Gbps and Layer 3 Routing Solution for Enterprise Networking

PLANET SGS-6310 series is a brand-new Layer 3 Stackable Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The SGS-6310-24P4X features 24 10/100/1000BASE-T RJ45 802.3at PoE+ ports with PoE budget up to 370 watts and 4 1G/10GBASE-X SFP+ ports with 128Gbps switch fabric delivered in a 1U rugged case.





The SGS-6310 series provides high-density performance, Layer 3 IPv4/IPv6 static routing, RIP and OSPF dynamic routing capability, ERPS ring, abundant L2/L4 switching engine, and virtual switch stacking technology to fulfill the need of heavy transmission of all applications. It gives the enterprises, service providers and campuses flexible control over port density, uplinks and switch stack performance at an affordable price.

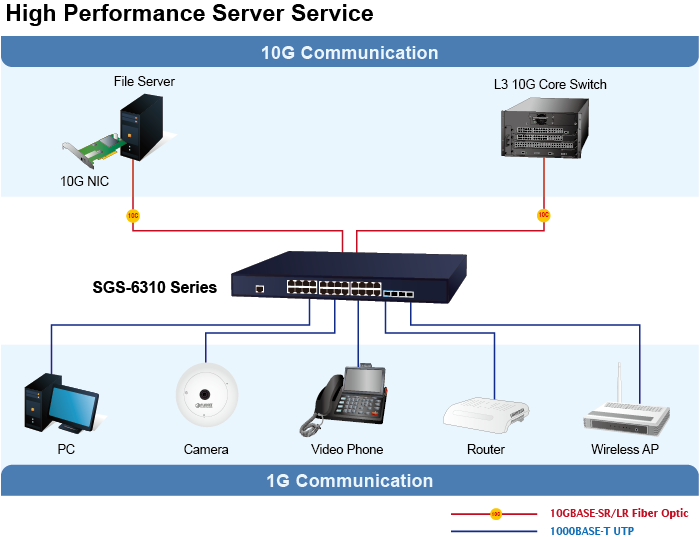

High Performance 10Gbps Ethernet Capacity

The four SFP+ ports built in the SGS-6310 series boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 80Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

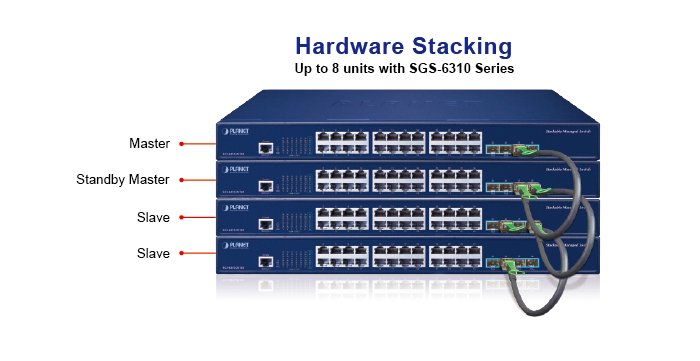

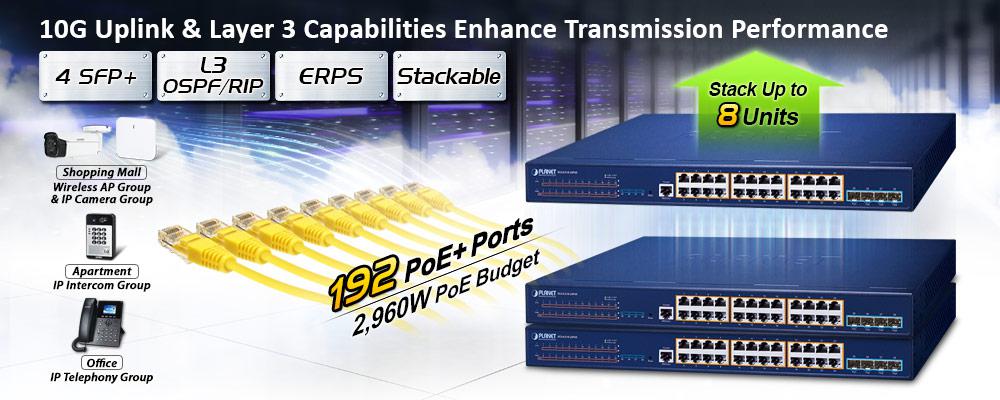

Centralized Hardware Stacking Management

Two of the 10G SFP+ ports can be configured to connect several SGS-6310 series for building a virtually logical facility. The stackable SGS-6310 series, suitable for enterprises, service providers and telecoms, provides high port density, large uplink bandwidth and high switch stack performance, thus giving great flexibility for different application requirements. The SGS-6310 series can connect as a ring for redundancy and ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.



Centralized Power Management for Gigabit Ethernet PoE Networking

To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the SGS-6310-24P4X features high-performance Gigabit IEEE 802.3at PoE+ (up to 30 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras or even box type IP cameras with built-in fan and heater.



The SGS-6310-24P4X’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from the restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates the cost for additional AC wiring and reduces installation time.



PoE Schedule for Energy Savings

Besides being used for IP surveillance, the SGS-6310-24P4X is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy savings worldwide and contributing to the environmental protection on the Earth, the SGS-6310-24P4X can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save energy and budget.

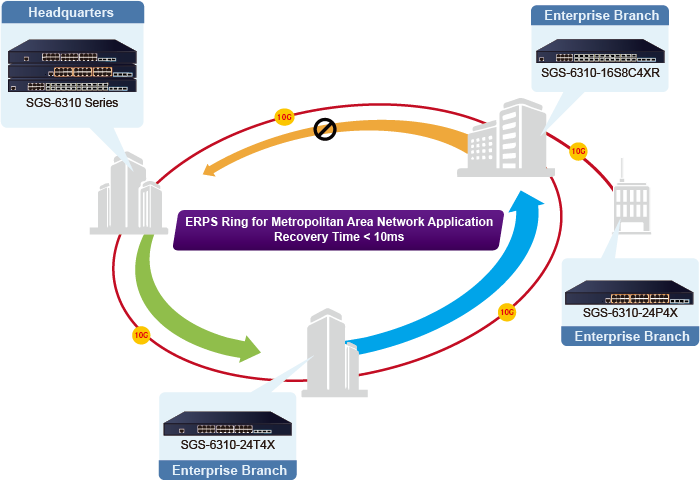

Redundant Ring, Fast Recovery for Critical Network Applications

The SGS-6310 series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple ring network, the recovery time could be less than 10ms to quickly bring the network back to normal operation.



Layer 3 Routing Support

The SGS-6310 series enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.

  • The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
  • The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.



Strong Multicast

The SGS-6310 series supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1 snooping. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the SGS-6310 series great for any robust networking.



Full IPv6 Support

The SGS-6310 series supports IPv4-to-IPv6 technologies including IPv4 manual/automatic tunnel, IPv6-to-IPv4 tunnel, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnel. It comprehensively supports IPv6 Neighbor Discovery, DHCPv6, Path MTU Discovery, IPv6-based Telnet, SSH and ACL, meeting the need of IPv6 network device management and service control.



Robust Layer 2 Features

The SGS-6310 series can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol functions. By supporting port aggregation, the SGS-6310 series allows the operation of a high-speed trunk combined with multiple ports.  It enables up to 64 groups for trunking with a maximum of 8 ports for each group.





Excellent Layer 2 to Layer 4 Traffic Control

The SGS-6310 series is loaded with powerful traffic management and WRR features to enhance services offered by telecoms. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications. It also empowers the enterprises to take full advantage of the limited network resources and guarantees the best in VoIP and video conferencing transmission.



Powerful Network Security

The SGS-6310 series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentications, which can be deployed with RADIUS, to ensure the port level security and block illegal users.



Advanced IP Network Protection

The SGS-6310 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

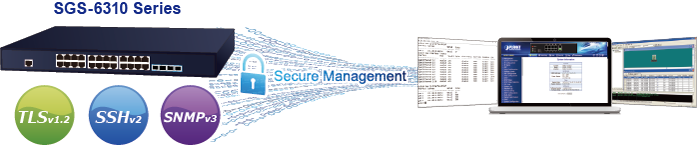

Efficient and Secure Management

For efficient management, the SGS-6310 series is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the SGS-6310 series offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port. For reducing product learning time, the SGS-6310 series offers Cisco-like command and customer doesn’t need to learn new command from these switches
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the SGS-6310 series offers secure remote management by supporting SSHv1/v2 and SSLv3 connection which encrypts the packet content at each session.





Intelligent SFP Diagnosis Mechanism

The SGS-6310 series supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



Excellent Solution to Enterprise PoE and Security Switch

Providing 24 PoE in-line power interfaces, the SGS-6310-24P4X can easily build a power that can centrally control IP phone system, IP camera system and wireless AP group for enterprises. The SGS-6310-24P4X delivers full ports of 802.3at/af compliant Gigabit Ethernet network connectivity with high-performance and cost-effective advantages for the increasing number of PoE IP telephones, PoE IP cameras, PoE wireless access points and other devices applied at the edge of the small or medium enterprise network. With the four built-in SFP+ ports, the SGS-6310 series provides the uplink to the backbone network through the 10G Ethernet LR/SR SFP+ modules. It further improves the network efficiency and protects the network clients by offering the security and QoS features.

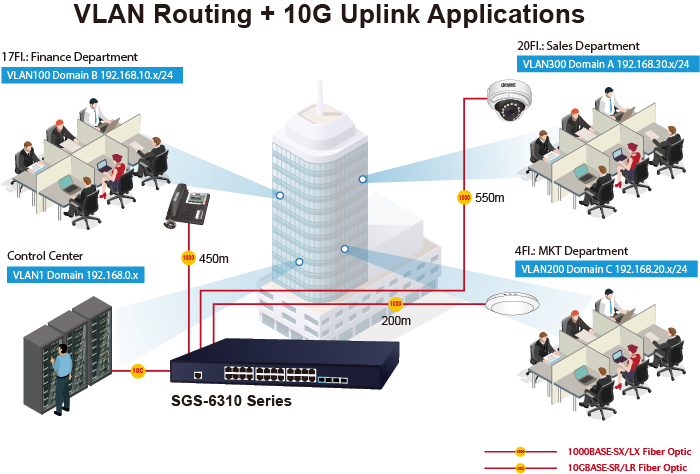

Layer 3 VLAN Routing

With the built-in robust Layer 3 traffic routing protocols, the SGS-6310 series ensures reliable routing between VLANs and network segments. The routing protocols can be applied via VLAN interface. The SGS-6310 series is certainly a cost-effective and ideal solution for enterprises.

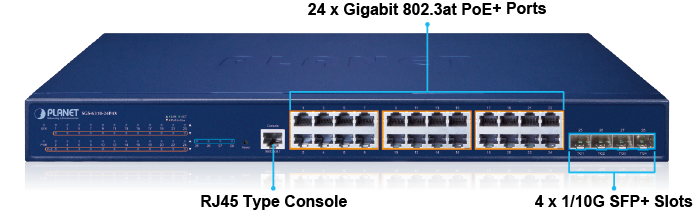

Physical Ports

  • 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 24-port IEEE 802.3at PoE+ injector
  • 4 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to DB9 console interface for switch basic management and setup



Stacking Features

  • Hardware Stacking
    • Virtualized multiple SGS-6310 series stacked into one logical facility
    • Connects with stack members via assigned 10G SFP+ interfaces
    • Single IP address stack management, supporting up to 8 hardware units stacked together
    • Stacking architecture supports redundant Ring mode



IP Routing Features

  • IPv4 routing protocol supports RIPv1/v2 and OSPFv2
  • IPv6 routing protocol supports RIPng and OSPFv3
  • Routing interface provides per VLAN routing mode
  • VRRPv1/v3 protocol for redundant routing deployment
  • Supports route redistribution
  • Supports hardware-based wire-speed VLAN routing



Multicast Routing Features

  • Supports IPv4 IGMP v1/v2/v3, IGMP Snooping.
  • Supports IGMP Fast Leave, MVR, IGMP filter
  • Supports IPv6 MLD V1, MLD snooping



Layer 2 Features

  • 16K MAC address table, automatic source address learning and aging
  • Supports VLAN
    • IEEE 802.1Q tag-based VLAN
    • Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
    • GVRP protocol for dynamic VLAN management
    • Private VLAN Edge (PVE) supported
    • MAC-based VLAN
    • IP subnet-based VLAN
    • Voice VLAN
  • Supports Link Aggregation
    • IEEE 802.3ad LACP (Link Aggregation Control Protocol)
    • Static mode and LACP mode
    • Maximum 64 trunk groups, up to 8 ports per trunk group
  • Supports Spanning Tree Protocol
    • STP, IEEE 802.1D (Classic Spanning Tree Protocol)
    • RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
    • MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
    • Supports BPDU & root guard
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port (one-to-one and many-to-one)
  • Provides port mirror (many-to-1)
  • Supports G.8032 ERPS (Ethernet Ring Protection Switching)
  • Loop protection to avoid broadcast loops
  • Link Layer Discovery Protocol (LLDP)
  • Compatible with Cisco UDLD (uni-directional link detection) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices



Quality of Service

  • 8 priority queues on all switch ports
  • Support for strict priority and WRR (Weighted Round Robin) CoS policies
  • Traffic classification
    • IEEE 802.1p CoS/ToS
    • IPv4/IPv6 DSCP
    • Port-based WRR
  • Strict priority and WRR CoS policies



Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD v1 snooping
  • Querier mode support
  • Supports Multicast VLAN Register (MVR)



Security

  • Authentication
    • IEEE 802.1x port-based network access authentication
    • MAC-based network access authentication
    • Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
    • RADIUS/TACACS+ login users access authentication
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
    • Time-based ACL
  • DHCP snooping to filter distrusted DHCP messages
  • IP Source Guard prevents IP spoofing attacks
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
    • Console and Telnet Command Line Interface
    • HTTP Web switch management
    • SNMP v1 and v2c switch management
    • SSHv1/v2, TLSv1.2 and SNMPv3 secure access
  • SNMP Management
    • Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
    • SNMP trap for interface Link Up and Link Down notification
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
  • SNTP (Simple Network Time Protocol) for IPv4 and IPv6
  • User privilege levels control
  • Syslog server for IPv4 and IPv6
  • Supports sFlow
  • DHCP Functions
    • DHCP Option82
    • DHCP server/relay/client
  • Network Diagnostic
    • Supports ping, traceroute function for IPv4 and IPv6
    • Supports DDM (Digital Diagnostic Monitor)
  • Supports ISSU (In-service Software Upgrade) to guarantee non-stop user data transmission when the system is upgraded.
Hardware Specifications
Copper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (ports1 to 24)
10G SFP+ Ports4 10GBASE-SR/LR SFP+ ports (ports 25 to 28)
Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
Console Port1 RJ45-to-RS232 serial port (9600, 8, N, 1)
DRAM256Mbytes
Flash Memory16Mbytes
Dimensions (W x D x H)440 x 210 x 44mm
Weight3000g
Power ConsumptionSystem: 25 watts/ 85.25BTU
System+PoE: 408 watts/ 1392.49 BTU
Power Requirements- ACAC 100~240V, 50/60Hz
Fan2
LEDSystem:
SYS, PWR (Green)
Per 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 24):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
802.3at/af PoE-in-Use (Amber)
Per 1G/10G Mbps SFP Interfaces (Port 25 to Port 28):
1G LNK/ACT (Amber)
10G LNK/ACT (Green)
Switching Specifications
Switch ArchitectureStore-and-forward
Switch Fabric128Gbps/non-blocking
Switch Throughput95.23Mpps
Address Table16K MAC address table with auto learning function
ARP Table2K
Routing Table2040
VLAN Interface64
IP Interface64
ACL Table1024
Shared Data Buffer1.5MB
Jumbo Frame9KBytes
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet Specifications
PoE StandardIEEE 802.3at PoE+ PSE
Backward compatible with 802.3af PoE
PoE Power Supply TypeEnd-span
PoE Power OutputPer port 54V DC, 30 watts (max.)
Power Pin Assignment1/2(+), 3/6(-)
PoE Power Budget370 watts (max.)
IPv4 Layer 3 Functions
IP Routing ProtocolStatic route
RIPv1/v2
OSPFv2
Policy-based routing (PBR)
Hardware-based Layer 3 routing
Layer 3 ProtocolVRRP v1/v3
ARP
ARP Proxy
IGMP Proxy
IPv6 Layer 3 Functions
IP Routing ProtocolRIPng
OSPFv3
IPv6 LPM Routing
IPv6 Policy-based Routing (PBR)
IPv6 VRRPv3
IPv6 RA (Router Advertisement)
Hardware-based Layer 3 routing
Routing FeaturesConfigured Tunnels
GRE Tunnel
ISATAP Tunnel, 6 to 4 tunnels
Manual tunnel
OtherICMPv6, IPv6 ND
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect
Port StatusDisplay each port’s speed duplex mode, link status, flow control status and
auto negotiation status
VLAN802.1Q tagged VLAN, up to 4K VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet-based VLAN
Spanning Tree ProtocolSTP, IEEE 802.1D (Classic Spanning Tree Protocol)
RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
Supports BPDU and root guard
MulticastIPv4 IGMP v1/v2/v3 snooping
Querier mode support
IPv6 MLD v1 snooping
Multicast VLAN Register (MVR)
Up to 1024 multicast groups (IPv4 + IPv6)
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 64 groups with 8 ports per trunk group
Bandwidth ControlTX/RX/Both
At least 64Kbps step
QoS8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- CAR, HQoS, MAC/IP/TCP/UDP
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
- - Tail-Drop, WRED, flow monitoring and traffic shaping
RingSupports ITU-G G.8032 ERPS
Recovery time < 10ms @ 3units
Recovery time < 50ms @ 16units
Security Functions
Access Control ListSupports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 1024 entries
SecurityPort isolation, Port security,
“IP+ MAC+ port” binding
MAC sticky DAI & IP source guard, PPPoE+
L2/L3/L4 ACL flow identification
Filtration Anti-attack from DDoS, TCP’s SYN Flood, UDP Flood
Broadcast / multicast / unknown unicast storm-control
Supports MD5, SHA-256, RSA-1024, AES256
AAA AuthenticationTACACS+ and IPv4/IPv6 over RADIUS
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
RADIUS/TACACS authentication
Switch Management Functions
System ConfigurationConsole and Telnet
Web browser
SNMP v1, v2c
Secure Management InterfacesSSHv1/v2, TLSv1.2 and SNMPv3
System ManagementSupports both IPv4 and Ipv6 addressing
Supports the user IP security inspection for Ipv4/Ipv6 SNMP
Supports MIB and TRAP
Supports RMON 1, 2, 3, 9 (four groups)
Supports IPv4/IPv6 FTP/TFTP
Supports IPv4/IPv6 NTP
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
The right configuration for users to adopt RADIUS server’s shell management
Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area
Supports IPv4 and IPv6 DHCP server
Event ManagementSupports Syslog server for IPv4 and IPv6
Hardware Stacking8 members max.
2 10G SFP+ slots are functioned as Stacking Up and Down interfaces
Hardware Stacking Compatibility ListSGS-6310-24T4X
SGS-6310-24P4X
SGS-6310-16S8C4XR
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB)
Standard Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3at Power over Ethernet plus
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1ad Q-in-Q VLAN stacking/tunneling
IEEE 802.1x port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 10 ~ 90% (non-condensing)
StorageTemperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-08-231.0SGS-6310-24P4X



Quick Guide

DateVersionDescriptionDownload
2024-06-141.4Added PSTI function.
2023-10-131.3Modify contents of Quick Guide.
2023-08-181.2Release for SGS-6310-24T4X hardware version 2.0.
2022-06-171.0Initial release.



User's Manual

DateVersionDescriptionDownload
2023-09-151.1Modify contents of user manual.
2023-01-131.0Initial release.



EC Declaration

DateVersionDescriptionDownload
2022-11-171.0EC Declaration.
