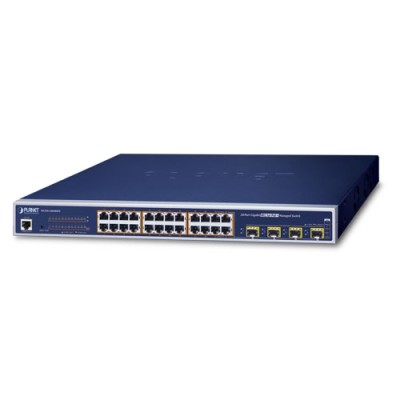

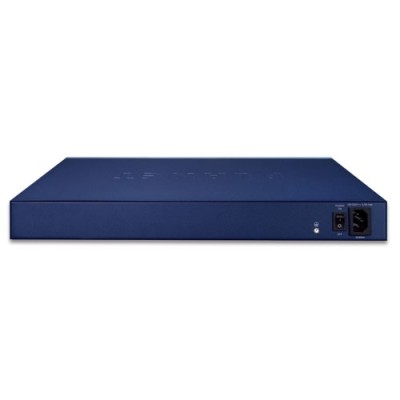

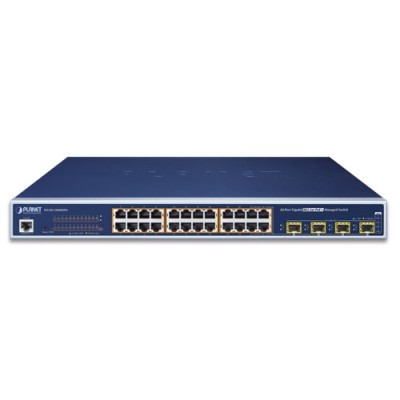

PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports

PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports
PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports
PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports
PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports
PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports
PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports
PLANET WGSW-24040HP4 L2+ 24-Port 10/100/1000Mbps 802.3at PoE+ Managed Switch with 4 Shared SFP Ports
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: WGSW-24040HP4
  • Βαρος: 6.20kg
  • Διαστασεις: 30.00 x 44.00 x 4.45
718,11€
Χωρίς ΦΠΑ: 579,12€

Perfect Managed PoE+ Switch with L2+/L4 Switching and Security

PLANET WGSW-24040HP4 Layer 2 Managed Gigabit Switch supports both IPv4 and IPv6 protocols and Layer 3 static routing, and provides 24 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+ and 4 100/1000BASE-X SFP+ fiber slots. Each of the 24 Gigabit ports provides 36 watts of power, with a total power budget of up to 440 watts for the different types of PoE applications being employed. It provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.







Network with Cybersecurity Helps Minimize Security Risks

The WGSW-24040HP4 comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks, it supports SSHv2, TLS and SSL protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the WGSW-24040HP4 protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.



Built-in Unique PoE Functions for Surveillance Management

As a managed PoE Switch for surveillance network, the WGSW-24040HP4 features the following intelligent PoE management functions:

  • PoE Schedule
  • PD Alive Check
  • Scheduled Power Recycling
  • SMTP/SNMP Trap Event Alert

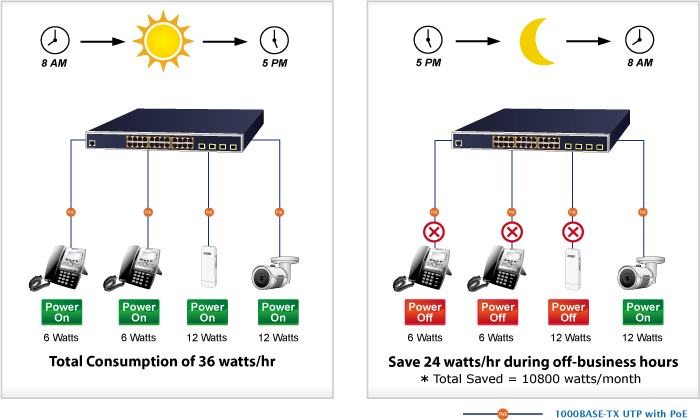

PoE Schedule for Energy Saving

Besides being used for IP surveillance, the WGSW-24040HP4 is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the WGSW-24040HP4 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.

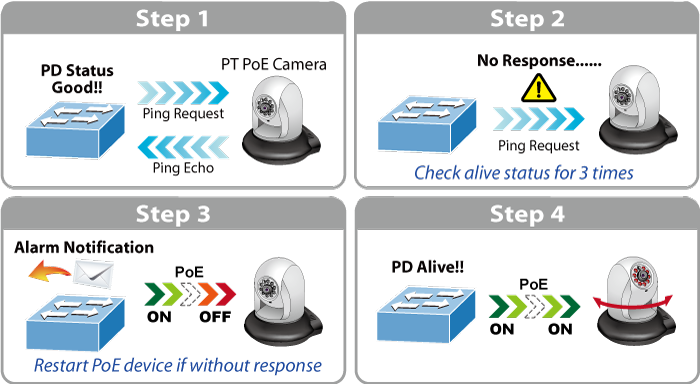

Intelligent Powered Device Alive Check

The WGSW-24040HP4 can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the WGSW-24040HP4 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.







Scheduled Power Recycling

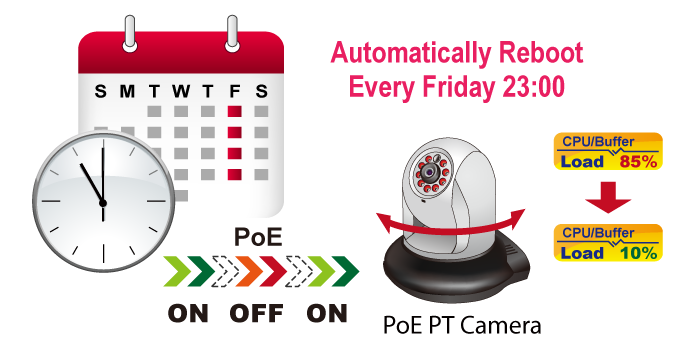

The WGSW-24040HP4 allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

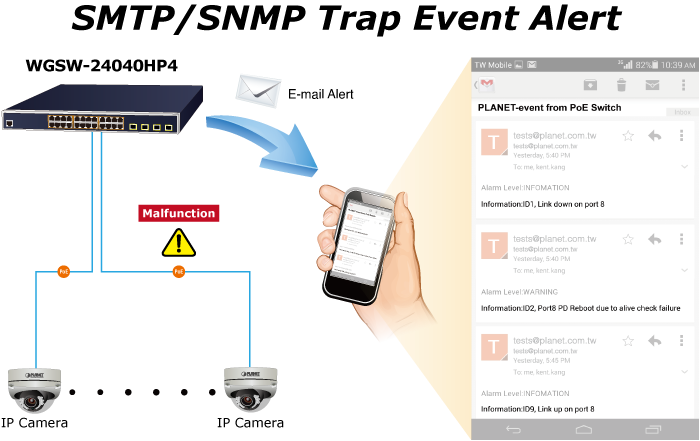

SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert function, the WGSW-24040HP4 further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.







Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for cooperating with video IP surveillances. From the WGSW-24040HP4 GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and remotely monitor what is going on in the production line. Moreover, you can get real-time surveillance’s information and online/offline status, and can have PoE reboot control from GUI.

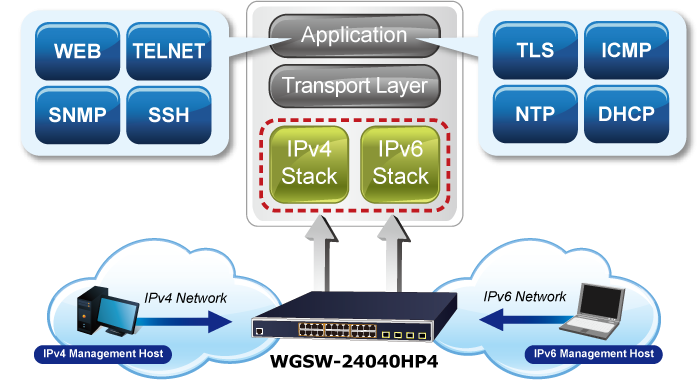

Solution for IPv6 Networking

With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the WGSW-24040HP4 is the best choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.





IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the WGSW-24040HP4 not only provides ultra high transmission performance and excellent layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

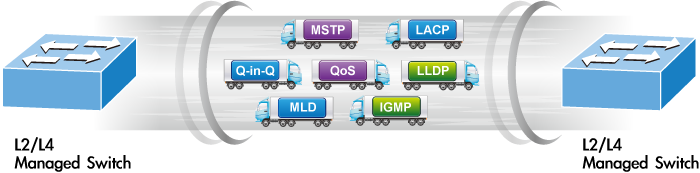

Robust Layer 2 Features

The WGSW-24040HP4 can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The GS-5220-8P2T2S allows the operation of a high-speed trunk combining multiple ports. Supporting 12 trunk groups, it enables a maximum of up to 4 ports per trunk and supports connection fail-over as well.





Powerful Security

The WGSW-24040HP4 offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Enhanced Security and Traffic Control

The WGSW-24040HP4 also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.



User-friendly Secure Management

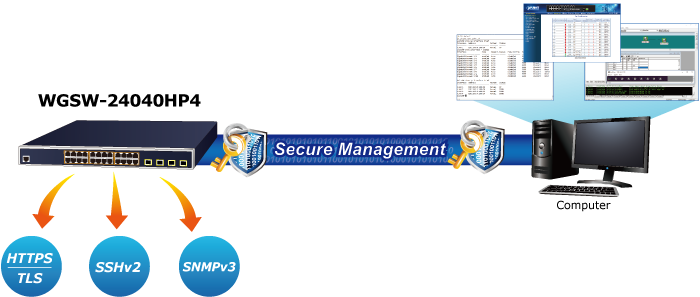

For efficient management, the WGSW-24040HP4 is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the WGSW-24040HP4 offers an easy-to-use, platform independent management and configuration facility. The WGSW-24040HP4 supports SNMP and it can be managed via any management software based on the standard SNMP v1 and v2 protocols. For reducing product learning time, the WGSW-24040HP4 offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the WGSW-24040HP4 offers remote secure management by supporting SSH, TLS and SNMPv3 connection which can encrypt the packet content at each session.









Flexible and Extendable Solution

The 4 mini-GBIC SFP slots built in the WGSW-24040HP4 support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Intelligent SFP Diagnosis Mechanism

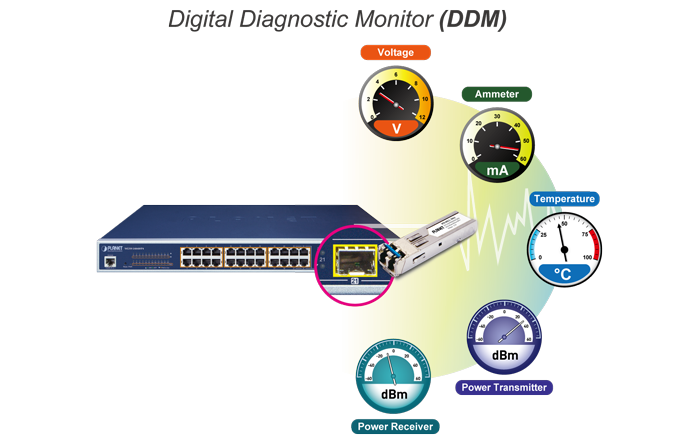

The WGSW-24040HP4 supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

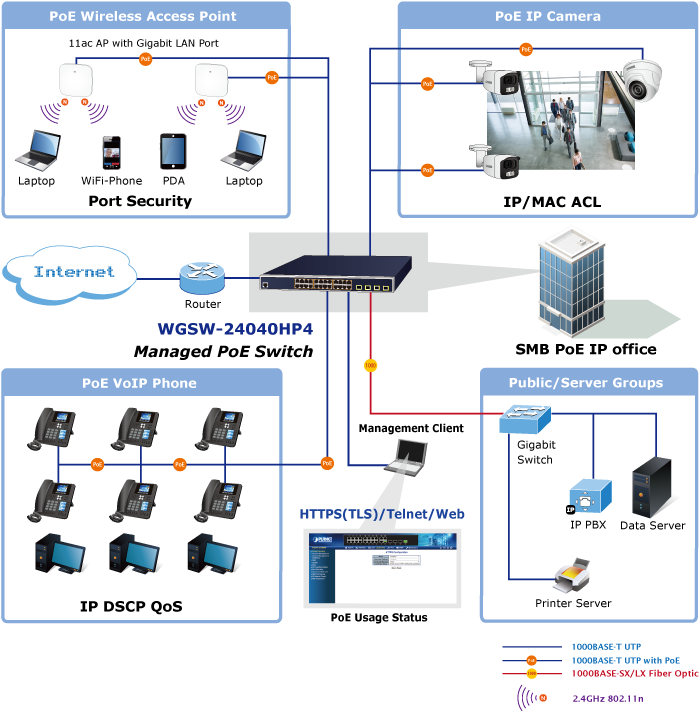

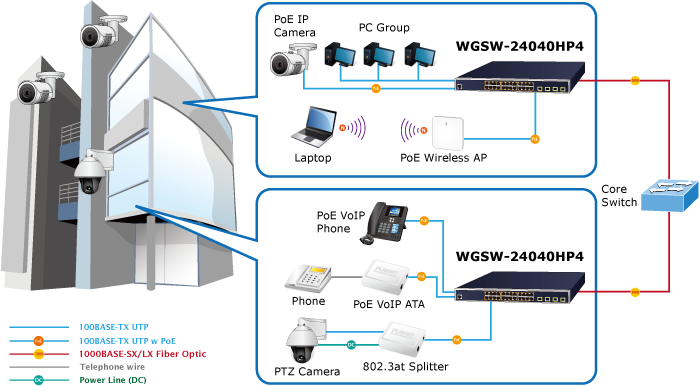

IP Office Department/Workgroup PoE Switch

As the business expands, the additional telephones required could be installed at less cost via the implementation of PoE IP telephony system than that of the traditional circuit wiring telephony system. The WGSW-24040HP4 helps enterprises to efficiently create an integrated data, voice, and powered VoIP network. PLANET IEEE 802.3af compliant IP phones can be installed without any power cable because it can be powered via the standard Ethernet cable from the connected WGSW-24040HP4. With the WGSW-24040HP4, IP telephony deployment becomes more reliable and cost effective, thus helping enterprises save tremendous cost when upgrading from the traditional telephony system to an IP telephony communications infrastructure.







IP Office Backbone PoE Switch

Providing up to 24 PoE, in-line power interfaces, or up to 20 PoE, in-line power interfaces and 4 Gigabit TP/SFP combo interfaces, the WGSW-24040HP4 can easily build an IP phone system, IP camera system, or wireless AP group for the enterprises in which power can be centrally controlled. For instance, IP cameras or wireless APs can be easily installed in the company for surveillance demands or building a wireless roaming environment in the office. Without the power socket limitation, the WGSW-24040HP4 makes the deployment of IP cameras or wireless LAN AP easier and more efficient. The 4 Gigabit TP/SFP combo interfaces in the WGSW-24040HP4 also offer flexible Gigabit TP or fiber connection for uplinking to public server groups.

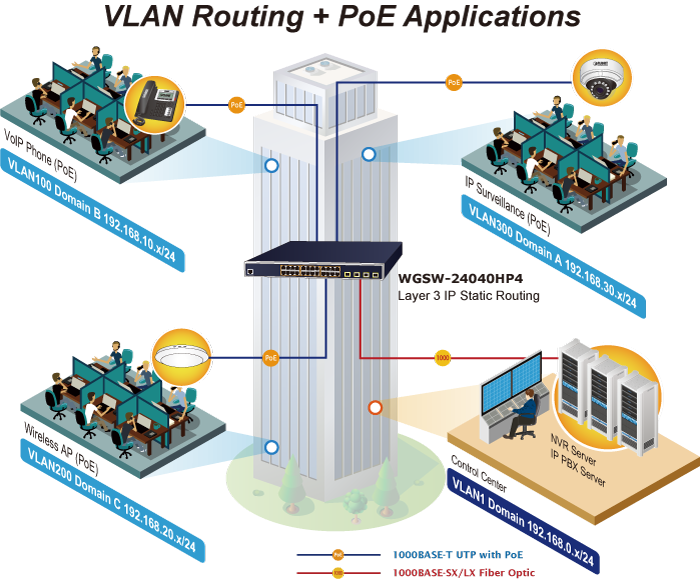

Product Features Layer 2+ VLAN Static Routing and PoE Application

With the built-in robust IPv4/IPv6 Layer 3 traffic routing protocols, the WGSW-24040HP4 ensures reliable routing between VLANs and network segments. The routing protocols can be applied by VLAN interface with up to 32 routing entries. The WGSW-24040HP4 is certainly a cost-effective and ideal solution for enterprises.

Providing up to 24 Gigabit PoE+ ports and in-line power interface, the WGSW-24040HP4 PoE+ Managed Switch can easily build a centrally-controlled power network shared by wireless Gigabit AP, IP phone system, or mega-pixel IP camera system group for the enterprises.

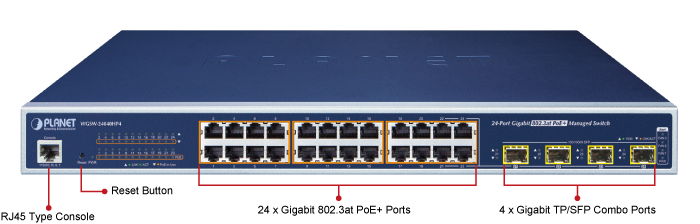

Physical Port

  • 24-port 10/100/1000BASE-T RJ45 copper with 802.3at PoE+ injector function
  • 4 100/1000BASE-X mini-GBIC/SFP slots, shared with port-21 to port-24
  • RS232 RJ45 console interface for switch basic management and setup



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
  • Up to 24 IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extended mode
  • PoE management feature
    • PoE admin-mode control
    • PoE management mode selection
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limit
    • PoE Port Status monitoring
    • PD classification detection
    • Sequence port PoE
    • PoE extension
  • Intelligent PoE features
    • Temperature threshold control
    • PoE usage threshold control
    • PoE schedule
    • PD alive check
    • LLDP PoE neighbors



Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
    • Broadcast/Multicast/Unicast
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Up to 4K VLANs groups, out of 4094 VLAN IDs
    • Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
    • Private VLAN Edge (PVE)
    • Port Isolation
    • MAC-based VLAN
    • IP Subnet-based VLAN
    • Protocol-based VLAN
    • VLAN Translation
    • Voice VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • IEEE 802.1D Spanning Tree Protocol
    • IEEE 802.1w Rapid Spanning Tree Protocol
    • IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
    • BPDU Filtering/BPDU Guard
  • Supports Link Aggregation
    • 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (static trunk)
    • Maximum 12 trunk groups, up to 4 ports per trunk group
    • Up to 8Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
  • Provides ONVIF for co-operating with PLANET video IP surveillances



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization



Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS / DSCP / IP Precedence of IPv4/IPv6 packets
    • IP TCP/UDP port number
    • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic policing on the switch port
  • DSCP remarking



Multicast

  • Supports IPv4 IGMP Snooping v1, v2 and v3
  • Supports IPv6 MLD Snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP Snooping port filtering
  • IPv6 MLD Snooping port filtering
  • Multicast VLAN Registration (MVR) support



Security

  • Authentication
    • IEEE 802.1x Port-based/MAC-based network access authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS/TACACS+ users access authentication
  • Access Control List
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
    • Web switch management
    • Console/Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP
    • Reset button for system reboot or reset to factory default
    • Dual Images
  • DHCP Relay
  • DHCP Option82
  • DHCP Server
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • UPnP
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network Diagnostic
    • SFP-DDM (Digital Diagnostic Monitor)
    • ICMPv6/ICMPv4 Remote Ping
    • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface Linkup and Linkdown notification
  • System Log
  • PLANET NMS System and Smart Discovery Utility for deployment management
  • Provides ONVIF for co-operating with PLANET video IP surveillances
Hardware Specifications
Copper Ports24 10/ 100/1000BASE-T RJ45 auto-MDI/MDI-X ports
10/100/1000Mbps/SFP Combo Interfaces4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP (Mini-GBIC) supports 100/1000Mbps Dual mode DDM, shared with Port-21 to Port-24
PoE Injector Port24 ports with 802.3at/af PoE injector function with Port-1 to Port-24
Console1 x RJ45 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory Default
Smart Fan3
Power Requirements100~240V AC, 50/60Hz, 6.5A
Power Consumption (Full Loading)521watts/1777BTU
ESD Protection6KV DC
Dimensions (W x D x H)440 x 300 x 44.5 mm, 1U high
Weight4.2 kg
LEDSystem:
Power (Green)
Alert:
FAN 1 (Red), FAN 2 (Red), FAN 3 (Red), PWR (Red)
PoE Ethernet Interfaces (Port 1 to Port 24):
LNK/ACT (10/100/1000Mbps, Green), PoE-in-Use (Amber)
100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
1000 (Green),LNK/ACT(Amber)
Switching
Switch ArchitectureStore-and-Forward
Switch Fabric48Gbps/non-blocking
Throughput35.7Mpps@64Bytes
Address Table8K entries, automatic source address learning and ageing
SDRAM256Mbits
Flash64Mbytes
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame9K bytes
Power over Ethernet Specifications
PoE StandardIEEE 802.3at/802.3af Power over Ethernet
PoE Power Supply TypeEnd-span
PoE Power OutputPer port 54V DC, 590mA. max. 36 watts
Power Pin Assignment1/2(+), 3/6(-)
PoE Power Budget440 watts max. @25 degrees C
380 watts max. @50 degrees C
PoE AbilityPD @ 7 watts: 24 units

PD @ 15.4 watts: 24 units

PD @ 30.8 watts: 14 units
PoE Management
Active POE Device Alive DetectionYes
PoE Power RecyclingYes, daily or predefined schedule
PoE Schedule4 schedule profiles
PoE System ManagementSystem PoE admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
Layer 3 Functions
IP InterfaceMax. 8 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 software static routing
IPv6 software static routing
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable/enable
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
Port MirroringTX/RX/Both
Many-to-1 monitor
VLAN802.1Q tag-based VLAN
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
VLAN Translation
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP (static trunk)
Supports 12 trunks groups with 4 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
QoSTraffic classification based, strict priority and WRR
8-Level priority for switching
- Port Number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP/TOS field in IP packet
IGMP SnoopingIPv4 IGMP Snooping (v1/v2/v3)
IPv4 IGMP Querier mode support
Up to 255 multicast groups
MLD SnoopingIPv6 MLD Snooping (v1/v2)
IPv6 MLD Querier mode support
Up to 255 multicast groups
Bandwidth ControlPer port bandwidth control
Ingress: 10Kbps~3276Mbps
Egress: 10Kbps~3276Mbps
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
- MAC Address
- IP Address
- Ethertype
- Protocol Type
- VLAN ID
- DSCP
- 802.1p Priority
Up to 256 entries
SecurityPort security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management InterfacesConsole; Telnet; Web Browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
Event ManagementRemote Syslog
Local System log
SMTP
ONVIFONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBsRFC 1213 MIB-II
RFC 2863 IF-MIB
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2737 Entity MIB
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
RFC 2618 RADIUS Client MIB
RFC 3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
Environments
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2021-02-203.0WGSW-24040HP4



Quick Guide

DateVersionDescriptionDownload
2024-06-283.4[Release for hardware version 3.0.]
Added PSTI function.
2020-12-253.0Release for hardware version 3.0.



User's Manual

DateVersionDescriptionDownload
2022-03-181.7[Command Guide]
Updated.
2021-03-033.2Release for hardware version 3.0.
