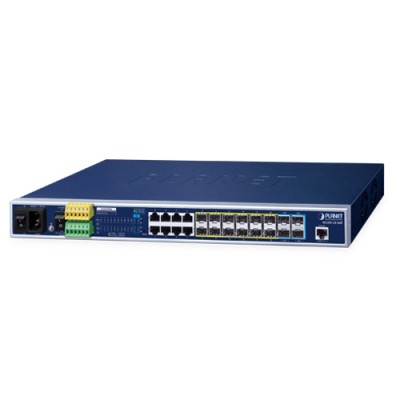

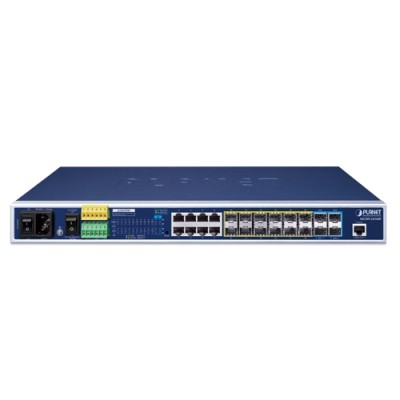

PLANET MGSW-24160F L2+ 8-Port 10/100/1000T + 12-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Metro Ethernet Switch

PLANET MGSW-24160F L2+ 8-Port 10/100/1000T + 12-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Metro Ethernet Switch
PLANET MGSW-24160F L2+ 8-Port 10/100/1000T + 12-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Metro Ethernet Switch
PLANET MGSW-24160F L2+ 8-Port 10/100/1000T + 12-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Metro Ethernet Switch
PLANET MGSW-24160F L2+ 8-Port 10/100/1000T + 12-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Metro Ethernet Switch
PLANET MGSW-24160F L2+ 8-Port 10/100/1000T + 12-Port 100/1000X SFP + 4-Port 10G SFP+ Managed Metro Ethernet Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: MGSW-24160F
  • Βαρος: 4.39kg
  • Διαστασεις: 20.00 x 44.00 x 4.45
795,74€
Χωρίς ΦΠΑ: 641,73€

High-Performance Switch for Enterprise and Telecom Infrastructure Upgrades

PLANET MGSW-24160F is a high-performance network switch perfect for enterprises and telecoms. It features IPv4/IPv6  Layer 3 static routing and robust L2/L4 switching capabilities, along with 8-Port 10/100/1000BASE-T, 12-Port 100/1000X SFP, and 4-Port 10G SFP+ configurations. Enclosed in a rugged case, it ensures stable operation with a non-blocking fabric and wire-speed throughput of up to 120Gbps, maintaining flawless performance from 0 to 60 degrees C. Designed with "Front Access," it allows easy maintenance when installed in cabinets, ideal for networks needing bandwidth upgrades.

High Performance 10Gbps Ethernet Capacity

The four SFP+ ports built in the MGSW-24160F boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 120Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports 4 speeds, 10GBASE-SR/LR, 2500BASE-X, 1000BASE-SX/LX and 100BASE-FX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

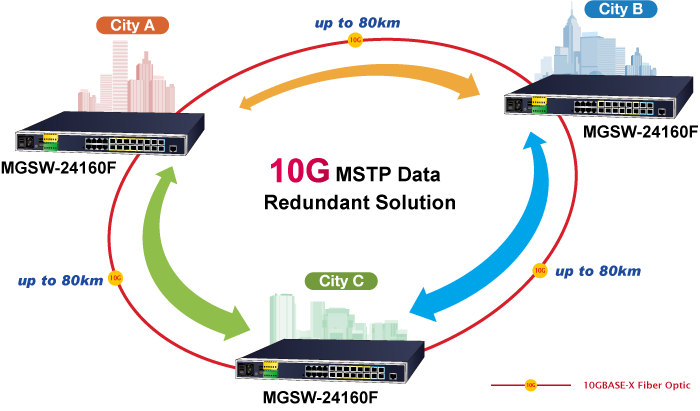

Redundant Ring, Fast Recovery for Critical Network Applications

The MGSW-24160F supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments.

Cybersecurity Network Solution to Minimize Security Risks

The MGSW-24160F supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.

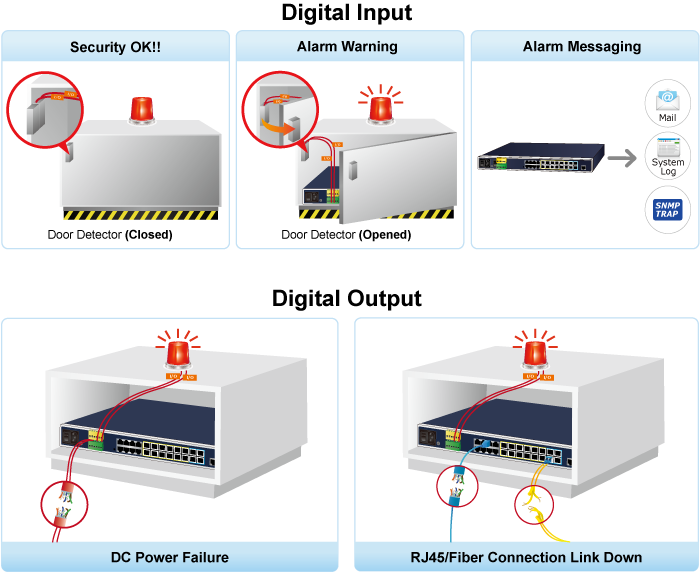

Digital Input and Digital Output for External Alarm

The MGSW-24160F supports Digital Input and Digital Output through a terminal block located on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the MGSW-24160F port shows link down, link up or power failure.

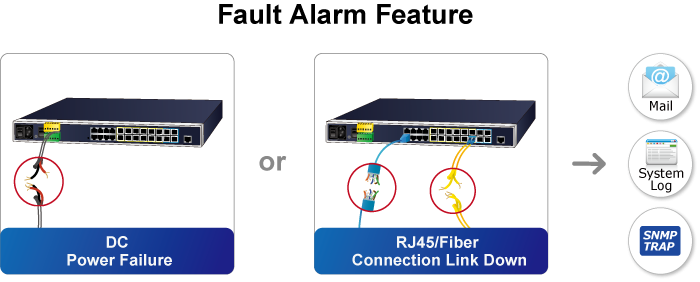

Effective Alarm Alert for Better Protection

The MGSW-24160F incorporates a Fault Alarm feature that promptly notifies users of any issues with the switches. This valuable feature eliminates the need for users to spend time locating the problem, resulting in significant time and human resource savings.



Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The MGSW-24160F switch not only provides ultra high transmission performance, and excellent Layer 2 and Layer 4 technologies, but also Layer 3 IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.



Robust Layer 2 Features

The MGSW-24160F can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the MGSW-24160F allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well.  Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.



Efficient Traffic Control

The MGSW-24160F is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.



User-friendly Management Interfaces

For efficient management, the MGSW-24160F is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, the MGSW-24160F offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, the switches can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.

Moreover, the MGSW-24160F offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.

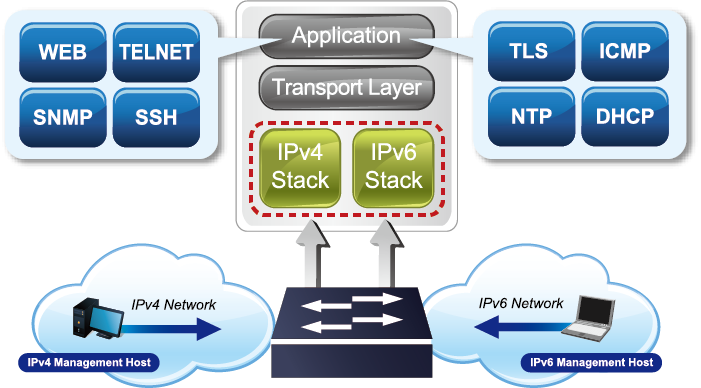

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the MGSW-24160F helps the SMBs to step in the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.







Intelligent SFP Diagnosis Mechanism

The MGSW-24160F supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



Redundant AC/DC Power Supply to Ensure Continuous Operation

The MGSW-24160F is particularly equipped with one 100~240V AC power supply unit and dual 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the MGSW-24160F is able to act as a telecom-level device that can be located in the electronic room.



Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS), NMSViewerPro and CloudViewerPro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the MGSW-24160F, from remote locations. Tailored for deployment in both enterprises and industries where the MGSW-24160F is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. With PLANET’s Remote Management Solution, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight.

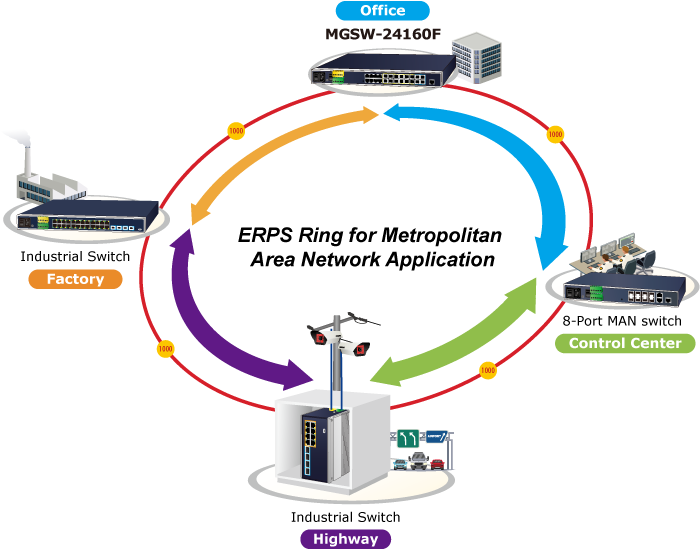

Optimized Design for Metropolitan Area Network

By means of improving the technology of Optical Fiber Ethernet with highly-flexible, highly-extendable and easy-to-install features, the MGSW-24160F offers up to 10Gbps data exchange speed via Optical Fiber interface and the transmission distance extends to 80km. The MGSW-24160F is the ideal solution for service providers such as ISP and telecom to build Metropolitan Area Network (MAN) based on the fiber technology to the WAN Internet Service.

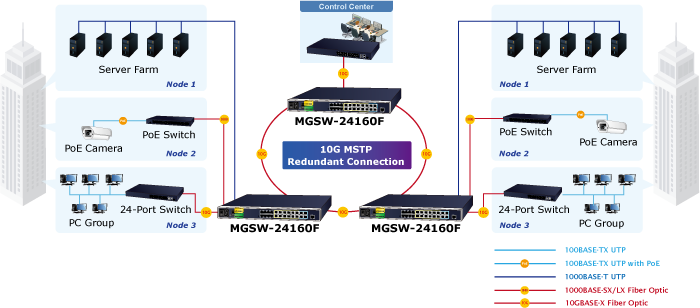

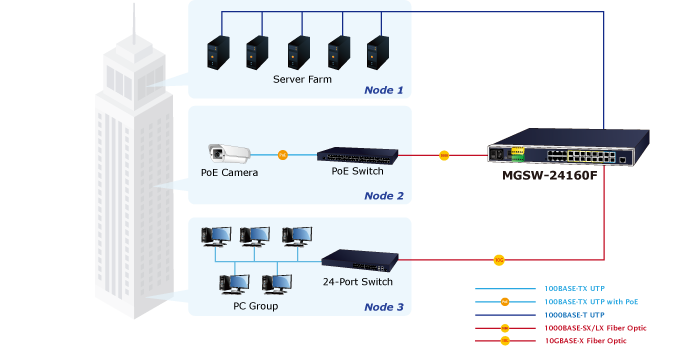

Excellent Solution to Core/Department Switch

The MGSW-24160F is an excellent choice of core layer switch for a Gigabit network. With 24 multi-gigabit ports, the MGSW-24160F is able to connect up to 24 edge switches in the Ethernet environment. Moreover, it also provides 120 Gigabit per second switch fabric and high bandwidth for backbone connection.





Physical Port

  • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
  • 12 100/1000BASE-X mini-GBIC/SFP slots
  • 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP  transceivers
  • RJ45 to RS232 DB9 console interface for basic management and setup.



Hardware Conformance

  • One 100 to 240V AC or dual 36 to 60V DC power input, redundant power with reverse polarity protection
    • Active-active redundant power failure protection
    • Backup of catastrophic power failure on one supply
    • Fault tolerance and resilience
  • 19-inch rack-mountable design
  • IP30 metal case
  • Relay alarm for port breakdown, power failure
  • Two built-in thermal fans
  • Supports EFT protection for 6KV DC power and 6KV DC Ethernet ESD protection
  • 0 to 60 degrees C operating temperature for AC/DC power input



Digital Input and Digital Output

  • 2 digital input (DI)
  • 2 digital output (DO)
  • Integrate sensors into auto alarm system
  • Transfer alarm to IP network via SNMP trap



Switching

  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex mode), auto-negotiation, and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 16K MAC address table size
  • 12K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol



Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering that eliminates erroneous packets so as to optimize the network bandwidth
  • Supports VLAN
    • IEEE 802.1Q tagged VLAN
    • Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) support
    • Protocol VLAN
    • Voice VLAN
    • Private VLAN (Protected port)
    • Management VLAN
    • GVRP
  • Supports Spanning Tree Protocol
    • STP (Spanning Tree Protocol)
    • RSTP (Rapid Spanning Tree Protocol)
    • MSTP (Multiple Spanning Tree Protocol)
    • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Cisco ether-channel (Static Trunk)
    • Maximum 8 trunk groups, up to 8 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)



Layer 3 IP Routing Features

  • Supports maximum 32 static routes and route summarization
  • Routing interface provides per VLAN routing mode



Quality of Service

  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
    • IEEE 802.1p CoS
    • TOS/DSCP/IP Precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies



Multicast

  • Supports IPv4 IGMP snooping v2 and v3
  • Supports IPv6 MLD snooping v1, v2
  • IGMP querier mode support
  • IGMP snooping port filtering
  • MLD snooping port filtering



Security

  • Storm Control support
    • Broadcast / Multicast / Unknown Unicast
  • Authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • DHCP Option 82
    • RADIUS/TACACS+ login user access authentication
  • Access Control List
    • IPv4/IPv6 IP-based ACL
    • IPv4/IPv6 IP-based ACE
    • MAC-based ACL
    • MAC-based ACE
  • MAC Security
    • Static MAC
    • MAC Filtering
  • Port Security for Source MAC address entries filtering
  • DHCP Snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • DoS Attack Prevention



Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interface
    • Web switch management
    • Console/Telnet Command Line Interface
    • SNMP v1 and v2c switch management
    • SSHv2, TLSv1.2 and SNMP v3 secure access
  • SNMP Management
    • SNMP trap for interface Link Up and Link Down notification
    • Four RMON groups (history, statistics, alarms, and events)
  • User Privilege Levels Control
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
    • Firmware upload/download via HTTP/TFTP
    • Configuration upload/download through HTTP/TFTP
    • Dual Images
    • Hardware reset button for system reboot or reset to factory default
  • SNTP Network Time Protocol
  • Network Diagnostic
    • Cable Diagnostics
    • ICMPv6/ICMPv4 Remote Ping
    • SFP-DDM (Digital Diagnostic Monitor)
  • Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
  • Event message logging to remote Syslog server
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS system and NMSViewerPro/CloudViewerPro App for deployment management
Hardware Specifications
Hardware Version4.0
Copper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)
SFP Ports12 100/1000BASE-X SFP interfaces (Ports 9 to 20)
Compatible with 100BASE-FX SFP transceivers
SFP+ Ports4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4)
Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceivers
Console1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
Terminal BlockRemovable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for port breakdown and power failure.
Alarm relay current carry ability: 1A @ 24V AC
Digital Input (DI)2 digital input (DI)
Level 0: -24V~2.1V (±0.1V)
Level 1: 2.1V~24V (±0.1V)
Input load to 24V DC, 10mA max.
Digital Output (DO)2 digital output (DO)
Open collector to 24V DC, 100mA max.
EnclosureIP30 metal case
InstallationRack-mount kit
Dimensions (W x D x H)440 x 200 x 44.5 mm, 1U height
Weight2756g
Power RequirementsDC: 36-60V, 1.5A (max.)
AC: 100~240V, 50/60Hz, 1.5A (max.)
Power Consumption/ DissipationDC:Max. 13.6 watts / 46.5 BTU (system on)
Max. 38.4 watts / 131.1 BTU (Full loading)
AC:Max. 11.2 watts / 38.3 BTU (system on)
Max. 45.6 watts / 155.6 BTU (Full loading)
EFT Protection6KV DC
ESD Protection6KV DC
Fan2 smart fans
LEDSystem:
DC1 (Green)
DC2 (Green)
AC (Green)
Alarm (Red)

Per 10/100/1000T RJ45:
Up: 1000 LNK/ACT (Green)
Down: 10/100 LNK/ACT (Amber)

Per 100/1G SFP Interface:
Up: 1000 LNK/ACT (Green)
Down: 100 LNK/ACT (Amber)

Per 10G SFP+ Interface:
Up: 1G/2.5G LNK/ACT (Green)
Down: 100/10G LNK/ACT (Amber)
Switching Specifications
Switch ArchitectureStore-and-forward
Switch Fabric120Gbps/non-blocking
Switch Throughput@64Bytes89.28Mpps @64Bytes
Address Table16K MAC address table with auto learning function
Shared Data Buffer12Mbits
Flow ControlIEEE 802.3x pause frame for full duplex
Back pressure for half duplex
Jumbo Frame12KBytes
Layer 2 Functions
Port MirroringTX/RX/both
Many-to-1 monitor
Up to 4 sessions
VLAN802.1Q tag-based VLAN
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Up to 256 VLAN groups, out of 4094 VLAN IDs
Link AggregationIEEE 802.3ad LACP/Static Trunk
Static Port Trunking, (Max. 8 groups with 8 ports for each group)
Dynamic LACP (Max. 8 groups with 8 ports for each group)
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
IGMP SnoopingIPv4 IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD SnoopingIPv6 MLD snooping v2, v3, up to 256 multicast groups
QoS8 mapping ID to 8 level priority queues
Port number
802.1p priority
802.1Q VLAN tag
DSCP/IP precedence of IPv4/IPv6 packets
Traffic classification based, strict priority and WRR
Ingress/Egress Rate Limit per port bandwidth control
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 450ms
Layer 3 Functions
IP InterfacesMax. 64 VLAN interfaces
Routing TableMax. 32 routing entries
Routing ProtocolsIPv4 hardware static routing
IPv6 hardware static routing
Security Functions
Access Control ListIPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
Max. 256 ACL entries
Port SecurityBuilt-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
MAC SecurityIP-MAC port binding
MAC filter
Static MAC address, max. 256 static MAC entries
Enhanced SecurityDHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Management Functions
Basic Management InterfacesConsole/ Telnet/ Web browser/ SNMP v1, v2c
Secure Management InterfacesSSHv2, TLS v1.2, SNMP v3
System ManagementFirmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System, NMSViewerPro and CloudViewerPro App
Event ManagementRemote/Local Syslog
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3bz 2.5GBASE-X
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN Tagging
IEEE 802.1ab LLDP
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
ITU-T G.8032 ERPS Ring
Environment
OperatingTemperature: 0 ~ 60 degrees C for AC/DC power input
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-08-304.0MGSW-24160F



Firmware

DateVersionDescriptionDownload
2024-08-264.403b240820[Release for hardware version 4.0.]
1. Fixed the speed setting issue for SFP slots with 100 Mbps transceivers.
2. Fixed the port number error for CloudViewerPro and the NMS Virtual Panel.
3. Upgraded Layer 2+ function (Static Route).



Quick Guide

DateVersionDescriptionDownload
2024-08-284.1[Release for hardware version 4.0.]
Modify contents of Quick Guide.
2024-06-144.0Release for hardware version 4.0.



User's Manual

DateVersionDescriptionDownload
2024-09-064.1[Release for hardware version 4.0.]
Modify contents of user manual.
2024-06-144.0Release for hardware version 4.0.
