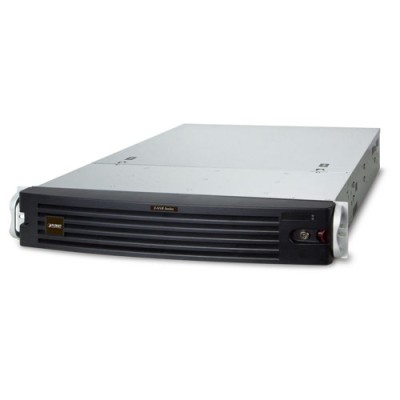

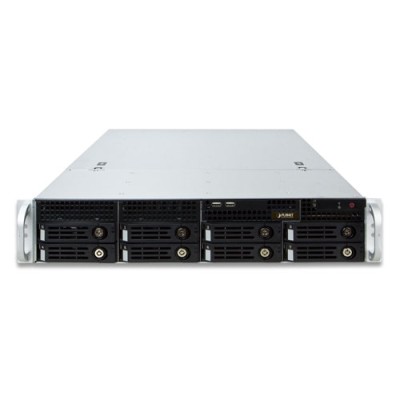

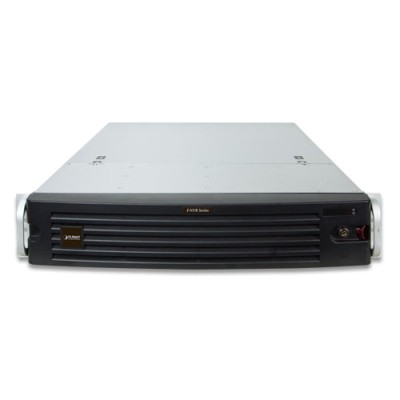

PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks

PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
PLANET NVR-E6480 64-Ch Windows-based NVR with 8-Bay Hard Disks
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: NVR-E6480
  • Βαρος: 16.24kg
  • Διαστασεις: 56.00 x 48.20 x 8.80
3.347,93€
Χωρίς ΦΠΑ: 2.699,94€

High Level Surveillance Solution
PLANET NVR-E6480, a high-definition IP surveillance solution, is designed to work with PLANET E-series cameras or ONVIF cameras for traffic surveillance, public and other security monitoring applications. The NVR-E6480 is the Windows-embedded 64-channel NVR that can connect up to 64 IP cameras and supports 8 hard disks. The unit employs RAID 0/1 to optimize the process of securing data easily and quickly.



The NVR-E6480 features Gigabit Ethernet ports, eMap, video motion detection, automatic camera registration, and mobile apps for smart phone and tablet connectivity. The NVR-E6480, capable of recording 300Mbps of video bandwidth, supports a wide range of resolutions in H.264, MPEG-4 and M-JPEG formats. In addition, the NVR is able to work with extended software such as ALPR (Automatic License Plate Recognition) and IVS (Intelligent Video Surveillance). Through these value-added applications, the NVR is definitely a necessity to keep track of those critical moments saved as evidences when in need.

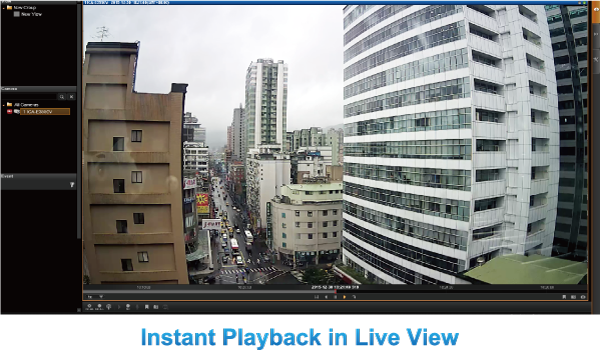

Instant Playback
On the Live View page of the NVR-E6480’s management interface, whenever you want to look back to check suspicious events of a camera channel you just missed, just hit the ‘Instant Playback’ button to bring up the window to review recent feeds. While you don’t have to switch to the Playback page to do so, you can still have full live views of other channels simultaneously.

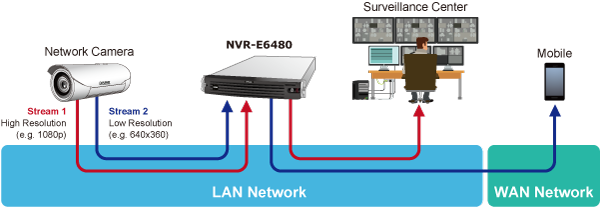

Dual Stream Management
The NVR provides dual stream management in live view and recording functions. User is able to monitor or record stream 1 or stream 2 of dual stream devices. This design is able to reduce the CPU and memory loading of the NVR that handles a large number of channels.

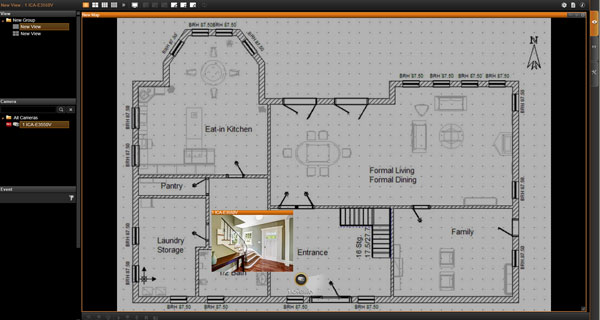

Location Management with eMap
The eMap function helps visualize the layout of IP cameras in the surveillance network enabling you to quickly identify the location of each IP camera, especially when an alarm occurs. Just upload the pictures of the monitoring locations and drag and drop the IP camera icons to the right place on the eMap. Once an alarm event happens, the camera icons will flash to indicate the event type for you to be alerted immediately and take necessary actions.

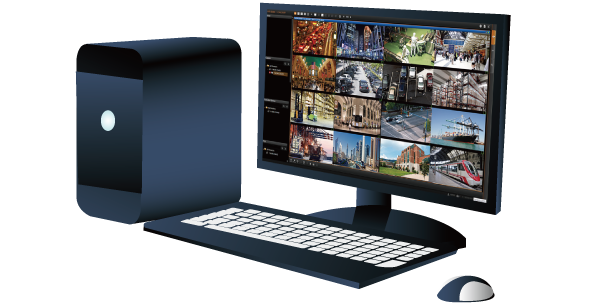

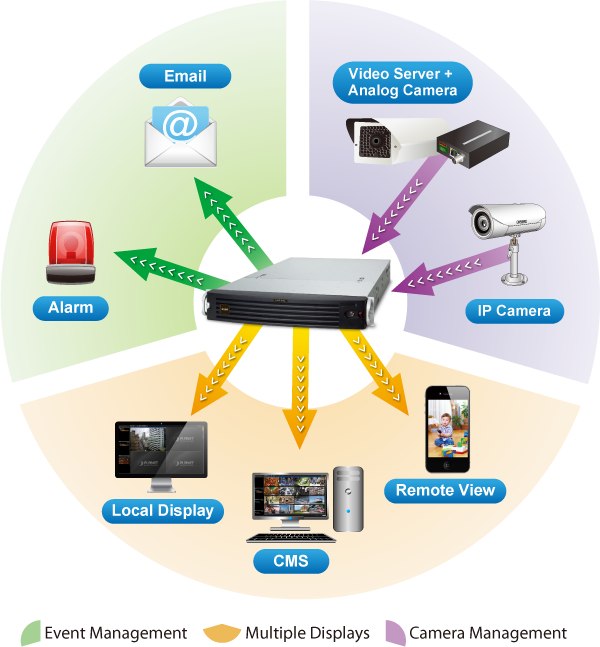

Remote Access via Mobile App, Web Browser or CMS
The NVR-E6480 provides central surveillance management capability with the adoption of its bundled Central Management Software (CMS). With the CMS, the NVR system is expandable for multi-sites management of up to 64 surveillance channels simultaneously. Besides, users are able to monitor the NVR via mobile app viewer or the Web browser anytime, anywhere.

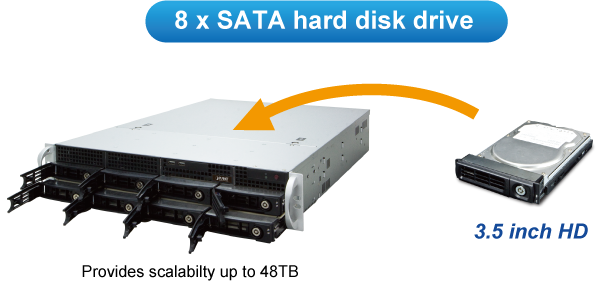

Large Storage Capacity
The NVR-E6480 is suitable for various network environments. Besides applications in retail stores and SMBs, the NVR-E6480 offers 8 SATA HDDs supporting RAID 0/1 function and is able to be applied in large scale surveillance facilities, such as banks, enterprises, transportations, campuses, etc.

Perfect for Indoor Surveillance Applications

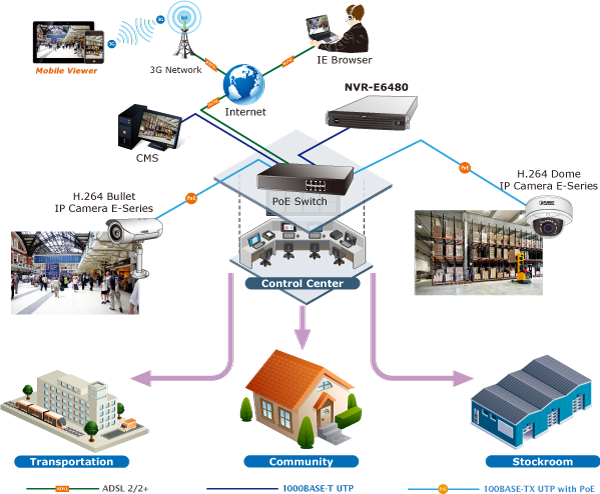

PLANET NVR-E6480 is a rack server optimized for reliable high-definition surveillance. The NVR is preloaded with all necessary software and preconfigured to minimize installation time. It is then completed with PLANET E-series cameras and extended software to formally begin surveillance. With dual Ethernet ports, ONVIF standard, CMS management, eMap and high storage capacity features, the NVR-E6480 is especially perfect for indoor surveillance in such places as department stores, factories, communities, enterprises, transportations, campus, etc.

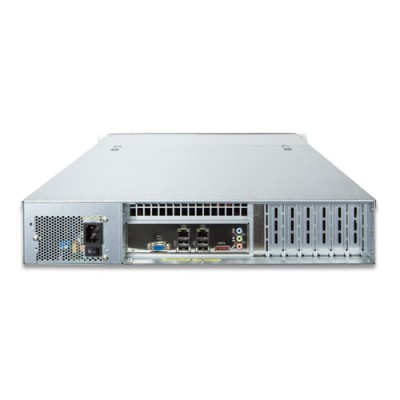

Hardware

  • Windows-embedded standalone NVR
  • 2U rack-mount design
  • Dual Gigabit Ethernet ports
  • E-SATA, VGA and USB interface supported
  • Audio line-in, line-out and mic-in jacks


Video & Audio

  • Simultaneous recording and live video streaming
  • Supports M-JPEG, MPEG-4 and H.264 compressions
  • 64-channel IP camera input
  • Video resolution up to 10 mega-pixel
  • 2-way audio support


Video Recording & Backup

  • Manual, event or scheduled recording of 64 IP cameras simultaneously
  • Supports recording frame rate up to 1920fps
  • Instant playback in live view
  • Supports 8 SATA hard disks (RAID 0/1) for storage, up to 6TB per HDD
  • Exports recorded video file in AVI or RAW format


Network Service

  • 2 x RJ45, 10/100/1000BASE-T
  • IPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF


Easy Installation & Management

  • ONVIF compliant for interoperability
  • Supports multiple languages
  • Dual stream management
  • Location-based management with eMap
  • Up to max. 64 channels with the central management software
  • Supports USB keyboard and mouse
  • Remote access via mobile app viewer and Web browser
  • Cam Viewer E-series software supported – CV7-VA, CV7-LP

*The NVR-E6480 supports 1-ch ONVIF only for the third-party camera. Users must purchase an additional license for expanding ONVIF channels.

Hardware
CPUIntel Processor
RAM2GB
Operating SystemWindows 7 Standard Embedded
Ethernet2 x RJ45, 10/100/1000BASE-T
USB Interface6 x USB 2.0 for backup device and firmware upgrade
Video InterfaceVGA video interface
Audio InterfaceMic-in, line-in and line-out
Storage Device8 x 3.5" SATA II hard disk connectors; up to 6TB per HDD
External Storage Interface1 x eSATA
LEDPower
ButtonPower
Camera
Max. Channels64-channel IP cameras

*Resolution 320 x 240, 1 Mbps bitrate, 30 FPS per camera
FunctionManual, auto or ONVIF search
Video
CompressionH.264, MPEG-4, M-JPEG
Resolution10MP, 5MP, 4MP, 3MP, 2MP, 1.3MP, 1MP, VGA
Max. Live Video Frame Rate (Local Display)6fps@10MP (1-ch), 15fps@5MP (1-ch), 8fps@4MP (1-ch), 15fps@3MP (1-ch), 30fps@2MP (1-ch), 30fps@1.3MP (1-ch), 30fps@1MP (1-ch), 30fps@VGA (1-ch)

*The above performance was tested with the following parameters: H.264 compression and 3Mbps bitrate
Audio
Audio Type2-way
Live View
Display Layout ModeLocal: 1, 4, 5, 6, 8, 9, 10, 12, 16
Remote: 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64
Digital ZoomZoom in/out digitally by PiP (Picture-in-Picture)
Manual Recording/ SnapshotInstant recording upon mouse click/Instant snapshot upon mouse click or hot key
Dual Stream ManagementLive view of stream 1 or stream 2 of dual stream devices
Event PanelDisplays event status upon alarm or upon connection loss or recovery
Instant PlaybackInstant playback in live view window
E-mapArea maps with camera icons and small live view windows hyperlinks
Playback
Video SearchTime/Event based
Playback ControlContinuous forward and backward playback with speeds 1x, 2x, 4x, 8x or frame-by-frame; pause; stop
Manual SnapshotInstant snapshot from playback upon mouse click
Digital ZoomZoom in/out digitally by PiP (Picture-in-Picture)
Synchronized PlaybackUp to 9 channels for local display; up to 64 channels for remote client
Video ExportExport video clips in AVI or RAW format
Recording
Recording ThroughputMaximum total bitrate 300Mbps
Schedule RecordingRecord video with user defined schedule
Event RecordingRecord video when the alarm event is triggered, including the pre-event buffered video clip
Frame Rate SettingDifferent recording frame rate settings for non-event and triggered event
Manual RecordingInstant recording upon mouse click
Dual Stream ManagementRecording of stream 1 or stream 2 of dual stream devices
Recording Frame RateMax. 1920fps in total; max. 30fps per camera
Monitor
Max. Local Display Resolution1920 x 1200
Network and Configuration
Network ServiceIPv4, IPv6, TCP/IP, UDP, HTTP, DHCP, RTP, RTSP, DNS, NTP (SNTP), ICMP, ARP, SMTP, FTP, UPnP, LDAP, ONVIF
Triggers and Event
Event TypeVideo motion detection, passive IR sensor, external device through digital input, video loss and recovery, network loss and recovery, server loss and recovery, disk full, disk not found
Event ActionRecord video, pop-up window with live video, switch to hotspot window, play beep sound, activate external device through digital output, upload snapshot to FTP server, execute system command to activate other programs, eMail notification with snapshots, command a PTZ device to go to a preset point
Manual EventManually activate external devices through digital output via live view monitor
SchedulerDefine the schedule of event manager
Management
Max. Number of Clients1 local, 3 remote
PrivilegesLive, Playback, Setup, Global
User Interface
  • Graphic local user interface (Operated by mouse, keyboard)
  • Web browser (Internet Explorer 7 or above)
  • CMS utility
  • App viewer
Multiple Languages SupportArabic, Czech, Danish, German, Estonian, English, Spanish, Finnish, French, Hebrew, Hungarian, Indonesian, Italian, Japanese, Netherland, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese, Simplified Chinese, Traditional Chinese
Log TypeUser Operation, Setup Device, Setup System, Setup Users, Setup Schedule, Setup Event, System Status, Request Log
Environment
Power100-240V AC, 4-2A, 50-60Hz
Consumption200W
Operating Temperature0~40 degrees C
Humidity10~85% RH
Weight11.4 kg (with 1 system HDD and front cover)
Dimensions (W x D x H)482 x 560 x 88 mm
