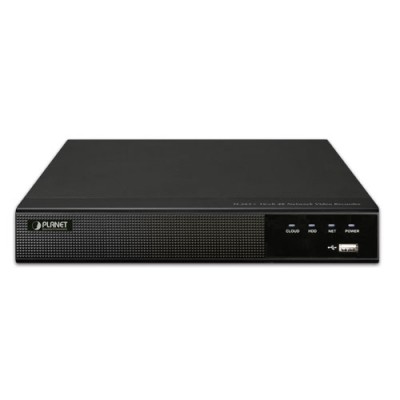

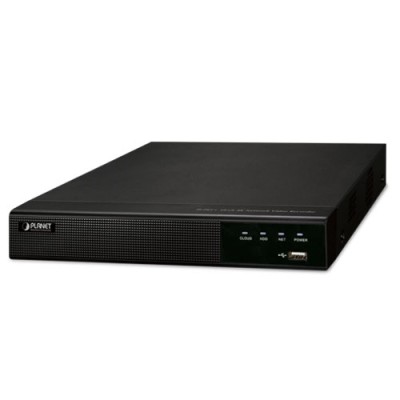

PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder

PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder
PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder
PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder
PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder
PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder
PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder
PLANET NVR-1600 H.265+ 16-ch 4K Network Video Recorder
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: NVR-1600
  • Βαρος: 1.39kg
  • Διαστασεις: 23.00 x 26.00 x 4.30
164,97€
Χωρίς ΦΠΑ: 133,04€

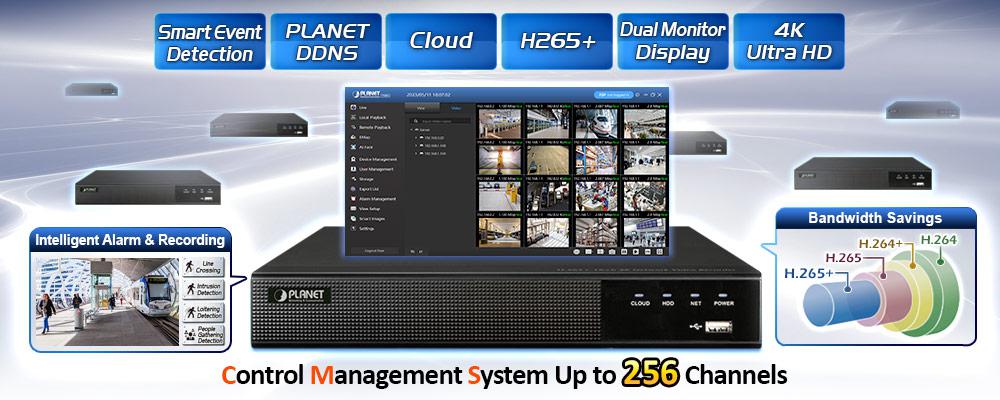

High Efficiency Surveillance Solution

PLANET NVR-1600 is a brand-new 16-channel Linux embedded network video recorder (NVR) for campuses, communities, restaurants and more. Designed for IP surveillance applications with HDMI local display, the NVR-1600 supports IP cameras with up to 4K and H265/H264/H265+/H264+ video codec for high-quality real-time monitoring, recording and playback. It also supports 4K video resolution on any HD monitor.

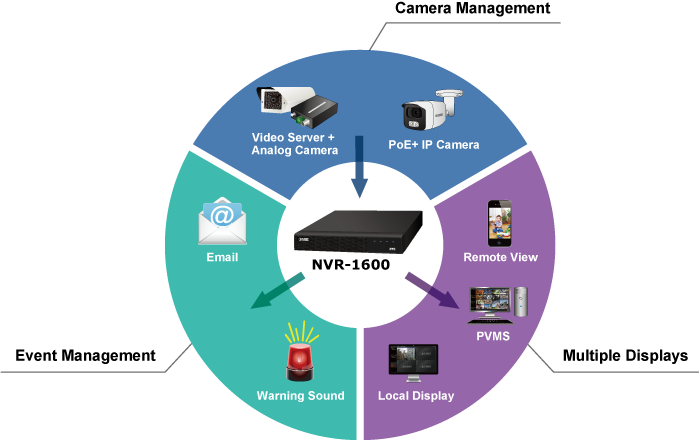

The NVR-1600 can be used as a control center to control and monitor up to 16 connected network cameras locally or remotely, perfectly designed for intelligent IP surveillance system, with one internal SATA hard disks drawers interface and video files kept in the NVR for a long period of time. Once the NVR-1600, armed with complete surveillance equipment, detects any suspicious events, you will be alerted with buzzing alarm, alarm via email, voice warnings and screen display.

The recorded video files can be saved in the NVR without the need for an additional PC for file storage, thus bringing users a secure surveillance system at a lower total cost. Fully compatible with iOS, Android and Google Chrome on Windows operating system for multi-platform remote access, the NVR-1600 is thus able to further enhance security within the premises to protect your property. Moreover, it is fully compatible with mobile app.

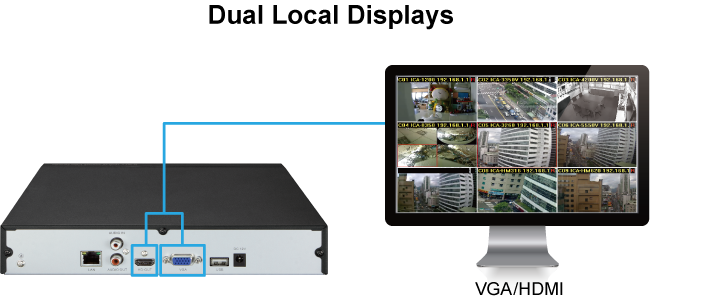

High-resolution Local Display

The NVR-1600 comes with HDMI and VGA video output interfaces for dual local display. It can be connected to a 4K HDMI monitor and 1080p VGA monitor separately, where live viewing contents or playback contents can be displayed simultaneously. With the dual local display function, users can monitor locally with high flexibility in a different display resolution, thus eliminating the need for a separate PC to view video from the unit. Besides, the NVR can also be operated with the USB mouse to configure and monitor all the systems easily.

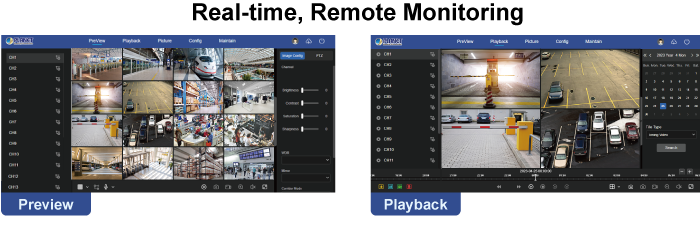

Real-time, Remote Monitoring

Up to 16 IP cameras can be connected to the NVR-1600 via a connected IP network. With the NVR-1600, it delivers high-performance video recordings and smooth playbacks of multiple megapixel cameras. Users can view remote surveillance in real time and play back recorded videos via the Web browser or the bundled PVMS (Professional Video/Central Management Software).

You are able to search and install Planet IP cameras via Web interface with more convenience and efficiency. The NVR-1600 also can support discovery and manage ONVIF IP camera. Besides the Web interface, the NVR also supports viewer app software for smart phone so you can connect to the NVR anytime, anywhere.

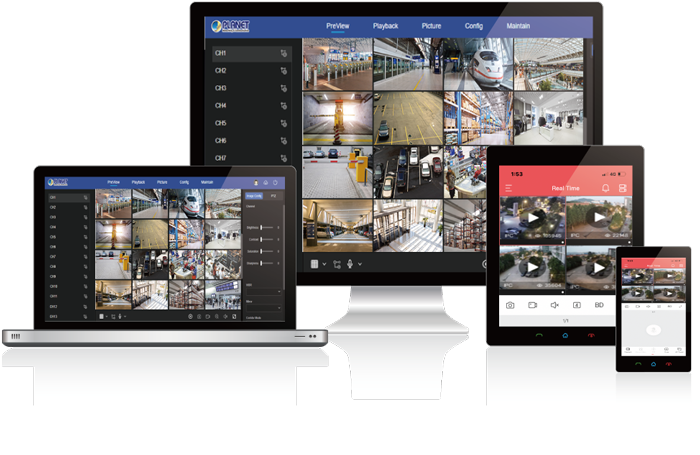

Remote Access via Mobile App, Web Browser or PVMS

The NVR-1600 provides central surveillance management capability with the adoption of its bundled PLANET Video Management Software. With the PVMS, the NVR-1600 NVR system is expandable for multi-sites management of up to 256-ch IP cameras simultaneously. Besides, users are able to monitor the NVR via mobile app viewer or the Web browser anytime, anywhere.

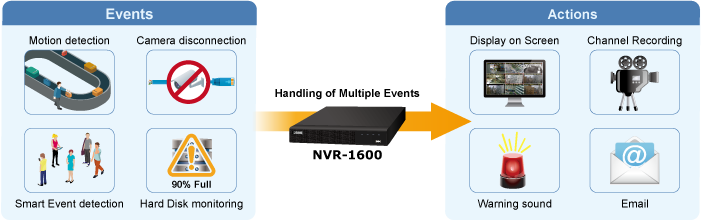

Advanced Intelligent Event Management

The NVR-1600 is equipped with multiple event detections like motion detection, video loss and PLANET AI IP camera event management. It also can support smart event detection like Line Crossing, Regional Intrusion, Loitering, and People Gathering. All of them are able to send alarm through screen, buzzer, channel recording and email. Those alarm notifications provide you with extra protection when such event occurs so you won’t miss any critical information.

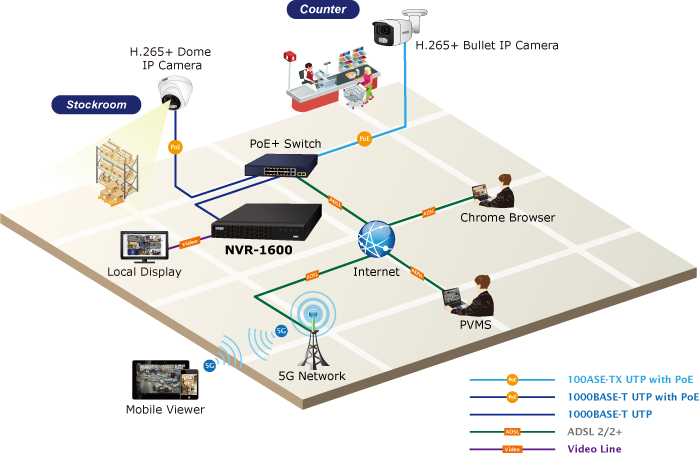

Perfect for Indoor Surveillance Applications

PLANET NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. Users can also log in from their mobile phones to check the monitoring screen anywhere, anytime. It is especially perfect for indoor surveillance in such places as campuses, communities, restaurants and more.

Hardware

  • Linux-embedded, highly-reliable standalone NVR
  • 1 Gigabit Ethernet RJ45 port
  • One 1080P VGA and 4K HDMI video interface for dual local display
  • 3.5" SATA III x 1 HDDs, up to 8TB capacity
  • Two USB 2.0 interfaces
  • One audio in interface and audio out interface



Video and Audio

  • Simultaneous recording and live viewing
  • 16-channel input of IP cameras
  • Supports H.265/H.264/H.265+/H.264+ compression
  • Video resolution up to 4K (3840 x 2160)
  • Supports bandwidth up to 120Mbps
  • Two-way audio support
  • Image adjustment options:
  • Image adjustment
  • Exposure
  • Day and Night Mode
  • White balance
  • Image enhancement



Video Recording and Backup

  • Scheduled recording of 16 IP cameras simultaneously
  • Simultaneous main/sub-stream support
  • Supports operation simultaneously for Preview, Recording, Playback, Live and Backup
  • Exports recorded video file in AVI format to USB device or local network storage
  • Multiple event detections like motion detection, video loss and PLANET AI IP camera event management



Network Service

  • Easy access with PLANET Dynamic DNS
  • SNTP Network Time Protocol/synchronize with computing timer
  • Supports PPPoE/DHCP/static network connection
  • Supports low bit-rate connection for remote access
  • Supports P2P Cloud (Google)
  • TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPOE Network functions



Easy Installation and Management

  • Supports discovery and manage ONVIF IP camera.
  • Supports multiple languages
  • PLANET Search Tools utility and PVMS ( Professional Video/Central Management Software) for easy configuration
  • Up to 256 channels management through PVMS
  • Easy configuration and management via Windows-based software or web interface
  • System log
  • User management options for various authorities:
    • Admin
    • Operator
    • Guest
  • Supports mobile phone remote app application
  • NDAA Compliant

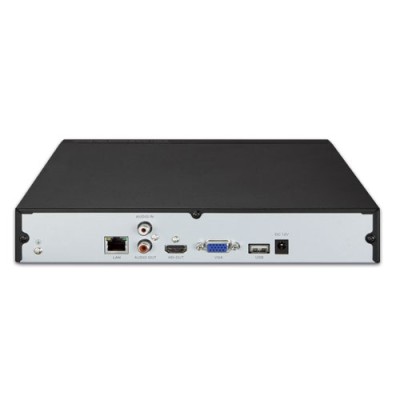

Hardware
Ethernet1 x RJ45 10M/100M/1000M Adaptive Ethernet Interface
USB Interface2 x USB 2.0
Video Interface1 x HDMI, 1 x VGA
Audio Interface1x Input, 1x Output
Storage Device1 x Hard Disk Interface (3.5" SATA), up to 8TB capacity
Camera
Max. Channels16-channel IP cameras
Incoming Bandwidth120MB
Video
CompressionH.264/H.265/H.264+/H.265+
Resolutions4K (3840×2160)
5MP (2592×1944)
4MP (2688×1520/2560×1440)
3MP (2048×1536)
1080P (1920×1080)
960P (1280x960)
720P (1280×720)
D1 (720×576/720×480)
Recording Rate (PAL/NTSC)4K@10×25fp/30fps
5MP@16×25fp/30fps
4MP@16x25fp/30fps
3MP@16×25fp/30fps
1080P@16×25fp/30fps
960P@16×25fp/30fps
720P@16×25fp/30fps
D1@16×25fp/30fps
Recording ModeManual\Timer\Motion Detection\Smart Event
Audio
Audio Type2-way audio
Input1 Port RCA
Output1 Port RCA (Linear, 1kΩ)
Audio Bit Rate64kbps
Audio CompressionG711u, G711a, ADPCM_DVI4
Local Display
HDMI4K (3840 × 2160)/30Hz
1920 × 1080/60Hz
1280 × 1024/60Hz
1280 × 720/60Hz
1024 × 768/60Hz
VGA1920 × 1080/60Hz
1280 × 1024/60Hz
1280 × 720/60Hz
1024 × 768/60Hz
Display Split16CH/13CH/10CH/9CH/8CH/6CH/4CH/1CH
Digital ZoomYes
OSDCamera Title, Time, Recording, Motion Detection, Event Alarm
Alarm
Motion Detection16 Channels, MD Zones: 396 (22 × 18)
Trigger EventsRecording, Email, FTP, Snapshot, Buzzer and Screen Tips
Playback and Backup
Local Sync Playback1CH 4K@30fps
1CH 5MP@30fps
2CH 4MP@30fps
2CH 3M@30fps
4CH 1080P@30fps
4CH 960P@30fps
4CH 720P@30fps
16CH D1@30fps
Decode Capability4CH 1080P(1920x1080)@30fps
Remote Sync PlaybackYes
Search ModeALL, Timing Video, Motion Detection, Alarm, Tag search, Smart Event, Picture, Log
Playback FunctionsPlay, Pause, Fast Forward, Rewind, Previous Frame, Next Frame, Electronic Zoom, Clip, Audio
Backup ModeUSB Device/Network
Network and Configuration
Network FunctionsTCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P,PPPOE
Cloud Support(P2P)Yes
Management
Web BrowerIE8~11, Google Chrome, Firefox , Edge, Mac Safari (partial)
PVMSSupport Windows 7/ Windows 8/Windows 10
AppYes (Android, IOS with P2P QR code)
LanguageSimplified Chinese, English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese
Environment
PowerDC 12V/2A
Operating Temperature-10~55 degrees C
Humidity10~90% RH
Weight2kg (without HDD)
Dimensions (W x D x H)260 x 230 x 43 mm
