PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)

PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
PLANET ISW-801T 8-Port 10/100TX Industrial Fast Ethernet Switch (-40~75 degrees C operating temperature)
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ISW-801T
  • Βαρος: 0.58kg
  • Διαστασεις: 8.70 x 13.50 x 3.20
104,32€
Χωρίς ΦΠΑ: 84,13€

Slim Type with More Practicability and Convenience

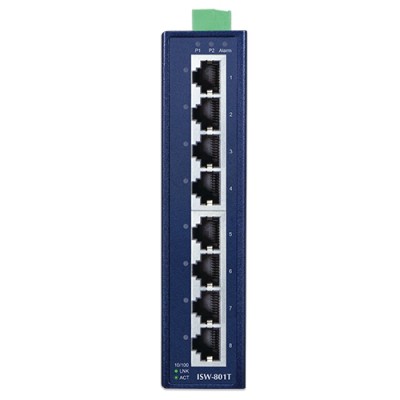

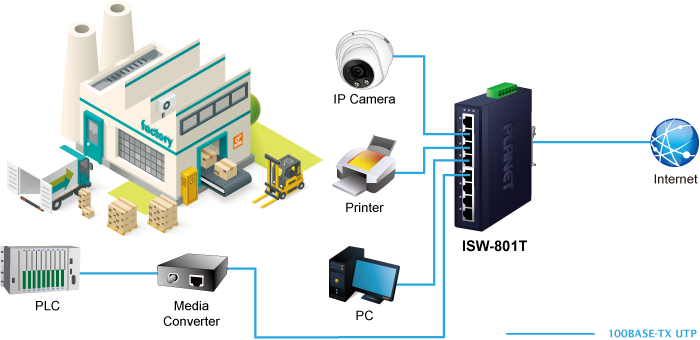

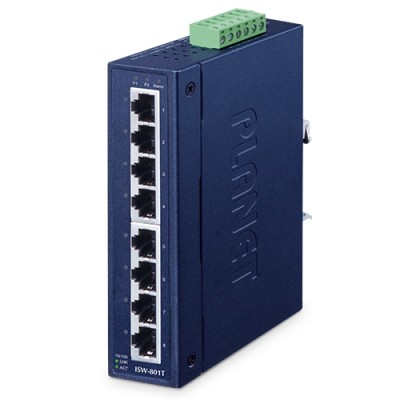

PLANET ISW-801T Industrial 8-Port 10/100TX Fast Ethernet Switch is tailored for industrial applications, featuring 8 auto-negotiation 10/100Mbps ports, an IP30-rated rugged yet compact case, and a versatile redundant power system (12~48V DC or 24V AC). The ISW-801T operates efficiently in harsh environments, with an operating temperature range of -40 to 75 degrees Celsius.

In response to the growing demand for IIoT (Industrial Internet of Things) infrastructure, the ISW-801T is designed for easy deployment of industrial networks with its Plug and Play capability. Furthermore, it ensures stable and reliable fast data and power transmission. The ISW-801T also supports PROFINET traffic pass-through with QoS, making it an ideal choice for integrating with industrial automation systems and enhancing communication between devices in a factory setting.



PROFINET Traffic Pass-through with QoS

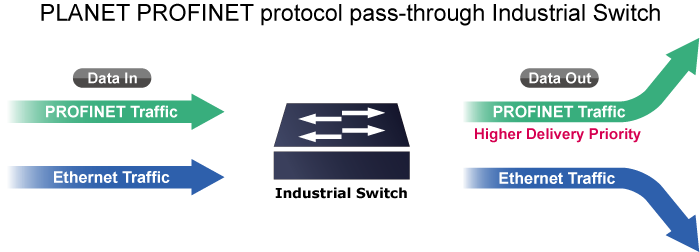

The ISW-801T features a brand-new function that enhances support for recognizing the PROFINET traffic for higher delivery priority. Once the ISW-801T receives the PROFINET traffic, it will forward the PROFINET traffic first, and then handle other Ethernet traffic. With this enhanced function, the ISW-801T will become the ideal Industrial Unmanaged Switch for the faster PROFINET traffic.



 Low Power Consumption for Green Networking

The ISW-801T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the ISW-801T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently. With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the ISW-801T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.



Robust Protection

The ISW-801T provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



Robust Switch Performance

The ISW-801T offers a high-performance switch architecture. With the 8 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1.6Gbps and the 1K MAC address table, the ISW-801T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the ISW-801T to provide fast and reliable data transfer.



Plug and Play

All of the RJ45 copper interfaces in the ISW-801T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 5, 5e, 6, 6a or 7 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.



Flexible and Easy Installation with Limited Space

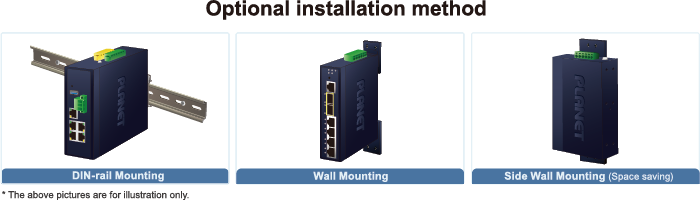

The compact-sized ISW-801T is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.



Designed for Heavy Industries

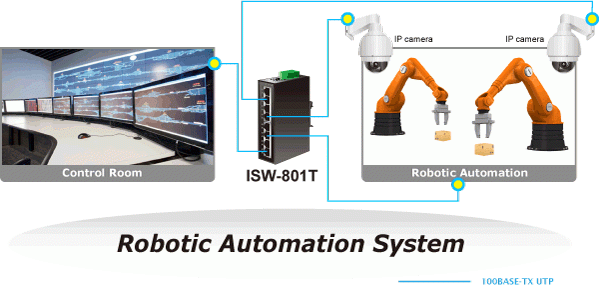

The ISW-801T’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.



Physical Port

  • 8-port 10/100BASE-TX RJ45 with auto-MDI/MDI-X function



Layer 2 Features

  • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
  • Supports auto-negotiation and 10/100Mbps half/full duplex mode
  • PROFINET traffic pass-through with QoS
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Supports 1K MAC address
  • Automatic address learning and address aging



Industrial Case and Installation

  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 12 to 48V DC, redundant power with reverse polarity protection
  • 24V AC power input acceptable
  • Supports 6000 VDC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries



Hardware Specifications
Hardware Version3
Copper Ports8 x 10/100BASE-TX RJ45 TP auto-MDI/MDI-X, auto negotiation

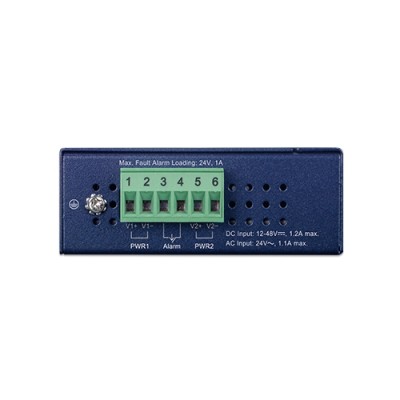

ConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
AlarmProvides one relay output for power failure; Alarm relay current carry ability: 1A @ DC 24V
LED3 x LED for system and power:
Green: DC Power 1
Green: DC Power 2
Red: Power Alarm
1 x LED for each copper port:
Green: 10/100Mbps LNK/ACT
ESD Protection6KV
EFT Protection6KV
Power Requirements12~48V DC, redundant power with reverse polarity protection, 24V AC power support
Power Consumption/ DissipationMax. 0.9 watts/3.07BTU (Power on without any connection)
Max. 2.1 watts/7.16BTU (Ethernet full loading)
InstallationDIN-rail kit and wall-mount ear
EnclosureIP30-rated metal case
Dimensions (W x D x H)32 x 87 x 135mm
Weight428g
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table1K
Shared Data Buffer448K bits
Flow ControlBack pressure for half duplex, IEE 802.3x pause frame for full duplex
Switch Fabric1.6Gbps
Throughput (packet per second)1.19Mpps
Network Cables10/100BASE-TX
Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)
EIA/TIA-568 100-ohm STP (max. 100 meters)
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
PROFINET Traffic Pass-through with QoS
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environment
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5% to 95%, Storage: 5% to 95% (non-condensing)
