PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch

PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch
PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch
PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch
PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch
PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch
PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch
PLANET IGS-1000-8T4X Industrial 8-Port 10/100/1000T + 4-Port 10G SFP+ Ethernet Switch
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IGS-1000-8T4X
  • Βαρος: 1.78kg
  • Διαστασεις: 135.00 x 76.00 x 152.00
596,80€
Χωρίς ΦΠΑ: 481,29€

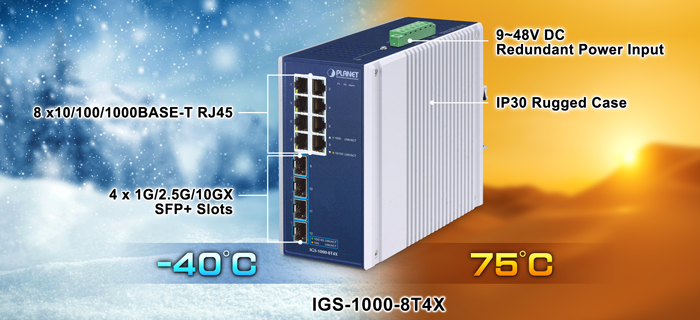

Reliable Industrial Ethernet Networks with 10G Fiber and Plug and Play Configuration

Featuring Plug and Play and 10G SFP+ uplink ports, PLANET IGS-1000-8T4X Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch is perfect for heavy industrial environments. It features 8 10/100/1000BASE-T ports and 4 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports that provide long-distance, high-speed and stable data transmission to a remote core network.

The IGS-1000-8T4X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy.



10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking

Featuring a 10Gbps uplink, the IGS-1000-8T4X is suitable for connecting to an industrial backbone or high-capacity servers. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 96Gbps. The 10G fiber port serves as a backbone for high-bandwidth applications, such as video streaming, cloud computing, and virtualization, ensuring seamless and swift data transmission. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements.



10G Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the IGS-1000-8T4X is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions

Optic Mode
Connector Type
Distance
Multi-mode
Duplex LC
300m
Single mode
Duplex LC
2/10/20/40/60/80km
Single mode WDM
Simplex LC
10/20/40/60/70km

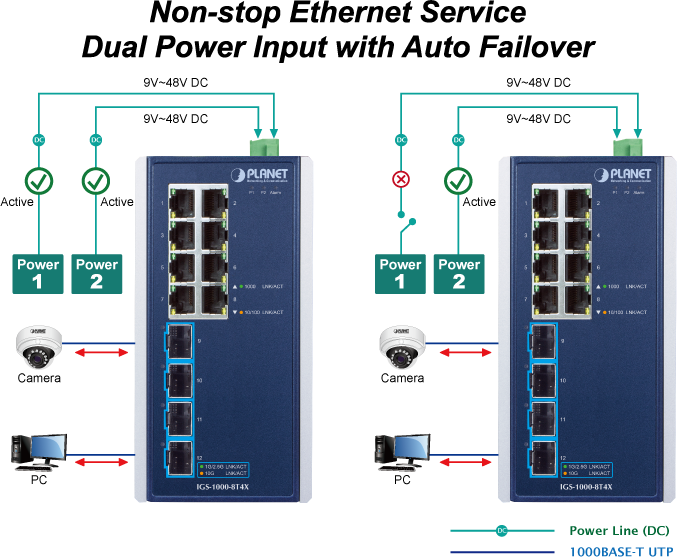

Dual Power Input for High Availability Network System

The IGS-1000-8T4X features a strong dual power input system with 9~48V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1000-8T4X via power supply 2 alternatively without any loss of operation.



Environmentally Hardened Design

With the IP30 metal industrial case, the IGS-1000-8T4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1000-8T4X can be placed in almost any difficult environment.



Robust Protection

The IGS-1000-8T4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

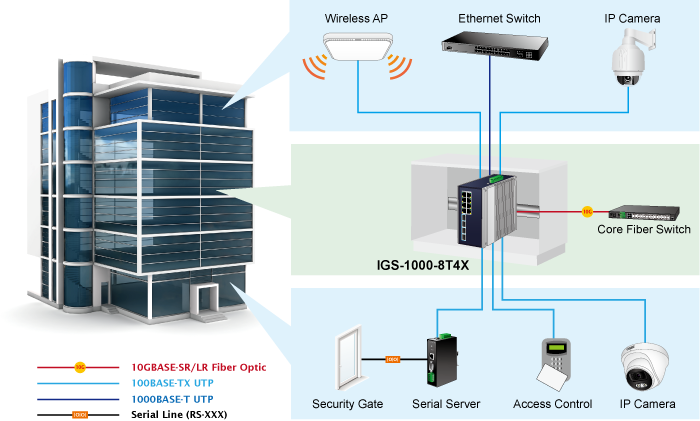

Industrial-grade Switch for Building Automation and Security

The IGS-1000-8T4X’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. Suitable for buildings where security is strictly enforced, the IGS-1000-8T4X, with 8 1000BASE-T ports and 4 10GBASE-X SFP+ fiber optic uplink interfaces, can easily build an IP phone system, IP surveillance system, security control system and wireless AP group in the harsh Industrial environment.

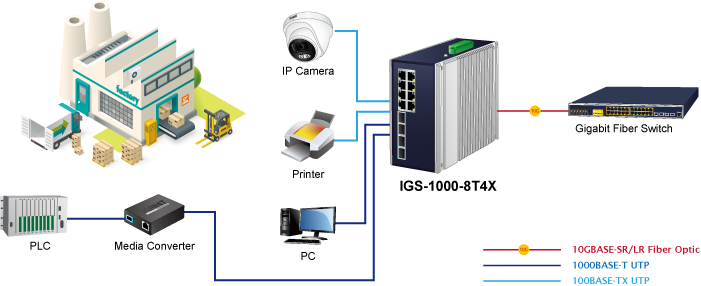

Designed for Heavy Industries

The IGS-1000-8T4X’s IP30-rated metal case is particularly designed for heavy industries, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data.



Interface

  • 8 10/100/1000BASE-T RJ45 copper ports
  • 4 10GBASE-X SFP+ slots, compatible with 1000BASE-X and 2500BASE-X SFP



Industrial Hardened Design

  • IP30 aluminum case
  • DIN-rail and wall-mount designs
  • Fault alarm for power input failure
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • 4 real-time PoE power usage indicators
  • 9~48V DC redundant power with reverse polarity protection



Layer 2 Switching

  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 16K MAC address table size
  • 12K jumbo frame
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol



Hardware Specifications
Copper Ports8 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
SFP Slots4 10GBASE-X SFP+ interfaces(Ports 9 to 12)
Backward compatible with 1000BASE-X SFP and 2500BASE-X SFP

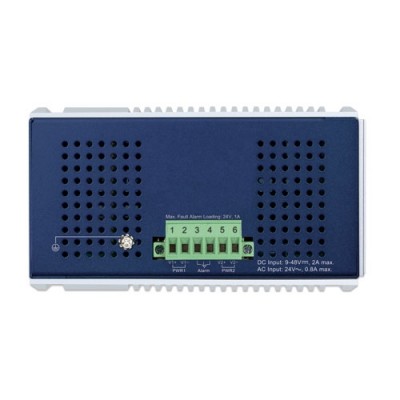

ConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1
Pin 3/4 for fault alarm
Pin 5/6 for Power 2
Power Requirements9~48V DC, 4A max. / 24V AC
Redundant power with reverse polarity protection
Power ConsumptionMax. 14.73 watts/50.2BTU
Dimensions (W x D x H)76 x 135 x 152 mm
Weight1211g
EnclosureIP30 aluminum case
InstallationDIN-rail kit and wall-mount kit
ESD Protection6KV

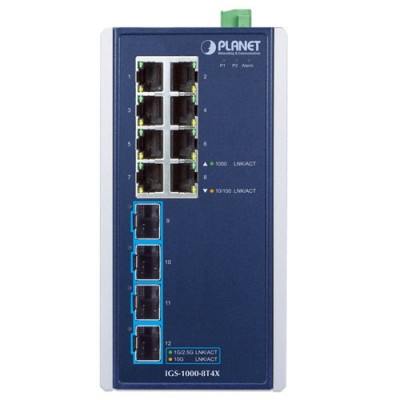

LED IndicatorsSystem:
P1, P2 (Green), Alarm (Red)
10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 8):
1000Mbps LNK/ACT (Green)
10/100Mbps LNK/ACT (Amber)
1G/2.5G/10Gbps SFP+ Interfaces (Port 9 to Port 12):
1G/2.5G LNK/ACT (Green)
10G LNK/ACT (Amber)
Switch Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric96Gbps
Throughput (packet per second)71.43Mpps@64bytes
Address Table16K entries
Buffer Memory12M bits on-chip buffer memory
Jumbo Frame12Kbytes
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1p Class of Service
Environment
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2024-08-301.1IGS-1000-8T4X



User's Manual

DateVersionDescriptionDownload
2024-08-141.1Modify contents of user manual.
2023-12-081.0Initial release.
