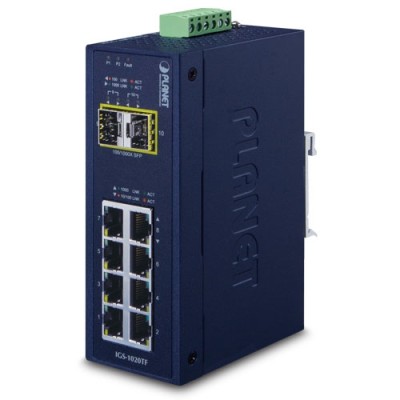

PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)

PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)
PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)
PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)
PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)
PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)
PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)
PLANET IGS-1020TF Industrial 8-Port 100/1000T + 2 1000X SFP Ethernet Switch (-40~75 degrees C)
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IGS-1020TF
  • Βαρος: 0.79kg
  • Διαστασεις: 8.70 x 5.00 x 13.50
249,88€
Χωρίς ΦΠΑ: 201,52€

Industrial-grade, Reliable and Flexible Network Deployment
PLANET IGS-1020TF is an industrial 10-port full Gigabit Ethernet Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet deployment and extension in harsh environment. It provides 8-port 100/1000BASE-T RJ45 copper and 2 extra 100/1000BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-1020TF is well suited for applications in deploying surveillance system, secure control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

Fiber-Optic Link Capability Enables Extension of Network Deployment

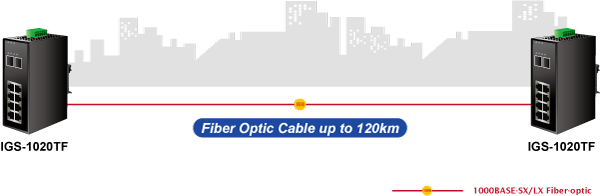

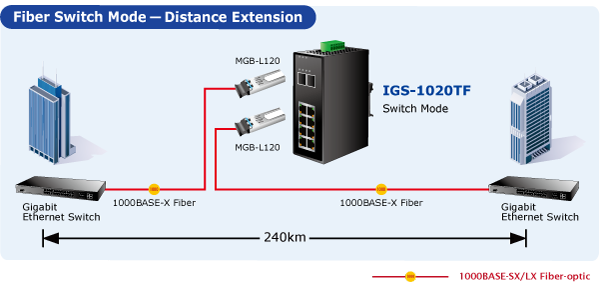

The two mini-GBIC slots built in the IGS-1020TF support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Environmentally Hardened Design
With IP30 rugged metal case protection, the IGS-1020TF provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1020TF can be placed in almost any difficult environment. The IGS-1020TF also allows either DIN rail or wall mounting for efficient use of cabinet space.

Dual Power Input for High Availability Network System
The IGS-1020TF features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1020TF via power supply 2 alternatively without any loss of operation.

Energy Saving
The IGS-1020TF, incorporating advanced green networking technologies and and IEEE 802.3az protocol based power saving, is able to provide power saving up to 50% less energy but maintains high performance efficiently.
Link Down power saving
The Link Down power saving goes beyond IEEE specifications to automatically lower power consumption for a given port when it is not linked. With the Link Down power saving technology, the IGS-1020TF will automatically adjust power usage of the ports that are shut down or not connected to network device.

Intelligent power scale based on cable length
Intelligent power scale is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the IGS-1020TF is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the IGS-1020TF would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving

Robust Protection
The IGS-1020TF provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Plug and Power Network Deployment
All of the RJ45 copper interfaces in the IGS-1020TF support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.



Ethernet Applications with Long-distance Fiber Uplink for Hardened Environment
The IGS-1020TF Industrial Gigabit Ethernet Switch offers full port Gigabit speed. It provides very high reliability and security features to make sure the continuous operation in harsh environments such as control cabinet of transportation, factory, outdoors and places where extreme low or high temperatures can be experienced. Moreover, the IGS-1020TF is also compatible with 100Mbps and 1000Mbps SFP transceivers to provide a strong, stable and long-distance connection and flexible industrial networking deployment.

FTTX Solutions for MAN Application

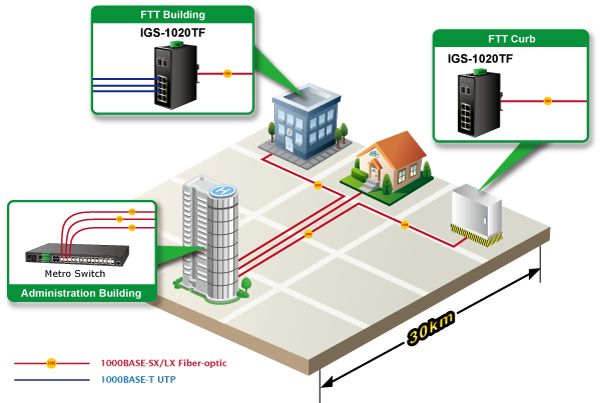

To build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs, and FTTB (Fiber to the Building) for enterprises, the various distances of SFP and Bidi (WDM) transceivers are optional for customers. With two dual-speed SFP slots built in, the deployment distance of the IGS-1020TF can be extended up to 120 kilometers (single-mode fiber), which provides a high-performance edge service for FTTx solutions.

Physical Port

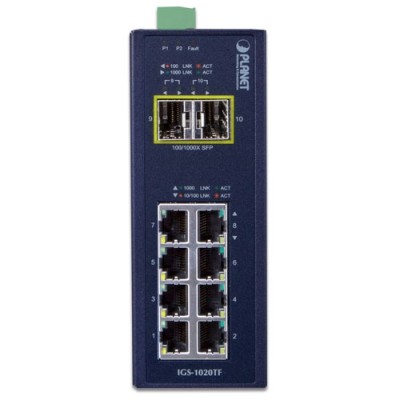

  • 8-port 100/1000BASE-T RJ45 with auto MDI/MDI-X function
  • 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver type auto-detection


Industrial Case and Installation

  • IP30 metal case protection
  • DIN rail and wall mount design
  • Redundant Power Design
  • - 12 to 48V DC, redundant power with polarity reverse protect function- AC 24V power adapter acceptable
  • Supports 6000V DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware Specifications
Copper Ports8 x 100/1000BASE-T RJ45 TP
Auto-MDI/MDI-X, auto-negotiation
SFP/mini-GBIC Slots2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP
Switch Processing SchemeStore-and-Forward
Switch Fabric20Gbps (non-blocking)
Switch Throughput (packet per second)14.88Mpps@64bytes
MAC Address Table4K entries
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Frame9216 bytes

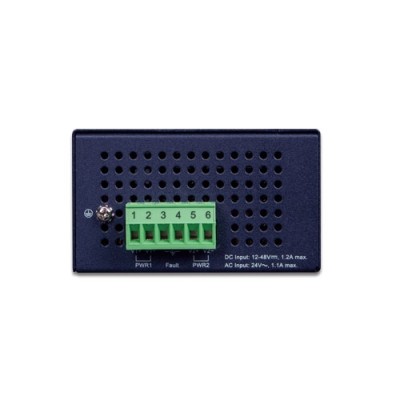

ConnectorRemovable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
AlarmProvides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
LED Indicator3 x LED for System and Power:
Green: DC Power 1
Green: DC Power 2
Red: Power Fault
2 x LED for Per Copper Port (Port-1~Port-8):
Green: 1000 LNK/ACT
Orange:100 LNK/ACT
2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10):
Green: 1000 LNK/ACT
Orange:100 LNK/ACT
ESD Protection6KV DC
EnclosureIP30 type metal case
InstallationDIN rail kit and wall-mount ear
Dimensions (W x D x H)50 x 87 x 135 mm
Weight540g
Power RequirementsDC 12~48V or AC 24V
Redundant power with polarity reverses protection function
Power Consumption/Dissipation8.7 watts/29.69BTU
CableTwisted-pair
■ 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
■ 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
■ 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters

Fiber-Optic Cable
■ 1000BASE-SX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
■ 1000BASE-LX:
9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
kilometers (vary on SFP module)
■ 100BASE-FX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to
2 kilometers
9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers
(vary on SFP module)
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet/10BASE-T
IEEE 802.3u Fast Ethernet/100BASE-TX
IEEE 802.3ab Gigabit Ethernet/1000BASE-T
IEEE 802.3z Gigabit Ethernet/1000BASE-SX/LX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.1p Cos
Regulatory ComplianceFCC Part 15 Class A, CE
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (anti-shock)
IEC 60068-2-6 (anti-vibration)
Environment
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5~95% (non-condensing)
Storage: 5~95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2016-07-291.0IGS-1020TF



User's Manual

DateVersionDescriptionDownload
2021-10-221.2Modify contents of manual.
2021-04-191.1Release for new CIS housing printing.
2016-07-141.0Initial release.



EC Declaration

DateVersionDescriptionDownload
2016-09-211.0EC Declaration
