Powering the Digital Transformation with EtherCAT

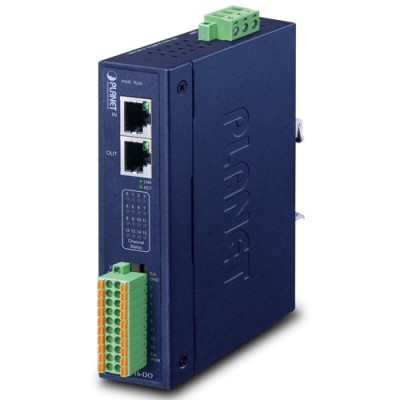

PLANET IECS-1116-DO is an industrial EtherCAT slave I/O module equipped with the EtherCAT protocol for today's distributed industrial applications. The IECS-1116-DO provides high-density digital output channels and is protected with 3750 VDC isolation. Its compact size and DIN-rail mounting make installation in a cabinet easy. Pluggable terminal blocks and LED indicator help users to maintain and set up their system.
Flexible Installation
The IECS-1116-DO is an ideal high-speed distributed system solution which provides quick installation, real-time connection status monitoring, and wide-ranging power input and operating temperature to improve work efficiency, making them suitable for the harsh environment. Besides, the module comes with 2 10/100BASE-TX RJ45 ports. Through the EtherCAT technology, a network of up to 65,535 devices can be supported without the limitation of the type of topology -- line, bus, tree, star or any arrangement -- being used.
Synchronization

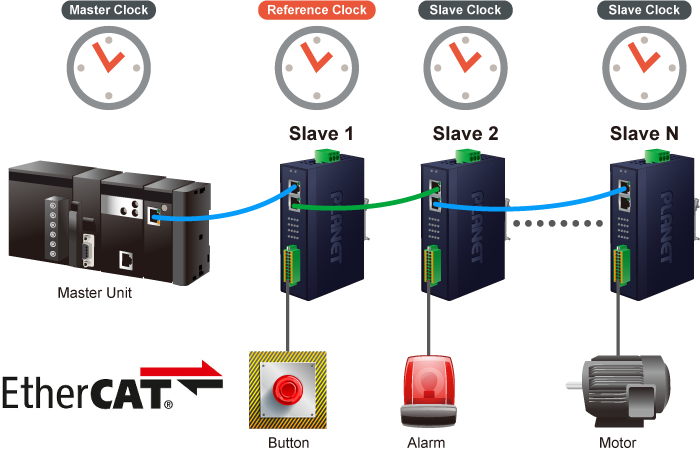

An EtherCAT slave is an electronic device that carries out cyclical sequences of calculations and/or data copying tasks at a certain interval (cycle). The EtherCAT slave working cycle (e.g. in the range of a few µs up to several ms) can be derived from different sources. EtherCAT node can measure time difference between leaving and returning frame. With distributed clocks, EtherCAT can realize a precise synchronization time of <1us between each slave module.
Convenient and Reliable Power System

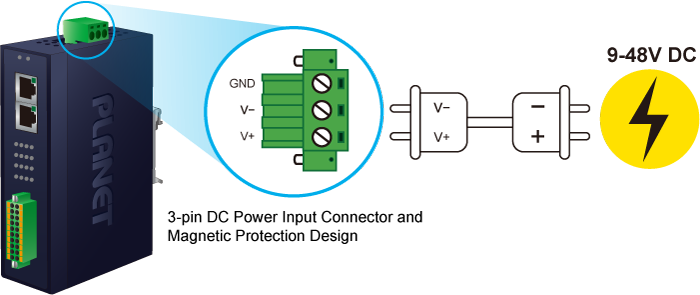

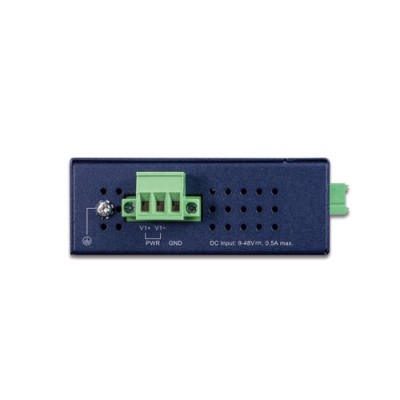

The IECS-1116-DO is equipped with one 3-pin DC power input connector with screws for power supply installation. With power magnetic protection design, it can avoid the device burnout due to wrong wiring. In addition, it also possesses an integrated power supply source with wide-ranging voltages (9 to 48V DC) for worldwide high availability applications.
Environmentally Hardened Design

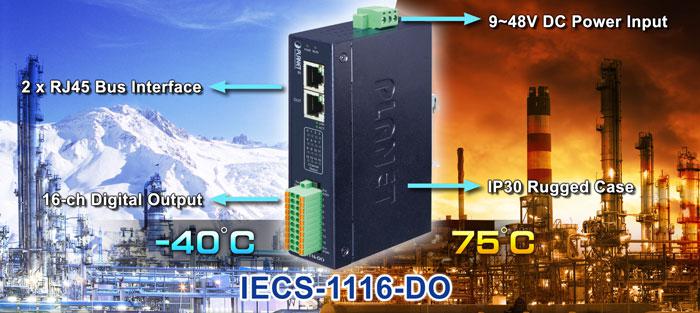

With the IP40 metal industrial case, the IECS-1116-DO provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IECS-1116-DO can be placed in almost any difficult environment.
Industrial-grade EtherCAT Slave Module for Factory Automation

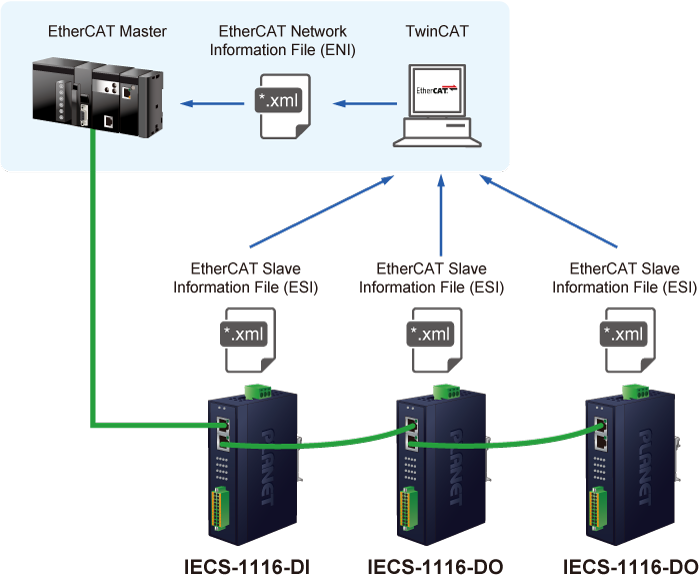

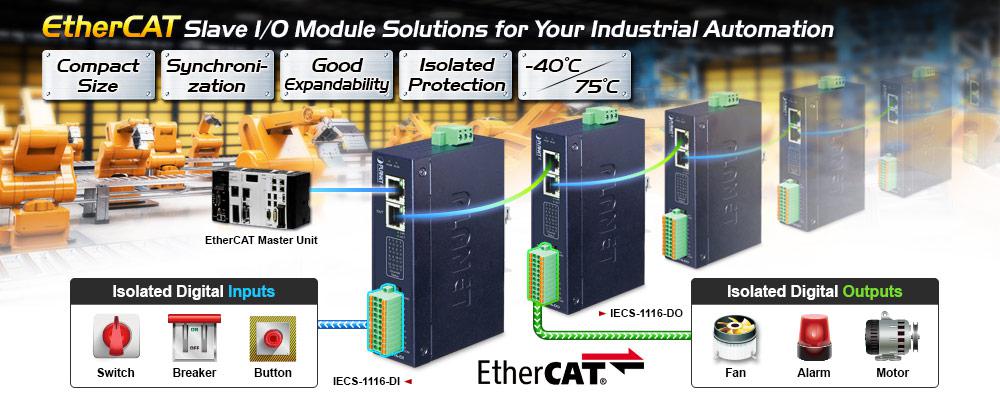

The IECS-1116-DO is an EtherCAT slave I/O module with isolated16-ch output for distributed industrial applications. Each module is equipped with high density I/O (up to 16 points) and powerful features in a compact size. DIN-rail design and daisy-chain wiring powered by EtherCAT technology make it easy to install the modules in the field. Besides, the IECS-1116-DO is able to provide a wide variety of I/O combinations with the IECS-1116-DI. With the standard ESI file, users can always find suitable I/O modules for their high-speed EtherCAT-based applications.

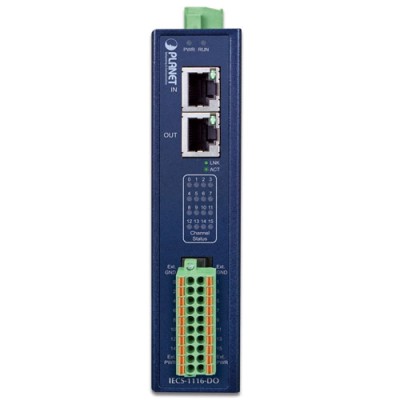

- Built-in isolated 16 digital outputs
- 2 RJ45 bus interfaces
- LED indicators for the input status
- Removable terminal block connector
- 9 ~ 48V DC wide input voltage range and high output current (700 mA/ch)
- Supports EtherCAT distributed clock (DC) mode and SyncManager mode
- EtherCAT conformance test tool verifie
Digital Output | |
---|---|
Channels | 16 |
Output Type | Open collector (sink) |
Load Voltage | 3.5~50V |
Max. Load Current | 700 mA per channel |
Photo Isolation | 3750 VDC |
Communication Interface | |
Connector | 2 RJ45 ports |
Protocol | EtherCAT |
Distance between Stations | Max. 100m (100BASE-TX) |
Data Transfer Medium | Ethernet/EtherCAT cable (min. cat5), shielded |
Power | |
Input Voltage Range | 9~48V DC |
Power Consumption | 4W max. |
Mechanical | |
Dimensions (W x D x H) | 32 x 87 x 135mm |
Installation | DIN-rail and wall mounting |
Case Material | IP40 metal |
Environment | |
Operating Temperature | -40~75 degrees C |
Storage Temperature | -40~75 degrees C |
Relative Humidity | 5~95% (non-condensing) |
