  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: IECC-210-KIT
  • Βαρος: 0.71kg
  • Διαστασεις: 7.00 x 3.30 x 10.40
383,31€
Χωρίς ΦΠΑ: 309,12€

Powering the Digital Transformation with EtherCAT

PLANET IECC-210-KIT (IECC-210T +IECC-210R) is an industrial EtherCAT Media Converter equipped with the EtherCAT protocol for today's distributed industrial applications. The EtherCAT-capable IECC-210T for Industrial Fast Ethernet serves as media converter from copper to optical fiber while the IECC-210R does the opposite. It can be diagnosed as two separate EtherCAT devices. With the advantage of fiber optic cabling, the data transmission distance of the IECC-210T and the IECC-210R can be extended to 60km (Depending on the ability of SFP module). Their compact size and DIN-rail mounting make installation in a cabinet easy. Pluggable terminal blocks and LED indicator help users to maintain and set up their system.



Flexible Installation

The IECC-210-KIT is an ideal media converter solution which provides quick installation, real-time connection status monitoring, wide-ranging power input and wide operating temperature to improve work efficiency, making them suitable for the harsh environment. Besides, both of them come with one 100BASE-TX RJ45 port and one 100BASE-FX SFP port. Through the EtherCAT technology, a network of up to 65,535 devices can be supported without the limitation of the type of topology -- line, bus, tree, star or any arrangement - -being used.

Synchronization

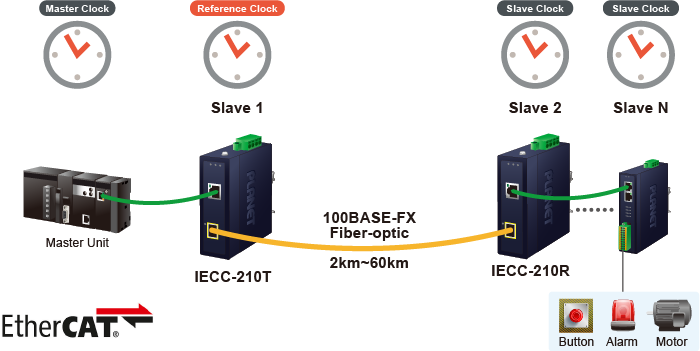

An EtherCAT slave is an electronic device that carries out cyclical sequences of calculations and/or data copying tasks at a certain interval (cycle). The EtherCAT slave working cycle (e.g. in the range of a few µs up to several ms) can be derived from different sources. EtherCAT node can measure time difference between leaving and returning frame. With distributed clocks, EtherCAT can realize a precise synchronization time of <1us between each slave module.

Convenient and Reliable Power System

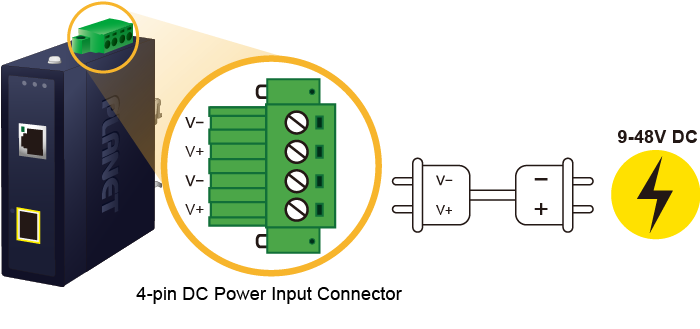

The IECC-210-KIT is equipped with one 4-pin DC power input connector with screws for power supply installation. With power magnetic protection design, it can avoid the device burnout due to wrong wiring. In addition, it also possesses an integrated power supply source with wide-ranging voltages (9 to 48V DC) for worldwide high availability applications.

Environmentally Hardened Design

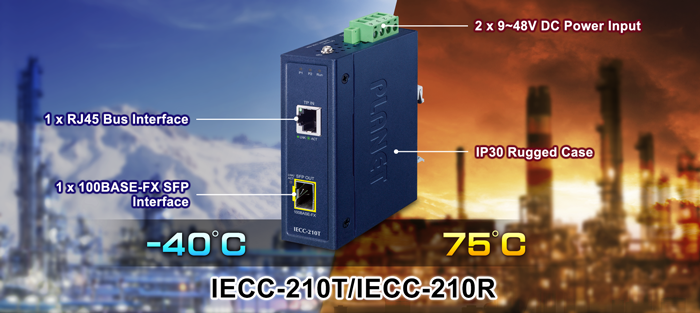

With the IP30 metal industrial case, the IECC-210-KIT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IECC-210-KIT can be placed in almost any difficult environment.

Industrial-grade EtherCAT Media Converter for Factory Automation

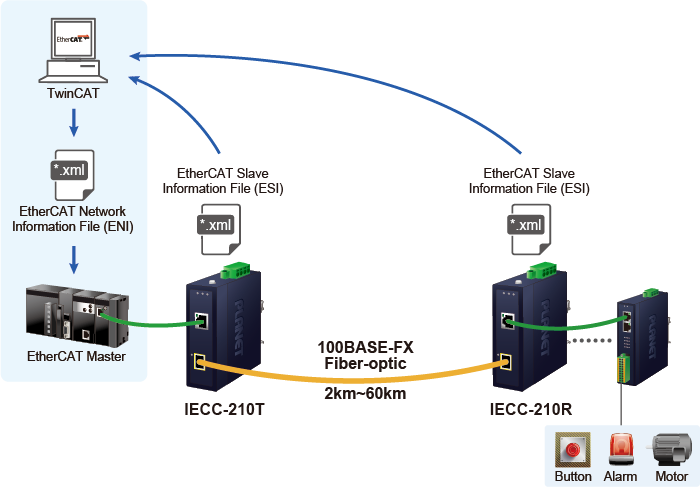

IECC-210-KIT is an EtherCAT Media Converter for distributed industrial applications. The kit with fiber optic can extend distance for data transmission and provides powerful features in a compact size. DIN-rail design and daisy-chain wiring powered by EtherCAT technology make it easy to install the modules in the field. With the standard ESI file, users can always find suitable I/O modules for their high-speed EtherCAT-based applications.



1 x 100BASE-TX RJ45 bus interface

1 x 100BASE-FX SFP interface

LED indicators for the input status

9 ~ 48V DC wide input voltage range

Supports EtherCAT Distributed Clock (DC) mode

EtherCAT conformance test tool verified

Communication Interface
CopperPort:1 x 100BASE-TX RJ45 port
Distance: between Stations max. 100 m (100BASE-TX)
Data Transfer Medium:Ethernet/EtherCAT cable (min. cat5), shielded
FilerPort:1 x 100BASE-FX SFP port
Distance between Stations:Depending on the ability of SFP module
Data Transfer Medium:Depending on the ability of SFP module
EtherCAT
ProtocolEtherCAT
Power
Input Voltage Range9~48V DC
Power Consumption1.92W max.
Mechanical
Dimensions (W x D x H)33 x 70 x 104mm
Weight208g each for devices
InstallationDIN-rail and wall mounting
Case MaterialIP30 metal
Environment
Operating Temperature-40~75 degrees C
Storage Temperature-40~85 degrees C
Relative Humidity5~95% (non-condensing)
Standards Conformance
Regulatory ComplianceCE, FCC



Datasheet

DateVersionDescriptionDownload
2023-04-271.0IECC-210-KIT



User's Manual

DateVersionDescriptionDownload
2023-01-311.0Initial release.



Utility

DateVersionDescriptionDownload
2023-02-101.0EtherCAT Media Converter ESI File Release.
