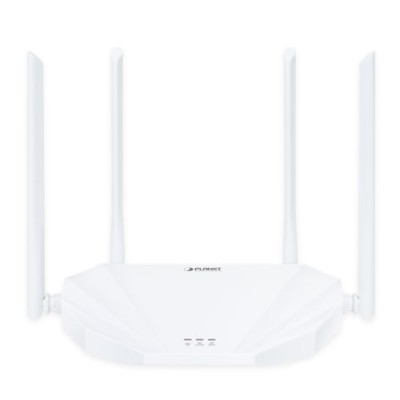

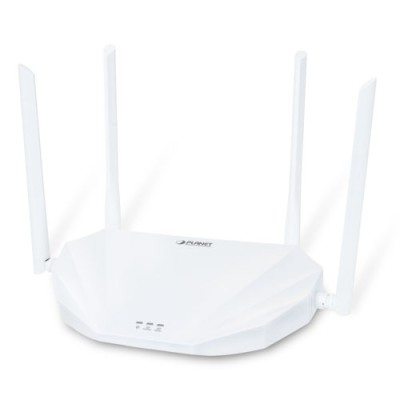

PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router

PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router
PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router
PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router
PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router
PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router
PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router
PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: WDRT-1800AX
  • Βαρος: 0.89kg
  • Διαστασεις: 14.80 x 23.40 x 3.10
97,04€
Χωρίς ΦΠΑ: 78,26€

Amazing Next-generation Wireless High-speed Connection

PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router, supporting MU-MIMO, Wave 2.0, OFDMA and EasyMesh technology, provides a maximum wireless speed of 1200Mbps in the 5GHz band and 600Mbps in the 2.4GHz band. The maximum number of client users is up to 64, ensuring more secure and robust connectivity with the adoption of Wi-Fi 6 technology.

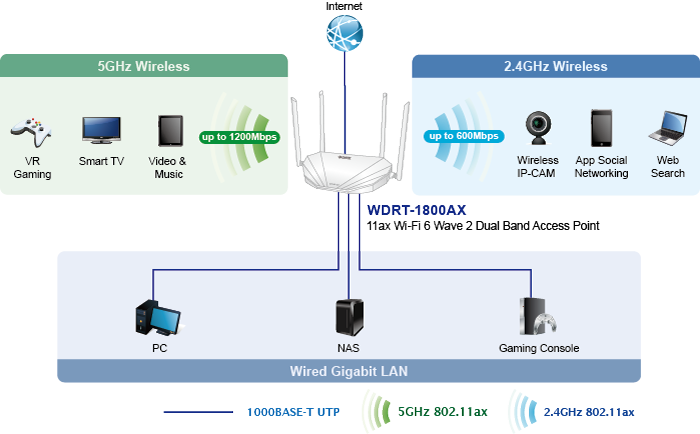

The WDRT-1800AX, suitable for home multi-device streaming connection, smart home and other environments, provides better speed and multi-installation connectivity for high-efficiency networking. Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the total bandwidth reaches 1800Mbps, and the 4-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother.

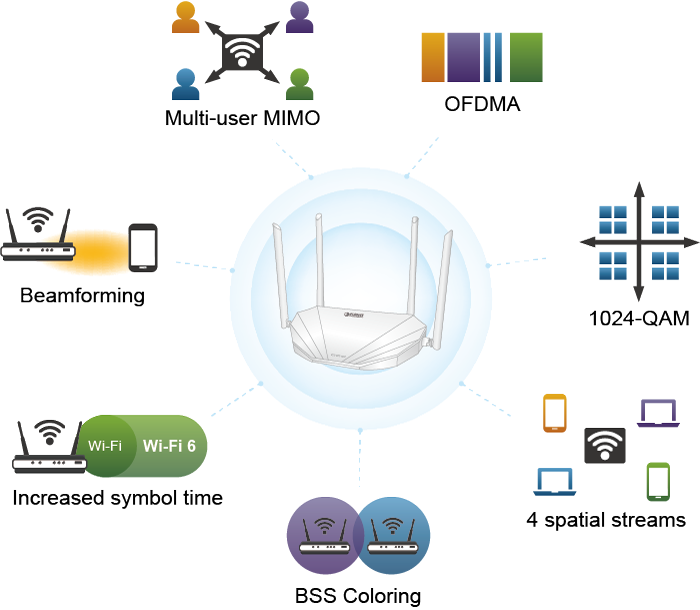

Benefits of Wi-Fi 6 technology

As OFDMA, a multi-user version of OFDM, enables the concurrent AP to communicate (uplink and downlink) with multiple clients by assigning subsets of subcarriers called resource units (RUs) to the individual clients. With EasyMesh and Seamless Roaming technologies, it provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. These technologies also can solve Wi-Fi congestion issues in open workspaces and conference rooms. The WDRT-1800AX can offer more powerful throughput coverage of up to 64 client users.

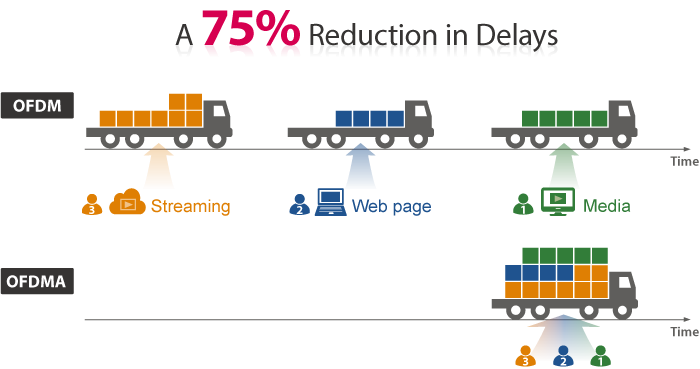

  • OFDMA (Orthogonal Frequency Division Multiple Access)
    OFDMA is a multi-user evolved version based on OFDM digital modulation technology. In the Wi-Fi 6 (802.11ax) standard, the main function of OFDMA is to improve network performance. Orthogonal frequency division multiple access (OFDMA) enables users to simultaneously operate in the same channel and therefore improves efficiency, latency, and throughput.

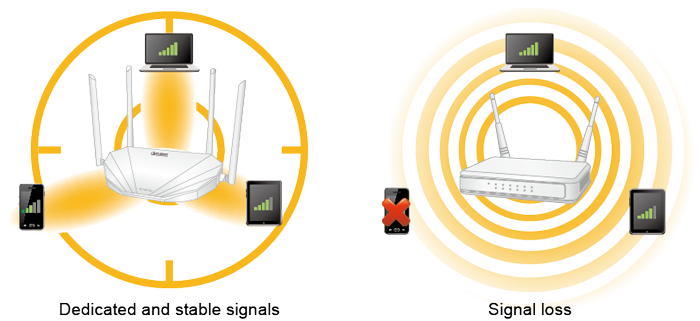

  • Beamforming
    Beamforming is to improve your Wi-Fi signal when you are far away from your router. When you use beamforming, Wi-Fi beamforming narrows the focus of that router signal, sending it directly to your devices in a straight line, thus minimizing surrounding signal interference and increasing the strength of the signal that ultimately bring you the following benefits:
    • Extend your Wi-Fi coverage
    • Deliver a more stable Wi-Fi connection
    • Deliver better Wi-Fi throughput
    • Reduce router interference

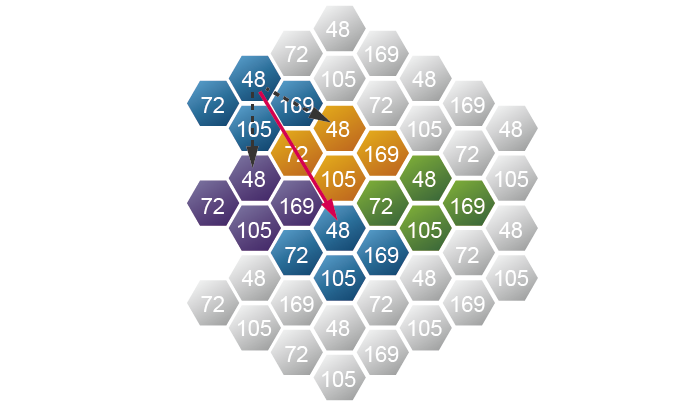

  • BSS (Basic Service Set) Coloring
    The BSS color is a numerical identifier of the BSS. 802.11ax radios are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel. If the color is the same, this is considered to be an intra-BSS frame transmission. In other words, the transmitting radio belongs to the same BSS as the receiver. If the detected frame has a different BSS color from its own, then the STA considers that frame as an inter-BSS frame from an overlapping BSS.



Easy Installation with EasyMesh Function

Wi-Fi EasyMesh provides a standards-based method for implementing multi-access point (AP) Wi-Fi networks. It not only has the advantages of easy-to-use and self-adjusting Wi-Fi, but also has interactive Wi-Fi CERTIFIED ™ equipment that leads to the advantage of improved equipment selection flexibility. The Wi-Fi EasyMesh network uses multiple access points that operate together to form a unified network, providing a smart and efficient Wi-Fi that fully covers indoor and outdoor spaces.



WPA3 Next Generation Security for Your WLAN Solution

WPA3 is the next generation Wi-Fi security technology that provides the most advanced security protocol to the market. WPA3 makes your connection more secure by preventing hackers from easily cracking your password no matter how simplified the password is. WPA3 can also provide more reliable password-based authentication, so it can better protect the security of individual users.

* WDRT-1800AX only supports WPA3-Personal.





Super Power Dual band WLAN Solution

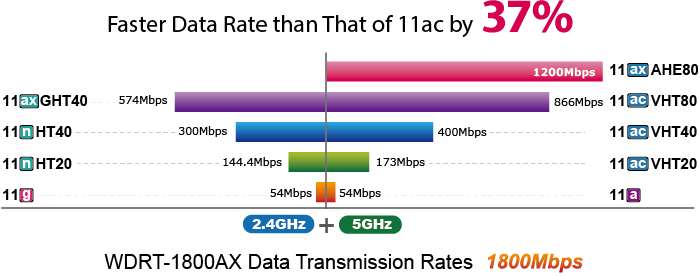

PLANET WDRT-1800AX, adopting the IEEE 802.11ax Wi-Fi 6 standard, provides a high-speed transmission. The maximum wireless speed in 2.4GHz band is up to 11AXG_GHE40 of 574Mbps, and in the 5GHz band is up to 11AXA_AHE80 of 1201Mbps. Both the 2.4GHz and 5GHz wireless connections can also be used simultaneously. Furthermore, the WDRT-1800AX adopts the high-class MediaTek SoC (System-on-a-Chip), which provides higher stability to meet the stringent requirements of the solution.



Extreme High Speed and Wi-Fi 6 Technology Make Wireless Transmission More Powerful

The WDRT-1800AX delivers the dual band and more bandwidth to avoid signal interference and ensure the best Wi-Fi performance. It allows you to check e-mails and surf the Internet via the 2.4GHz band and simultaneously watch full high-definition (HD) video or any other multimedia application via one 5GHz band. Besides, many client users can be connected to Wi-Fi at the same time. The maximum number of client users is up to 64. Moreover, the Gigabit Ethernet port of the WDRT-1800AX offers ultra-fast wired connections that utilize the maximum wireless bandwidth; therefore, users will experience a fast wireless speed of over 650Mbps. With the outstanding stability of high-speed wireless transmission, the WDRT-1800AX can provide users with excellent experience in multimedia streaming with your mobile devices anywhere, anytime.

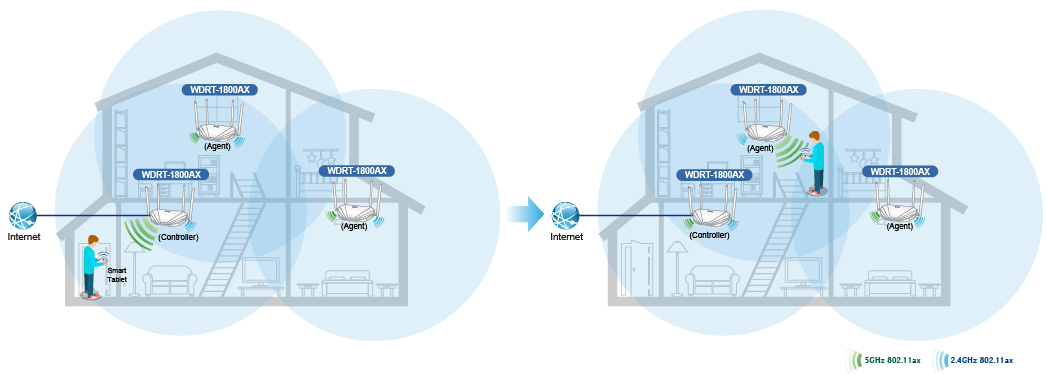

Mesh Wi-Fi and Seamless Roaming for Better Coverage

Moving between a traditional Wi-Fi AP or router and range extender, your Wi-Fi signal can experience lag or a dropped connection. Mesh Wi-Fi comes with four features, including Seamless Roaming, Band Steering, Self-Healing, and Client Steering. A set of packages usually includes three to four APs. Each AP is an independent router. When the main AP functions, other APs are used as satellite APs. The whole system can provide Wi-Fi network connection with zero dead angle, meaning a large area is covered.



Its characteristic is not like the traditional star-shaped or tree-shaped network structure which can only communicate with the upper and lower access points, but each access point can connect and communicate with each other, and at the same time, it can automatically find the best path for transmitting packets. This enables your networking environment to get full coverage and efficient performance.



Robust TR-069 Remote Management

To reduce the service provider’s manpower needed for on-site maintenance, the WDRT-1800AX supports TR069 (WAN Management Protocol) standard that allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device remotely.



IEEE Compliant Wireless LAN and Wired LAN

  • Compliant with the IEEE 802.11a/b/g/n/ac/ax wireless technology
  • Equipped with 1 WAN and 4 LANs with 10/100/1000Mbps RJ45 ports, and auto MDI/MDI-X



RF Interface Characteristics

  • 802.11ax 2T2R architecture with data rate of up to 1800Mbps (600Mbps in 2.4GHz and 1200Mbps in 5GHz)
  • High output power with multiply-adjustable transmit power control



Fixed-network Broadband Router

  • Supports WAN connection types: Dynamic, static IP, PPPoE
  • Supports Operation Modes: Route, Bridge and Relay mode
  • Supports DDNS and DHCP Servers



Multiple Operation Modes and Wireless Features

  • Max. Wireless Clients up to 64 (2.4GHz+5GHz)
  • Supports MU-MIMO, Wave 2.0, OFDMA, Beamforming and BSS coloring
  • Support Terminal Seamless Roaming with 802.11k, 802.11v, and 802.11r



Comprehensive Wireless Advanced Features

  • Easy Installation with EasyMesh Function (Expected to be launched in 2021/Q4)
  • Supports guest network to allow users to access different SSIDs
  • Supports Wireless QoS to enhance the efficiency of multimedia application
  • Supports 3-level Transmitting Power Control to adapt various environments
  • Self-healing (Schedule Reboot) mechanism for reliable connection



Secure Network Connection

  • Supports Wi-Fi Protected Setup (WPS)
  • Support WPA/WPA2/WAP3 wireless security encryption
  • Supports NAT firewall, IP / URL-based access control and MAC address filtering



Advanced Networking Function for Specific Application

  • Supports Bandwidth Control (QoS) based on different local IP addresses
  • Supports NTP, Port Forwarding, ALG and DMZ for various networking applications



Easy Installation and Management

  • Web-based UI and quick setup wizard for easy configuration
  • Support for centralized management  (TR069 )
  • Remote Management allows configuration from a remote site
  • System status monitoring includes DHCP Client List and System Log



Hardware Specifications
InterfaceWAN Port:
1 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port
LAN Port:
4 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port (LAN 1~4)
AntennaFour external 7dBi high gain omnidirectional antennas (2.4GHz x 2, 5GHz x 2)
Button1 x WPS/reset button
Press for about 1 second to enable WPS function.
Press for over 5 seconds to reset the device to factory default.
LED IndicatorsPWR x 1
LAN x 4
WAN x 1
WLAN (2.4GHz & 5GHz) x 2
Dimensions (W x D x H)234 x 148 x 31mm
Weight343g
Power Requirement12V DC, 1A
Wireless Interface Specifications
StandardIEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11g/b/n/ax 2.4GHz
Frequency BandSimultaneous 2.4GHz and 5GHz
Data Rates2.4GHz up to 600Mbps
5GHz up to 1200Mbps
Channel2.4GHz
FCC (America): 2.412~2.462GHz (11 Channels)
ETSI (Europe): 2.412~2.472GHz (13 Channels)
5GHz
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz
*The actual channels in application may vary depending on the regulations in different regions and countries.
Channel Width20MHz, 40MHz, 80MHz
Max. RF Power / EIRPEIRP < 22dBm
Receive Sensitivity2.4GHz
11b 11Mbps: 22dBm
11g 6Mbps: 21dBm
11g 54Mbps: 20dBm
11n MCS0-HT20: 21dBm
11n MCS7-HT20: 19dBm
11ax MCS11-HE20: 16dBm
11n MCS7-HT40: 19dBm
11ax MCS9-VHT40: 17dBm
11ax MCS11-HESU40: 16dBm
5GHz
11a 6Mbps: 21dBm
11a 54Mbps: 19dBm
11ac MCS8-VHT20: 17dBm
11ax MCS11-HE-SU20: 16dBm
11ac MCS9-VHT40: 17dBm
11ax MCS11-HE-SU40: 16dBm
11ac MCS9-VHT80:17dBm
11ax MCS11-HE-SU80: 16dBm
Wireless Output Power2.4GHz
11b 1Mbps: -96 dBm
11b 11Mbps: -90 dBm
11g 6Mbps: -91 dBm
11g 54Mbps: -75 dBm
11n MCS0-HT20: -91 dBm
11n MCS7-HT20: -71 dBm
11ax MCS0-HE-HESU20: 91dBm
11ax MCS11-HE-HESU20: 62dBm
11n MCS7-HT40: -70 dBm
11ac MCS9-VHT40: -63 dBm
11ax MCS11-HE-HESU40: 58dBm
5GHz
11a 6Mbps: -91 dBm
11a 54Mbps: -75 dBm
11n MCS0-HT20: -91 dBm
11n MCS7-HT20: -71 dBm
11ax MCS0-HE-HESU20: 91dBm
11ax MCS11-HE-HESU20: 62dBm
11n MCS7-HT40: -70 dBm
11ac MCS9-VHT40: -63 dBm
11ax MCS11-HE-HESU40: 58dBm
11ac MCS9-VHT80: -58 dBm
11ax MCS11-HE-HESU80: 54dBm
Transmit Power ControlLow, Medium, High
Wireless Management Features
Encryption SecurityWPA/WPA2/WPA3
Wireless SecurityWireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup )
Wireless AdvancedSupports dual-SSID (2.4GHz and 5GHz)
Supports guest network
Max. Supported Clients2.4GHz wireless: 32
5GHz wireless: 32
Router Features
WANShares data and Internet access with users, supporting the following Internet accesses:
 Dynamic IP
 Static IP
 PPPoE
LANBuilt-in DHCP server supporting static IP address distribution
Supports IP MAC binding
FirewallNAT firewall, SPI firewall
Built-in NAT server which supports port forwarding and DMZ
Built-in firewall with URL filtering, and MAC address filtering
System ManagementWeb-based (HTTP) management interface
Telnet server
Supports UPnP, PLANET DDNS
SNTP synchronization
System log
TR069
Standards Conformance
IEEE StandardsIEEE 802.11ax
IEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r
Modulation Type802.3ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM/1024QAM)
802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
Other Protocols and StandardsTCP/IP, DHCP, NAT, PPPoE, NTP
RegulatoryCE, RoHS
Environment
TemperatureOperating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C
HumidityOperating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2022-04-291.0WDRT-1800AX



Firmware

DateVersionDescriptionDownload
2023-04-071.0.3-CP21Added the following:
1. DDNS (Standard mode and Easy mode)
2. Smart Discovery
3. UNI-NMS system that can manage and monitor remote devices
2021-12-23V1.0.1[Add]
1. Supports Mesh function
2. Supports VPN function (IPSEC/PPTP/L2TP)
2021-08-20V1.0.0Initial Release



Quick Guide

DateVersionDescriptionDownload
2021-06-111.0Initial release



User's Manual

DateVersionDescriptionDownload
2022-06-221.0Initial release.
