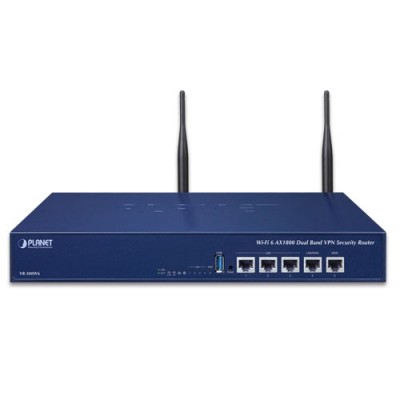

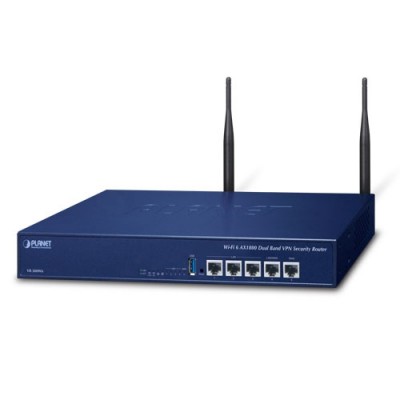

PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router

PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router
PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router
PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router
PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router
PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router
PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router
PLANET VR-300W6 Wi-Fi 6 AX1800 Dual Band VPN Security Router
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: VR-300W6
  • Βαρος: 2.04kg
  • Διαστασεις: 15.50 x 33.00 x 4.35
601,66€
Χωρίς ΦΠΑ: 485,21€

Powerful Wi-Fi 6 and VPN Security Solution

The Wi-Fi 6 or 802.11ax is the latest generation of wireless networking technology and offers more capacity, efficiency and performance for advanced connectivity. With Wi-Fi 6 technology, it creates tremendous worldwide opportunities for e-business and information sharing but also brings advanced network security issues for businesses. The demand for information security and wireless connetion has become the primary concern for the enterprises.

To fulfill this demand, PLANET has launched the all-in-one VR-300W6 and VR-300PW6 Wireless VPN Security Routers that carry several main categories across your network security deployments:

  • Wi-Fi 6 technology
  • Cybersecurity
  • SPI firewall security protection,
  • Policy auditing (content filtering, VPN tunnel and MAC/IP filtering)
  • AP controller
  • Captive portal, RADIUS
  • Easy management (Setup Wizard, DHCP Server and Dashboard).

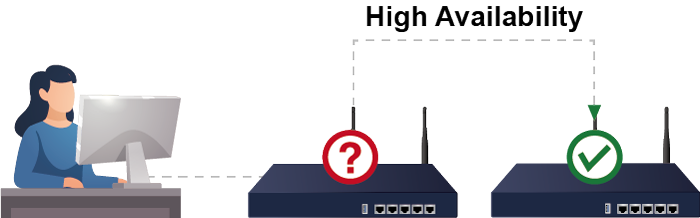

Furthermore, its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.



Wireless 11ax Brings Excellent Data Link Speed

The VR-300W6 and VR-300PW6 are designed with high power amplifier and two highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the total bandwidth reaches 1800Mbps, and the 2-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother.



Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the VR-300W6 and VR-300PW6 extend the 802.11n 40MHz channel binding to 80MHz+80MHz and the implementation of 1024-QAM modulation where higher transmitting/receiving rates go up to 1800Mbps in 2.4GHz and 5GHz less interference frequency band and the 4-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother. In addition, the VR-300W6 and VR-300PW6 are equipped with Gigabit LAN port to eliminate the restriction of 100Mbps Fast Ethernet wired connection to let users fully enjoy the high speed provided by wireless. The IEEE 802.11ax also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.



WPA3 Next Generation Security for Your WLAN Solution

WPA3 is the next generation Wi-Fi security technology that provides the most advanced security protocol to the market. WPA3 makes your connection more secure by preventing hackers from easily cracking your password no matter how simplified the password is. WPA3 can also provide more reliable password-based authentication, so it can better protect the security of individual users.

* VR-300W6 and VR-300PW6 only support WPA3-Personal.

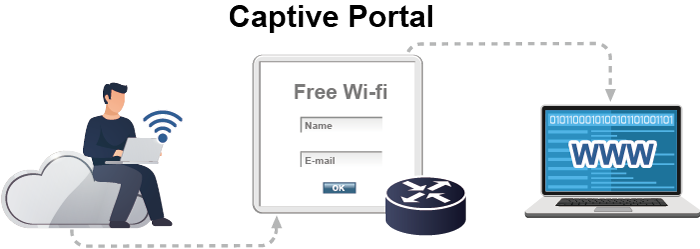

Wi-Fi Deployments and Authentication with Simplified Management

The VR-300W6 and VR-300PW6 provide a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-300W6 and VR-300PW6 can offer a secure Wi-Fi network with easy installation for your business.

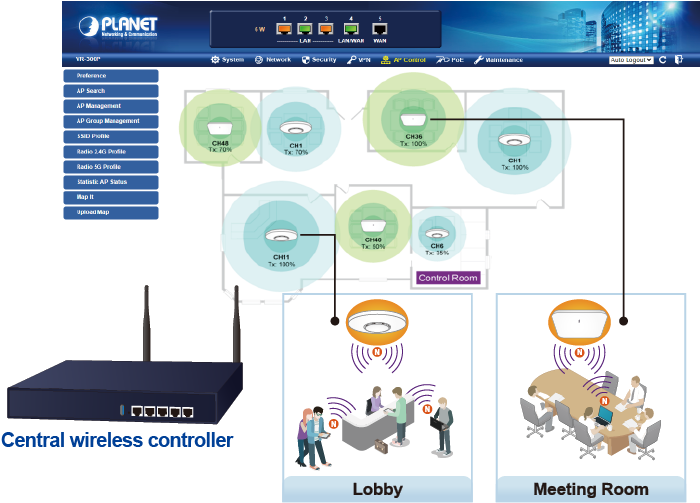

Centralized Remote Control of Managed APs*

The VR-300W6 and VR-300PW6 provide centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

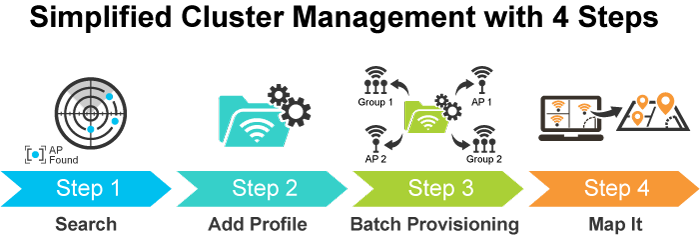

For example, to configure multiple Smart APs of the same model, the VR-300W6 and VR-300PW6 allow clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

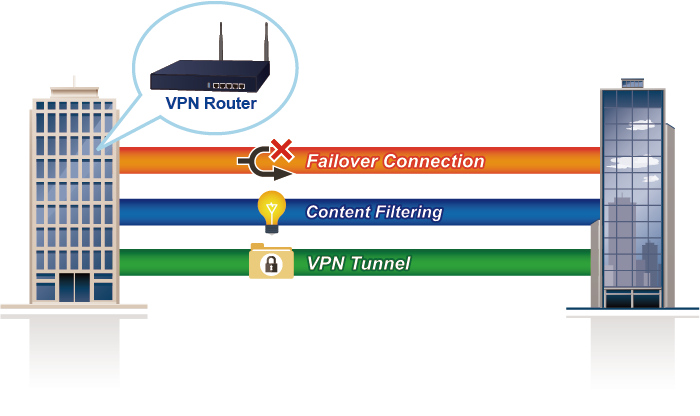

Ideal High-Availability VPN Security Router Solution for SMBs

The VR-300W6 and VR-300PW6 provide complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300PW6 makes the connection secure, more flexible, and more capable.

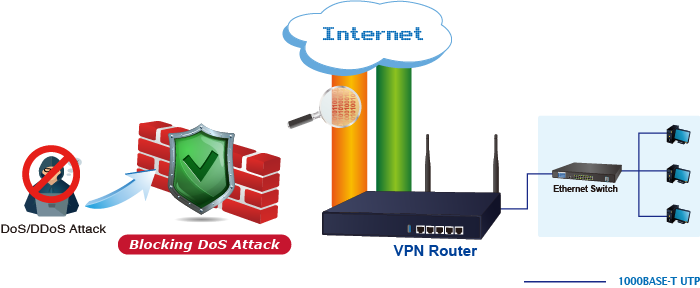

Excellent Ability in Threat Defense

The VR-300W6 and VR-300PW6 are built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300W6 and VR-300PW6 are equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-300W6 and VR-300PW6 offer an easy-to-use, platform independent management and configuration facility. The VR-300W6 and VR-300PW6 support SNMP and they can be managed via any management software based on the standard SNMP protocol.





Improving Network Efficiency

It is applicable to the small-scale sector (from 60 to 100 people), using a 13-inch desktop design, with five Gigabit ports (WAN/LAN). It provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the High-Availability and Dual-WAN interfaces enable the VR-300W6 and VR-300PW6 to support outbound load balancing and WAN fail-over features.

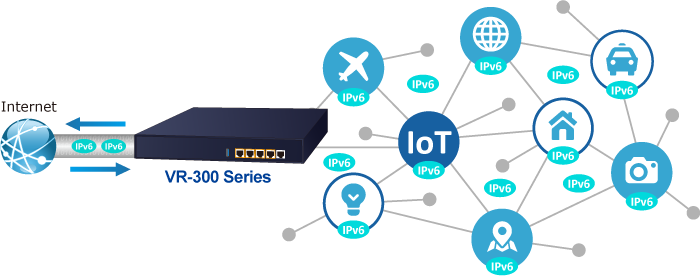

Furthermore, the VR-300W6 and VR-300PW6 can connect dual IPv4/v6 WANs with up to two different ISPs and support many popular security features including Content Filtering to block specific URL feature that can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites like Facebook, YouTube and Yahoo.



The VR-300W6 and VR-300PW6 both have link redundancy, MAC/IP filtering, outbound load balancing, QoS and many more functions to make the entire network system better. It creates a stable and qualified VPN security connection for many important applications such as VoIP, video conferencing and data transmission. The VR-300W6’s and VR-300PW6’s economical price with complete network security management features make it an inevitable choice for the next-generation office network load balancer.

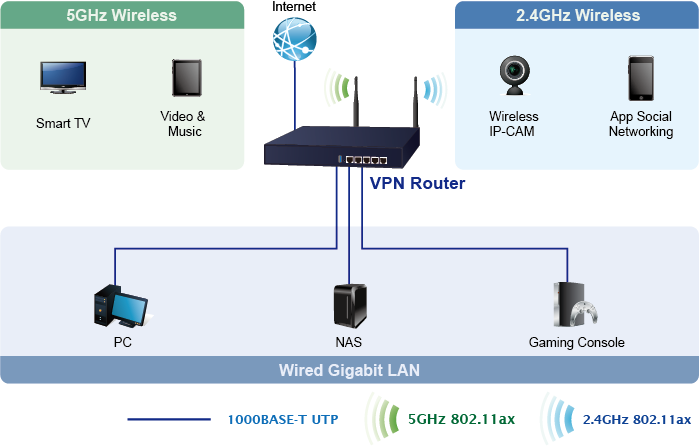

Extremely High-speed and Dual-band Capabilities Make Wi-Fi Transmission More Powerful

The VR-300W6 and VR-300PW6 deliver the Dual Band technology to avoid signal interference and ensure the best Wi-Fi performance.  It allows you to check e-mail and surf the Internet via the 2.4GHz band and simultaneously watch High-Definition (HD) video or any other multimedia application via 5GHz band. Moreover, the Gigabit Ethernet ports of the VR-300W6 and VR-300PW6 offer ultra-fast wired connections that utilize the maximum wireless bandwidth; therefore, users will have real wireless speed over 100Mbps. With outstanding stability of high-speed wireless transmission, the VR-300W6 and VR-300PW6 can provide users with excellent experience in multimedia streaming with your mobile devices anywhere, anytime.



Highlights

  • Dual-WAN failover and Dual-WAN load balancing
  • Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards
  • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • Stateful Packet Inspection (SPI) firewall and content filtering
  • Blocks DoS/DDOS attack, port range forwarding
  • High Availability, AP Controller, Captive Portal and RADIUS
  • IPv6, SNMP, PLANET DDNS and Universal Network Management System



Hardware

  • 5 10/100/1000BASE-T RJ45 ports
  • 1 undefined Ethernet port (LAN/WAN) for Dual-WAN function
  • 1 USB 3.0 port for system configuration backup and restoration
  • 2 5dBi wireless antennas
  • Reset button and fanless design
  • Desktop installation or rack mounting



RF Interface Characteristics

  • Features 2.4GHz (802.11b/g/n/ax) and 5GHz (802.11a/n/ac/ax) concurrent dual band for carrying high load traffic
  • 2T2R MIMO technology for enhanced throughput and coverage
  • Provides multiple adjustable transmit power control
  • High speed up to 1.8Gbps (600Mbps for 2.4GHz and 1200Mbps for 5GHz) wireless data rate



IP Routing Feature

  • Static Route
  • Dynamic Route
  • OSPF



Firewall Security

  • Cybersecurity
  • Stateful Packet Inspection (SPI) firewall
  • Blocks DoS/DDoS attack
  • Content Filtering
  • MAC Filtering and IP Filtering
  • NAT ALGs (Application Layer Gateway)
  • Blocks SYN/ICMP Flooding



VPN Features

  • IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
  • Max. Connection Tunnel Entries: 60 VPN tunnels,
  • Encryption methods: DES, 3DES, AES, AES-128/192/256
  • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512



Networking

  • Outbound load balancing
  • Failover for dual-WAN
  • High Availability
  • Captive Portal
  • RADIUS Server/Client
  • Static IP/PPPoE/DHCP client for WAN
  • DHCP server/NTP client for LAN
  • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
  • MAC address clone
  • DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP



Others

  • Setup wizard
  • Dashboard for real-time system overview
  • Supported access by HTTP or HTTPS
  • Auto reboot
  • PLANET NMS System and Smart Discovery Utility for deployment management
  • Planet CloudViewer App for real-time monitoring



Hardware Specifications
Ethernet5 10/100/1000BASE-T RJ45 Ethernet ports including:
3 LAN ports (Ports 1 to 3)
1 LAN/WAN port (Port 4)
1 WAN port (Port 5)
Antennas2 external 5dBi, 2.4GHz/5GHz dual-band SMA antennas
USB Port1 USB 3.0 port for system configuration backup and restoration
Reset ButtonReset to factory default
Thermal Fan1
LED IndicatorsPWR (Green)
Internet (Green)
LAN/WAN (Green)
2.4G (Green)
5G (Green)
PoE-in-Use LED (Amber)
InstallationDesktop installation or rack mounting
Power Requirements100~240V AC, 50/60Hz, auto-sensing
Power Consumption / DissipationVR-300W6: Max.8 watts/ 27.3 BTU
VR-300PW6: Max.133 watts/ 453.8 BTU
WeightVR-300W6: 1.7kg
VR-300PW6: 1.7kg
Dimensions (WxDxH)330 x 155 x 43.5 mm, 1U height
EnclosureMetal
Wireless
StandardIEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11g/b/n/ax 2.4GHz
Band Mode2.4G & 5G concurrent mode
Frequency Range2.4GHz
America FCC: 2.412~2.462GHz
Europe ETSI: 2.412GHz~2.472GHz

5GHz
5.15GHz ~5.875GHz
Operating Channels2.4GHz
America FCC: 1~11
Europe ETSI: 1~13

5GHz
America FCC:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140

Europe ETSI:
Non-DFS: 36, 40, 44, 48
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140

*5GHz channel list will vary in different countries according to their regulations.
Channel Width20MHz, 40MHz, 80MHz
Data Transmission RatesTransmit: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
Receive: 600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz

*The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
Transmission Power11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
17dBm@MCS7,HT40
11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9
11ax HT20: 20+/-1.5dBm @MCS9
11ax HT40: 17 +/- 1.5dBm @MCS9
11ax HT80: 14.5 +/- 1.5dBm @MCS11
Encryption SecurityWEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES) / WPA3-PSK (TKIP/AES)
802.1x Authenticator
Wireless AdvancedWi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering
Security Service
Firewall SecurityCybersecurity
Stateful Packet Inspection (SPI)
Blocks DoS/DDoS attack
ALG (Application Layer Gateway)SIP, RTSP, FTP, H.323, TFTP
NATPort forwarding
DMZ Host
UPnP
Content FilteringMAC filtering
IP filtering
Web filtering
Bandwidth ManagementOutbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
VPN
VPN FunctionIPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN TunnelsMax. 60
VPN ThroughputMax. 60Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encryption
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Networking
Operation ModeRouting mode
Routing ProtocolStatic Route, Dynamic Route (RIP), OSPF
VLAN802.1q Tag-based, Port-based, Multi-VLAN
MulticastIGMP Proxy
NAT ThroughputMax. 900Mbps
Outbound Load BalancingSupported algorithms: Weight
ProtocolIPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,
Key FeaturesHA (High Availability)
Captive Portal
RADIUS Server/Client
AP Control
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management InterfacesSSHv2, TLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment Specifications
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
