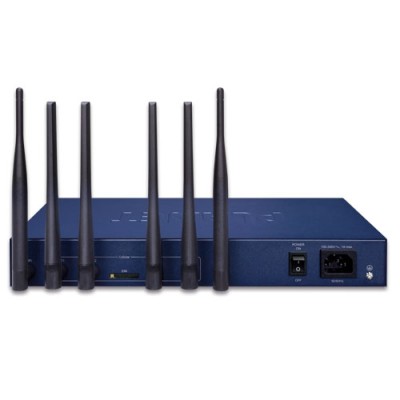

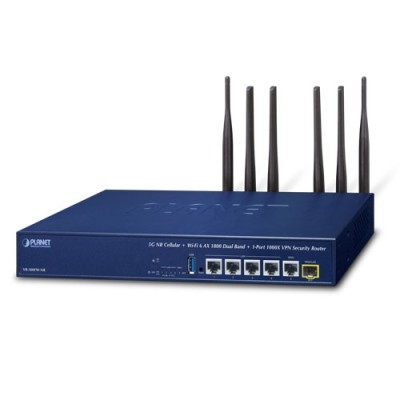

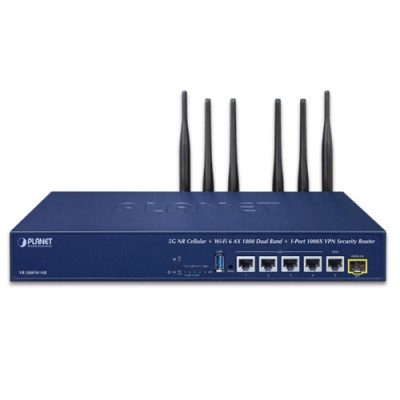

PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router

PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router
PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router
PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router
PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router
PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router
PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router
PLANET VR-300FW-NR 5G NR Cellular + Wi-Fi 6 AX 1800 Dual Band + 1-Port 1000X SFP VPN Security Router
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: VR-300FW-NR
  • Βαρος: 2.13kg
  • Διαστασεις: 15.50 x 33.00 x 4.40
1.402,25€
Χωρίς ΦΠΑ: 1.130,85€

Powerful 5G NR and Wi-Fi 6 Enterprise Network Solution

The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security and wireless connetion has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the all-in-one VR-300FW-NR 5G NR Cellular + Wi-Fi 6 VPN Security Router. It is able to provide ultra-fast broadband access with 5G cellular network. The VR-300FW-NR also features five Ethernet ports (4 LANs and 1 LAN/WAN), one Fiber port (LAN/WAN), IEEE 11ax Wi-Fi capability, and VPN technology bundled in a compact yet rugged metal case. It establishes a fast cellular connection between the Ethernet equipped devices. The VR-300FW-NR is an integrated 5G NR and Wi-Fi 6 solution for System Integrators, ISPs and Enterprises.

The VR-300FW-NR also carries several main categories across your network security deployments: Copper/fiber WAN interface, cybersecurity, SPI firewall security protection, policy auditing (content filtering, VPN tunnel and MAC/IP filtering), AP controller, captive portal, RADIUS and easy management (Setup Wizard, DHCP Server and Dashboard). Furthermore, its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.



Automatic Failover between 5G NR and Dual WAN

Designed with 5G NR, dual WAN interfaces (fiber and copper), 1000X SFP and Gigabyte Ethernet, the VR-300FW-NR ensures Internet connectivity by featuring failover functionality between 5G NR and dual WAN. It provides flexibilty to set priority for 5G NR or dual WAN connection. When the main WAN interface fails, the secondary WAN interface will automatically back up the connection to ensure always-on connectivity.

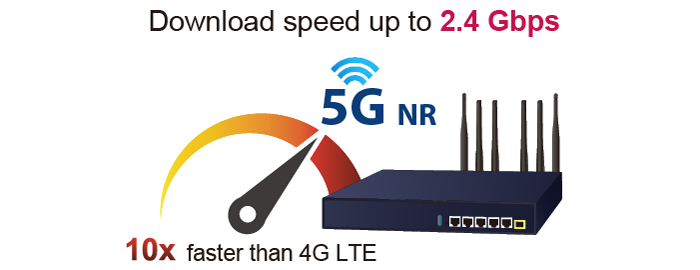

Ultra-Fast Speed 4G/5G Network*

The VR-300FW-NR supports 5G NR DL (downlink) speeds higher than 2.4 Gbps and 4G LTE DL speeds of up to 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. It also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

*The real 5G NR/4G LTE data rate is dependent on local service provider.



GPS Included

The VR-300FW-NR is equipped with (global positioning system) feature. It adapts 5G-NR technology to incorporate multiple global navigation systems (GPS/GLONASS/BeiDou/Galileo/QZSS). It helps to position location of cellular gateway based on a network of satellites that continuously transmits necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked.



Flexible WAN interface Enables Extension of Network Deployment

The VR-300FW-NR provides both copper and fiber connectors for WAN interface. With one SFP slot, it supports fiber extension for FTTX application. It allows the administrator to flexibly choose the suitable SFP transceiver according to the transmission distance required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.



Wireless 11ax Brings Excellent Data Link Speed

The VR-300FW-NR is designed with high power amplifier and 2 highly-sensitive antennas which provide stronger signal and excellent coverage even in the wide-ranging or bad environment. With adjustable transmit power option, the administrator can flexibly reduce or increase the output power for various environments, thus reducing interference to achieve maximum performance. Equipped with the next-generation Wi-Fi 6 (802.11ax) wireless network standard, the total bandwidth reaches 1800Mbps, and the 2-stream transmission technology improves the transmission efficiency of multiple devices, making AR/VR/IoT applications smoother. The IEEE 802.11ax also optimizes MU-MIMO (Multi-User MIMO) mechanism to serve multiple devices simultaneously.

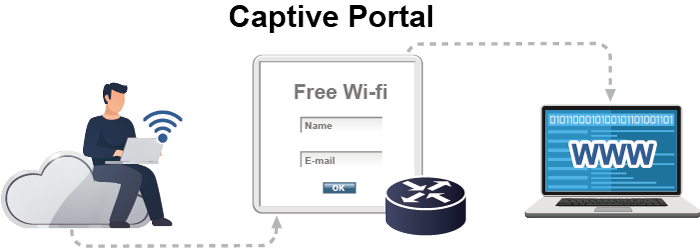

Wi-Fi Deployments and Authentication with Simplified Management

The VR-300FW-NR provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-300FW-NR can offer a secure Wi-Fi network with easy installation for your business.

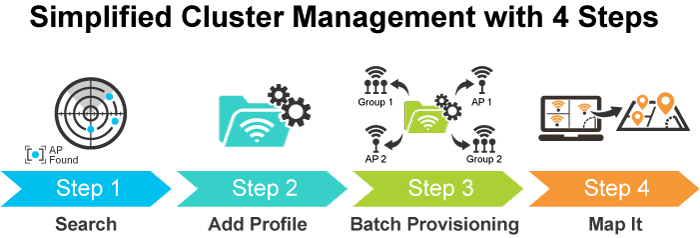

Centralized Remote Control of Managed APs*

The VR-300FW-NR provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

For example, to configure multiple Smart APs of the same model, the VR-300FW-NR allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

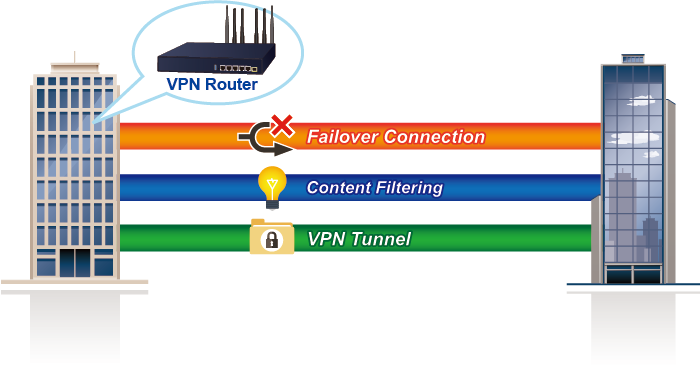

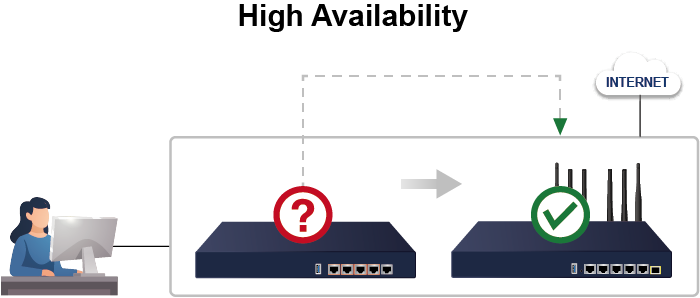

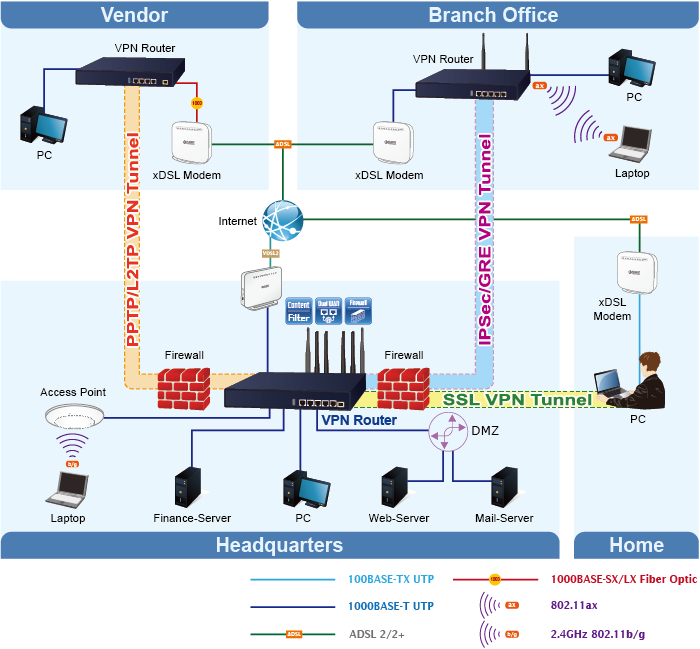

Ideal High-Availability VPN Security Router Solution for SMBs

The VR-300FW-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300FW-NR makes the connection secure, more flexible, and more capable.

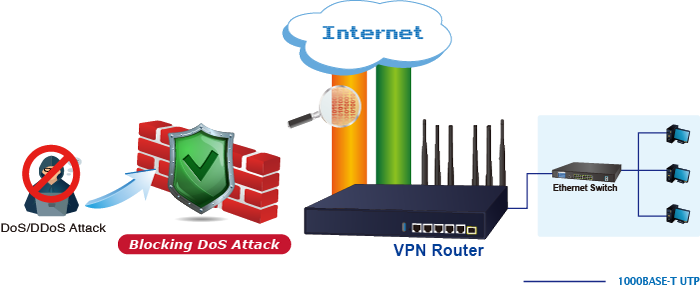

Excellent Ability in Threat Defense

The VR-300FW-NR with built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions provides high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.



Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300FW-NR is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-300FW-NR offers an easy-to-use, platform independent management and configuration facility. The VR-300FW-NR supports SNMP and it can be managed via any management software based on the standard SNMP protocol.



Maximizing Work Efficiency with PLANET SD-WAN Gateway

PLANET VR-300FW-NR incorporated in SD-WAN (software-defined wide area network) function can greatly increase WAN optimization for multiple WAN links to be managed. With SD-WAN, users can connect any application across all available network connections at every site. It improves application performance and provides a high-quality user experience for increasing business productivity and reducing IT costs.



Intelligent SFP Diagnosis Mechanism

The VR-300FW-NR supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.



5G NR Cellular Communication Solution

PLANET VR-300FW-NR adopts 5G NR cellular technology and thus breaks the 100m limitation of RJ45 transmission. To avoid data loss affected by an unexpected breakdown connection on the part of ISP, the VR-300FW-NR provides failover functions and advanced features like VLAN, VPN, Modbus, and network management to cover more applications.



Improving Network Efficiency

The VR-300FW-NR with five Gigabit ports (WAN/LAN) is applicable to the small number of users ranging from 60 to 100, using a 13-inch desktop design. It provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirements, and the High-Availability and Dual-WAN interfaces enable the VR-300FW-NR to support outbound load balancing and WAN fail-over features.

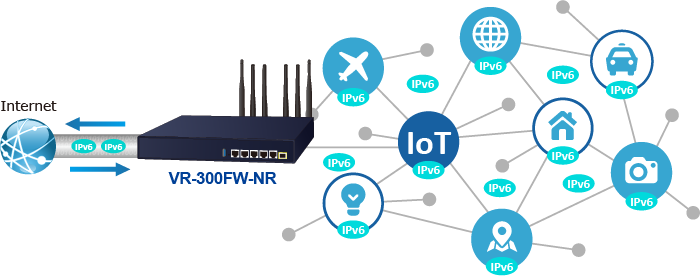

Furthermore, the VR-300FW-NR can connect dual IPv4/v6 WANs with up to two different ISPs and supports many popular security features including Content Filtering to block specific URL feature that can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites like Facebook, YouTube and Yahoo.



The VR-300FW-NR has link redundancy, MAC/IP filtering, outbound load balancing, QoS and many more functions to make the entire network system better. It creates a stable and qualified VPN security connection for many important applications such as VoIP, video conferencing and data transmission. The VR-300FW-NR’s economical price with complete network security management features makes it an inevitable choice for the next-generation office network load balancer.

Highlights

  • Global 5G NR (NSA/SA)/4G LTE network with SIM design for cellular network redundancy
  • Automatic failover between 5G NR and Gigabit WAN
  • Complies with IEEE 802.11ax and IEEE 802.11a/b/g/n/ac standards
  • Dual-WAN failover and dual-WAN load balancing
  • One 1000BASE-X SFP slot for WAN interface
  • SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • Stateful Packet Inspection (SPI) firewall and content filtering
  • Blocks DoS/DDOS attack, port range forwarding
  • High Availability, AP Controller, Captive Portal and RADIUS
  • IPv6, SNMP, PLANET DDNS and Universal Network Management System
  • Planet NMS controller system and CloudViewer app supported



Hardware

  • 1 1000BASE-X SFP slot
  • 5 10/100/1000BASE-T RJ45 ports, 1 undefined Ethernet port (LAN/WAN) for dual-WAN function
  • 1 x SIM card slot
  • 1 USB port for system configuration backup and restoration
  • Reset button and fanless design
  • Desktop installation or rack mounting



Cellular Interface

  • Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
  • Built-in SIM and broadband backup for network redundancy
  • Four detachable antennas for 5G NR connection
  • LED indicators for signal strength and connection status
  • Global Navigation Satellite System (GNSS)



RF Interface Characteristics

  • Features 2.4GHz (802.11b/g/n/ax) and 5GHz (802.11a/n/ac/ax) dual band for carrying high load traffic
  • 2T2R MIMO technology for enhanced throughput and coverage
  • Provides multiple adjustable transmit power control
  • High speed up to 1.8Gbps (600Mbps for 2.4GHz or 1200Mbps for 5GHz) wireless data rate



IP Routing Feature

  • Static Route
  • Dynamic Route
  • OSPF



Firewall Security

  • Cybersecurity
  • Stateful Packet Inspection (SPI) firewall
  • Blocks DoS/DDoS attack
  • Content Filtering
  • MAC Filtering and IP Filtering
  • NAT ALGs (Application Layer Gateway)
  • Blocks SYN/ICMP Flooding



VPN Features

  • IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
  • Max. Connection Tunnel Entries: 60 VPN tunnels,
  • Encryption methods: DES, 3DES, AES, AES-128/192/256
  • Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512



Networking

  • Outbound load balancing
  • Failover for dual-WAN
  • High Availability
  • Captive Portal
  • RADIUS Server/Client
  • Static IP/PPPoE/DHCP client for WAN
  • DHCP server/NTP client for LAN
  • Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
  • MAC address clone
  • DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP



Others

  • Setup wizard
  • Dashboard for real-time system overview
  • SFP-DDM (Digital Diagnostic Monitor)
  • Supported access by HTTP or HTTPS
  • Auto reboot
  • PLANET NMS System and Smart Discovery Utility for deployment management
  • PLANET CloudViewer app for real-time monitoring
Hardware Specifications
Ethernet5 10/100/1000BASE-T RJ45 Ethernet ports
4 LAN ports (Ports 1 to 4)
1 WAN/LAN port (Port 5)
FiberOne 1000BASE-X SFP Gigabit Ethernet port (Port 6)
Supports WAN port mode or LAN port mode over software configuration
USB Port1 USB 2.0 port for system configuration backup and restoration
Reset ButtonReset to factory default
LED IndicatorsSystem:
PWR, Internet, SIM, 5G, 2.4G (Green)

Ethernet Interfaces (Port 1-5):
10/100/1000 LNK/ACT (Green)

Fiber Interfaces (Port 6):
1000 LNK/ACT (Green)
InstallationDesktop installation or rack mounting
Power Requirements100~240V AC, 50/60Hz, auto-sensing
Power Consumption / DissipationMax. 6.4 watts/21.82 BTU (No Loading)
Max. 9.5 watts/32.39 BTU (Full loading)
Weight1508g
Dimensions (W x D x H)330 x 155 x 44 mm, 1U height
EnclosureMetal
Multi Band Supports
5G SUB6 BANDSNSA :n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
SA:n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
LTE BANDSFDD : B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71
TDD : B34/B38/B39/B40/B41/B42/B43/B48
LAA : B46
UMTS BANDSFDD :B1/B2/B8/B4/B5/B19
MAX DL SPEED: DL3.4Gbps; UL 550 Mbps
GNSS: GPS/ GLONASS/ BDS/ Galileo/ QZSS
TDD :MAX DL SPEED DL 2.4 Gbps; UL 900 Mbps
WCDMAB1/B2/B3/B4/B5/B8
GNSSGPS L1+L5 dual bands/GLONASS/BeiDou/Galileo/QZSS
Data Transmission Throughput2.4Gbps (DL)/500Mbps (UL) for NR
1Gbps (DL)/200Mbps (UL) for LTE
42Mbps (DL)/5.76Mbps (UL) for HSPA+
Wireless
StandardIEEE 802.11a/n/ac/ax 5GHz
IEEE 802.11g/b/n/ax 2.4GHz
Band Mode2.4G & 5G concurrent mode
Frequency Range2.4GHz:
America FCC: 2.412~2.462GHz
Europe ETSI: 2.412GHz~2.472GHz

5GHz:
5.15GHz ~5.875GHz
Operating Channels2.4GHz:
America FCC: 1~11
Europe ETSI: 1~13

5GHz:
America FCC:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Europe ETSI:
Non-DFS: 36, 40, 44, 48, 149,153,157,161,165
DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
5GHz channel list will vary in different countries according to their regulations.
Channel Width20MHz, 40MHz, 80MHz
Data Transmission RatesTransmit:600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
Receive:600 Mbps* for 2.4 GHz and 1200 Mbps* for 5 GHz
*The estimated transmission distance is based on the theory. The actual distance will vary in different environments.
Transmission Power11b: 23dbm+/- 1.5dbm @11Mbps
11g: 20dbm+/- 1.5dbm @54Mbps
11g/n: 20dBm +/- 1.5dbm @MCS7, HT20
17dBm@MCS7,HT40
11a: 19.5dBm +/- 1.5dbm @54Mbps
11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20
17dBm@MCS7, HT40
11ac HT20: 20+/-1.5dBm @MCS8
11ac HT40: 17+/-1.5dBm @MCS9
11ac HT80: 14.5+/-1.5dBm @MCS9
11ax HT20: 20+/-1.5dBm @MCS9
11ax HT40: 17 +/- 1.5dBm @MCS9
11ax HT80: 14.5 +/- 1.5dBm @MCS11
Encryption SecurityWEP (64/128-bit) encryption security
WPA / WPA2 (TKIP/AES)
WPA-PSK / WPA2-PSK (TKIP/AES) / WPA3-PSK (TKIP/AES)
802.1x Authenticator
Wireless AdvancedWi-Fi Multimedia (WMM)
Auto channel selection
Wireless output power management
MAC address filtering
Security Service
Firewall SecurityCybersecurity
Stateful Packet Inspection (SPI)
Blocks DoS/DDoS attack
ALG (Application Layer Gateway)SIP, RTSP, FTP, H.323, TFTP
NATPort forwarding
DMZ Host
UPnP
Content FilteringMAC filtering
IP filtering
Web filtering
Bandwidth ManagementOutbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
Networking
Operation ModeRouting mode
Routing ProtocolStatic Route, Dynamic Route (RIP), OSPF
VLAN802.1q Tag-based, Port-based, Multi-VLAN
MulticastIGMP Proxy
NAT ThroughputMax. 900Mbps
Outbound Load BalancingSupported algorithms: Weight
ProtocolIPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3,
Key FeaturesHA (High Availability)
Captive Portal
RADIUS Server/Client
AP Control
VPN
VPN FunctionIPSec/Remote Server (Net-to-Net, Host-to-Net)
GRE
PPTP Server
L2TP Server
SSL Server/Client (Open VPN)
VPN TunnelsMax. 60
VPN ThroughputMax. 108Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management InterfacesSSHv2, TLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment Specifications
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
