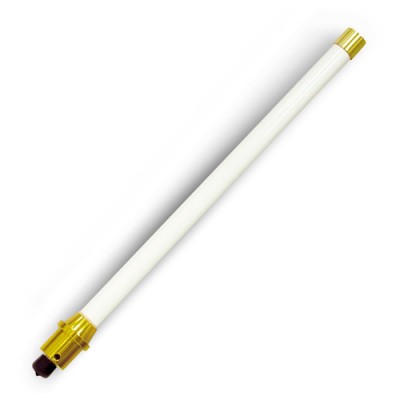

PLANET ANT-OM8 2.4GHz 8dBi Omni-directional Antenna

PLANET ANT-OM8 2.4GHz 8dBi Omni-directional Antenna
PLANET ANT-OM8 2.4GHz 8dBi Omni-directional Antenna
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ANT-OM8
  • Βαρος: 0.62kg
  • Διαστασεις: 10.00 x 10.00 x 40.00
Σύμφωνα με 2 αξιολογήσεις. - Γράψτε μια αξιολόγηση
50,02€
Χωρίς ΦΠΑ: 40,34€
Καλάθι
Άμεση Αγορά

To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state.





  • 360 degrees Horizontal Spread & 10 degrees Vertical Spread
  • Connector: N-female
  • Operating environment: outdoor
Product
Frequency2400-2485MHz
Antenna TypeOmni-directional,
General purpose
Gain (dBi)8
SWR<=1.3
Beamwidth DegreeHorizontal 360
Vertical 10
Mounting TypeMast mount
Operating Temperature-40 ∼ 70 degrees C



Datasheet

DateVersionDescriptionDownload
2007-11-261.0ANT-OM8
