PLANET ANT-OM5D-KIT 2.4G/5GHz Dual Band Omni-directional Antenna

PLANET ANT-OM5D-KIT 2.4G/5GHz Dual Band Omni-directional Antenna
PLANET ANT-OM5D-KIT 2.4G/5GHz Dual Band Omni-directional Antenna
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ANT-OM5D-KIT
  • Βαρος: 0.24kg
  • Διαστασεις: 2.30 x 2.30 x 18.00
Σύμφωνα με 2 αξιολογήσεις. - Γράψτε μια αξιολόγηση
32,99€
Χωρίς ΦΠΑ: 26,61€
Καλάθι
Άμεση Αγορά

Full 360° Coverage with Greater Penetration

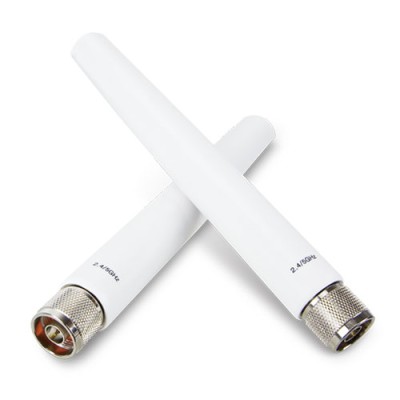

PLANET ANT-OM5D-KIT is a 2.4/5GHz Dual Band Antenna equipped with N-type male connector. The antenna provides a 360-degree horizontal and wider vertical coverage which is quite suitable for outdoor short-range application, especially to provide the wireless access for laptops and smartphones.

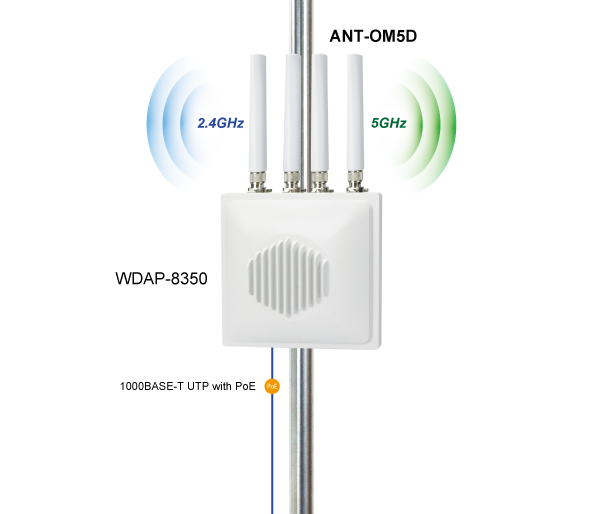

With its N-type male connector, it can be directly attached to the antenna connectors of the WNAP-6350, WNAP-7350 and WDAP-8350 without any cumbrous cabling, thus reducing the deployment cost and installer’s effort.





  • Compatible with 2.4/5GHz 802.11n devices
  • Optimal 4.5dBi high gain in 2.4GHz and 7dBi high gain in 5GHz
  • Flexible N-type plug (male) connector fits all outdoor wireless equipment with an N-type jack (female) antenna connector
  • IP67 case protection
  • Compact-sized housing, lightning design
  • 360 degrees of wireless network coverage, no aiming required
  • No configuration or installation software required
Electrical Specifications
Frequency Range2.4GHz and 5GHz
Antenna Gain2.4GHz: 4.5dBi
5GHz: 7dBi
Antenna Radiation TypeOmni-directional
VSWR≦2.0
HPBW/Horizontal360 degrees
HPBW/Vertical2.4GHz: 80 degrees
5GHz: 55 degrees
PolarizationVertical
Impedance50Ω
Mechanical Characteristics
Radome ColorWhite
Radome MaterialABS
Connector MaterialBrass
ConnectorN -type male (N-type plug)
Dimensions (Φ x H)23 x 180 mm
Weight65g
Environmental Specifications
Temperature-20 ~ 65 degrees C
Humidity95% @ 55 degrees C



Datasheet

DateVersionDescriptionDownload
2020-05-151.0ANT-OM5D-KIT



Quick Guide

DateVersionDescriptionDownload
2015-10-231.0Initial release.
