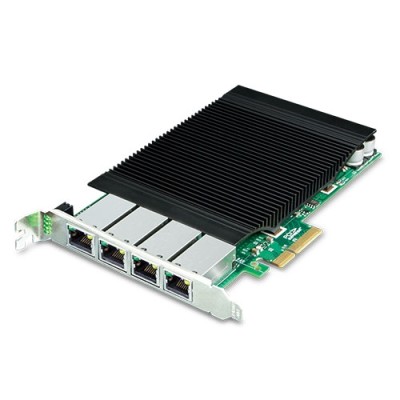

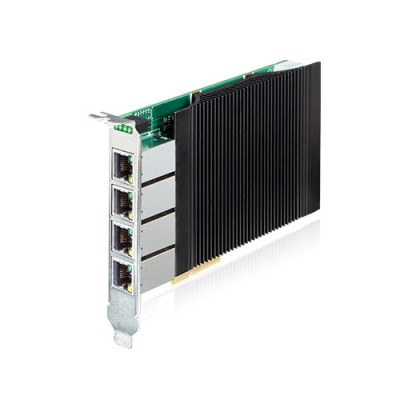

PLANET ENW-9740P 4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter

PLANET ENW-9740P 4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter
PLANET ENW-9740P 4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter
PLANET ENW-9740P 4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter
PLANET ENW-9740P 4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter
PLANET ENW-9740P 4-Port 10/100/1000T 802.3at PoE+ PCI Express Server Adapter
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ENW-9740P
  • Βαρος: 0.37kg
383,31€
Χωρίς ΦΠΑ: 309,12€

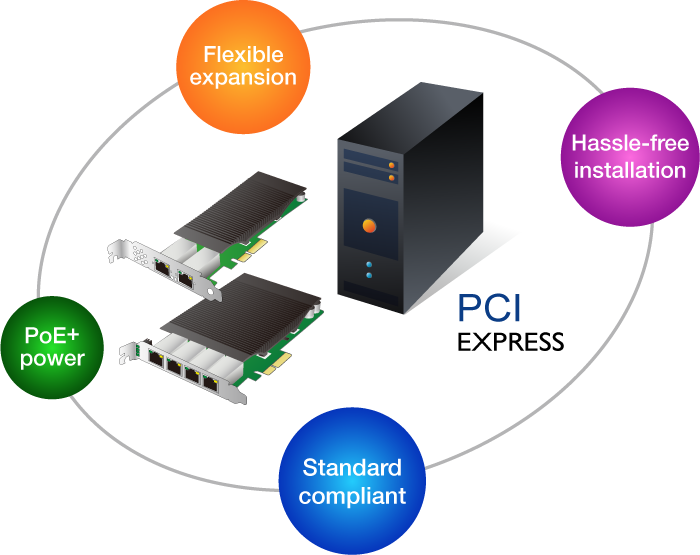

Flexible PoE Expansion Leverages Existing IPC/Server Environment

PLANET ENW-9740P is a 4-port 10/100/1000T 802.3at PoE+ PCI Express server adapter with a maximum of up to 120 watts of power output over Ethernet cables. 95W is suggested, depending on usage. Complied with PCI-E standard, the ENW-9740P can be installed on any IPC or server motherboard with PCI-E socket to make the IPC or server able to communicate other Ethernet devices and deliver power to PD devices.



Each port of the ENW-9740P can deliver 30W of power and 1000 Mb/s bandwidth over a networking cable of up to 100 meters. Its 30W PoE+ can now power not only PTZ (pan, tilt and zoom) cameras for surveillance applications but also 802.11ac AP for ultra-high-speed wireless application.



Hassle-free Installation for PoE Deployment

PLANET ENW-9740P is backward compatible with both IEEE 802.3af/at PoE standards which allow users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters.



With PoE application, the ENW-9740P frees the IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.





Standard 802.1Q VLAN Support

The ENW-9740P supports IEEE 802.1q VLAN which allows it to operate in a flexible and secure network environment. With 9.5K jumbo frame ability and IEEE 802.3 flow control support, it further optimizes throughput and wire-speed packet transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit Ethernet environments.



Multiple OS Support

The ENW-9740P operates completely well with most of the popular and latest operating systems including Microsoft Windows Server, Linux and VMware, enabling simple integration into network designs. There is no need of any modification to the server's operating system or any special software required for the ENW-9740P to be integrated into the system.

Server-grade PoE NICs

The ENW-9740P is designed with Intel® I350 server-grade GbE controller which provides high-performance, quad-port Gigabit network connectivity. It not only supports 9.5K jumbo frame and 802.11q VLAN to enable higher and better throughput of data but also enhances data acceleration across the platform (network, chipset and processor) to reduce CPU utilization. In addition, its single-bus, quad PoE ports capacity delivers up to 30W power per port.

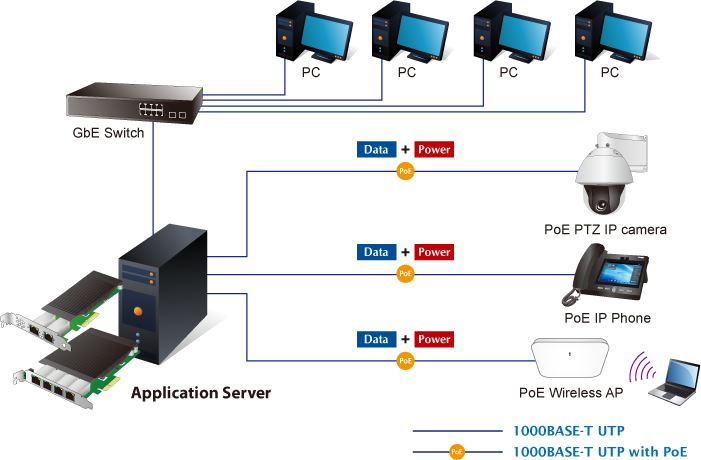

The ENW-9740P can easily act as a server NICs of your networks by wiring to the backbone switches and is right for the main board with PCI Express now and in the future. The ENW-9740P is a highly cost-effective solution to deliver Power over Ethernet function to meet the requirement of the industrial field such as IP surveillance, IP phones and WLAN application.



  • Intel ®  server-grade GbE Mac Controller
  • PCI Express (PCIe) x4 slot
  • Supports 4 Gigabit Ethernet MAC Controller
  • IEEE 802.3at compliant with up to 30W power per port
  • Supports 12V DC 4-pin Molex input
  • Powered device (PD) auto detection and classification
  • IEEE 802.1q VLAN ID tagged
  • 9.5K jumbo frame size
  • Complies with Microsoft, Linux and MAC platforms
Hardware Specifications
ControllerIntel I350
Interface4 x RJ45
LED Indicator1000Mbps: LINK: Amber,ACT: Green
10Mbps/100Mbps: ACT: Green
Data Rate10/100/1000Mbps
Dimensions (W x D x H)169 x 121 x 18 mm
Weight251 g
PCIe Bus TypePCI Express v2.1 (5.0GT/s) x4
Power SupplyPCIe power supply 3.3V±9% / 12V±8%
Typical Power Consumption5 watts max.
Single PoE Output30 watts max.
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply TypeEnd-span
PoE Power OutputPer port up to 50V DC, max. 30 watts
Power Pin Assignment1/2 (+), 3/6 (-)
PoE Power Budget60W maximum with DC 12V over PCIe slot
120W* maximum with DC 12V over PCIe slot and 4 Molex plug from power supply

*Note: To have a power budget of 120W, it’s recommended the operating temperature must be at 25°C. If operating temperature is over 25°C, the power budget will have to be under 95W.
Max. Number of Class 3 PDs4
Max. Number of Class 4 PDs4
Advanced Functions
Layer 2 FeaturesIEEE 802.1Q VLAN support
Operating System SupportWindows Server 2008R2/2012R2/2016R2/2019R2/2022R2 64bits
Windows 7/8/8.1/10 32/64bits
Windows 11 64bits
Linux (Kernel version 2.6.x/3.x/4.x or later)
VMware® ESX/ESXi 2.6.x/3.x/4.x/5.x/6 .x or later
Standards Conformance
Standards ComplianceIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.1Q VLANs
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Regulatory ComplianceFCC Part 15 Class B, CE
Environment
Operating Temperature-10 ~ 60 degrees C
Storage Temperature-40 ~ 70 degrees C
Operating Humidity5 ~ 90%, relative humidity, non-condensing
Storage Humidity5 ~ 90%, relative humidity, non-condensing
Standard Accessories
Package ContentsENW-9740P Server Adapter
QR Code Sheet



Datasheet

DateVersionDescriptionDownload
2023-02-042.0ENW-9740P



Quick Guide

DateVersionDescriptionDownload
2023-02-032.0Release for hardware version 2.0.



User's Manual

DateVersionDescriptionDownload
2023-02-102.0Release for hardware version 2.0.
