- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: HPOE-1200G
- Βαρος: 5.38kg
- Διαστασεις: 30.00 x 44.00 x 4.40
PLANET’s newly-improved HPOE Managed PoE Injector Hub series, a high-density, rack-mountable managed and quick PoE solution, is designed to perfectly upgrade an existing network infrastructure to IEEE 802.3at Power over Ethernet Plus network system without replacing the existing Ethernet Switch. The HPOE Managed PoE Injector Hub series’ management functions have been enhanced to the brand-new Web style that includes TLSv1.2 and TLSv1.3 protocols, PLANET DDNS/Easy DDNS service, PLANET NMS system and PLANET CloudViewer, and more.
A Perfect Managed PoE+ Injector Hub with Full Power Budget
The HPOE-1200G is a high-density, rack-mountable managed IEEE 802.3at PoE+ injector hub featuring PLANET intelligent PoE functions through web user interface for remote management. It provides 12 10/100/1000BASE-T Ethernet ports featuring 802.3at PoE+ injector with a total PoE budget of 360 watts. Each PoE port can deliver up to 36-watt power over Cat.5/5e/6 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3at/af powered device (PD).
The HPOE-1200G enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

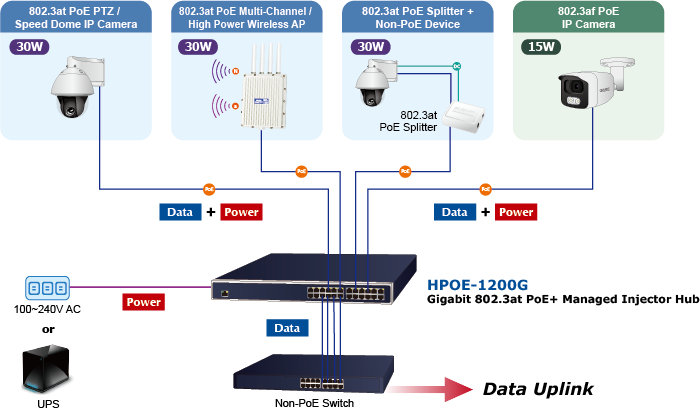

Quick and Easy PoE Network Deployment

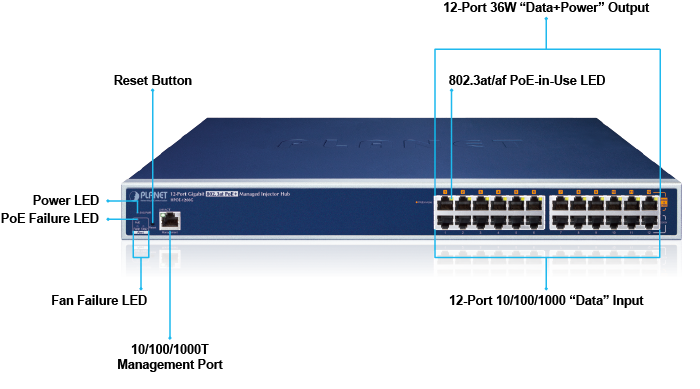

The HPOE-1200G is installed between a regular Ethernet Switch and the PDs. There are totally 24 RJ45 STP ports on the front panel of the HPOE-1200G, of which the 12 ports are on the lower stack functioned as "Data input" while the other 12 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.
With data and Power over Ethernet from one unit, the HPOE-1200G can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.

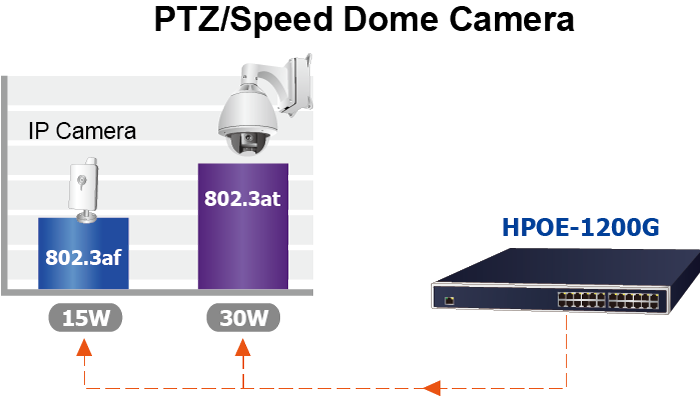

IEEE 802.3at PoE+ Standard Compliance
The PoE in-line power adopting the IEEE 802.3at Power over Ethernet Plus standard makes the HPOE-1200G able to deliver per port up to 36 watts of power to each remote PoE compliant PD. It possesses double amount of power capability than the conventional 802.3af PoE and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as PTZ (pan, tilt and zoom), speed dome network cameras, color touch-screen or video and voice over IP (VoIP) telephones, multi-channel 802.11ac wireless LAN access points and other network devices.
Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the HPOE Managed PoE Injector Hub series management in a mission-critical network virtually needs no effort and cost to install. Both TLSv1.2 and TLSv1.3 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
Built-in Unique PoE Functions for Powered Device Management
As it is the managed PoE Injector Hub for VoIP, wireless and surveillance networks, the HPOE-1200G features the following special PoE management functions:
- PoE schedule
- PD alive check
- Scheduled power recycling
- PoE usage monitoring
Intelligent Powered Device Alive Check
PLANET’s Managed PoE products adopt not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status. The HPOE-1200G can be configured to monitor connected PD’s status in real time via ping action through the uplinked Ethernet switch. Once the PD stops working and responding, the HPOE-1200G will recycle the PoE port power and bring the PD back to work. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.
PoE Schedule for Energy Savings
Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the HPOE-1200G can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
PoE Usage Monitoring
Via the power usage chart in the web management interface, the HPOE-1200G enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.
High Power Budget for PoE Extension
With 36-watt PoE output capability, the HPOE-1200G can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.
User-friendly Web Management Interface
To efficiently manage the PDs, the HPOE-1200G provides simple Web management interface in which administrators can control the system and PoE functions for PDs. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.
Remote Management Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewer app, all kinds of businesses can now be speedily and efficiently managed from one platform.
Smart Fan Design for Silent Operation
The HPOE-1200G features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability, with low speed and high speed smart fan status display on web interface. The HPOE-1200G is able to operate reliably, stably and quietly in any environment without affecting its performance.
Scheduled Power Rebooting
The HPOE-1200G can be scheduled to reboot at a specified time like every minute, every hour, every day to reduce the chance of PD device crash resulting from buffer overflow.

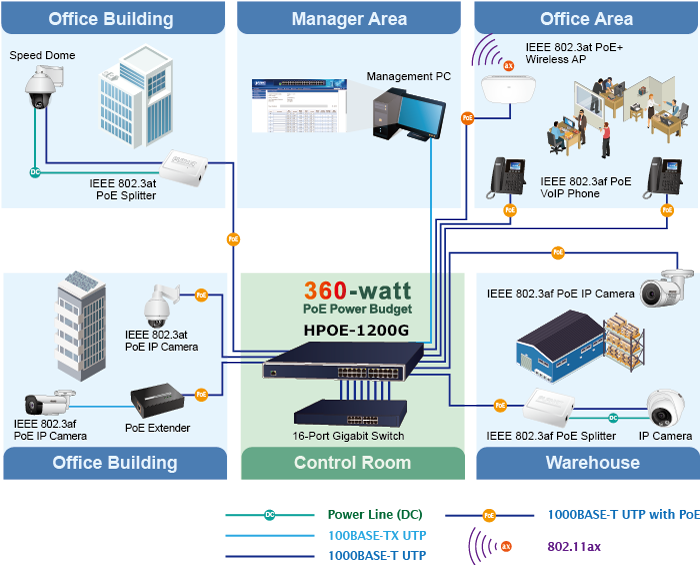

Gigabit PoE+ Network Deployment
The HPOE-1200G provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 12 10/100/1000BASE-T Gigabit Ethernet ports, the HPOE-1200G supports full 54V DC power for any remote IEEE 802.3af/IEEE 802.3at powered device (PD).
To control the power system of your networking devices, the HPOE-1200G can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. Furthermore, the PoE hub can be directly connected to any third-party IEEE 802.3af/802.3at compliant devices installed within 100 meters.
Interface
- 24-port RJ45
- 12-port 10/100/1000Mbps “Data input”
- 12-port 10/100/1000Mbps “Data + Power output”
- One 10/100/1000BASE-T management port
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus mid-span PSE
- Up to 12 IEEE 802.3at/802.3af devices powered
- 360-watt PoE budget
- Supports PoE power up to 30.8 watts (802.3at PoE+)/15.4 watts (802.3af PoE) for each PoE port
- Automatically detects PD
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
PoE Management
- Per port PoE power schedule
- PoE function enable/disable
- Per port PoE function enable/disable
- PoE port power feeding priority
- PD classification detection
- PD alive check
Security
- SPI Firewall Protection
- MAC Filtering
- System CA Certificate for HTTPS
Management
- IPv4 and IPv6 dual stack management
- Web interface for remote management
- PLANET DDNS and Easy DDNS
- Supports Network Time Protocol (NTP)
- System Maintenance
- Firmware upload via HTTP
- Configuration upload/download via HTTP
- Reboot button for system reboot
- Reset button for system reset to factory default
- PLANET Smart Discovery utility automatically finds PLANET devices on the network
- PLANET NMS system and CloudViewer for deployment management
- NMP v1, v2c and v3 for system status monitoring
- SNMP trap for alarm notification of events
- System event log/remote syslog
- Scheduled System Power Rebooting
- Network Diagnostic
- ICMPv6/ICMPv4 Remote Ping
- Trace Route
Hardware
- 19-inch rack mountable; 1U height
- Reset button for resetting to default setting and system reboot
- LED indicators for PoE ready and PoE activity
- LED indicators for power alert and fan alert
- FCC Part 15 Class A, CE
Hardware | |
---|---|
Hardware Version | 6 |
Interface | “Data” Input Ports:12 x RJ45 “Data + Power” Output Ports:12 x RJ45 Management Port:1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX |
Data Rate | 10/100/1000Mbps |
Power Requirements | 100-240V AC, 50/60 Hz, 8A |
Power Consumption | 382 watts/1303 BTU |
Ventilation | Smart Fan x 2 |
Dimensions (W x D x H) | 440 x 300 x 44mm |
Weight | 3.9kg |
Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
LED | System: SYS PWR x 1 (Green) PoE Failure x 1 (Red) Fan 1 Failure x 1 (Red) Fan 2 Failure x 1 (Red) Per PoE Port: PoE-in-use x 1 (Amber) Management port x 1 : LNK/ACT (Green) |
Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat5e/6 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
Power over Ethernet | |
PoE Power Supply Type | Mid-span |
PoE Power Output | Per port DC 54V 30.8/15.4 watts |
Power Pin Assignment | 4/5(+), 7/8(-) |
PoE Power Budget | 360 watts |
Number of 802.3af PDs (Class 0, 1, 2, 3) can be powered | 12 |
Number of 802.3at PDs (Class 1, 2, 3) can be powered | 12 |
Number of 802.3at PDs (Class 0, 4) can be powered | 12 |
Security | |
Firewall | SPI Firewall Protection |
Filtering | MAC Filtering |
Certificates | System CA Certificate for HTTPS |
Management | |
Management Interface | Web, PLANET Smart Discovery Lite |
Secure Management Interface | TLSv1.2, TLSv1.3 |
Secure Management Interface | TLSv1.2, TLSv1.3 |
PoE Management | Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption |
Management Feature | IPv4 and IPv6 dual stack management Web interface for remote management PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility PLANET NMS system and CloudViewer for deployment management SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events System event log/remote syslog Scheduled System Power Rebooting Network Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 2273: SNMPv3 RFC 5424: Syslog |
Environments | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
