- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET

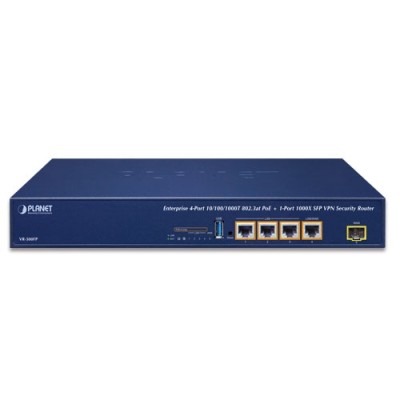

- Κωδικος Προϊοντος: VR-300FP
- Βαρος: 2.15kg
- Διαστασεις: 15.50 x 33.00 x 4.35
Flexible VPN Security Solution with Fiber Capability
The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security and wireless connetion has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the all-in-one VR-300F and VR-300FP VPN Security Routers that carry several main categories across your network security deployments: copper/fiber WAN interface, cybersecurity, SPI firewall security protection, policy auditing (content filtering, VPN tunnel and MAC/IP filtering), AP controller, captive portal, RADIUS and easy management (Setup Wizard, DHCP Server and Dashboard). Furthermore, its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.
Flexible WAN interface Enables Extension of Network Deployment
The VR-300F and VR-300FP provide both copper and fiber connectors for WAN interface. With one SFP slot, it supports fiber extension for FTTX application. It allows the administrator to flexibly choose the suitable SFP transceiver according to the transmission distance required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.
Intelligent SFP Diagnosis Mechanism
The VR-300F and VR-300FP support SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Built-in Unique PoE Functions for Powered Devices Management
The VR-300FP is capable of having a maximum of up to 120 watts of power output and can deliver up to 36W for each port. It also features the following special PoE management functions:
PoE Usage Monitoring
With PoE usage monitoring, it can show the PoE loading of each port, total PoE power usage and system status, such as overload, low voltage, over voltage and high temperature. User can obtain detailed information about the real-time PoE working condition of the VR-300FP directly.
PoE Schedule
Under the trend of energy savings worldwide and contributing to environmental protection, the VR-300FP can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
Scheduled Power Recycling
The VR-300FP allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PD Alive Check
The VR-300FP can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the VR-300P will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

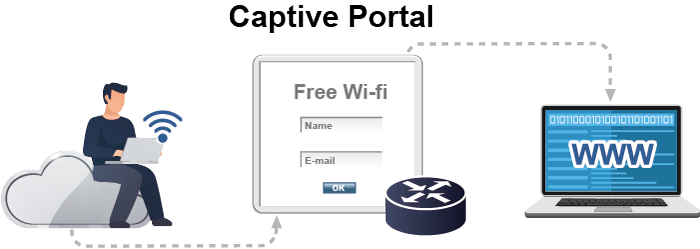

Wi-Fi Deployments and Authentication with Simplified Management
The VR-300F and VR-300FP provide a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-300F and VR-300FP can offer a secure Wi-Fi network with easy installation for your business.

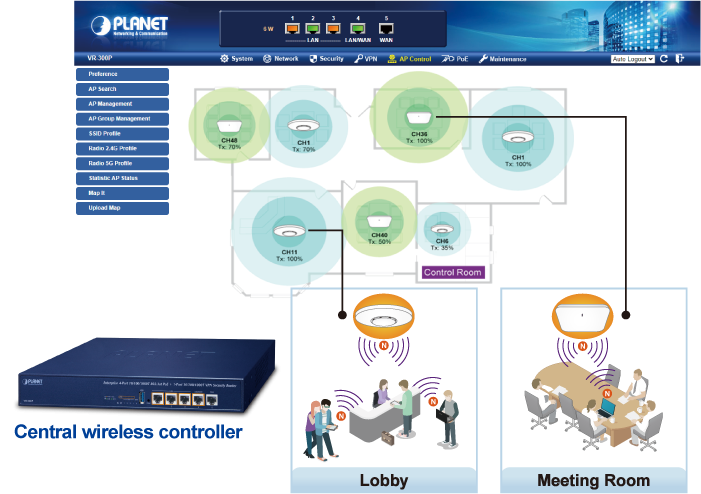

Centralized Remote Control of Managed APs*

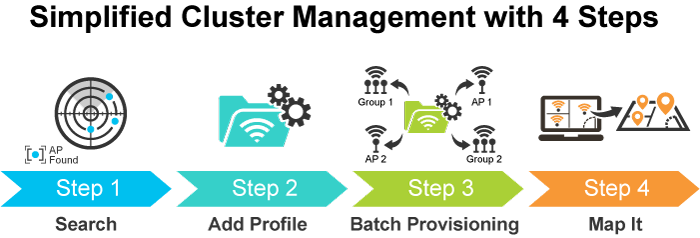

The VR-300F and VR-300FP provide centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.
For example, to configure multiple Smart APs of the same model, the VR-300F and VR-300FP allow clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

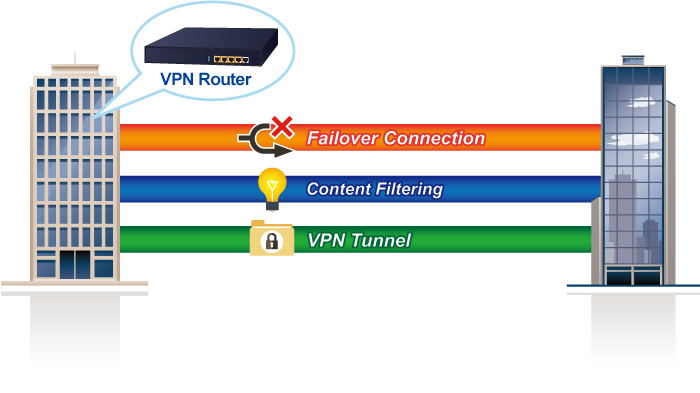

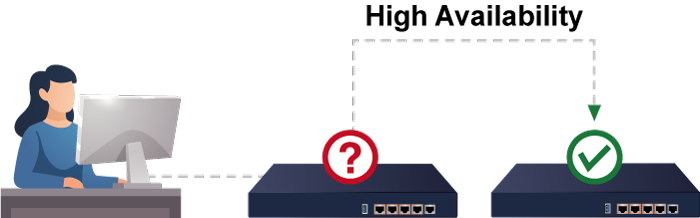

Ideal High-Availability VPN Security Router Solution for SMBs
The VR-300F and VR-300FP provide complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300FP makes the connection secure, more flexible, and more capable.

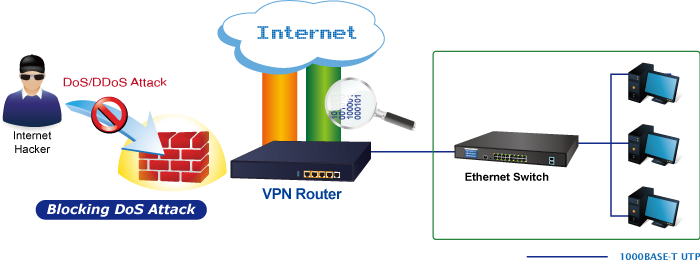

Excellent Ability in Threat Defense
The VR-300F and VR-300FP are built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.
Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300F and VR-300FP are equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-300F and VR-300FP offer an easy-to-use, platform independent management and configuration facility. The VR-300F and VR-300FP support SNMP and it can be managed via any management software based on the standard SNMP protocol.
Improving Network Efficiency
It is applicable to the small-scale sector (from 60 to 100 people), using a 13-inch desktop design, with five Gigabit ports (WAN/LAN). It provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the High-Availability and Dual-WAN interfaces enable the VR-300F and VR-300FP to support outbound load balancing and WAN fail-over features.

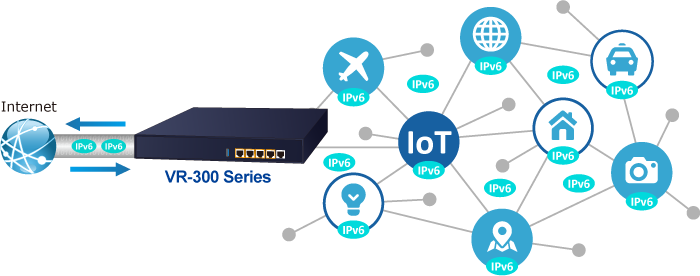

Furthermore, the VR-300F and VR-300FP can connect dual IPv4/v6 WANs with up to two different ISPs and supports many popular security features including Content Filtering to block specific URL feature that can automatically resolve the IP address corresponding to all. Users’ network can be easily managed by just typing the URL of the websites like Facebook, YouTube and Yahoo.
The VR-300F and VR-300FP both have link redundancy, MAC/IP filtering, outbound load balancing, QoS and many more functions to make the entire network system better. It creates a stable and qualified VPN security connection for many important applications such as VoIP, video conferencing and data transmission. The VR-300F’s and VR-300FP’s economical price with complete network security management features make it an inevitable choice for the next-generation office network load balancer.
Highlights
- Dual-WAN failover and Dual-WAN load balancing
- One 1000BASE-X SFP slot for WAN interface
- SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
- Stateful Packet Inspection (SPI) firewall and content filtering
- Blocks DoS/DDOS attack, port range forwarding
- High Availability, AP Controller, Captive Portal and RADIUS
- IPv6, SNMP, PLANET DDNS and Universal Network Management System
- Compliant with the IEEE 802.3at PoE+ with PD alive check/schedule management
Hardware
- 4 10/100/1000BASE-T RJ45 ports with 4-port IEEE 802.3at PoE+ injector function
- 1 1000BASE-X mini-GBIC/SFP slot
- 1 undefined Ethernet port (LAN/WAN) for Dual-WAN function
- 1 USB 3.0 port for system configuration backup and restore
- Reset button and fanless design
- Desktop installation or rack mounting
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af / 802.3at devices powered
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive check
IP Routing Feature
- Static Route
- Dynamic Route
- OSPF
Firewall Security
- Cybersecurity
- Stateful Packet Inspection (SPI) firewall
- Blocks DoS/DDoS attack
- Content Filtering
- MAC Filtering and IP Filtering
- NAT ALGs (Application Layer Gateway)
- Blocks SYN/ICMP Flooding
VPN Features
- IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
- Max. Connection Tunnel Entries: 60 VPN tunnels,
- Encryption methods: DES, 3DES, AES, AES-128/192/256
- Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512
Networking
- Outbound load balancing
- Failover for dual-WAN
- High Availability
- Captive Portal
- RADIUS Server/Client
- Static IP/PPPoE/DHCP client for WAN
- DHCP server/NTP client for LAN
- Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
- Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
- MAC address clone
- DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP
Others
- Setup wizard
- Dashboard for real-time system overview
- SFP-DDM (Digital Diagnostic Monitor)
- Supported access by HTTP or HTTPS
- Auto reboot
- PLANET NMS System and Smart Discovery Utility for deployment management
- Planet CloudViewer App for real-time monitoring
Hardware Specifications | |
---|---|
Ethernet | 4 10/100/1000BASE-T RJ45 Ethernet ports including 1 1000BASE-X SFP slot 3 LAN ports (Ports 1 to 3) 1 LAN/WAN port (Port 4) 1 WAN port (Port 5) |
USB Port | 1 USB 3.0 port for system configuration backup and restore |
Reset Button | Reset to factory default |
Thermal Fan | 1 |
LED Indicators | PWR (Green) Internet (Green) LAN/WAN (Green) PoE-in-Use LED (Amber) |
Installation | Desktop installation or rack mounting |
Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
Power Consumption / Dissipation | VR-300F: Max.3.7 watts/ BTU VR-300FP: Max.132 watts/ BTU |
Weight | VR-300F: 1.3kg VR-300FP: 1.5kg |
Dimensions (W x D x H) | 330 x 155 x 43.5 mm, 1U height |
Enclosure | Metal |
Power over Ethernet | |
PoE Standard | IEEE 802.3af / 802.3at PoE+ PSE |
PoE Power Supply Type | End-span |
PoE Power Output | Per port 52V DC, 36 watts (max.) |
Power Pin Assignment | 1/2 (+), 3/6 (-) |
PoE Power Budget | 120 watts (max.) @ 25 degrees C 100 watts (max.) @ 50 degrees C |
Max. Number of Class 4 PDs | 4 |
PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring |
Security Service | |
Firewall Security | Cybersecurity Stateful Packet Inspection (SPI) Blocks DoS/DDoS attack |
ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323, TFTP |
NAT | Port forwarding DMZ Host UPnP |
Content Filtering | MAC filtering IP filtering Web filtering |
Bandwidth Management | Outbound load balancing Failover for dual-WAN QoS (Quality of Service) |
Networking | |
Operation Mode | Routing mode |
Routing Protocol | Static Route, Dynamic Route (RIP), OSPF |
VLAN | 802.1q Tag-based, Port-based, Multi-VLAN |
Multicast | IGMP Proxy |
NAT Throughput | Max. 900Mbps |
Outbound Load Balancing | Supported algorithms: Weight |
Protocol | IPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, PPPoE, SNMPv1/v2c/v3, |
Key Features | HA (High Availability) Captive Portal RADIUS Server/Client AP Control |
VPN | |
VPN Function | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
VPN Tunnels | Max. 60 |
VPN Throughput | Max. 60Mbps |
Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
Management | |
Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility/UNI-NMS supported |
Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
System Log | System Event Log |
Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
Standards Conformance | |
Regulatory Compliance | CE, FCC |
Environment Specifications | |
Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
