High Performance Gigabit Ethernet over Coaxial Solution

To fulfill the needs of long distance and higher speed required Ethernet over Coaxial applications, PLANET Technology offers a new-generation Ethernet over Coaxial Converter, VC-232G. It features 1 10/100/1000BASE-T RJ45 port and 1 BNC female connector with a compact-sized metal housing, making the placement of the unit convenient. Working well with a pervasive coaxial network, the VC-232G provides an excellent bandwidth of up to a total duplex data rate of 300Mbps which can extend a maximum distance up to 1.4km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable to another 100-meter UTP cable for any type of IP network device such as HD IP camera, wireless access point, NVR and digital signage.



Superior Upstream and Downstream Transmission

The VC-232G is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2).  The VC-232G offers a stable yet high-speed point-to-point network access up to a duplex data transmission of 300Mbps. It provides 2 selective transmission modes --  asymmetric mode or symmetric mode -- for the transmission of upstream and downstream signals.

 ■ Asymmetric mode – downstream up to 200Mbps and upstream up to 100Mbps
 ■ Symmetric mode – downstream up to 150Mbps and upstream up to 150Mbps
The symmetric mode provides similar transmission rate on both downstream and upstream. On the other hand, the asymmetric mode performs higher transmission quality in short range. In all, when the VC-232G is in symmetric mode, it provides better upstream performance, and when it is in asymmetric mode, it gives better downstream performance.



IP Ethernet over Long Distance Existing Coaxial Cables

The VC-232G is also a Long Reach Ethernet (LRE) solution which provides a quick replacement and smooth migration solution from existing analog system to full digital system. A normal UTP cable can only be extended up to 100 meters, but with the VC-232G, the distance for Ethernet networking can be extended up to 1,400 meters (4,593ft.), which is ideal for the following network applications:

 ■ Long-distance IP network devices
 ■ IP digital signage
 ■ Cable TV to IPTV
 ■ Distance video education
 ■ Electronic billboards
 ■ Other applications

If you have coaxial cable in your existing environment, you can install a pair of the VC-232G very simply without the need to build additional network wires, thus saving costs for network construction.



Easy and Flexible Installation

The VC-232G offers two operation modes, the client-side CPE and central-side CO, making any network applications easy and flexible. The CPE or CO mode can be adjusted by using the built-in DIP switch. For point-to-point connection, one VC-232G in CPE mode and the other one in CO mode must be set up as a pair of converters to perform the connection. This enables the administrator to efficiently manage the network over coaxial cable, making long-distance transmission better.

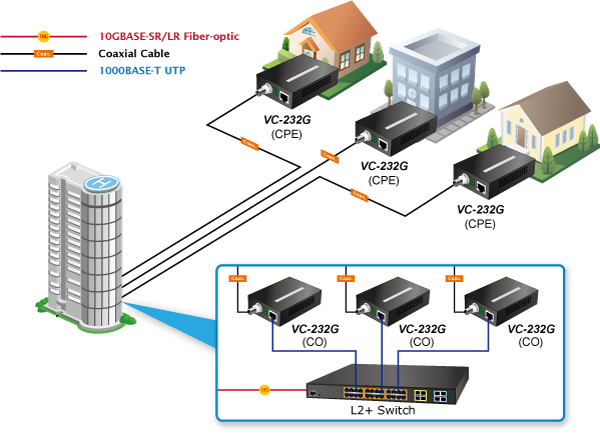

Point-to-Point Application -- LAN to LAN Connection

One set of the VC-232G could be used to link two local Area networks that are located in different places. Through the coaxial cable, it could set up a 200/100Mbps asymmetric backbone, but one VC-232G must be Master (CO mode) and the other one is Slave (CPE mode).

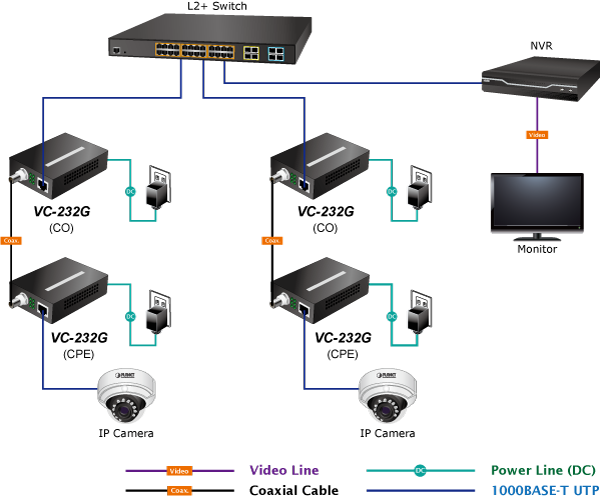

Community/Campus Surveillance and Security over IP

To take advantage of digital surveillance system and keep the benefits of coaxial cable, the VC-232G helps the community, campus and enterprises to upgrade analog camera system to IP camera surveillance without using additional new wires. The VC-232G is a switching architecture with one RJ45 port and one BNC Ethernet over Coaxial port. Just plug in the UTP cable of IP camera to Ethernet port and the existing coaxial cable to the BNC connector to easily deploy and extend the distance with signal conversion by transmitting the Ethernet data from the standard coaxial cable.



  • ITU-T G.993.5 G.Vectoring and G.INP
  • Upstream/Downstream bandwidth up to 200/100Mbps
  • CO/CPE mode selectable via DIP switch
  • Selectable target band plan and SNR margin
  • Half duplex back pressure and IEEE 802.3x full duplex pause frame flow control
  • One BNC connector for VDSL connection
  • Uses existing RG59/RG6 coaxial cable
  • Used in pairs to extend Point-to-Point connection up to 1.4km
  • Supports a packet size of up to 1522 bytes, IEEE 802.1Q VLAN tag transparency
  • Advantage of minimum installation time (Simply by Plug-and-Play)
  • Supports extensive LED indicators for network diagnosis
  • Co-work with PLANET media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48)
  • Compact in size and easy to install
Hardware Specifications

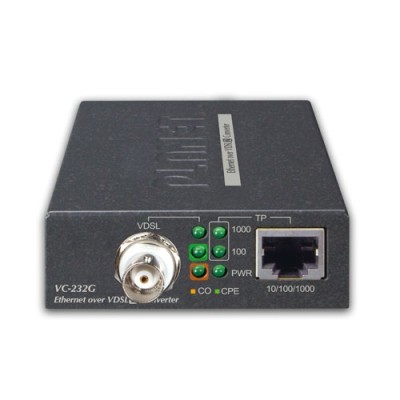

TP interface1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
VDSL Interface1 BNC female Ethernet over Coaxial

Cabling
Coaxial cable: 75 ohm
RG-6/U cable, less than12Ω/1000 ft
RG-59/U cable, less than 30Ω/1000 ft.

Maximum Distance
Max. 1400m with data transmission (4,593ft.)

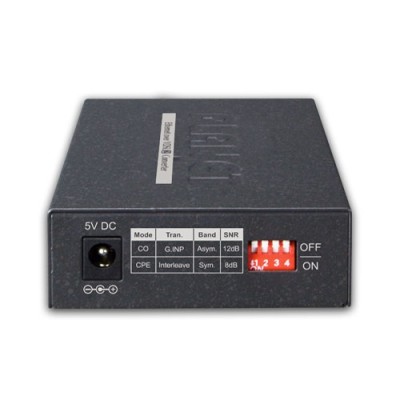

FunctionalityDIP-1: Select CO or CPE mode
DIP-2: Select G.INP or Interleaved mode
DIP-3: Select Band Profile (Asymmetric or Symmetric)
DIP-4: Select SNR of 12dB or 8dB
Dimensions (W x D x H)70 x 97 x 26 mm
Weight185g
Power RequirementDC 5V, 2A external power
LED IndicatorsPower: Green
1000BASE-T LNK/ACT: Green
VDSL: Green
CO: Green
CPE: Green
HousingMetal
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table2K entries
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
System Specifications
VDSL Compliance
  • VDSL-DMT
  •  ITU-T G.993.1 VDSL
    ITU-T G.993.1 VDSL
    ITU-T G.997.1
    ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
    ITU-T G.993.5 G. Vectoring
    ITU-T G.998
    G.INP
    Standards Conformance
    Standards ComplianceIEEE 802.3 Ethernet
    IEEE 802.3u Fast Ethernet
    IEEE 802.3ab Gigabit Ethernet
    IEEE 802.3x Full-duplex flow control
    IEEE 802.1p Class of Service
    ITU-T G.993.1 VDSL
    ITU-T G.997.1
    ITU-T G.993.2 VDSL2 (Profile 17a/30a Support)
    ITU-T G.993.5 G.Vectoring and G.INP
    ITU-T G.998
    Regulatory ComplianceFCC Part 15 Class A, CE
    Performance
    Coaxial PerformanceInterleave(Upstream/Downstream: Mbps)
    Asymmetric (8dB):
    200m ->88Mbps/168Mbps
    400m ->75Mbps/160Mbps
    600m ->59Mbps/129Mbps
    800m ->32Mbps/110Mbps

    Asymmetric (12dB):
    200m ->78Mbps/145Mbps
    400m ->69Mbps/137Mbps
    600m ->48Mbps/118Mbps
    800m ->26Mbps/94Mbps

    Symmetric (8dB):
    200m ->129Mbps/131Mbps
    400m ->117Mbps/122Mbps
    600m ->101Mbps/92Mbps
    800m ->62Mbps/73Mbps

    Symmetric (12dB):
    200m ->117Mbps/123Mbps
    400m ->102Mbps/102Mbps
    600m ->88Mbps/82Mbps
    800m ->47Mbps/56Mbps


    G.INP(Upstream/Downstream: Mbps)
    Asymmetric (8dB):
    200m ->95Mbps/200Mbps
    400m ->82Mbps/175Mbps
    600m ->59Mbps/151Mbps
    800m ->37Mbps/122Mbps

    Asymmetric (12dB):
    200m ->89Mbps/181Mbps
    400m ->71Mbps/156Mbps
    600m ->46Mbps/136Mbps
    800m ->30Mbps/102Mbps

    Symmetric (8dB):
    200m ->147Mbps/147Mbps
    400m ->132Mbps/135Mbps
    600m ->108Mbps/104Mbps
    800m ->76Mbps/78Mbps

    Symmetric (12dB):
    200m ->138Mbps/143Mbps
    400m ->116Mbps/120Mbps
    600m ->91Mbps/89Mbps
    800m ->58Mbps/60Mbps


    Note: As there are various resistance values in the category of RG-59/U or RG-6/U cable, the actual data rate will vary on the quality of the copper wire and environmental factors.
    Environment
    TemperatureOperating: 0~50 degrees C
    Storage: -10~70 degrees C
    HumidityOperating: 5~95% (non-condensing)
    Storage: 5~95% (non-condensing)



    Datasheet

    DateVersionDescriptionDownload
    2018-09-141.0VC-232G



    User's Manual

    DateVersionDescriptionDownload
    2021-12-312.1[Release for hardware version 2.0.] Modify contents of user manual.
    2018-07-202.0Release for hardware version 2.0.
    2017-10-131.0Initial release.



    EC Declaration

    DateVersionDescriptionDownload
    2018-10-191.0EC Declaration.
