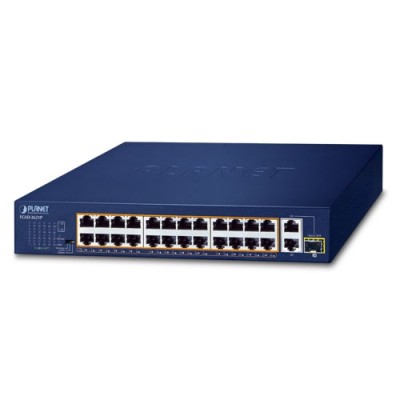

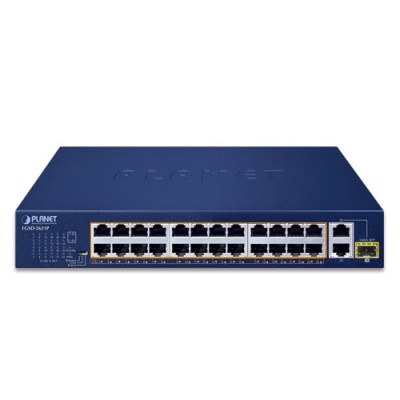

PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)

PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
PLANET FGSD-2621P 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port Shared 1000X SFP Desktop Switch (185 Watts)
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: FGSD-2621P
  • Βαρος: 2.60kg
  • Διαστασεις: 18.00 x 28.00 x 4.40
225,62€
Χωρίς ΦΠΑ: 181,95€

Cost-optimized, Multi-mode Ethernet Switch for PoE Networking

To facilitate 32W PoE power network applications with the transmission, PLANET FGSD-2621P is equipped with 24 10/100BASE-TX Fast Ethernet ports, 2 extra Gigabit TP ports and 1 1000BASE-X SFP combo interface ideally suitable for centralized power management. With a total of 185 watts of PoE budget, it features high-performance Gigabit uplink and IEEE 802.3at PoE+ (up to 32W) capabilities.



Two Gigabit Uplink Ports

The FGSD-2621P provides two extra Gigabit TP ports and one 1000BASE-X SFP combo interface that enable the network administrators to increase their network bandwidth to relieve traffic congestion when the two 10/100/1000BASE-T or one 1000BASE-X uplink port are used to connect devices, such as NVR, video streaming server, NAS and more. With the combo design, the administrators can easily connect network devices no matter how large the network expansion is.

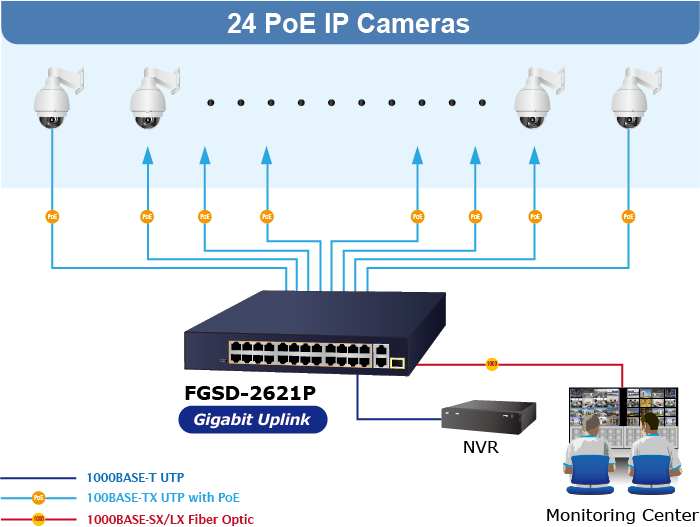

Perfect Integrated Solution for PoE IP Surveillance

The FGSD-2621P brings you an ideally secure surveillance system at a lower total cost. The FGSD-2621P provides 24 10/100Mbps 802.3at PoE+ ports able to feed sufficient PoE power to 24 IEEE 802.3af/IEEE 802.3at PoE+ IP cameras at the same time. It is also able to connect with one 24-channel NVR or three 8-channel NVRs, uplinked to backbone switch and the monitoring center. With such a high-performance switch architecture, the recorded video files from the PoE IP cameras can be saved to the NVR system where the administrator can control and monitor the surveillance images in both the local LAN and remote sites.

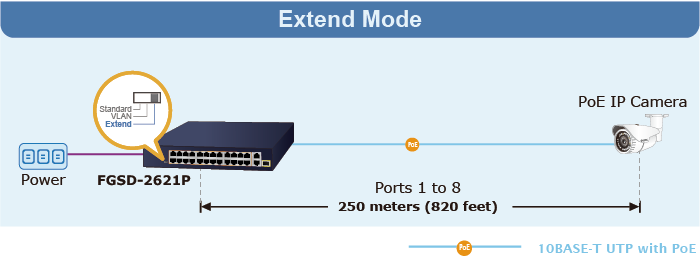

Ethernet Data Transmission Distance Extension

The DIP switch provides “Standard”, “VLAN” and “Extend” operation modes.

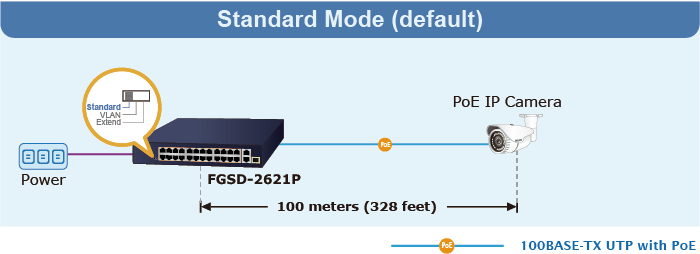

  • The FGSD-2621P operates as a normal IEEE 802.3at PoE+ switch in the “Standard” operation mode.

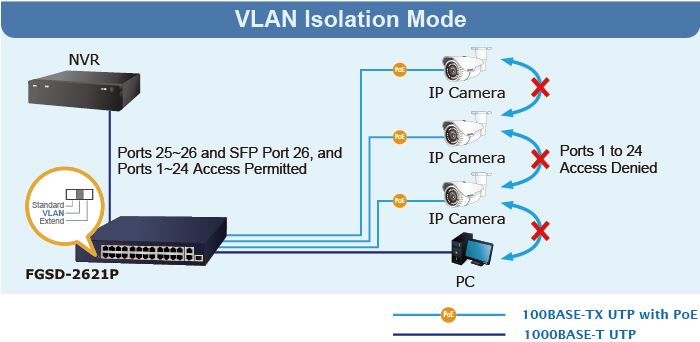

  • The “VLAN” operation mode features port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.
  • In the “Extend” operation mode, the FGSD-2621P operates on a per-port basis at 10Mbps duplex operation but supports 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable.

With this brand-new feature, the FGSD-2621P provides an additional solution for 802.3at PoE+ distance extension, thus saving the cost of Ethernet cable installation.







Powered Device Alive Check

The FGSD-2621P adopts not only Power over Ethernet technology, but also automated PD monitoring and real-time PoE status.

The PD alive check feature is applied in Standard, VLAN and Extend modes. After the PoE of the port is powered on, the device starts to detect whether the port is transmitting data. If the port does not transmit data and the duration exceeds a specific time, PoE will automatically power off and then re-power. It also will greatly enhance the network reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.



Flexible Extension Solution

The two mini-GBIC slots built in the FGSD-2621P are compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters (multi-mode fiber) to 20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Perfectly Integrated Solution for IP PoE Camera and NVR System

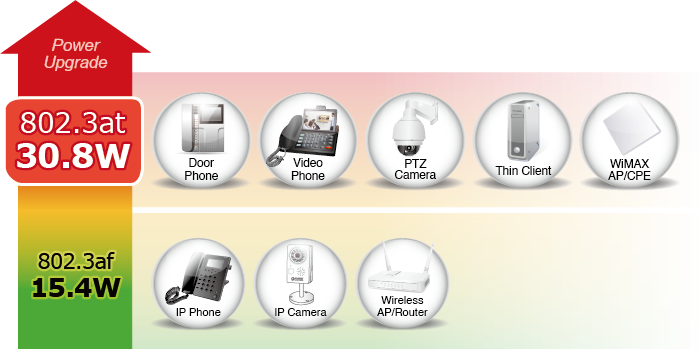

Particularly designed for the growing popular IP Surveillance applications, the FGSD-2621P 802.3at PoE Switch is positioned as a Surveillance Switch for quick and easy PoE IP camera deployment with power feeding. The FGSD-2621P provides both 802.3at and 802.3af PoE functions along with 24 10/100BASE-TX ports featuring 32-watt 802.3at or 15.4-watt 802.3af PoE in RJ45 interface, 2 extra Gigabit copper ports and 1 Gigabit SFP uplink interfaces supporting high-speed transmission of surveillance images and videos.

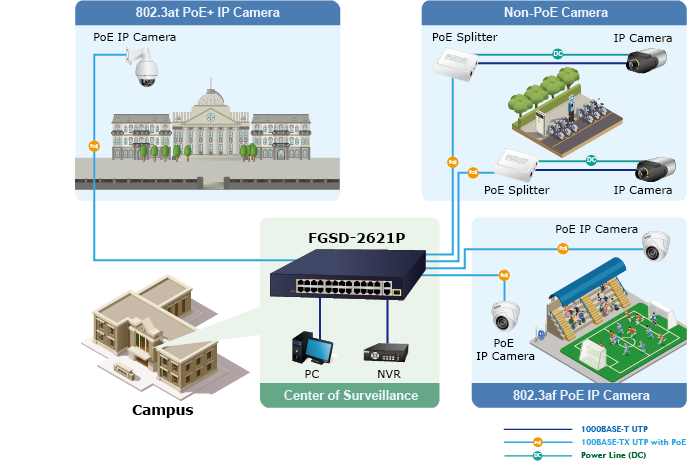

Department / Workgroup PoE Network

Providing 24 PoE in-line power interfaces, the FGSD-2621P can easily build a power that can centrally control IP phone system, IP camera system and wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power-socket limitation, the FGSD-2621P makes the installation of cameras easier and more efficient.

Physical Port

  • 24 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector function (ports 1~24)
  • 2 10/100/1000BASE-T Gigabit RJ45 ports (ports 25~26)
  • 1 1000BASE-X SFP interface (port 26)



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
  • Up to 24 ports of IEEE 802.3af/802.3at devices powered (ports 1~24)
  • Supports PoE power up to 32 watts for each PoE port, with a total PoE budget of 185W.
  • Each port supports 55V DC power to PoE powered device.
  • Auto detects powered device (PD)
  • Supports PD alive function.
  • Circuit protection prevents power interference between ports.
  • Remote power feeding up to 100m in standard mode with 250m in extend mode



Switching

  • Hardware-based 10/100Mbps and 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Supports IEEE 802.3x flow control in full-duplex mode and backpressure in half-duplex mode
  • Integrates address look-up engine, supporting 16K absolute MAC addresses
  • 16K jumbo frame supports 1000Mbps speed
  • Hardware-based DIP switch for Standard, VLAN or Extend mode selection;
    • VLAN mode: Ports 1 to 24 cannot communicate with each other, but can communicate with the uplink ports 25 to 26 and SFP port 26.
    • Extend mode: Ports 1 to 8 have data rate of 10Mbps. The farthest transmission distance is up to 250 meters and all ports can communicate with each other.
  • VLAN mode is to isolate ports to prevent broadcast storm and defend DHCP spoofing
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)



Hardware

  • 11-inch desktop size, 1U height.
  • LED indicators for system power, per port PoE ready and PoE activity, speed, link/act
  • 1 silent fan to provide stable and efficient power performance
  • Supports contact discharge of ±6KV DC and air distance discharge of ±8KV DC for Ethernet ESD protection
  • Supports ±6KV surge immunity
Hardware Specifications
Fast Ethernet Copper Ports24 x 10/100BASE-TX RJ45 auto-MID/MDI-X Port
Supports IEEE 802.3at PoE+ Injector
Gigabit Ethernet Copper Ports2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(Port 26 shared with SFP port)
Gigabit SFP Ports1 x 1000BASE-SX/LX/BX SFP interface (shared with Port 26)
DIP SwitchSelectable operation mode
Standard
VLAN
Extend
Dimensions (W x D x H)280 x 180 x 44 mm (1U height)
EnclosureMetal
Weight1870g
Power Requirements100~240V AC, 50/60Hz, 5A max.
Power Consumption/DissipationMax. 217 watts/740 BTU
Thermal Fan1
ESD ProtectionContact discharge of ±6KV DC, Air discharge of ±8KV DC
Surge ProtectionDifferential Mode ±4KV, Common Mode ±6KV
InstallationDesktop or rack-mount installation
LEDSystem:
Power (Green)
PoE Max. (Green)
10/100/1000T RJ45 Interfaces
10/100/1000 LNK / ACT (Green)
PoE-in-Use (Amber)
1000X SFP Interfaces
1000 LNK / ACT (Green)
Switching
Switch ArchitectureStore-and-Forward
Switch Fabric8.8Gbps/non-blocking
Switch Throughput@64bytes6.5Mpps
MAC Address Table16K entries
Jumbo Frame16K bytes
Flow ControlIEEE 802.3x pause frame for full duplex; back pressure for half duplex
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus/PSE
PoE Injector Ports24
PoE Power Supply TypeEnd-span: 1/2 (+), 3/6 (-)
PoE Power OutputPer port 55V DC, 600mA. max. 32 watts
PoE Power Budget185 watts
Number of PDs, 7 watts24
Number of PDs, 15.4 watts12
Number of PDs, 30 watts6
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3z Gigabit SX/LX
IEEE 802.3x flow control and back pressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy-Efficient Ethernet
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5~ 95% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
