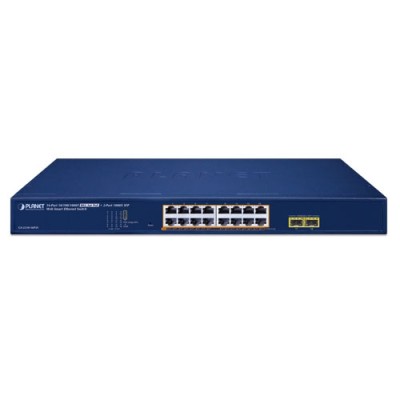

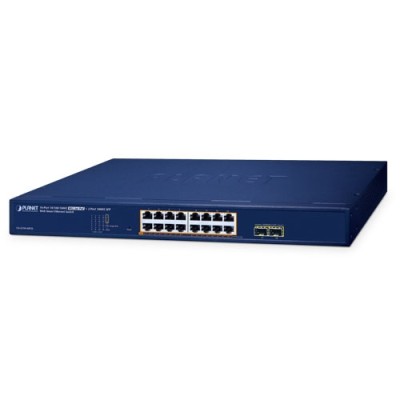

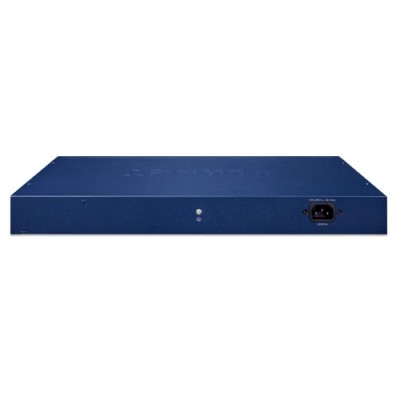

PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch

PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
PLANET GS-2210-16P2S 16-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Web Smart Ethernet Switch
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: GS-2210-16P2S
  • Βαρος: 3.25kg
  • Διαστασεις: 28.50 x 47.50 x 8.00
310,53€
Χωρίς ΦΠΑ: 250,43€

NMS is Integrated to Improve Network Management Efficiency

PLANET GS-2210-16P2S Smart Ethernet switch combined with NMS makes network management easier and more efficient. In addition, it is easy to configure whatever application that the industry needs. It features link aggregation, IGMP, QoS, PoE schedule and more to improve the availability of critical business applications.

The GS-2210-16P2S provides 16 10/100/1000BASE-T ports featuring 32-watt 802.3at PoE+ and 2 additional Gigabit SFP slots. With a total power budget of up to 240 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.

Through the NMS, administrators can centrally manage networks of up to 102,400 nodes from a central office, thereby greatly improving network and power management efficiency. With its user authentication management, combined with the NMS, the security of data transmission in modern factory automation systems is enhanced.



UNI-NMS Remote Management Solution

The GS-2210-16P2S supports PLANET's Universal Network Management System (UNI-NMS) helping IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS, all kinds of businesses can now be speedily and efficiently managed from one platform.

Powerful NMSViewerPro Solution that Meets Evolving Network Management Challenges

The GS-2210 Web Smart Switch series, known for such features as QoS, Link aggregation, PoE, VLANs, IGMP, and so on, provides an eye-catching feature called NMS developed by PLANET to easily and remotely manage and monitor network devices in the local environment from mobile app. This feature not only improves operational convenience, but also ensures users to have real-time control over their network infrastructure. It provides users with an unparalleled experience.

The intuitive interface of the local NMSViewerPro allows administrators to easily perform a variety of tasks, including monitoring traffic, setting configuration, troubleshooting, and more. At the same time, PLANET UNI-NMS application provides real-time alerts and notifications, allowing administrators to respond to any emergency situations anytime, anywhere to ensure the stable operation of the network.

The introduction of this feature demonstrates our sensitivity to user needs and our commitment to providing a comprehensive and powerful solution to meet evolving network management challenges. We firmly believe that this feature of supporting local NMSViewerPro will bring users a more efficient and flexible management experience.

PLANET NMS and NMSViewerPro app, which with PLANET's free cloud service, allow users to quickly and easily detect, configure, deploy and manage devices remotely. You can just scan the NMS agent's (NMS-500/NMS-1000V) QR code using the mobile application to easily monitor and control the remote network devices via the private cloud.



Built-in Unique PoE Functions for Powered Devices Management

As it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-2210-16P2S features the following special PoE management functions:

  • PD alive check
  • PoE schedule
  • PoE priority
  • PoE power limit
  • PoE usage monitoring

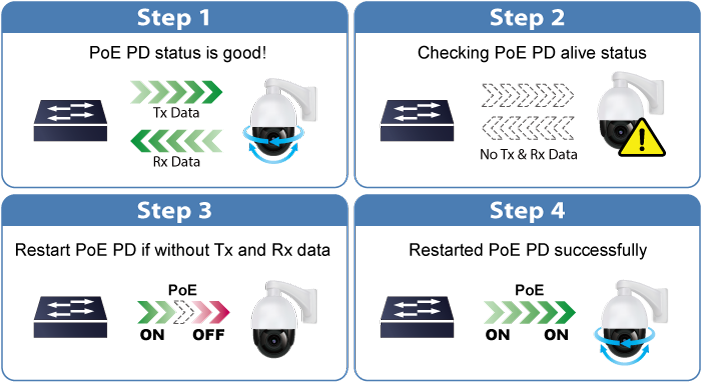

Intelligent Powered Device Alive Check

The GS-2210-16P2S can monitor connected PD status in real time via PD alive check function. Once the PD stops working and responding, the GS-2210-16P2S will resume the PoE power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.



PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection, the GS-2210-16P2S can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitor and Power Control

Through the power usage chart in the web management interface, the GS-2210-16P2S empowers administrators to real-time monitor the power usage status of connected PDs. This capability significantly improves facility management efficiency. Additionally, the switch allows for timely activation or deactivation of PoE ports, providing the ability to power off or reboot connected PDs as needed.



Robust Layer 2 Features

The GS-2210-16P2S can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree Protocol, bandwidth control and IGMP snooping. This switch provides 802.1Q tagged VLAN Protocol functions. By supporting port aggregation, the GS-2210-16P2S allows the operation of a high-speed trunk combined with multiple ports, and supports fail-over as well. Also, the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.



Flexibility and Long-distance Extension Solution

The two mini-GBIC slots built in the GS-2210-16P2S support SFP auto-detection and dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.



Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for cooperating with video IP surveillances. From the GS-2210-16P2S GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can open the camera web page via the IP address link to get real-time monitoring information and online/offline status through IP-based camera, and perform PoE restart control from the GS-2210-16P2S GUI.



ONVIF management functions:

  • Supports PLANET ONVIF IP camera discovery
  • A maximum of 16 PLANET ONVIF IP cameras can be powered by one GS-2210-16P2S switch.
  • IP camera MAC address, IP address, port and model name
  • Open the Camera web page via the IP address hyperlink

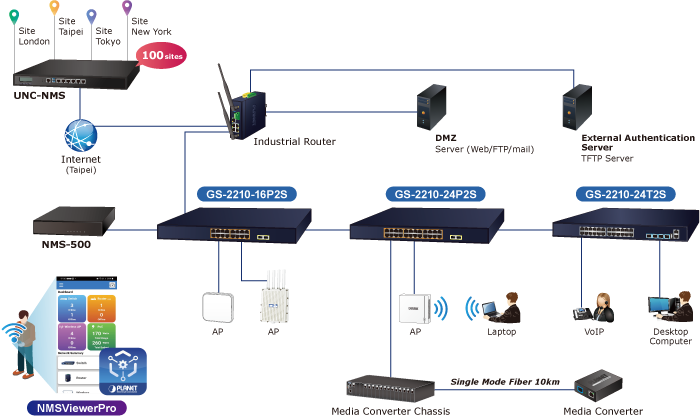

PLANET NMSViewerPro Networking Solution

The GS-2210-16P2S effortlessly integrates the functionalities of PLANET NMS and NMSViewerPro, providing users with a seamless and intuitive experience. Leveraging the internet connectivity feature of smartphones enables real-time monitoring of network traffic, configuration settings, and troubleshooting execution. It can access a wealth of device information stored in the cloud, allowing for a comprehensive understanding of your network. Users can benefit from real-time monitoring and control of access points, regardless of their location or time zone.

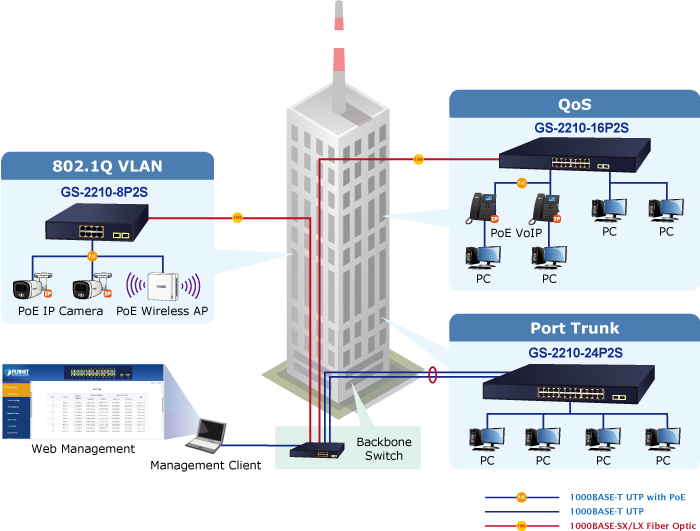

Department/Workgroup 802.3at PoE+ Network

Providing 16 PoE+ in-line power interfaces, the GS-2210-16P2S can easily build a power that centrally controls IP phone system, IP camera system and wireless AP group for enterprises. The GS-2210-16P2S delivers full ports of 802.3af/at compliant Gigabit Ethernet network connectivity with high-performance and cost-effective advantages for the increasing number of PoE IP telephones, PoE IP cameras, PoE wireless access points and other devices applied at the edge of the small or medium enterprise network.

Physical Ports

  • 16 10/100/1000BASE-T Gigabit RJ45 copper ports with 16-port IEEE 802.3at/af PoE injector function
  • 2 100/1000BASE-X mini-GBIC/SFP slots
  • Reset button for system factory default and reboot



Layer 2 Features

  • Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
  • Prevents packet loss flow control
    • IEEE 802.3x pause frame flow control in full-duplex mode
    • Back pressure flow control in half-duplex mode
  • High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
  • 8K MAC address table, automatic source address learning and aging
  • Supports VLAN
    • IEEE 802.1Q tag-based VLAN
  • Supports Link Aggregation
    • Maximum 8 trunk groups, up to 8 ports per trunk group
    • Cisco ether-channel (static trunk)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to 1)
  • Provides port mirror (many-to-1)



Quality of Service

  • 8 priority queues on all switch ports
  • Support for strict priority and WRR (Weighted Round Robin) CoS policies
  • Traffic classification
    • IEEE 802.1p CoS/ToS
    • IPv4 DSCP
    • Port-based WRR
  • Strict priority and WRR CoS policies



Multicast

  • Supports IPv4 IGMP snooping v1, v2
  • IGMP snooping port filtering
    • Flood/Drop
    • DIP Mode



Security

  • Supports DHCP snooping



Management

  • Management IP for IPv4
  • Switch Management Interface
    • Telnet Command Line Interface
    • Web switch management
  • BOOTP and DHCP for IP address assignment
  • Cable Diagnostics to detect the cable connection and the approximate location of the cable fault.
  • Firmware upload/download via TFTP or HTTP Protocol for IPv4
  • Supports ping test function for IP address or domain name
  • NTP (Network Time Protocol)
  • PLANET Smart Discovery Utility for deployment management
  • PLANET NMS for deployment management
  • PLANET NMSViewerPro for deployment management



Power over Ethernet

  • Complies with IEEE 802.3at/af Power over Ethernet Plus
  • Up to 16 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 32 watts for each PoE port
  • Maximum 240-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  • PoE management
    • Total PoE power budget control
    • Per port PoE function enable/disable
    • PoE port power feeding priority
    • Per PoE port power limitation
    • PD classification detection
  • Intelligent PoE features
    • PD alive check
    • PoE schedule
Hardware Specifications
Copper Ports16 10/100/1000BASE-T RJ45 copper ports
PoE Injector Port16 ports with 802.3af/802.3at PoE+ injector function
SFP Slots2 x 100/1000BASE-X SFP interface
Flash Memory16Mbytes
Reset Button< 10 sec: System reboot
> 10 sec: Factory default
ESD ProtectionContact ±6KV , Air ±8KV
Surge ProtectionDifferential mode ±2KV , Common mode ±4KV
Dimensions (W x D x H)440 x 207 x 44mm
Weight2343g
Power Consumption7.1 watts / 24.2BTU (System)
283 watts/ 965BTU (System+PoE)
Power RequirementsAC 100~240V, 50/60Hz
Fan2
LEDSystem:
PWR (Green)
PoE Usage 80% (Green)
Ports:
LNK/ACT (Green)
PoE-in-Use (Amber)
Switching Specifications
Switch ArchitectureStore-and-forward
Switch Fabric36Gbps/non-blocking
Switch Throughput26.78Mpps
Address Table8K MAC address table with auto-learning, auto-aging
Shared Data Buffer4.1MB
Jumbo Frame10KBytes
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Power over Ethernet Specifications
PoE StandardIEEE 802.3at PoE+ PSE
PoE Power Supply TypeEnd-span
PoE Power Output32W (max.)
Power Pin Assignment1/2(+), 3/6(-)
PoE Power Budget240 watts (max.)
Layer 2 Functions
Port ConfigurationEEE Green energy savings disable/enable
Port disable/enable/reboot
Flow control disable/enable
Bandwidth control on each port
Port loopback protection
Port StatusDisplay each port’s speed duplex mode,
Display link status
Display flow control status
Display auto negotiation status
Display Green energy saving status
Port MirroringIn / Out / All
Many-to-1 monitor
VLAN802.1Q tagged VLAN, up to 16 VLAN groups
Bandwidth ControlTX/RX/Both
Link Aggregationstatic trunk
Supports 8 groups with 8 ports per trunk group
QoS8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
IEEE 802.1p CoS/ToS
IPv4 DSCP
Port-based WRR
MulticastIPv4 IGMP v1/v2 snooping
Up to 256
Security Functions
SecurityPort isolation
DHCP Snooping
Switch Management Functions
System ConfigurationTelnet, Web browser
ManagementAuthentication for IPv4 Telnet user name and password
Telnet
Cable Diagnostics
IP address or domain name Ping Test
NTP (Network Time Protocol)
PLANET Smart Discovery Utility
PLANET NMS
PLANET NMSViewerPro
Standard Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PLUS
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
Environment
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
StorageTemperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing)
