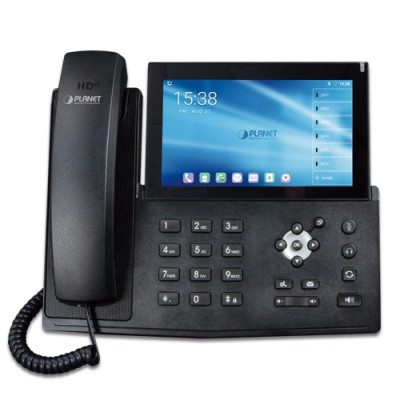

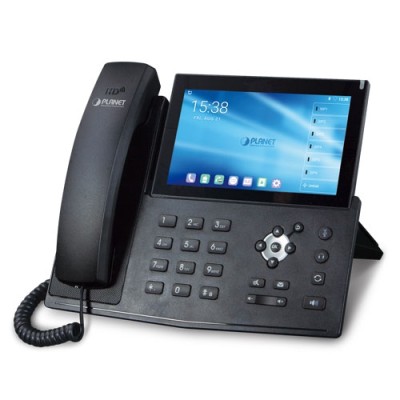

PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone

PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone
PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone
PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone
PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone
PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone
PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone
PLANET ICF-1900 High Definition Touch Color Screen Smart Media Android SIP Conference Phone
  • Διαθεσιμοτητα: Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ICF-1900
  • Βαρος: 1.70kg
  • Διαστασεις: 18.50 x 26.80 x 18.90
456,09€
Χωρίς ΦΠΑ: 367,82€

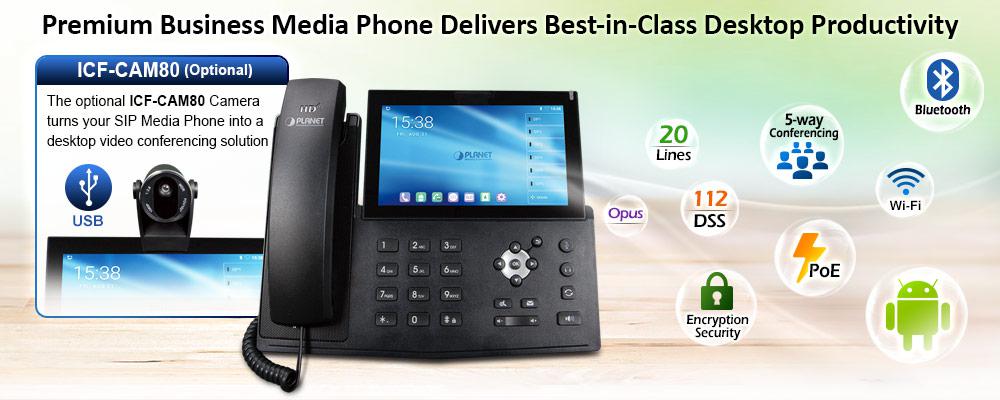

Video Conference Phone with 7-inch Touch Screen

As a high-end enterprise SIP conference phone with Android 9.0 OS, PLANET ICF-1900 provides a more intelligent and smoother touch operation experience for the users.

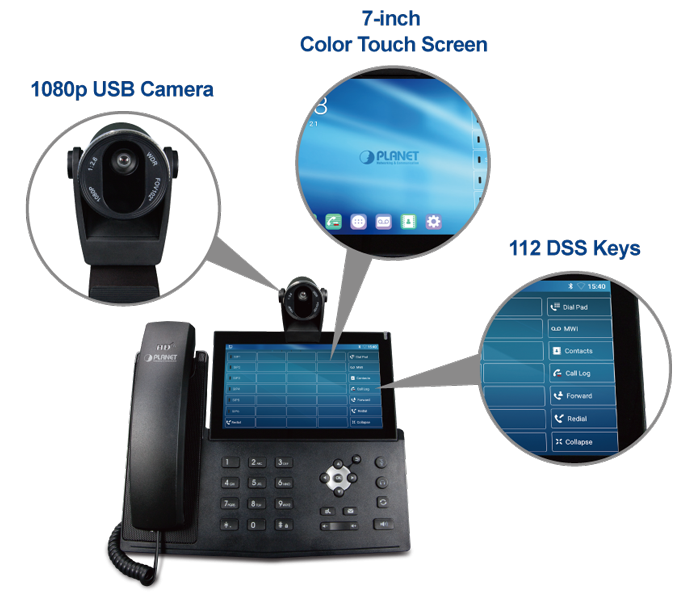

The ICF-1900 is a 7-inch high definition touch color screen SIP conference phone with optional 1080p USB camera. This latest innovative advanced color IP multimedia phone creates an immersive, face-to-face experience over the network. Through the powerful combination of  Android 9.0 OS technologies and design, it supports a greater compatibility and more powerful functions. Its large display and movable icons on interface provide the direct access to frequently-used functions and intelligent touch full keypad with ease of use. Its high resolution makes video conferencing very practical, comfortable and high-quality.



Up to 20 SIP lines with 112 one-touch DSS keys on the 7-inch color touch screen, built-in Bluetooth 4.2 and 2.4G/5G wireless make daily communication smarter and simpler. Matching a optional 1080p USB camera , the ICF-1900 can deliver a superb audio and video for group conferencing.



Bundled with audio and video applications, the ICF-1900 is an easy-to-use business video phone. It allows intuitive navigation like  Android 9.0 OS smart phone to operate every function correctly. With its brilliant user experience and rich business features, it can help you make decisions faster, improve customer intimacy, scale scarce resources, and speed products to market. SOHOs, enterprises, organizations, etc. are already using it to control costs, and reinventing the SIP conference phone by merging voice, video and collaboration into one device. This highly-scalable solution is suitable for enterprise mass deployment, and in no time, everyone in the organization will immediately see the benefits of increased productivity and convenient collaboration.



High-quality G.722 HD and Opus Audio Codes

The ICF-1900 delivers with Harman Kardon speaker, wideband G.722 HD and opus audio codec whose both hardware and software HD functions (HD speaker and G.722 audio codec) are the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and come close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50Hz to 7kHz or higher over telephone lines, resulting in higher quality voice and clearer communication. The ICF-1900 keeps bringing the most premium sound for the users.

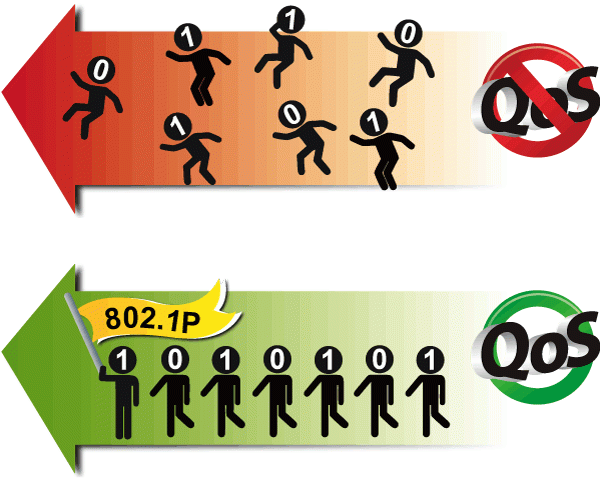

Secure, High-quality VoIP Communication

The ICF-1900 can effortlessly deliver secure toll voice quality by utilizing cutting-edge QoS (Quality of Service) and 802.1p VLAN tagging. Using voice and data, VLAN can easily separate the data and voice, thus maintaining the best quality.

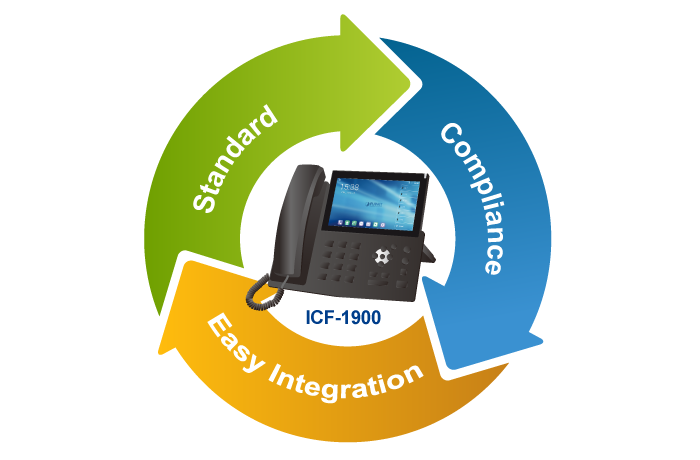

Standard Compliance and Enhanced Voice Security

The ICF-1900 supports IETE Session Initiation Protocol 2.0 (RFC 3261) with Transport Layer Security for easy integration with general voice over IP system. Meanwhile, it provides OpenVPN to enhance voice security. A VPN is created by establishing a virtual point-to-point connection. The SIP conference phone is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multimedia exchange services.

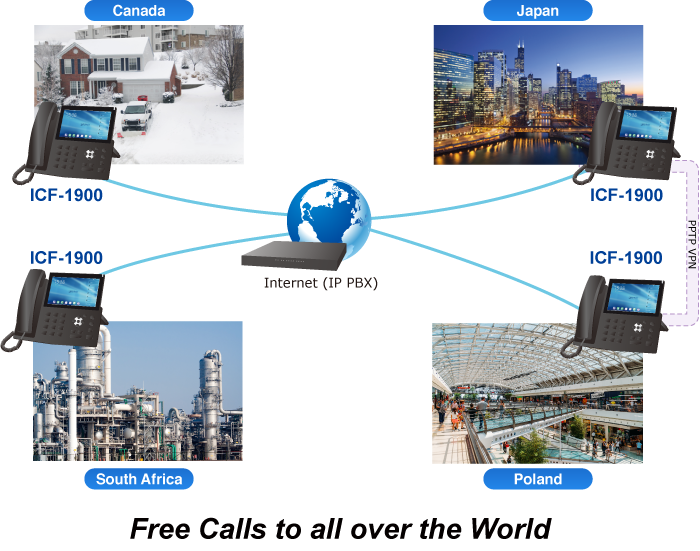

Enterprise Conference Telephony Deployment of ICF-1900

The ICF-1900 comes with exceptional audio quality and user-friendly features and provides 7-inch color touch screen, built-in PoE, Bluetooth 4.2 and 2.4G/5G wireless that make daily communication smarter and simpler. Matching an optional 1080p USB camera , the ICF-1900 can deliver a superb audio and video for group conferencing.

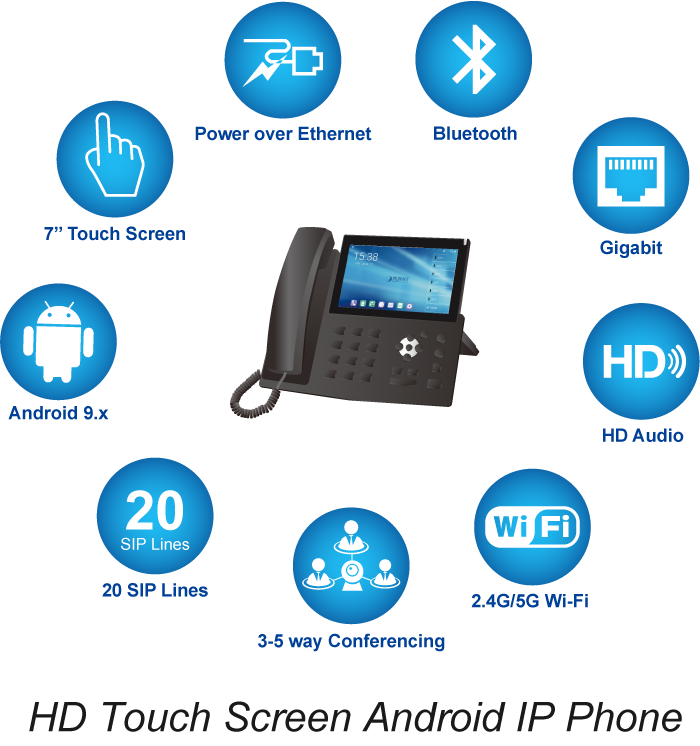

Highlights

  • 7-inch color touch screen with Android 9.0 OS
  • Plug and Play optional 1080p USB camera with 720p 30fps H.264 video call
  • IETE SIP compliant with Transport Layer Security
  • Up to 20 SIP lines with 112 one-touch DSS keys
  • Dual Gigabit and IEEE 802.3af/at PoE compliant
  • Built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi
  • Wideband G.722 HD and Opus audio codec with handset and hands-free function



Audio and Video Features

  • 720p@30fps HD H.264 video call
  • Audio codec: Opus, G.722, G.722.1, G.722.1C,G.711 (A/µ), G.729AB, iLBC
  • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
  • Full-duplex hands-free speakerphone with AEC
  • Noise Reduction (NR) and Packet Loss Concealment (PLC)



Phone and Call Control Features

  • Up to 3-party video conferencing and 5-party video/audio mixed conferencing
  • Direct IP call without SIP proxy or IP PBX
  • Caller ID display, speed dial, do not disturb (DND)
  • One-touch speed dial, hotline, black/white list call filter
  • Local phonebook (2000 entries),  remote phonebook (XML/LDAP, 2000 entries)
  • Call logs (In/out/missed, 1000 entries)



Network and Management

  • Integrated web server provides web-based administration and configuration
  • Telephone keypad configuration via display menu/navigation
  • OpenVPN, VLAN and QoS Support
  • Auto-provisioning via FTP, TFTP, HTTP/HTTPS, DHCP OPT66, SIP PNP, TR-069



Interface
Lines (Direct Numbers)20 SIP Lines
Display and Indicator112 one-touch DSS keys on 7-inch (1024 x 600) color touch screen
5 points multi-touch surface
Screensaver and wallpaper
LED for call and message waiting indication
Intuitive user interface with icons and soft keys
Multilingual user interface
Caller ID with name, number and photo
Feature Keys26 keys, including
5 x Function keys (Hold, MWI, Mute, Headset, Redial)
4 x Navigation keys
1 x OK key
1 x Return key 
12 x Standard Phone Digits keys
2 x Volume Control keys – Up and Down
1 x Hands-free key
Network InterfacesDual-port Gigabit Ethernet:
Network x 1 (802.3af/at PoE enabled)
PC x 1 (Bridged Network)
Built-in Wi-Fi (2.4GHz/5Gz)
Built-in Bluetooth 4.2

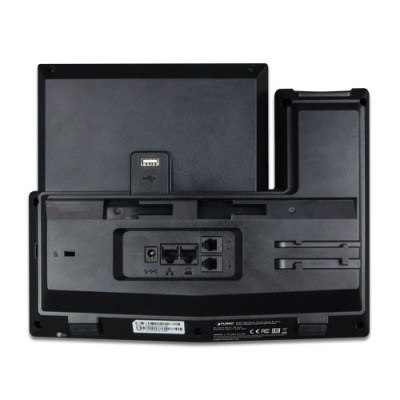

ConnectorsRJ9 Port x 2: Handset x 1, Headset x 1
USB2.0 Port x 1: Standard A, Connect with camera
Safety keyhole x 1
Android bundled Applications
Operating SystemAndroid 9.0 OS with higher security and better compatibility
Files, Calendar, Gallery, Browser, Email, Calculator, Notepad,
Sound Recorder, Clock, Video, Music
Third-party Android application support
Network and Provisioning
NetworkIP Mode:IPv4
IP Configuration: Static / DHCP
Network Access Control: 802.1x
VPN: OpenVPN (Requires third-party app support)
VLAN, LLDP, CDP, QoS
ProtocolsSIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, CDP, LLDP, PPPoE, 802.1x, OpenVPN (Requires third-party app support), SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
Deployment & MaintenanceAuto-provisioning via FTP, TFTP, HTTP/HTTPS, DHCP OPT66, SIP
PNP, TR-069
Web management portal, Telnet
Encrypted configuration files download with AES
Web upgrade, factory reset data
The third-party communication App
Features
Audio FeaturesHD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz
frequency response)
HAC handset
Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711a/u, G.729AB, iLBC
Wideband codec: G.722, Opus
Full-duplex acoustic echo canceller (AEC)
Noise reduction (NR)
Packet loss concealment (PLC)
Dynamic adaptive jitter buffer
DTMF: In-band, out-of-band, DTMF-relay (RFC2833), SIP Info
Video FeaturesVideo decoding: H.264
Video call resolution: CIF/VGA/4CIF/720P/1080P
Image format: JPEG/PNG/BMP
Video format: MP4
Bandwidth selection: 64kbps~4Mbps
Frame rate selection: 5~30fps
Video from remote site can be displayed in full screen
3-way video conferencing
Self-view (local video preview)
Phone FeaturesLocal Phonebook (2000 entries)
Remote Phonebook (XML/LDAP, 2000 entries)
Intelligent Search for Contacts and Call Log
Call logs (In/out/missed, 1000 entries)
Black/White List Call Filter
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Built-in Bluetooth 4.2: Supports Bluetooth headset/ Bluetooth of Mobile Device
Built-in Wi-Fi: 2.4GHz, 802.11 b/g/n, 5GHz, 802.11 a/n/ac
Support Recording
Action URL / Active URI
UaCSTA
Audio/Video Recording
SIP Hotspot
Group Broadcasting
Action Plan
Group listening
Call FeaturesCall out / Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (On IP PBX or SIP server)
5-way Audio Conferencing
Hot Line
Hot desking
BLF (Busy Lamp Field)
Environment
Power RequirementsIEEE 802.3af/at (Network port)
5V DC, 2000mA (optional external power supply)
Power ConsumptionPoE: 1.596~11.86W
Adapter: 0.907~9.38W
Operating Temperature0 ~ 45 degrees C
Operating Humidity10 ~ 95% (non-condensing)
Weight770g
Dimensions (W x D x H)Desktop Stand (Angle 1): 268 x 185 x 189 mm
Desktop Stand (Angles 2): 268 x 201 x 168 mm
EmissionCE, FCC, RoHS
Optional Accessories -- ICF-CAM80
CameraPixels: 2 megapixels
Video Codec: H.264
Video Call Resolution: 1080p@30fps
Automatic/Manual White Balance
Automatic Exposure Compensation
Adjustable with Privacy Shutter
View Diagonal: 102°
Horizontal: 94°
Vertical: 62°
Vertical Adjustment Angle: ± 23 °
Status Indicator Light x1 (with Two-color LED)
Environments
Power Requirements / Consumption5V @ <500mA via USB port
Operating Temperature-10 ~ 50 degrees C
Operating Humidity10 ~ 90% (non-condensing)
Weight119 g
Dimensions (W x D x H)51 x 90.14 x 141.31 mm
EmissionCE, FCC, RoHS
ConnectorsUSB Port x1: Micro USB 2.0



Datasheet

DateVersionDescriptionDownload
2020-09-111.0ICF-1900



Firmware

DateVersionDescriptionDownload
2023-09-232.4.0.89Software driver upgrade.
2022-01-212.4.0.86Removed the bug of the existing linkage plan that cannot be modified or deleted.
2021-10-212.4.0.79Fixed:
1. User Account could not be modified or deleted.
2. Solved the Upgrade Authentication issue.
3. Compatibility issue with 2N door phone.
2021-01-152.4.0.9Added the Bluetooth external line
(connect mobile phone Bluetooth to answer and call mobile phone address book).
2020-12-152.0.0.205Fixed the bug of the LCD setting page crash during call transfer
2020-09-252.2.0.87Initial release.



Quick Guide

DateVersionDescriptionDownload
2020-08-251.0Initial Release.



User's Manual

DateVersionDescriptionDownload
2020-10-081.0Initial Release.



EC Declaration

DateVersionDescriptionDownload
2021-01-221.0Initial release
