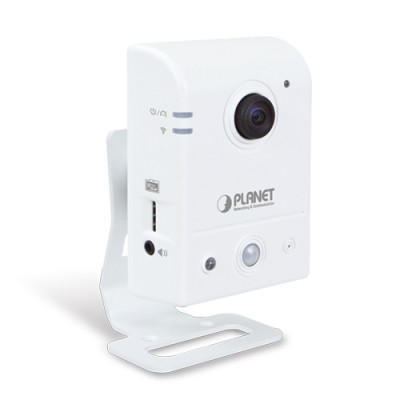

PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera

PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
PLANET ICA-W8100 Wireless Cube Fish-Eye IP Camera
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ICA-W8100
  • Βαρος: 0.72kg
  • Διαστασεις: 3.90 x 7.00 x 9.90
184,38€
Χωρίς ΦΠΑ: 148,69€

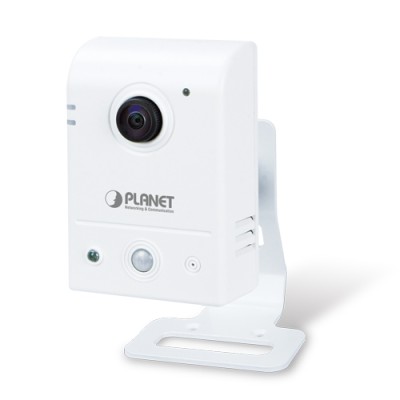

Compact Wireless Panoramic Camera for Wide View Surveillance
The PLANET ICA-W8100 is a compact cube camera providing a 180 degree panoramic wide angle view, especially designed for indoor surveillance. Incorporating 1.3MP-resolution sensors, it supports H.264, MPEG-4, and M-JPEG compression formats and delivers excellent picture quality in up to 1280 x 720 pixels (720P) at 30 frames per second (fps). The unique design makes it the ideal solution to surveillance applications in homes, boutiques, stores or restaurants.

Wider Monitoring with 180º Panoramic View
The ICA-W8100 wireless fisheye camera allows you to monitor all angles of a location using just one camera, thus saving lots of traditional mechanical Pan/Tilt maintenance effort. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without the need of installing any other software, with the ICA-W8100, you can watch live view and utilize functions such as motion detection through the Web interface via an IE browser.

Efficient Event Management
The ICA-W8100 is designed with a built-in Passive InfraRed (PIR) motion detection sensor able to detect movement far from 5 meters away. When people pass by or an emergency happens in the specified areas, the ICA-W8100 will “detect” and start recording automatically. Furthermore, it provides an additional function of alarm notification that can send the captured images to the micro SD/SDHC card slot for local storage.

Enhanced Video Quality and 2-Way Audio Support
The ICA-W8100 provides the industry a more comprehensive set of performance enhancing features including Auto Electronic Shutter (AES) and Auto White Balance (AWB). Besides, the ICA-W8100 supports 2-Way audio to strengthen the event management capabilities.

High Quality Streaming via 11n Wireless Connectivity

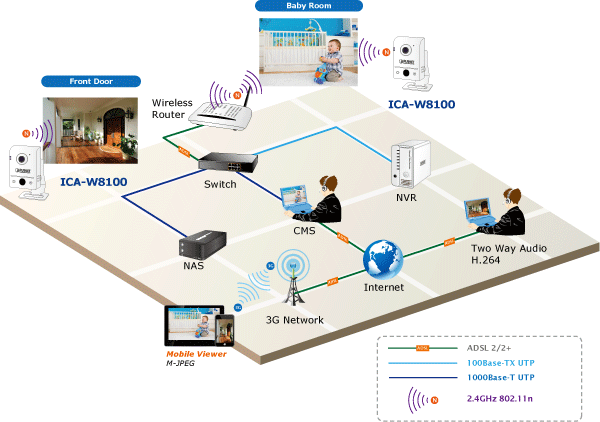

The ICA-W8100 adopts IEEE 802.11n wireless technology to communicate at maximum wireless signal rate and ensures secure transmission with WEP and WPA encryptions. It allows you to stream high quality video to remote sites and mobile devices. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. Complying with ONVIF, the ICA-W8100 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-W8100 is indisputably the top choice for reliable and high performance surveillance.

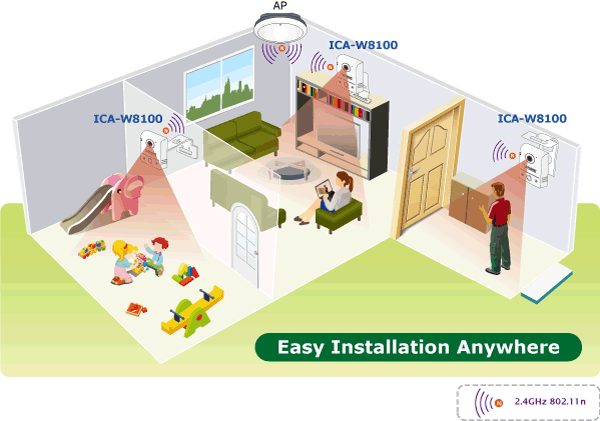

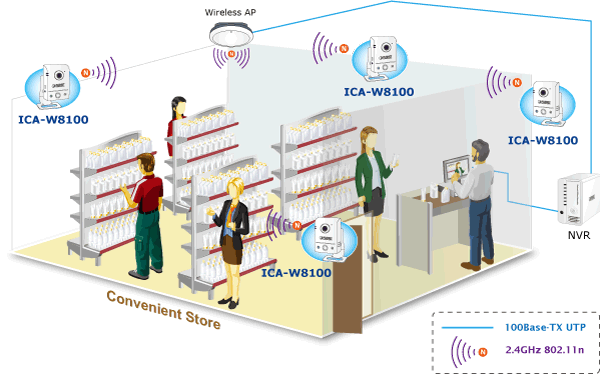

PLANET ICA-W8100 provides various surveillance applications to deliver clear images in 180 degree panoramic view. Thus, the ICA-W8100 can identify all objects and people in a wide range, instead of narrow view, if installed above the front door. It helps to identify objects and people. It is especially perfect for indoor surveillance in such places as homes, boutiques, department stores, restaurants, etc.

Camera
• Fish-Eye Lens to bring a 180 degree panoramic wide angle view
• Unique Fish-Eye hardware correction technology
• 1.3 mega-pixel CMOS sensor
• Passive Infrared (PIR) Sensor for enhanced motion detection

Video / Audio
• H.264, MPEG-4 and M-JPEG video compression simultaneously
• Simultaneous Multi-H.264 streams support
• 2-Way audio support with enhanced audio quality

Network and Configuration
• Wireless 802.11n connectivity / Wi-Fi Protected Setup (WPS)
• UPnP® support for network setup & configuration
• Auto MDI/MDI-X supported
• RTSP / UPnP / HTTPS protocols selectable

Easy Installation & Management
• ONVIF compliant for interoperability
• Advanced e-PTZ, including preset point
• Plug and Play Smart Access Technology without IP setting in router
• Micro SD/SDHC card local video recording supported
• Cam Viewer 3 central management software supported

Camera
Image Device1/4" progressive 1.3 Mega-Pixel scan CMOS sensor
LensFish-Eye Lens, 185.5/145/>=200° (H/V/D), F= 2.0, f=0.89 mm
Min. Illumination0.5 lux @ F2
Effective Pixels1280 x 720 pixels (16:9)
PIR Sensor1 x Built-in sensor with adjustable 70 degrees direction
Effective Distance: 5 meters
Effective Coverage: 70 degrees
Video
Video EncoderH.264 / MPEG-4 / M-JPEG
Video ResolutionH.264: 1280 x 720 / 640 x 360 / 320 x 180
MPEG4: 1280 x 720 / 640 x 360 / 320 x 180
M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180
Frame RateUp to 30fps for all resolutions
Image SettingAE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW
StreamingSimultaneously multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (M-JPEG / H.264)
Rate ControlCBR (Constant Bit Rate)
VBR (Variable Bit Rate)

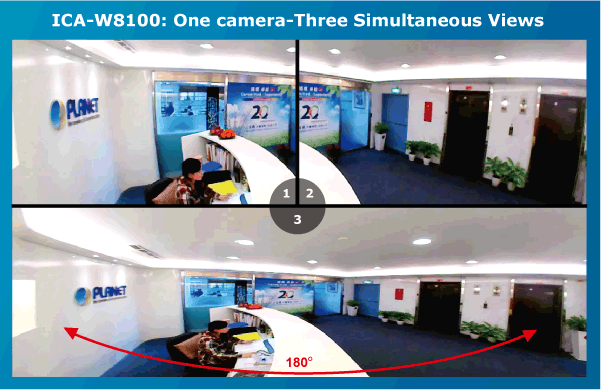

UI Layout180 degree Single Broad View (1P)
2 PTZ Mode (2R)
180 degree Broad View + 2 PTZ Mode (1P2R)
Audio
Audio Streaming2-Way Audio
Audio CompressionRTSP: G.711 64kbps
MicrophoneBuilt-in Microphone
Audio OutputLine Out for extra speaker
Network and Configuration
Network StandardIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.11b/g/n
Network ProtocolIPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba
Antenna connector1 x 3dBi (Max)
Frequency2.4GHz
RF Transmission PowerOFDM: 13dBm
CCK: 17dBm
Output Power802.11n: 13dBm(default) +/- 1dBm
802.11g: 13dBm(default) +/- 1dBm
802.11b: 17dBm(default) +/- 1dBm
Receiver Sensitivity802.11b (11Mbps):
CCK @ 8% PER = -88dBm
802.11g (54Mbps):
OFDM @ 10% PER = -72dBm
802.11n Draft 6.0:
HT20 @ 10% PER = -66 dBm
HT40@ 10% PER= -61dBm
Data Rate802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: up to 150Mbps
SecurityPassword protection / WEP and WPA Encryption
UsersDepends on streaming data rate used
System Integration
Application Programming InterfaceOpen API for software integration
ONVIF
Alarm TriggersIntelligent video motion detection and PIR sensor
Alarm EventsFile upload via FTP, e-mail or Micro SD/SDHC card
Notification via e-mail, Mobile APP, and HTTP
Environment
Power Requirement5V DC, 2A
Power Consumption6W (5VDC)
Operating Temperature0 ~ 45 Degrees C
Operating Humidity20 ~ 80% (non-condensing)
Weight134g
Dimensions (W x D x H)70 x 39 x 99 mm
EmissionCE, FCC

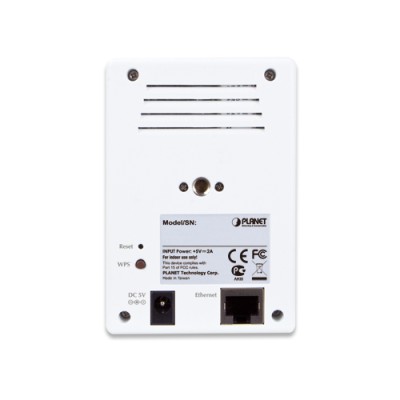

Connectors10/100 Mbps Ethernet, RJ-45
DC power jack
Audio out
Micro SD/SDHC card (Max 32GB, Class 6)
WPS Button
Factory default reset button



Datasheet

DateVersionDescriptionDownload
2013-09-271.0ICA-W8100



Firmware

DateVersionDescriptionDownload
2013-10-081.0.0_09251.Modify search function with SD card
2. Add Motion recording pre-alarm 5 Secs function
2013-07-251.0.0_0722Initial Release



Quick Guide

DateVersionDescriptionDownload
2014-10-091.1Initial Release for Cloud version
2013-04-191.0Initial Release for ICA-W8100_W8100-CLD



User's Manual

DateVersionDescriptionDownload
2013-07-221.0Initial Release



Utility

DateVersionDescriptionDownload
2013-07-255.42Initial Release



EC Declaration

DateVersionDescriptionDownload
2013-11-141.0Initial Release
