- Διαθεσιμοτητα: Άμεσα Διαθέσιμο
- Κατασκευαστης: PLANET
- Κωδικος Προϊοντος: ICA-W7100
- Βαρος: 0.74kg
- Διαστασεις: 10.60 x 10.30 x 13.10

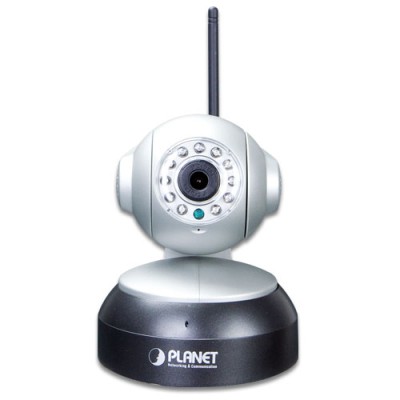

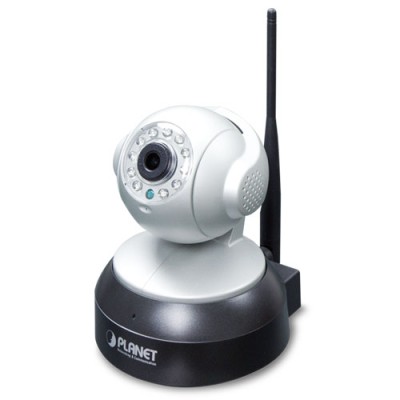

Compact and Cost-effective 720p HD Surveillance

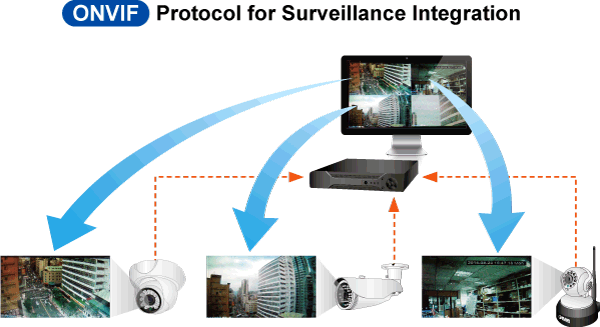

PLANET ICA-W7100 is easily and conveniently installed anywhere as it is compact in size. It Incorporates 1 megapixel resolution sensors, and supports H.264 compression format, thus delivering excellent picture quality in up to 1280 x 720 pixels (720p) at 30 frames per second. In addition, there is also a 10/100 Mbps network connection and an Micro SD slot for storage. Along with the motion detection function and the function of the pan-tilt camera, you can safely and reliably observe larger areas. Complying with ONVIF, the ICA-W7100 is therefore interoperable with the third brand camera in the market, which greatly supports users to integrate with their existing surveillance network.
Day & Night Surveillance
The ICA-W7100 brings the clearest vision at night by featuring 0.1 lux illumination and the 11 IR LEDs built around the lens. It offers color pictures both in the day time and night time with the built-in CMOS sensor supporting up to 10 meters. The ICA-W7100 is able to maintain clear images 24 hours a day.
Exceptional Image Quality

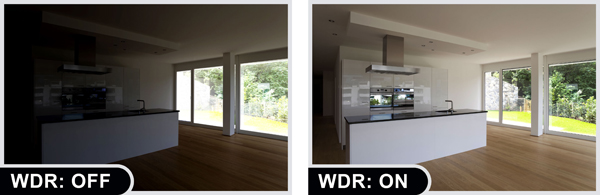

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and Dimensional Noise Reduction (DNR) technology, the ICA-W7100 is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.
Advanced Event Management
Users can save consecutive videos in local storage and events on memory card and thus you never have to miss an important moment. Users can set their area of interest to only detect motion in that area, thus greatly reduces the number of unnecessary alarms. The ICA-W7100 also offers 2-way audio surveillance; therefore, the administrator can speak to anyone at the ICA-W7100 remote site with a speaker connected.

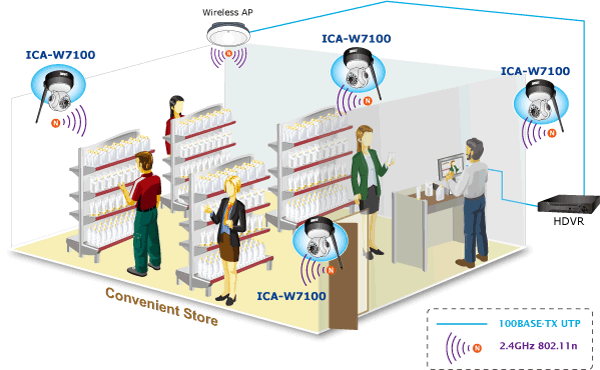

Flexible Installation with 11n Wireless Connectivity
The ICA-W7100 adopts IEEE 802.11n wireless technology to communicate at up to 150Mbps wireless signal rate and ensures secure transmission with WEP and WPA encryptions. The wireless N functionality enables rapid integration into the wireless network and offers a flexible choice of the site.
The ICA-W7100 is indisputably the ideal choice for reliable and high-performance surveillance.

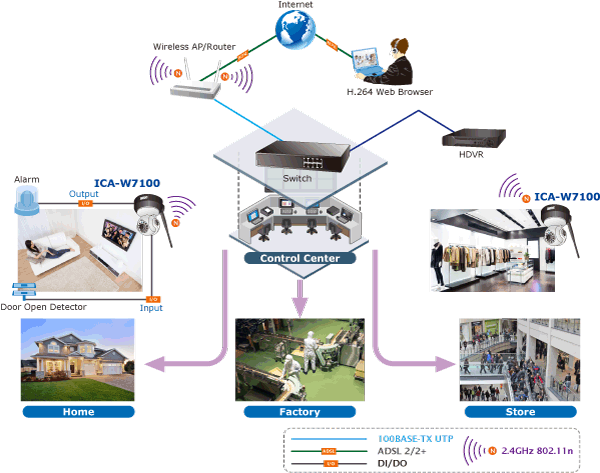

PLANET ICA-W7100 is a highly cost-effective wireless IP camera designed for home monitoring. It provides clear identification of objects and people, so it perfectly satisfies surveillance needs from all aspects such as homes, small businesses, boutiques, restaurants, hotels and residences, etc.
Camera
- 1/4" progressive CMOS sensor
- 3.6mm fixed lens
- 0.1 lux minimum illumination at F1.2
- Maximum resolution 1280 x 720
- Built-in 11 IR illuminators, effective up to 10 meters
Video / Audio
- H.264 video compression
- Simultaneous multi-stream support
- Max. resolution 720p at 30fps
- 2DNR to improve picture quality at low lux
- 2-way audio support with enhanced audio quality
Network and Configuration
- IEEE 802.11n wireless LAN capability
- WEP / WPA / WPA2-PSK wireless security
- Auto MDI/MDI-X supported
- RTSP / DDNS / FTP protocols selectable
Easy Installation & Management
- ONVIF compliant for interoperability
- Intelligent motion detection alarm triggering
- Micro SD/SDHC card for event recording supported
- Digital input/output for integration with sensors and alarms
- Easy configuration and management via Windows-based utility or web interface
Camera | |
---|---|
Image Device | 1/4" 1mega-pixel CMOS image sensor |
Lens | Fixed lens 3.6mm, F1.4 Angle of view: Horizontal: 75 degrees Vertical: 55 degrees |
Effective Pixels | 1280 x 720 |
Min Illumination | Color: 0.1 lux @ F1.2 B/W: 0 lux (IR on) |
LED | Built-in IR LED x 11, effective up to 10 meters *The IR distance is based on the environment |

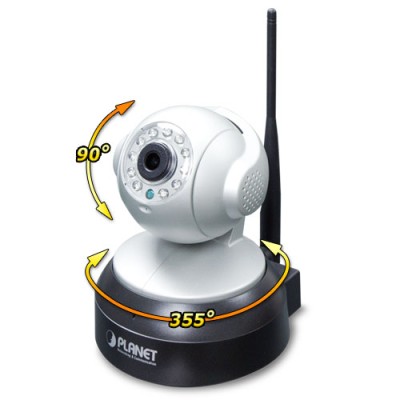

Angle of Pan | 0~355 degrees |
Angle of Tilt | 0~90 degrees |
Video | |
Video Encoder | H.264 |
Video Resolution | Main Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480 Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144 |
Frame Rate | Up to 30fps for all resolutions |
Image Setting | 2D noise reduction Color, brightness, contrast Mirror / Rotate 4 privacy masks Text, time and date overlay |
Streaming | Simultaneous multi-streaming Streaming over UDP, TCP, or HTTP Controllable frame rate and bandwidth Constant and variable bit rate |
Audio | |
Audio Streaming | 2-way audio |
Audio Compression | PCM, G.711ALAW, G.711ULAW |
Microphone | Internal microphone |
Audio Output | Adjustable audio output gain |
Network and Configuration | |
Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.11 b/g/n |
Network Protocol | IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X |
Antenna Connector | RP-SMA Female |
Frequency | 2.4GHz |
RF Transmit Power | 802.11b mode: 20 dbm 802.11g mode: 17 dbm 802.11n mode: 17 dbm |
RF Receiver Sensitivity | 802.11b (11Mbps): -85dbm 802.11g (54Mbps): -68dbm 802.11n (20MHz): -68dbm 802.11n (40MHz): -68dbm |
RF Data Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n (20MHz): up to 72Mbps 802.11n (40MHz): up to 150Mbps |
Security | Password protection; WEP, WPA-PSK and WPA2-PSK encryptions |
Users | 2 clients on-line monitoring at the same time |
System Integration | |
Application Programming Interface | ONVIF compliant |
Alarm Triggering | Motion Detection External Input |
Alarm Events | Event snapshot uploads via FTP Event recording uploads via SD card Notification via email, HTTP External output activation |
Environment | |
Power Requirements | 5V DC, 10W max. |
Power Consumption | Up to 7.8W (IR & PT on) |
Operating Temperature | -10 ~ 50 degrees C |
Operating Humidity | 20 ~ 85% (non-condensing) |
Dimensions (W x D x H) | 103 x 106 x 131mm |
Weight | 305g |
Emission | CE, FCC |
Connectors | 10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio out MicroSD/SDHC card (max 32GB) Factory default reset |
