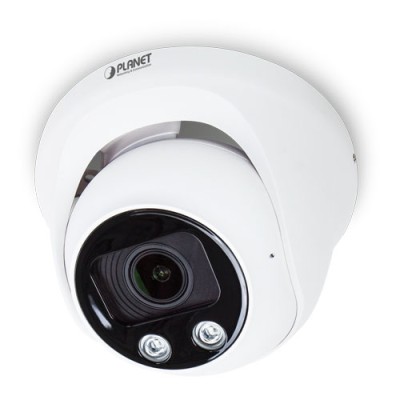

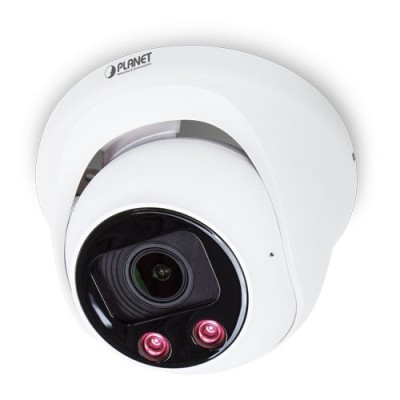

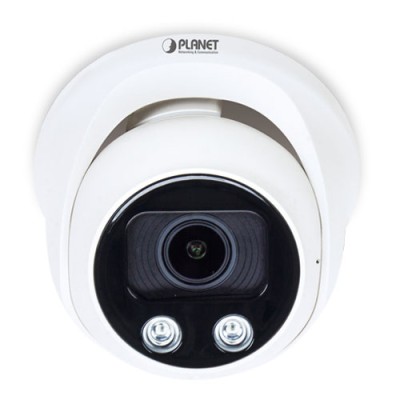

PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom

PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
PLANET ICA-M4580P H.265 5 Mega-pixel Smart IR Dome IP Camera with Remote Focus and Zoom
  • Διαθεσιμοτητα: Άμεσα Διαθέσιμο
  • Κατασκευαστης: PLANET
  • Κωδικος Προϊοντος: ICA-M4580P
  • Βαρος: 0.78kg
  • Διαστασεις: 12.80 x 12.80 x 10.80
164,97€
Χωρίς ΦΠΑ: 133,04€

Excellently Efficient Surveillance Video

PLANET ICA-M4580P PoE IP Camera delivers excellent picture quality in H.264(+)/H.265(+) 5 mega-pixel resolutions and 3 streaming capabilities. Users will benefit from reduced 50% bandwidth and data storage through more efficient video compression.



Incorporating the SmartSens CMOS sensor and 25-meter Smart IR illuminators, which are specially designed for surveillance applications, the ICA-M4580P provides sharp images under all lighting conditions. With the 2.7~13.5mm motorized focus and 5x zoom, users can remotely adjust the focus and zoom from the web interface. Being able to operate under the temperature range from -20 to 60 degrees C, the ICA-M4580P, equipped with a tough IP67-rated metal housing and its outdoor and handy features, enables you to easily install the camera in any public areas, such as buildings, gardens, parking areas, markets, railway stations and hospitals. It ensures the highest level of reliability for mission-critical applications in any difficult environment.

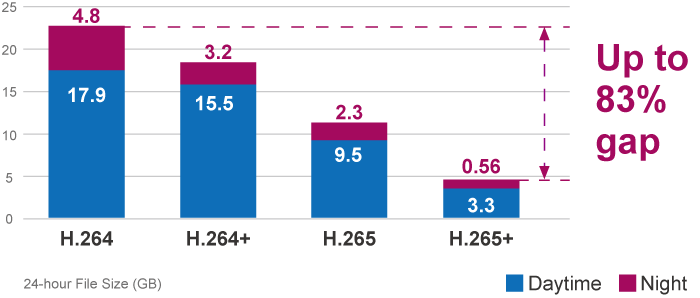

High Efficiency Video Compression

The ICA-M4580P employs the H.264(+)/H.265(+) technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 50% of bandwidth, meaning H.264(+)/H.265(+) offers much higher quality video for less bandwidth. Thus, it can further enhance the overall performance of its IP surveillance system.

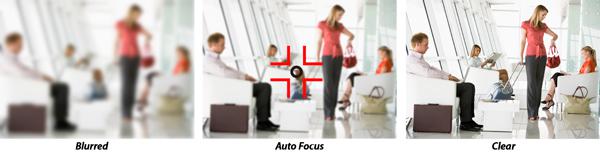

Smart Focus with Zoom Function

The ICA-M4580P is designed with the Smart Focus to make installation and adjustment easier by allowing remote focus and zoom adjustment. The 5x zoom function works by a stepping motor controlled via software to automatically provide the best iris position for the best exposure time in all lighting conditions.

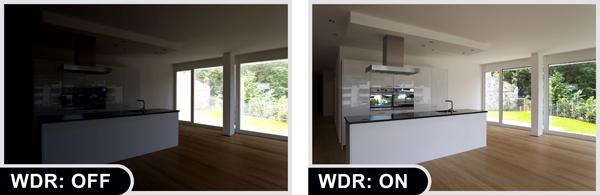

Exceptional Image Quality

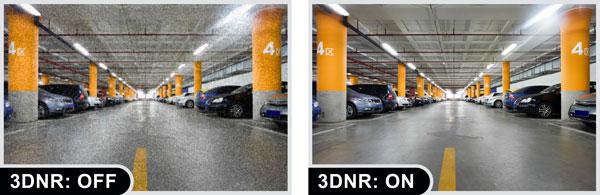

Together with powerful image processing attributes like Wide Dynamic Range (WDR) and 3-dimensional Noise Reduction (3DNR) technology, the ICA-M4580P is able to filter the intense backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions.



Advanced Media Management

The ICA-M4580P supports a number of advanced features to enhance surveillance flexibility and event management capabilities. The advanced features include ROI (region of interest), motion detection, 3 configurable regions of privacy mask to protect personal privacy, and video tampering function. It also comes with defog model and image adjustment options.



Flexible Installation and Power Functionality

Powered from a PoE power sourcing equipment such as 802.3af/at PoE switch or 802.3af/at PoE injector over a network cable, the ICA-M4580P, adopting the IEEE 802.3af standard, does not need extra power cables and manpower, thus reducing installation costs while increasing deployment flexibility and scalability. The ICA-M4580P is ONVIF compliant and interoperable with other brands in the market, making it an indisputably ideal choice for reliable and high-performance surveillance.



Scheduled Power Rebooting

The ICA-M4580P can be scheduled to reboot at a specified time like minute, hour, every week or every month to reduce the chance of crash resulting from buffer overflow.

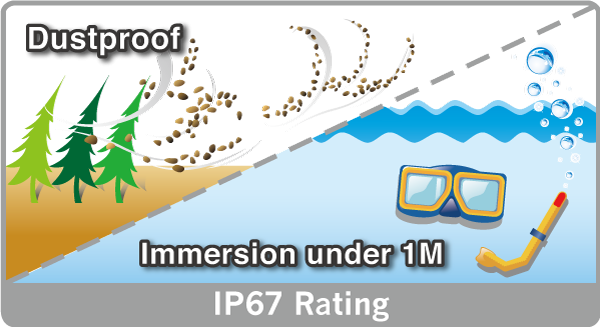

Water-resistant and Dust-proof Protection

The IP67-rated metal housing protects the camera body against rain and dust, and ensures operation under extreme weather conditions, which makes it an ideal solution for outdoor applications, such as buildings, roads, parking areas, garages, railway stations and airports.

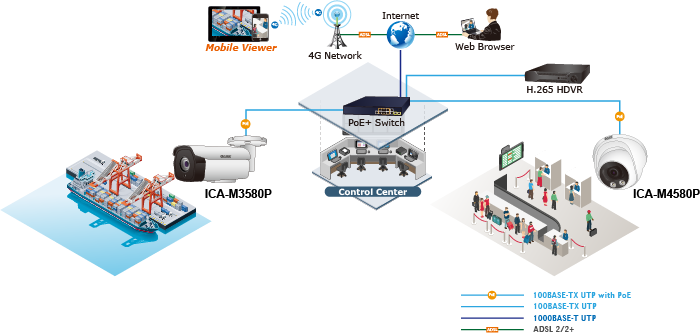

High Scalability for Various Industrial IP Surveillance Solutions

PLANET high-resolution ICA-M4580P can offer various surveillance applications as it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-M4580P supports 802.3af PoE PD interface, and facilitates the outdoor surveillance applications without worrying the electric source. Besides, Planet VMS, NVR, HDVR, Web UI and App management make you easy to do the configuration and live viewing. With powerful features offered, the ICA-M4580P no doubt is your best choice for outdoor surveillance solution.



Camera

  • 1/2.7" 5 megapixel SmartSens CMOS sensor
  • 2.7-13.5mm 5X motorized zoom auto focus lens
  • Remote smart focus for remote and precise focus adjustment
  • 0.01 lux minimum illumination at F1.2
  • Built-in smart IR illuminators, effective up to 25 meters
  • Removable IR-cut filter for Day & Night function



Video and Audio

  • Simultaneous H.264(+)/H.265(+)/JPEG/AVI/MJPEG triple-stream video encoding
  • Simultaneous multi-stream support
  • H.264/M-JPEG baseline profile, main profile or high profile options
  • Max. resolutions of 2880 x 1620 at 25fps
  • HDR (120dB) enhancement function strengthens visibility under extremely bright or dark environments
  • 3DNR to improve picture quality at low lux
  • One-way audio support
  • Image adjustment options
    • Image adjustment
    • Exposure settings
    • Focus
    • Backlight settings
    • Day and night switch
    • White balance
    • Video adjustment
    • Image enhancement
    • Defog model
    • Distortion
    • Image rotation
  • OSD Settings
  • Motion detection, video tampering, intrusion detection
  • 3 configurable regions of privacy mask to protect personal privacy
  • ROI (Region of Interest)



Power over Ethernet

  • Compatible with IEEE 802.3af Power over Ethernet PD for flexible deployment



Network Configuration and Management

  • IPv4 DHCP Client and IPv4 Static IP Address management
  • PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE available options
  • ONVIF compliant for interoperability
  • SNTP Network Time Protocol/synchronize with computing time
  • Schedule power rebooting
  • System log
  • User management options for various authorities:
    • Admin
    • Operator
    • Guest
  • System maintenance
    • Firmware upload/download via HTTP
    • Configuration upload/download through web interface
  • Easy configuration and management via Windows-based software or web interface
  • PLANET Search Tools utility and Professional Video/Central Management Software
  • NDAA Compliant



Case and Installation

  • IP67-rated metal housing for rigorous environment
  • Waterproof and dustproof designs
  • -20 to 60 degrees C operating temperature
  • Plug and Play installation



Camera
Image Sensor1/2.7" 5MP SmartSens CMOS sensor
LensFocus Length: 2.7-13.5mm
Focus Control: Auto
Lens Type: Motorized
Angle of view:
Horizontal: 24~90 degrees
Vertical: 17~74 degrees
Min. Illumination0.01 lux (color) @ F1.2
0lux (B/W) @ IR on
IR IlluminationsBuilt-in smart IR illuminators, effective up to 25 meters
*The IR distance is based on the environment
Effective Pixels (H x V)2880 x 1620
Power over Ethernet
PoE StandardIEEE 802.3af PoE PD
Video CompressionH.264(+)/H.265(+)/JPEG/AVI/MJPEG
Video Resolution
Frame RateUp to 15~30 fps for all resolutions
Bitrate32~16384kbps
Shutter TimeAuto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Image SettingImage adjustment
Exposure settings
Focus
Backlight settings
Day and night switch
White balance
Video adjustment
Image enhancement
Defog model
Distortion
Image rotation
OSD settings (Text, time and date overlay and overlay image on video)
Motion detection, video tampering
3 configurable regions of privacy mask to protect personal privacy
StreamingStreaming over UDP, TCP, HTTP, or HTTPS
Controllable frame rate
M-JPEG streaming over HTTP (server push)
Constant and variable bit rate
ROI (Region of Interest)
Audio
Audio StreamingOne-way audio
Audio CompressionG.711A/G.711U/AAC
Audio InputBuilt-in mic
Networking & Configuration
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
ProtocolIPv4 DHCP Client and IPv4 Static IP Address management
PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE
SecurityUser Management options for various authority
- Admin
- Operator
- Guest
UsersOn-line monitoring of 16 clients at the same time
Web BrowerIE8~11, Google Chrome, Firefox , Mac Safari
AppYes (Android, IOS with P2P QR code)
LanguageChinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese
System Integration
Application Programming InterfaceONVIF compliant
Alarm TriggeringMotion detection/video tampering/intrusion detection
Alarm EventsSMTP, FTP, Cloud (Google, Dropbox)
Hardware Specification
Power Requirements12V DC, 0.95A
IEEE 802.3af
Power Consumption8W (IR on)
Dimensions (Φ x H)128 x 108 mm
Weight690g
Reset ButtonOn-board (next to SD slot)
SD Card SlotMicro SD (512GB maximum)
LED42µ x 2PCS

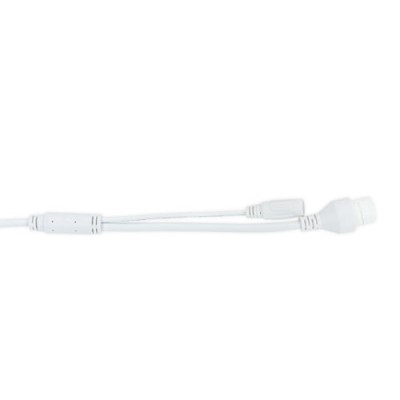

Connector10/100Mbps Ethernet, waterproof/dustproof RJ45 connector
DC power jack
EnclosureIP67 metal case
Standards Conformance
Regulatory ComplianceFCC Part 15 Class B, CE
Environment
OperatingTemperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)



Datasheet

DateVersionDescriptionDownload
2021-10-012.0ICA-M4580P



Quick Guide

DateVersionDescriptionDownload
2024-08-235.2[Release for hardware version 2.0.]
Add PSTI function.
2021-08-132.1[Releasse for hardware version 2.0.]
Modify contents of Quick Guide.
2021-05-192.0Initial release for ICA-M4580P(V2)



Utility

DateVersionDescriptionDownload
2023-06-021.5.0.220824_R2PLANET Search Tools
PLANET_Search_Tools Program Regular Update.
2023-05-0522.1.16.230204_R2PVMS Program Regular Update.
